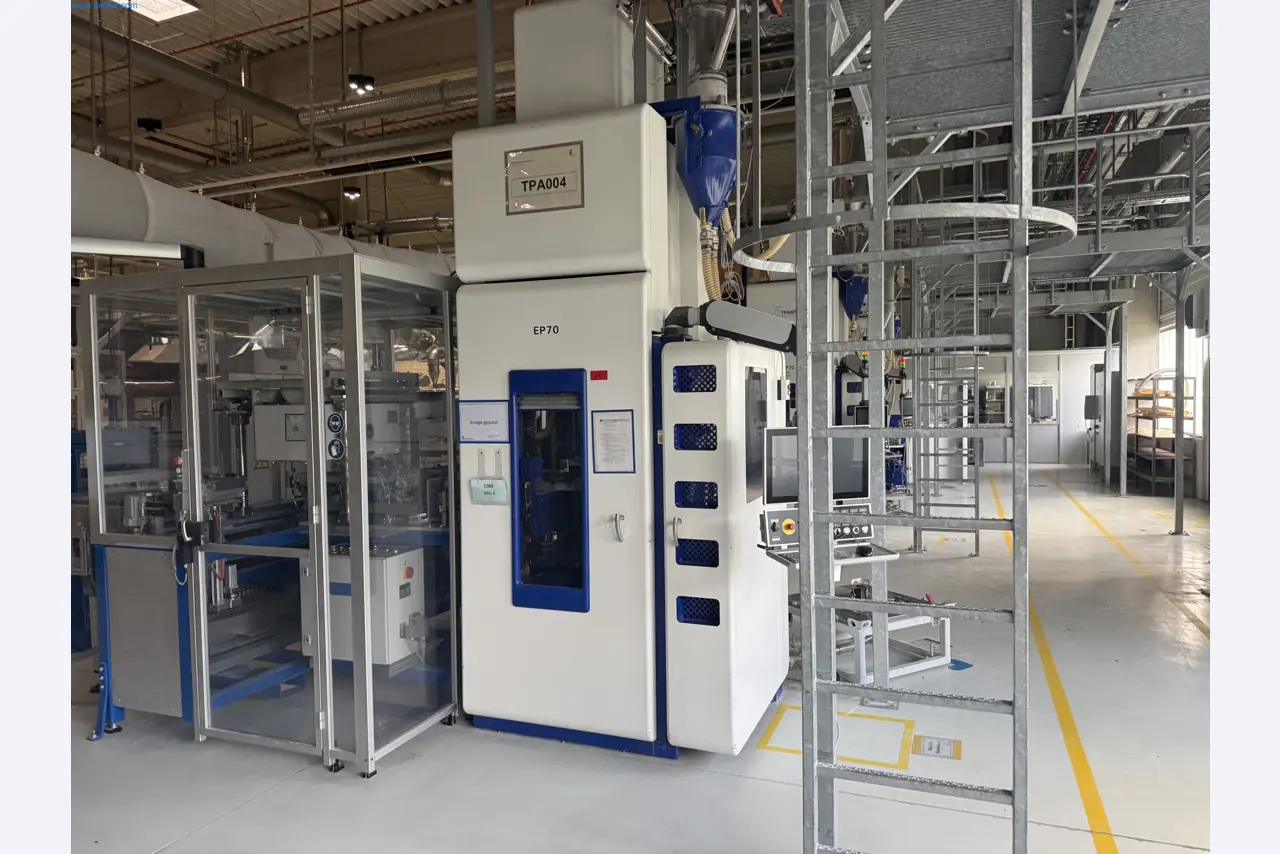

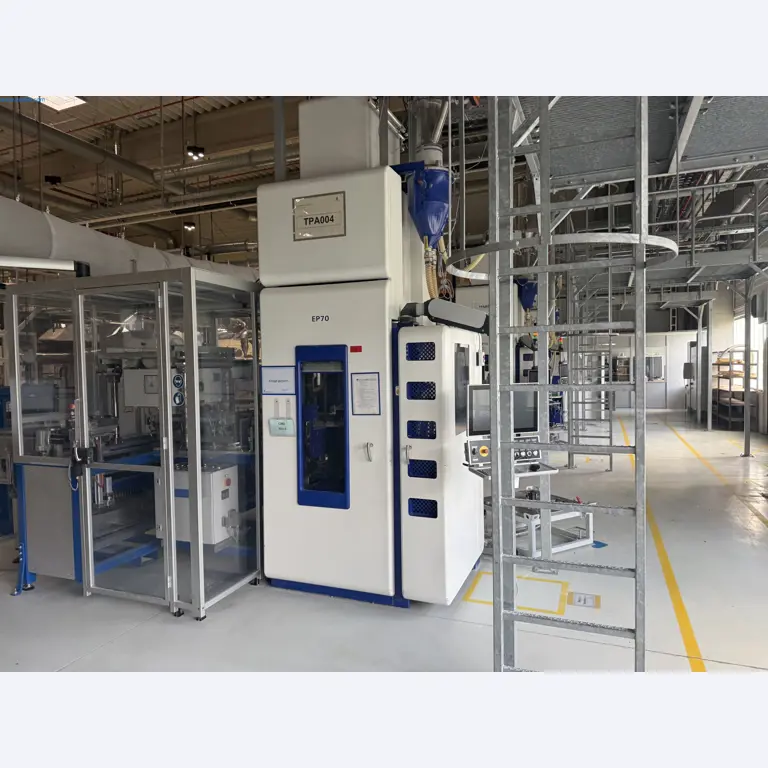

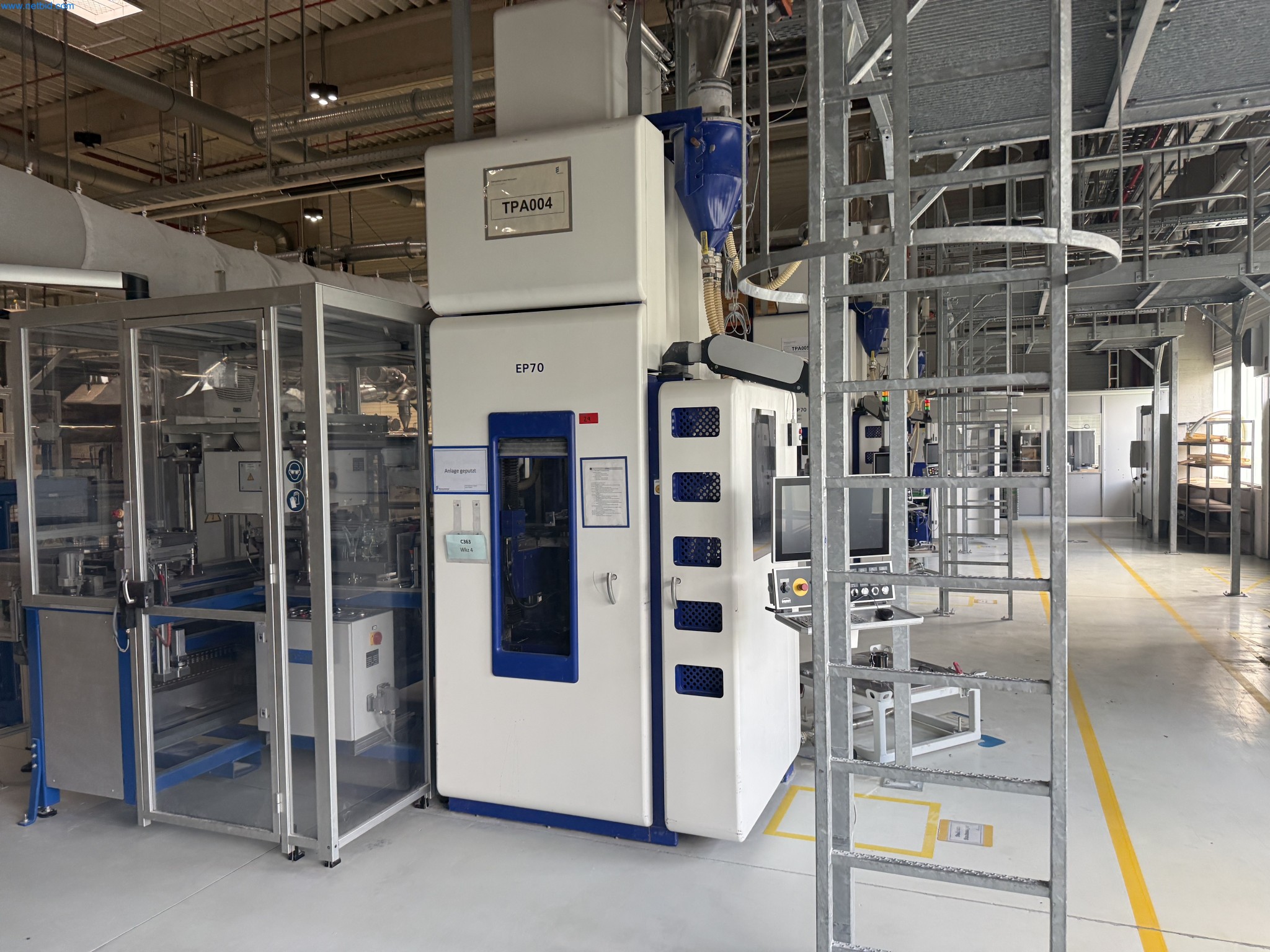

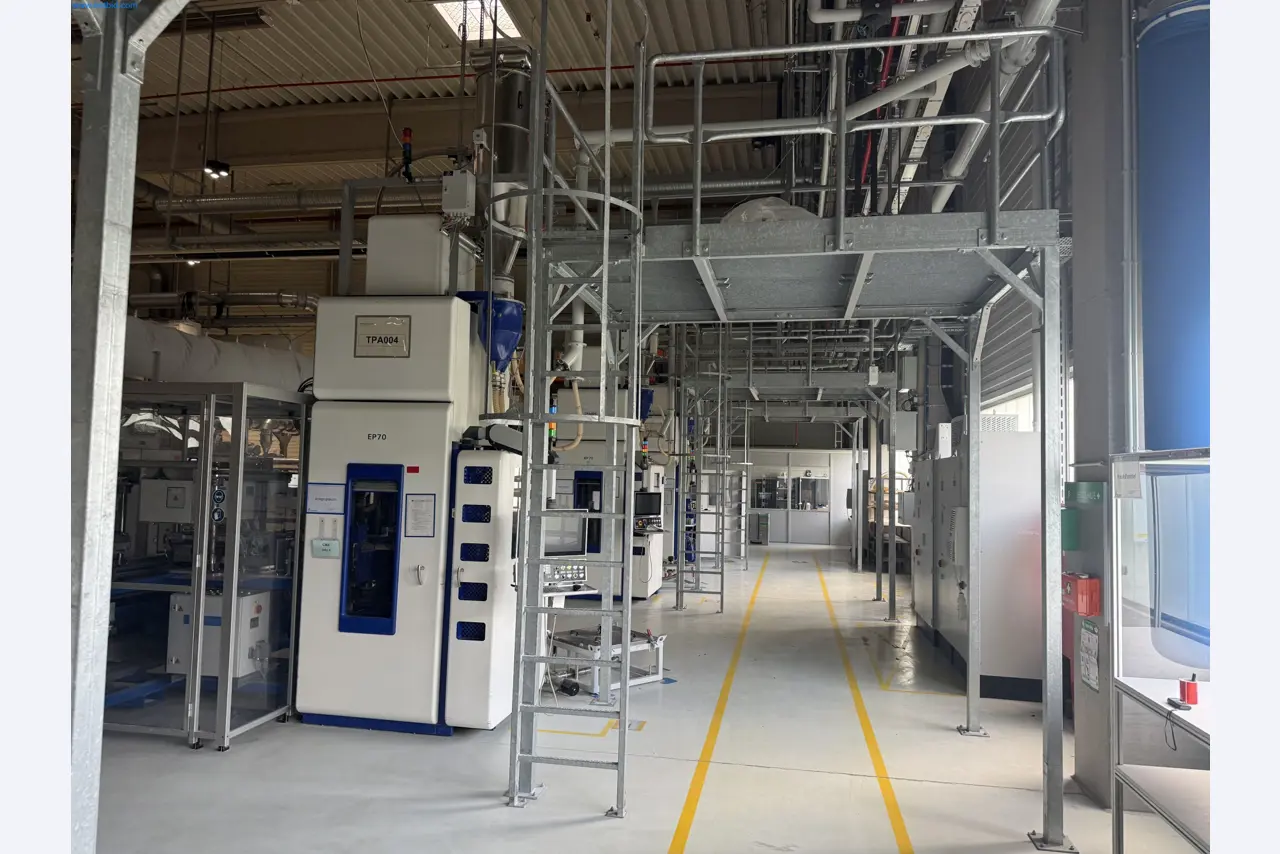

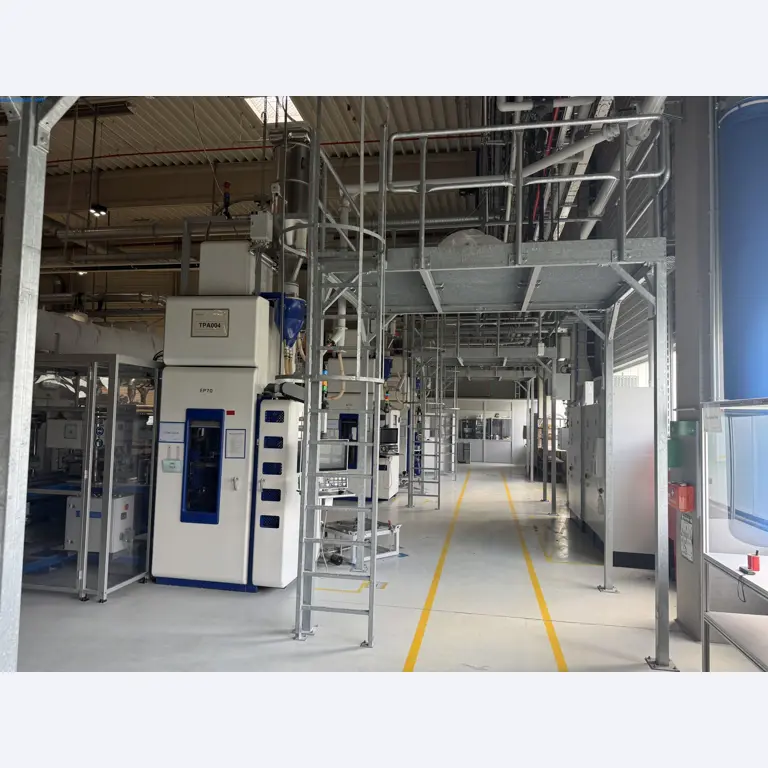

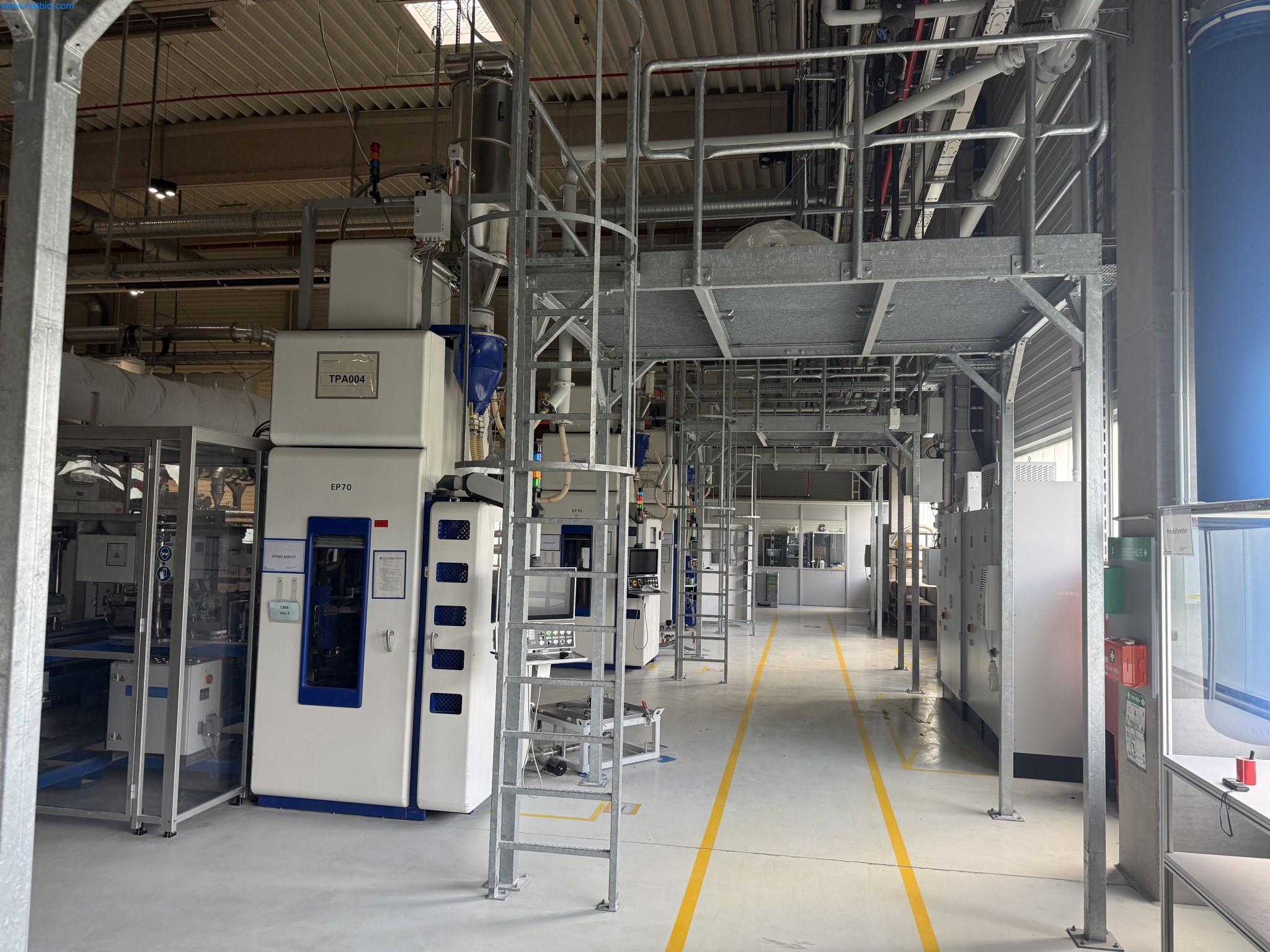

Automatic Dry Press (TPA004) Dorst EP70AUCTION#19683-29/1

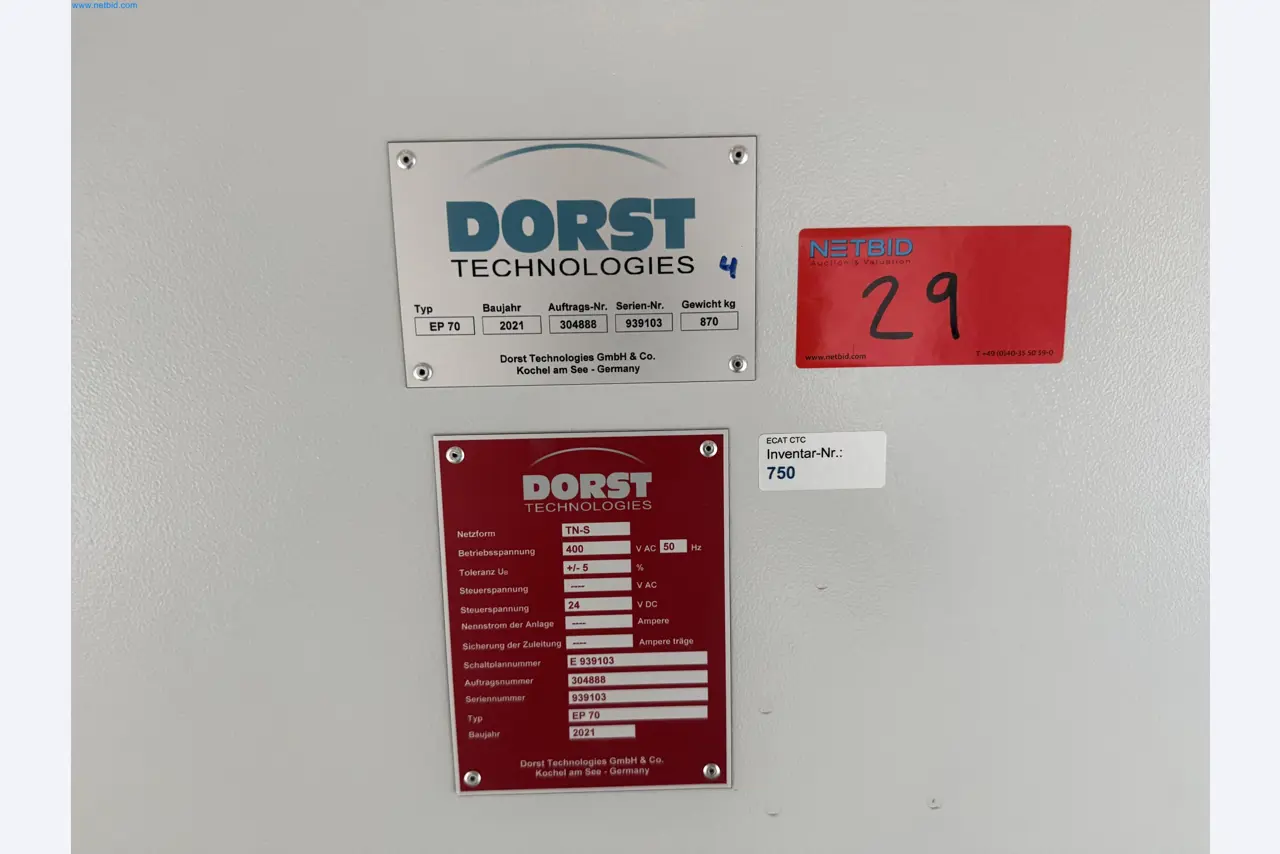

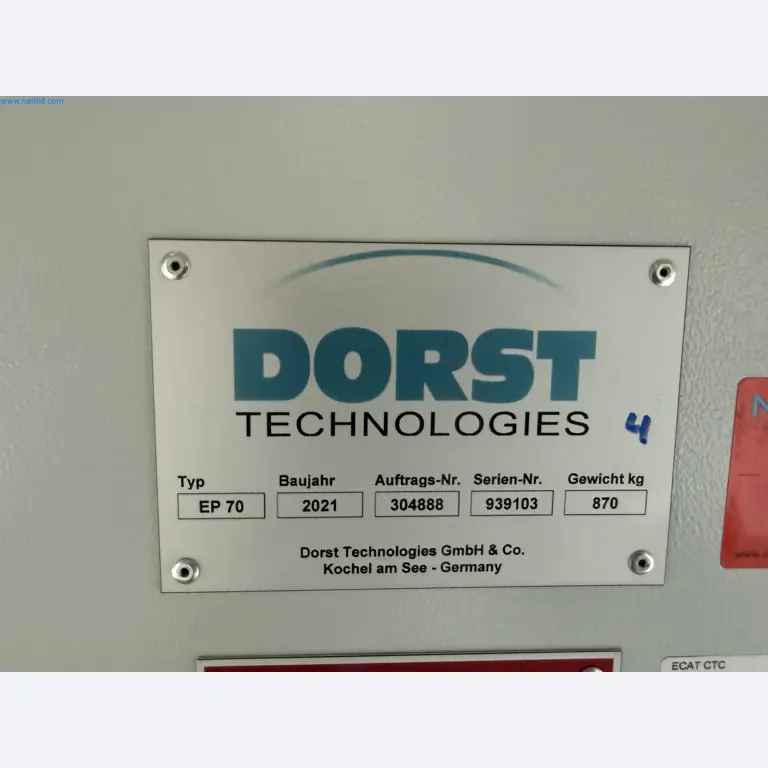

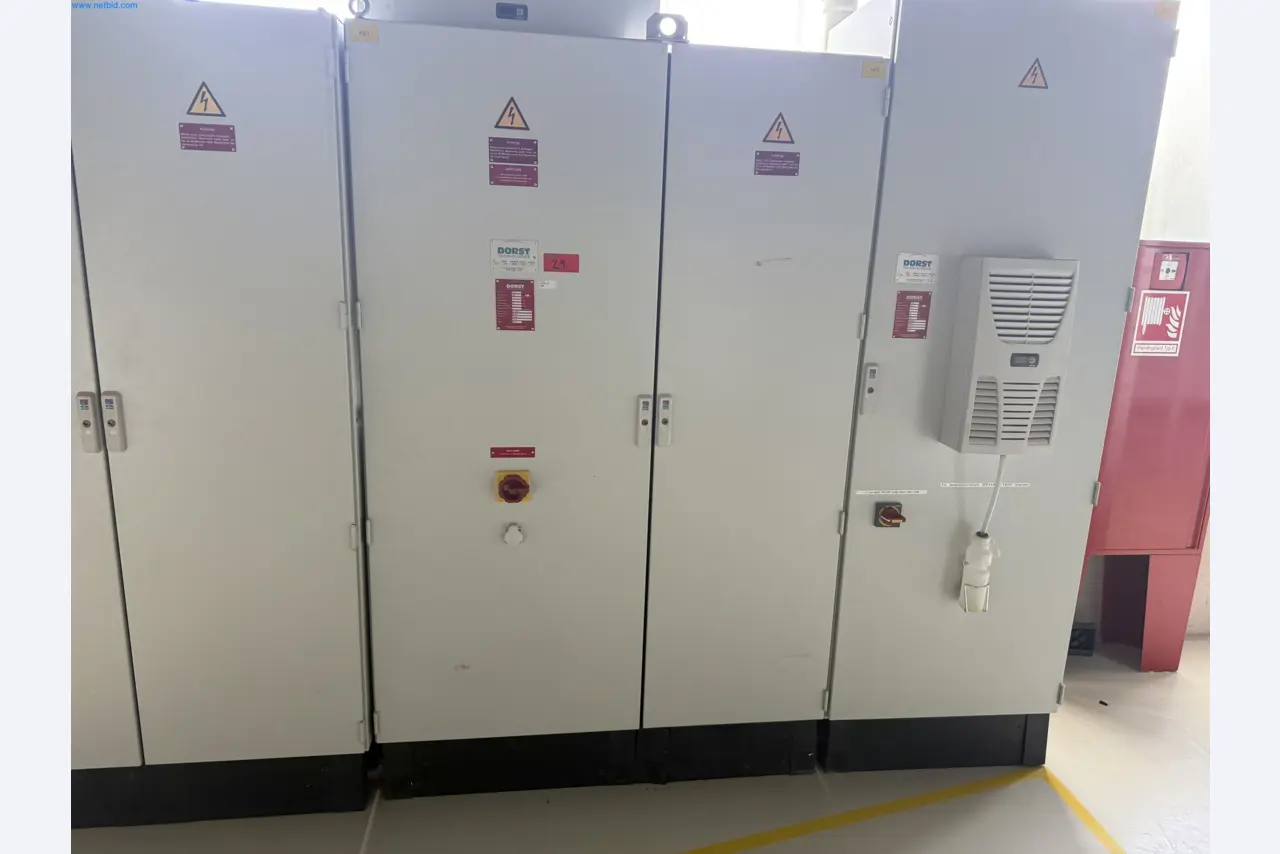

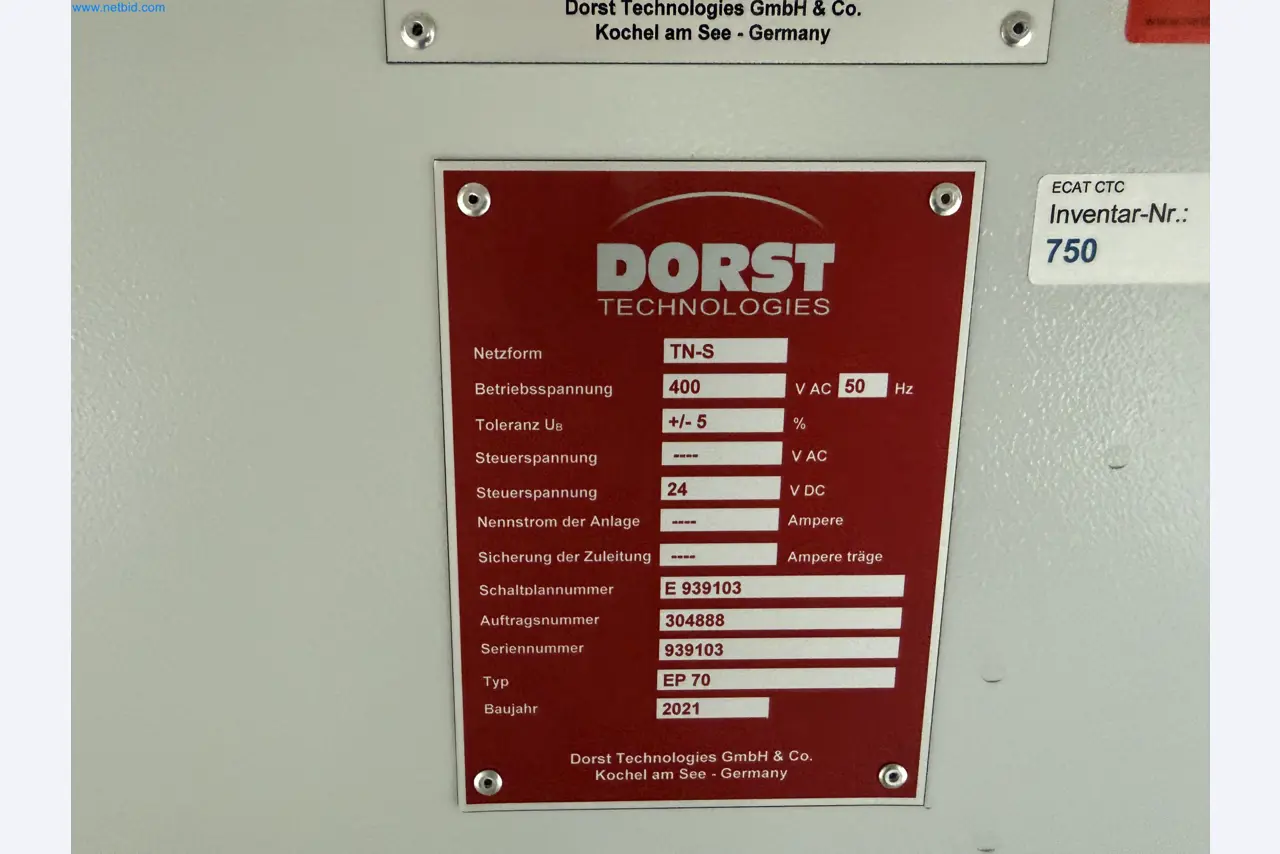

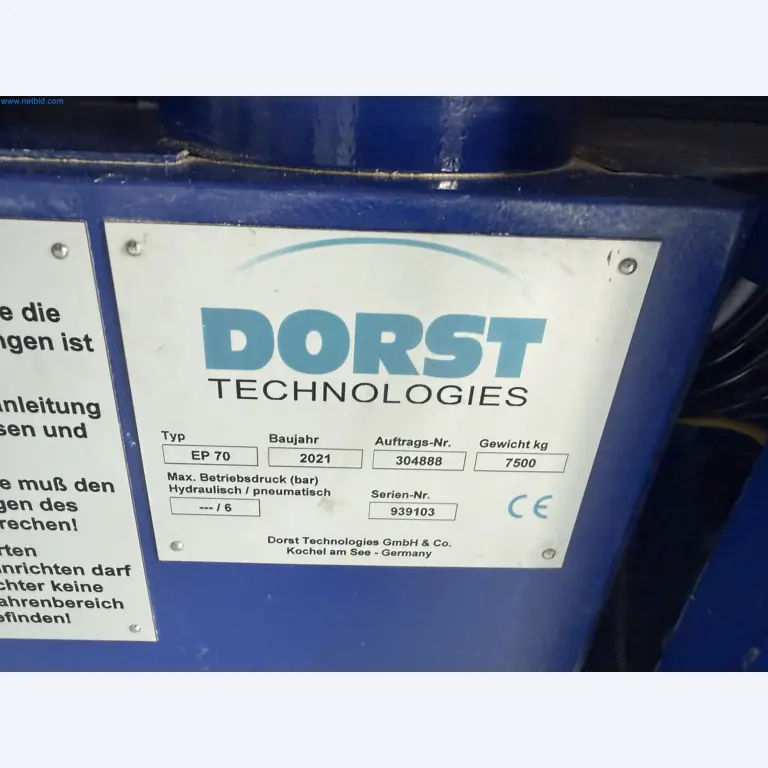

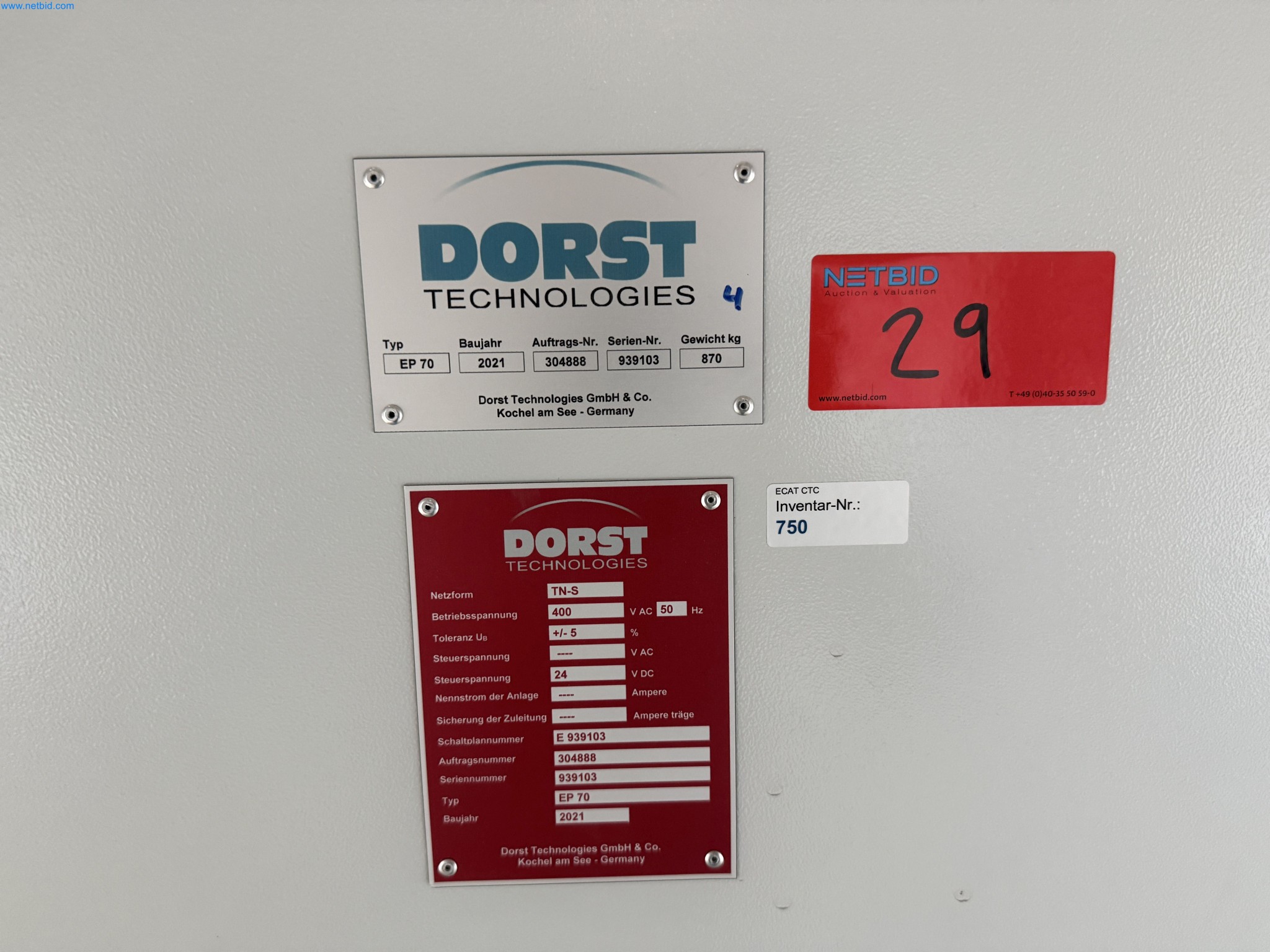

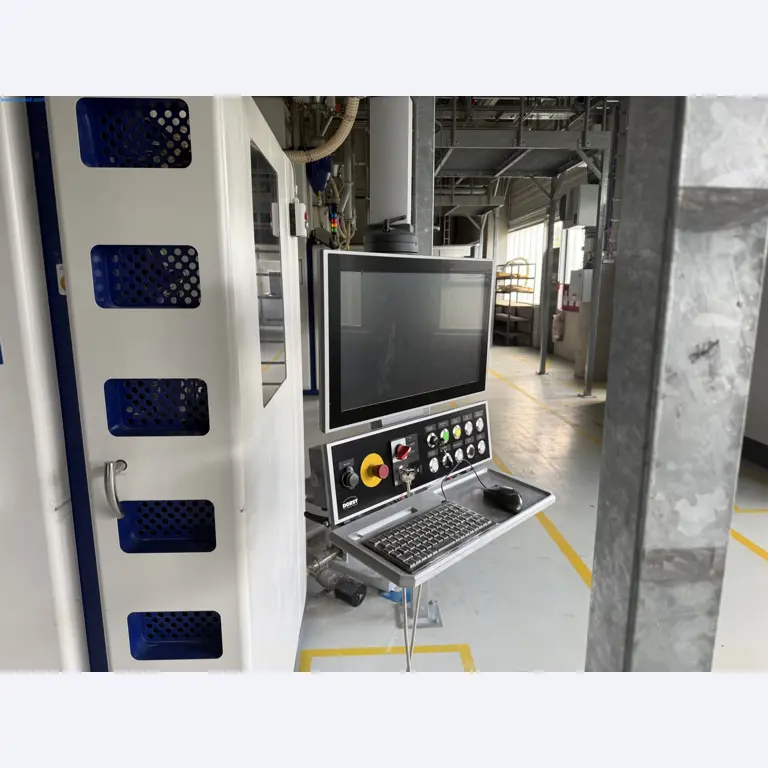

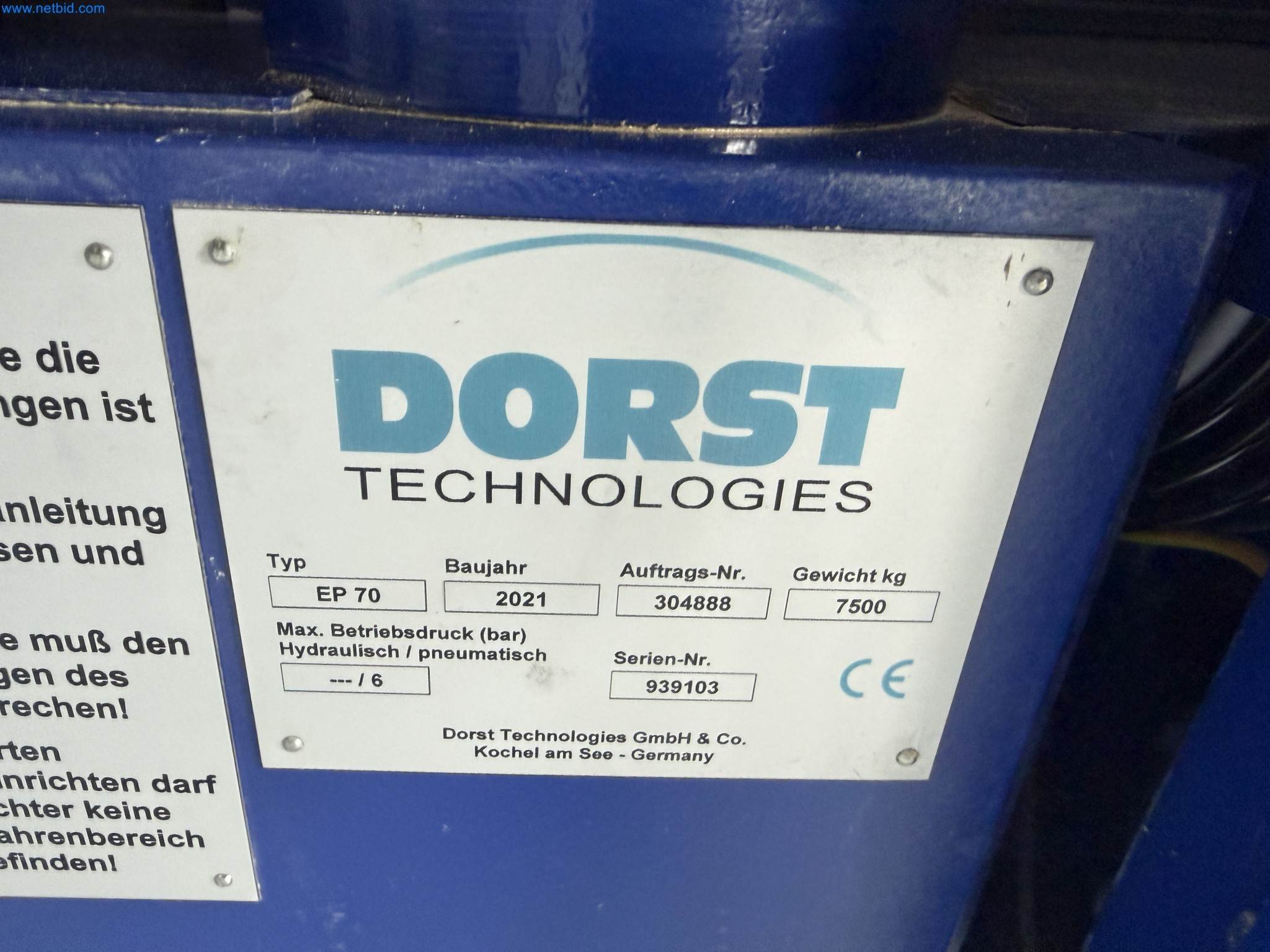

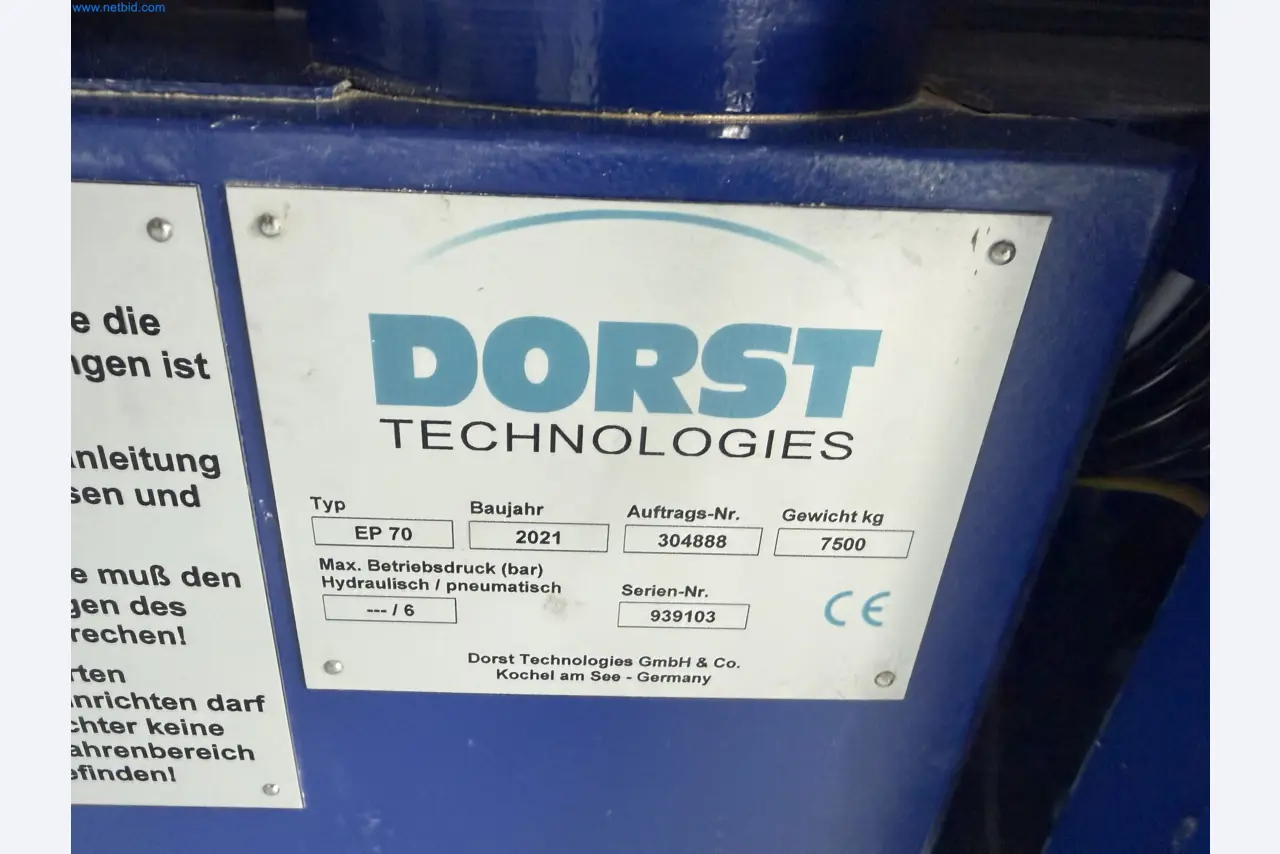

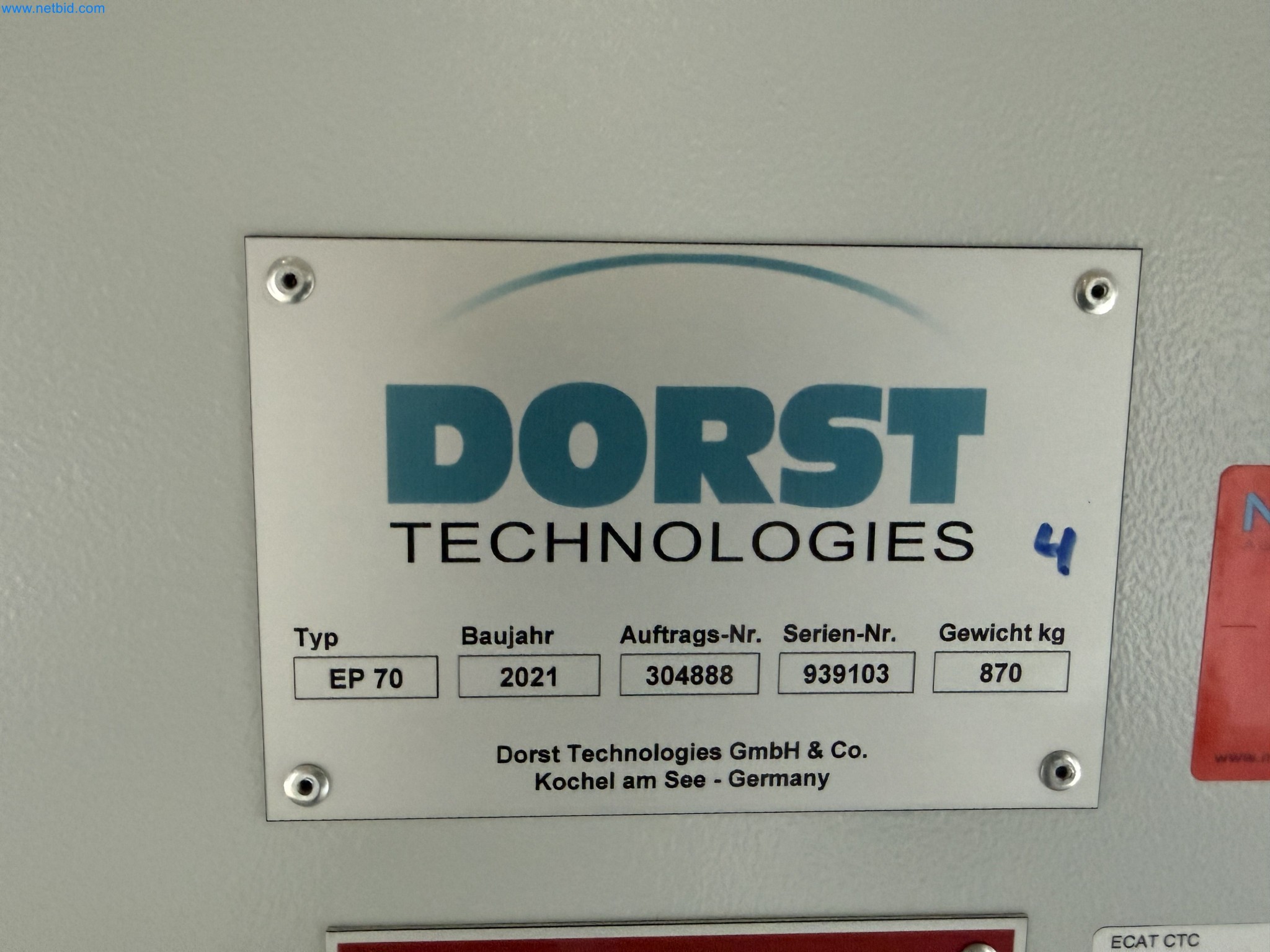

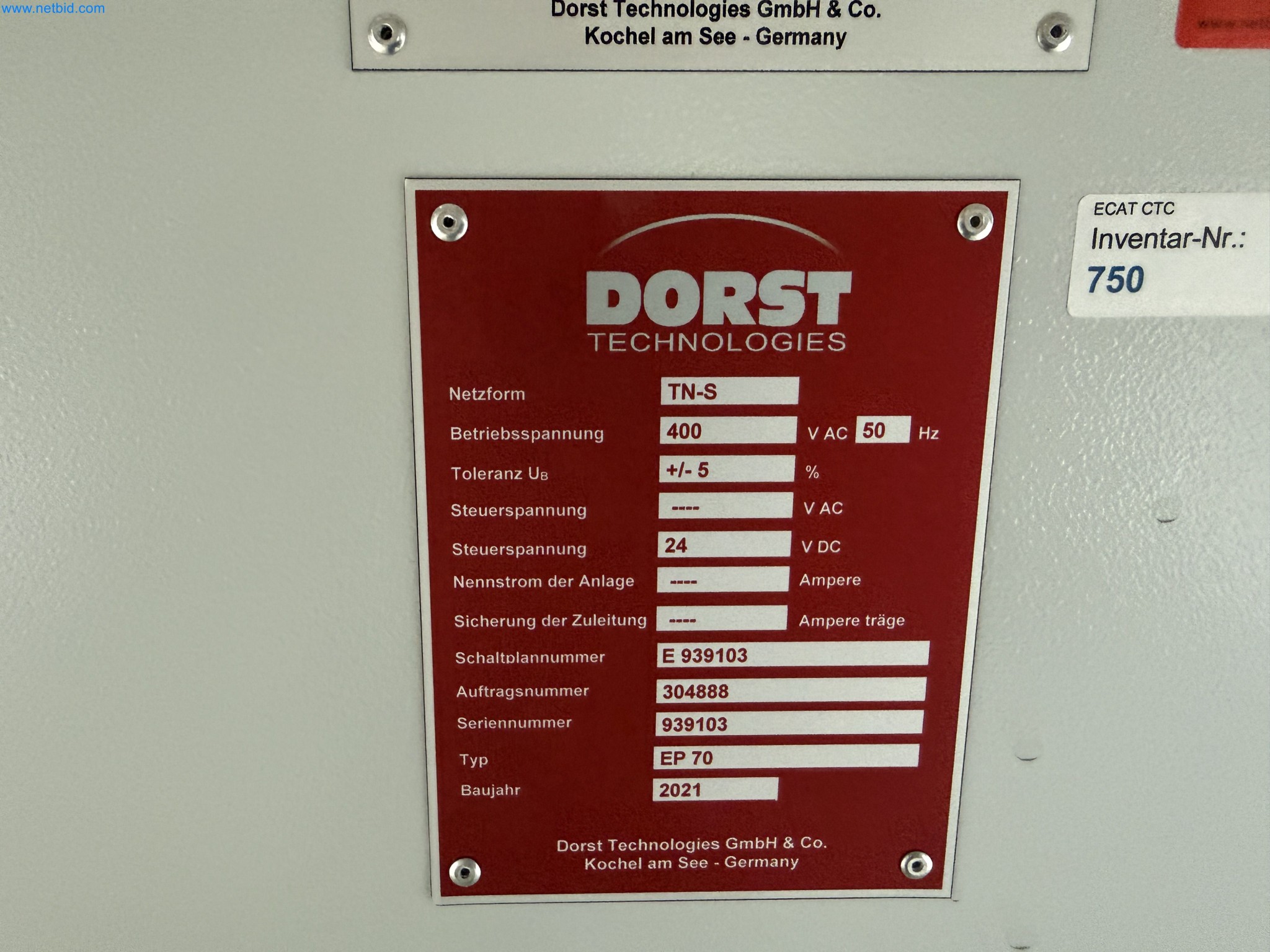

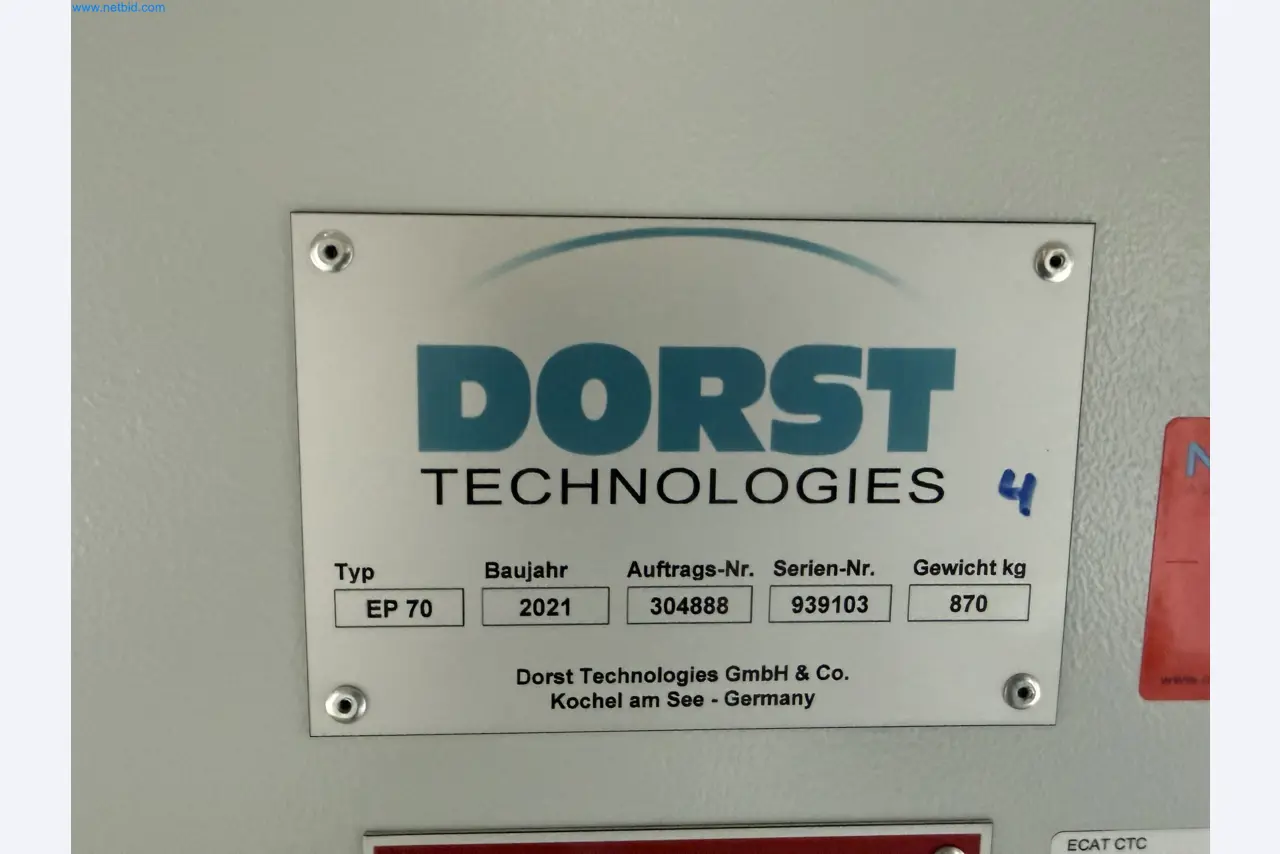

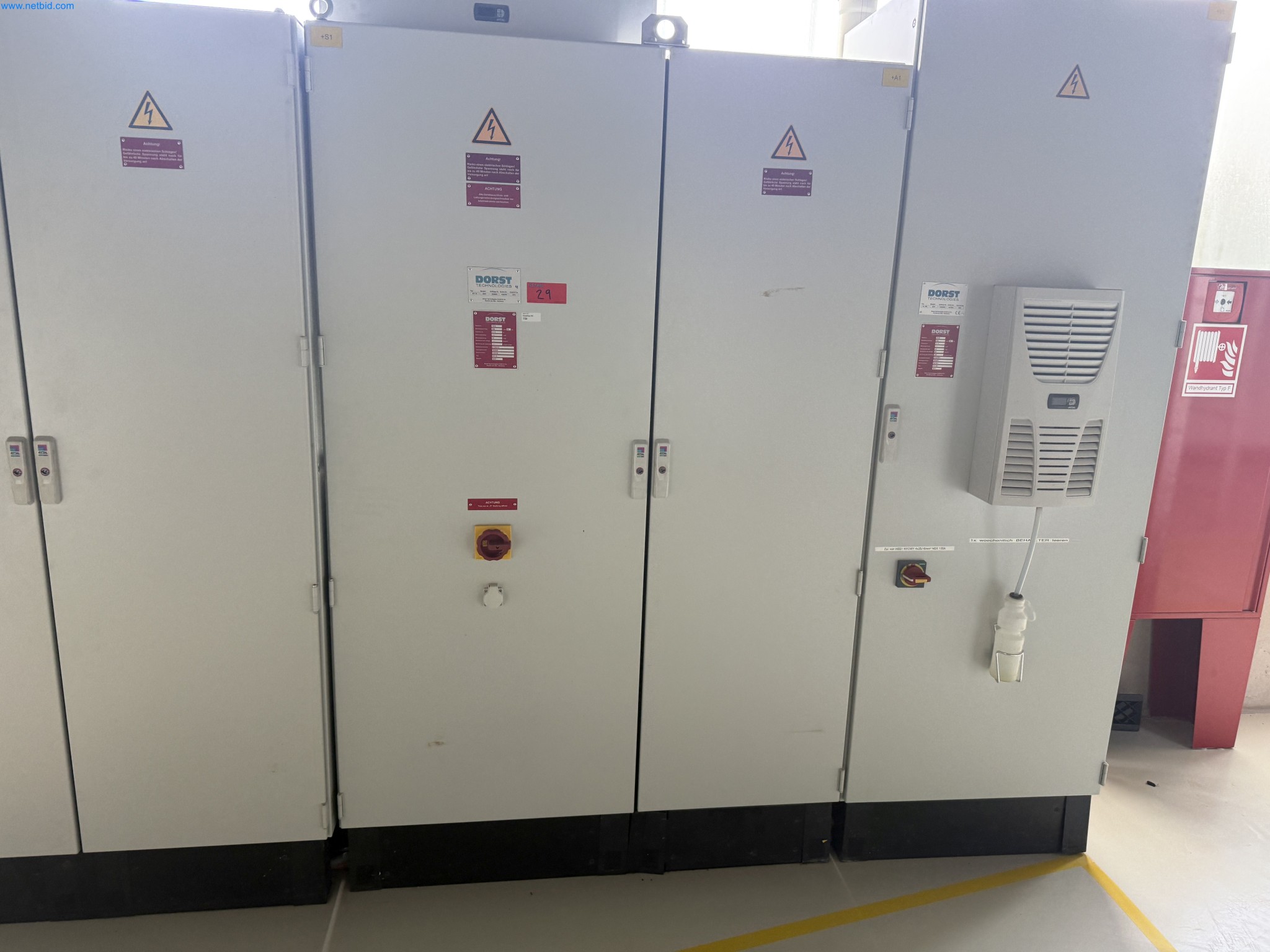

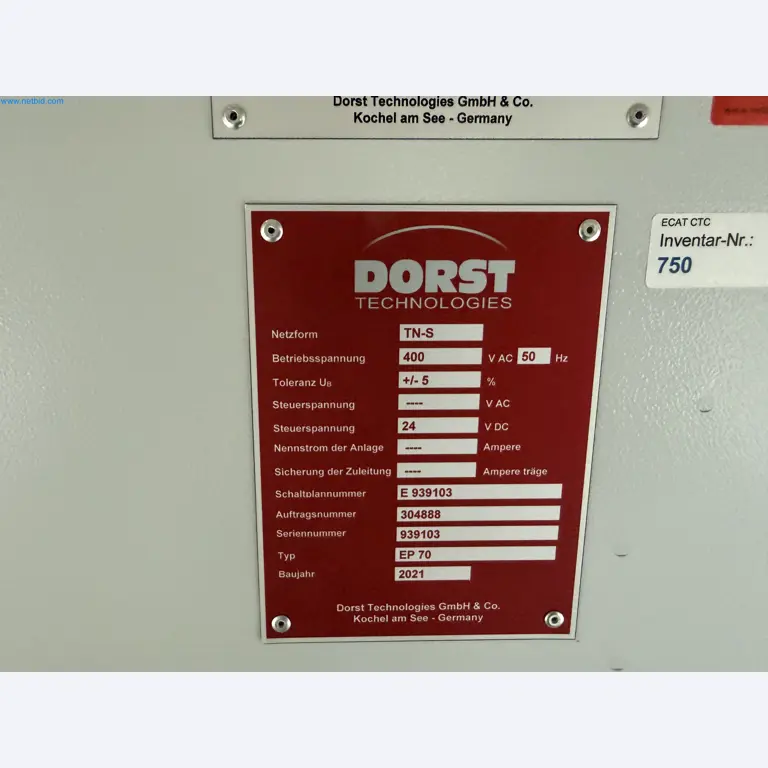

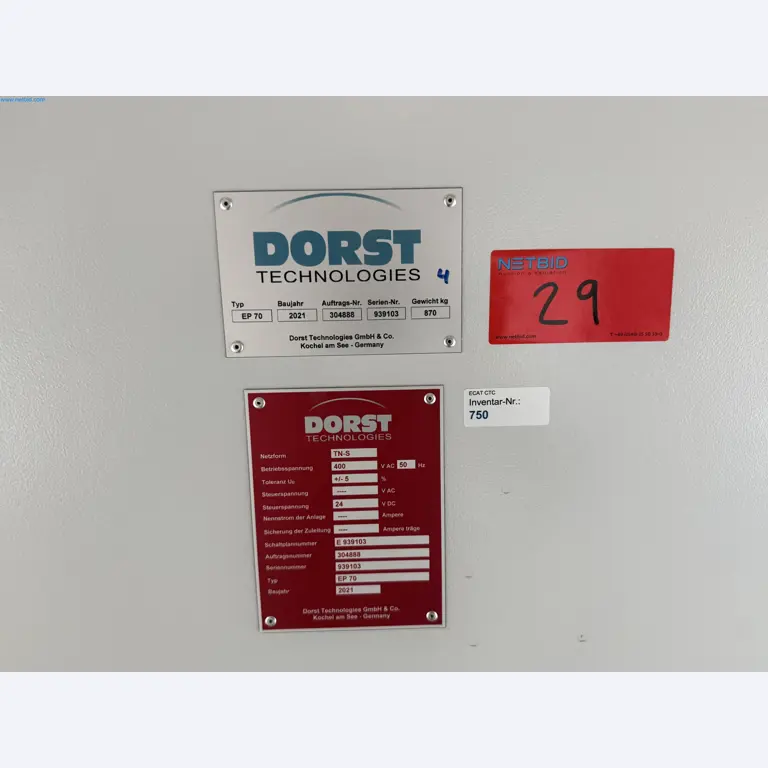

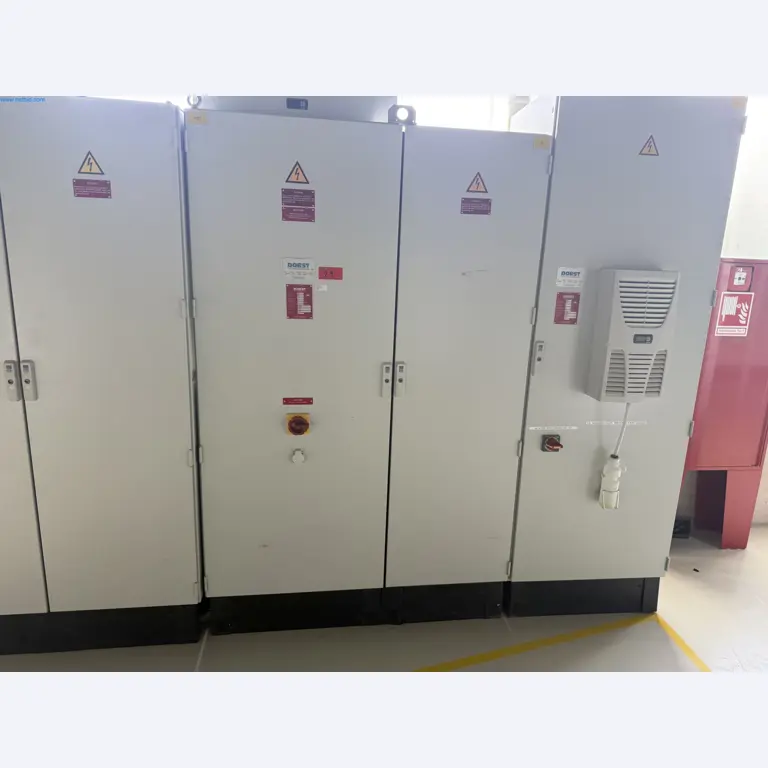

Total operating hours: 12,801.47 h, net weight: 7,500 kg, with control cabinet, manufacturer: Dorst, model: EP70, year of manufacture: 2021, serial number: 939103, Net weight 870 kg, machine platform, without installation system, maximum upper pressing force 700 kN, maximum upper stroke 300 mm, load force 7–700 kN; Pulling and holding force at bottom, each max. 200 kN, stroke at bottom max. 150 mm, filling height max. 130 mm; center pin max. 46 kN, stroke 150 mm; Filler stroke: max. 235 mm; Connected load: approx. 18 kW (average approx. 7 kW), 400 V AC, control voltage 24 V DC; Compressed air 6 bar, approx. 50 Nl/min; cooling water approx. 600 l/h; bearing oil approx. 35 l; press dimensions approx. 1530 x 1290 x 3920 mm (W x D x H), Electrical cabinets approx. 2,400 x 800 x 2,200 mm, energy buffer cabinet approx. 800 x 600 x 2,400 mm; net weight approx. 6,850 kg; Bachmann SLC284 control system, Siemens Sinamics S120 drives; sound pressure level 67 dB(A).
