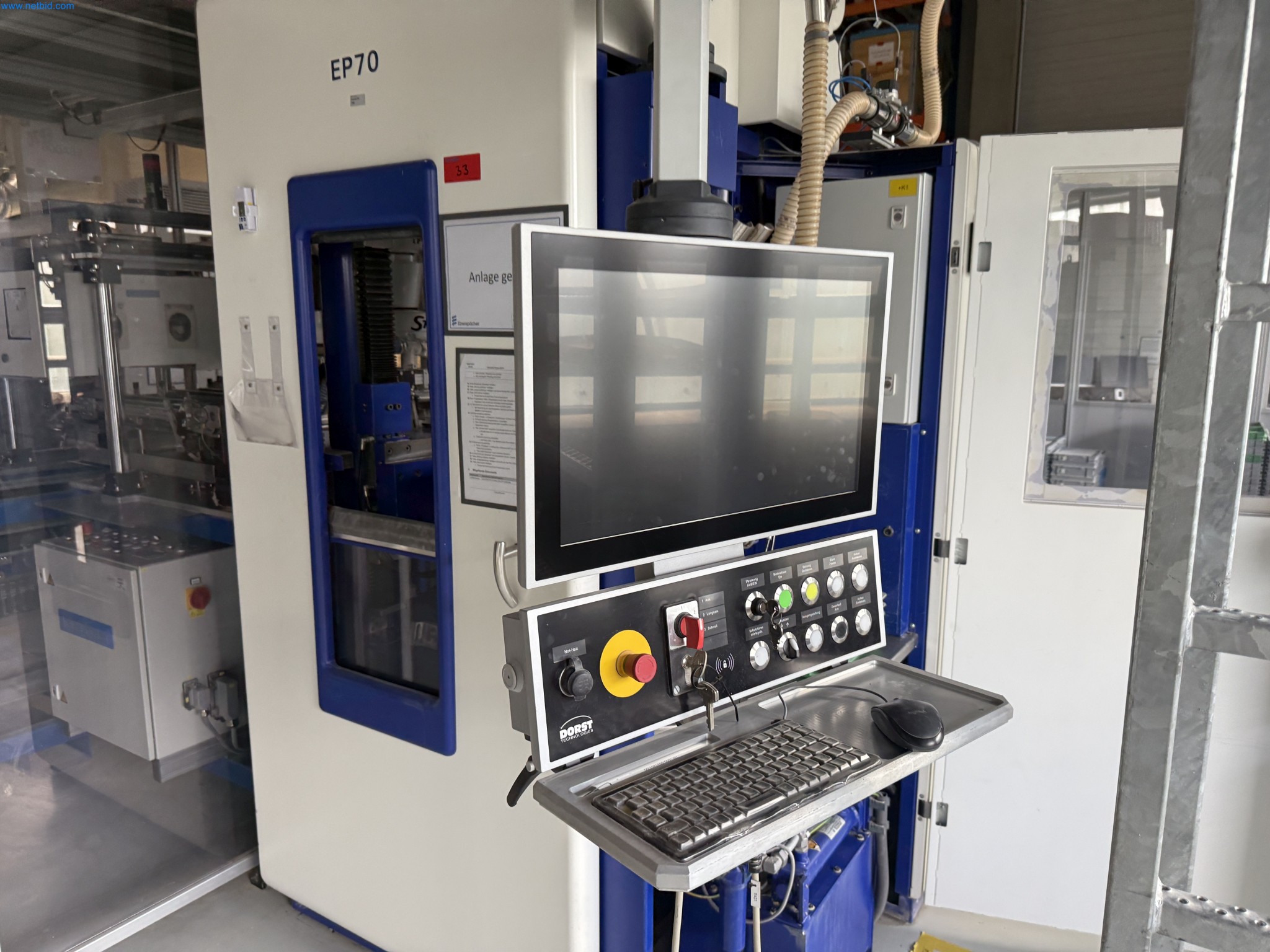

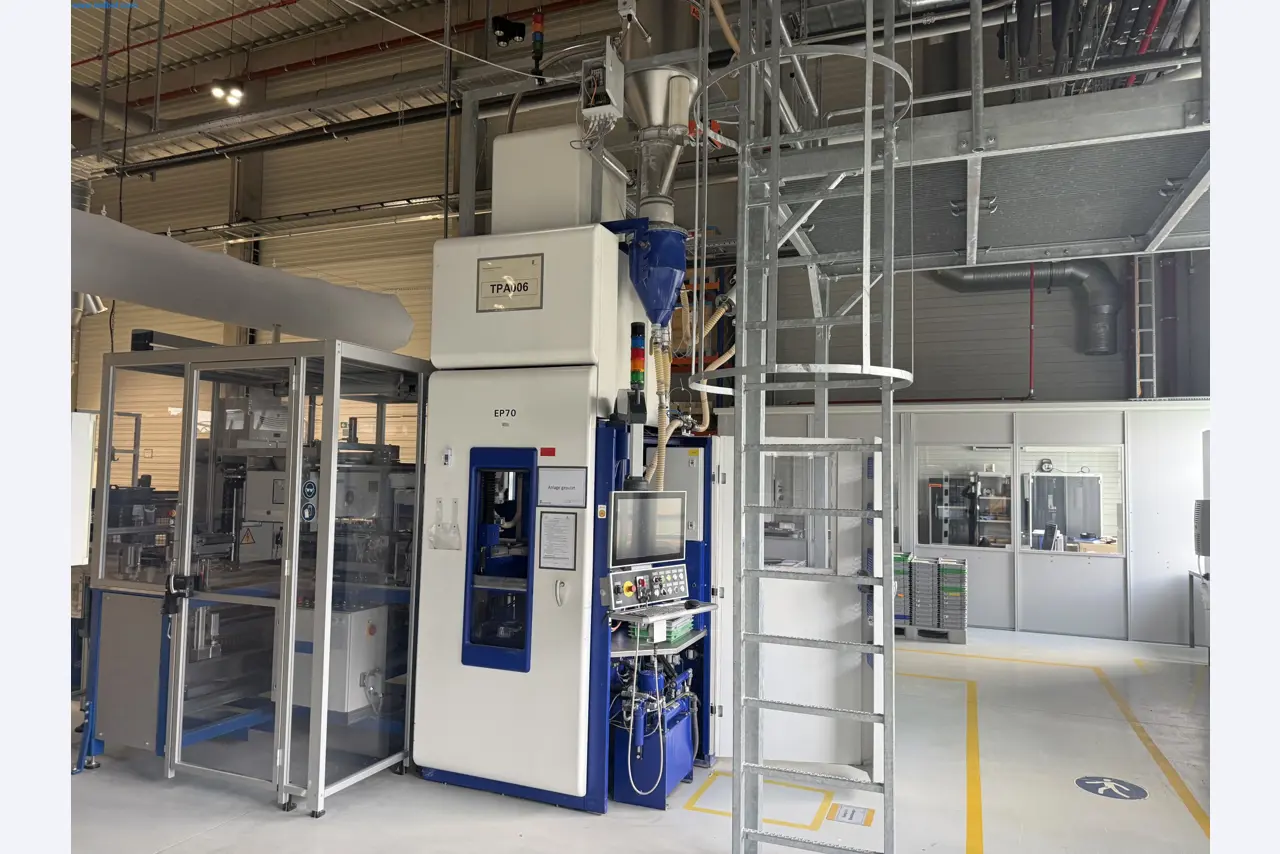

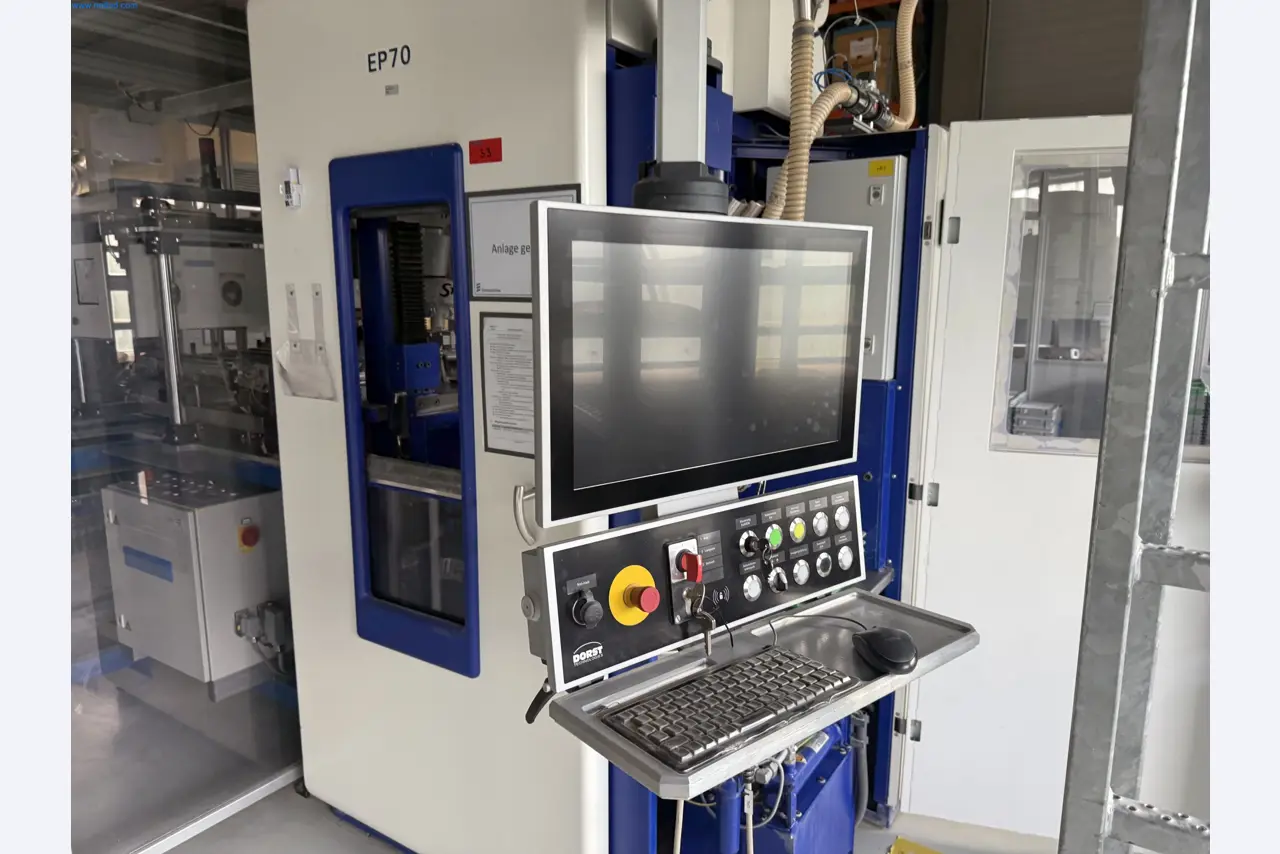

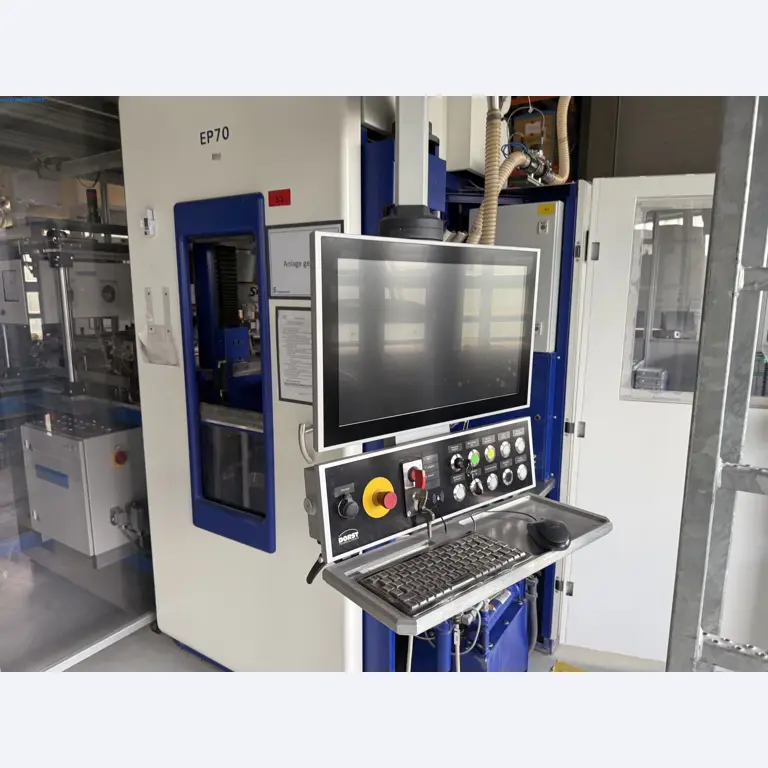

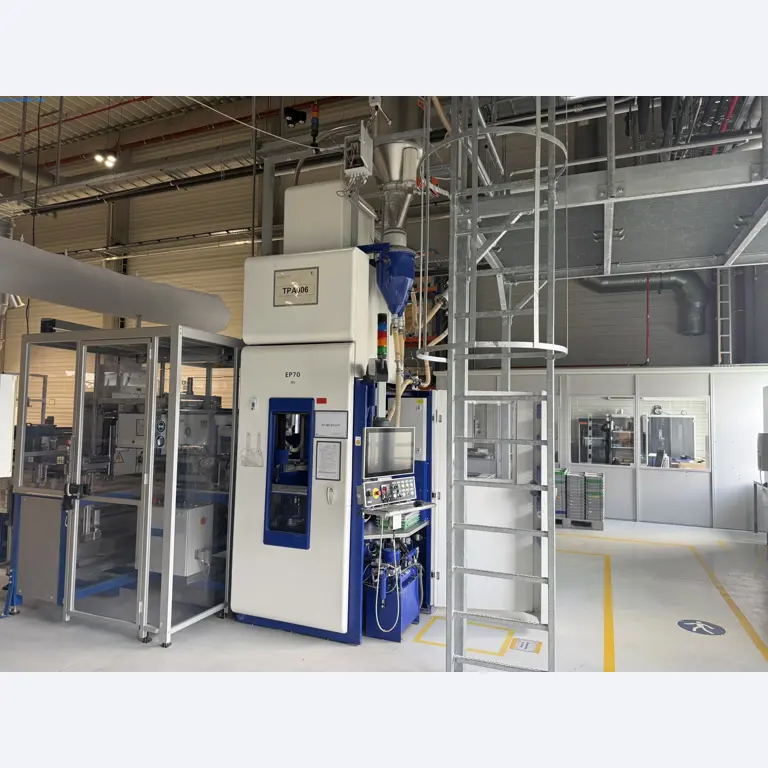

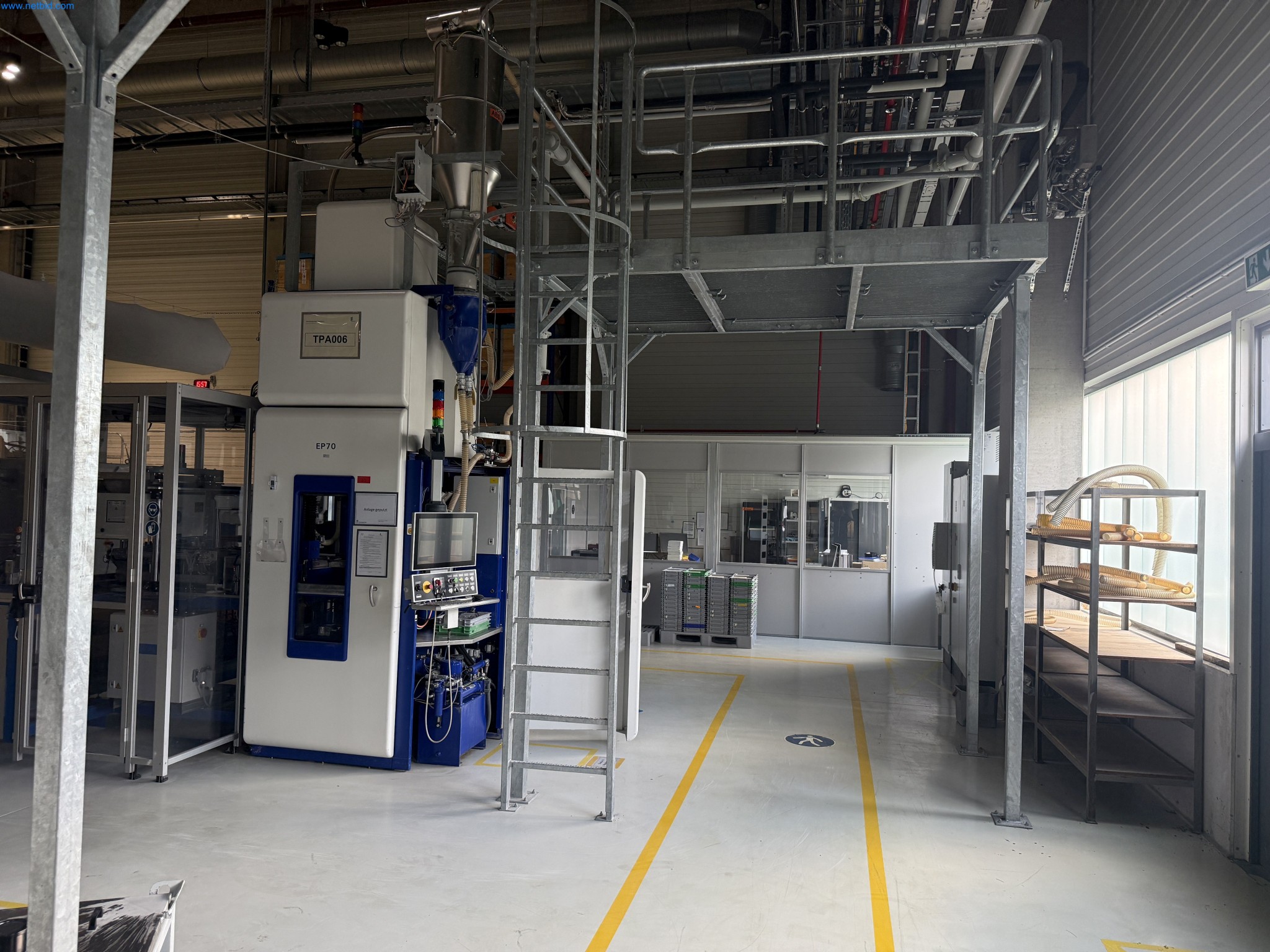

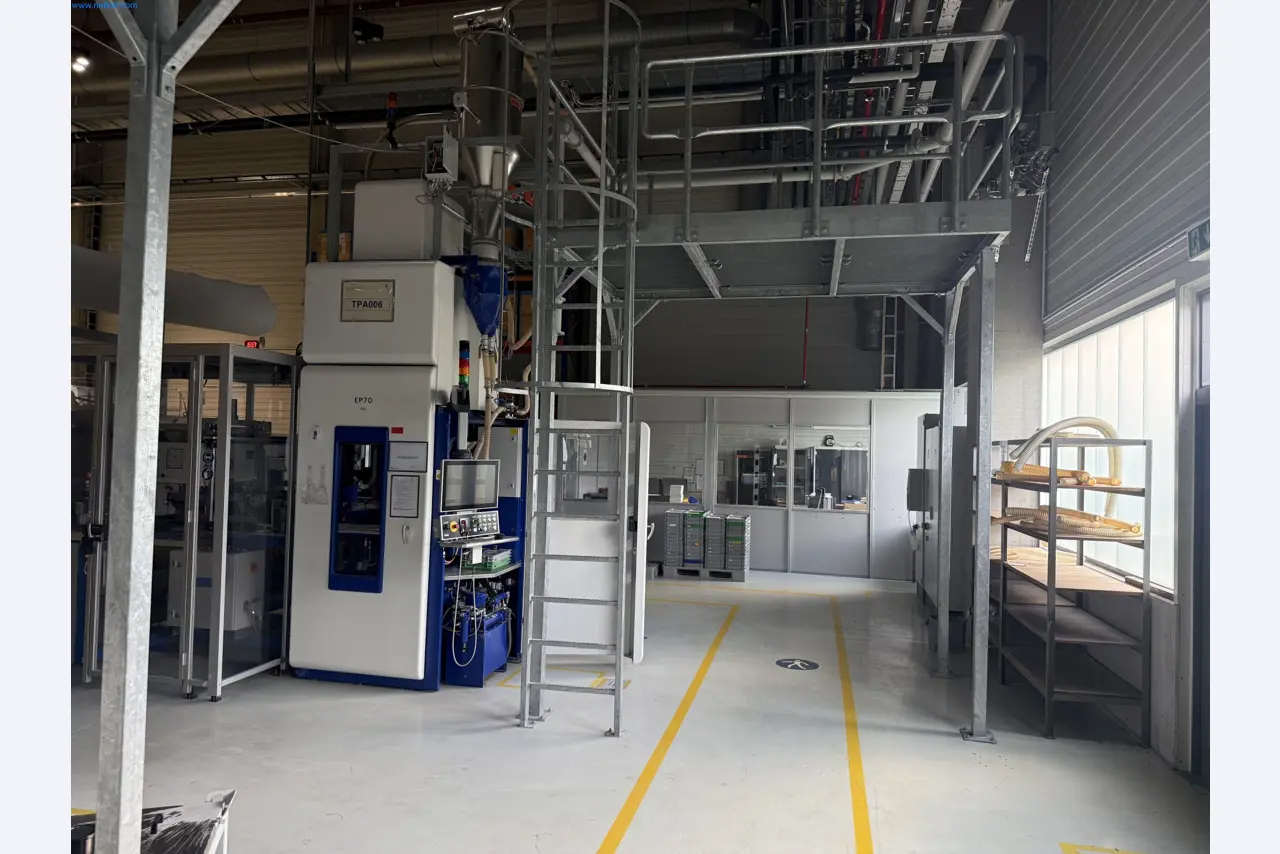

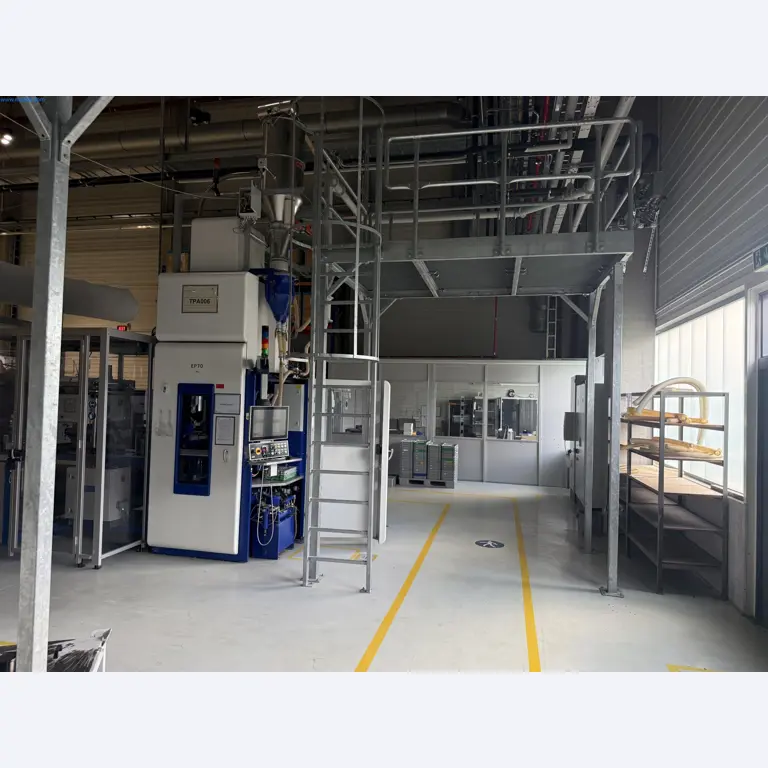

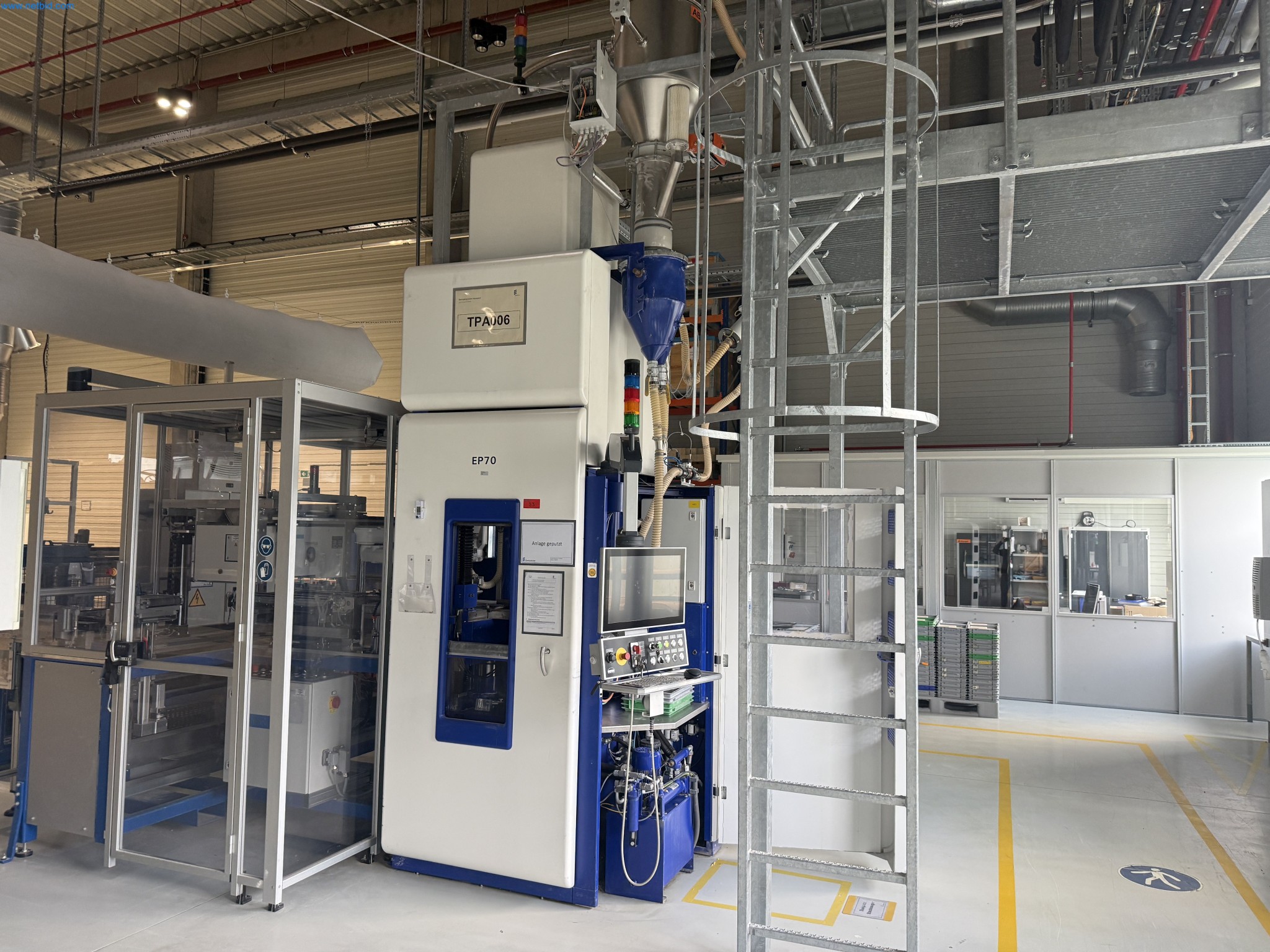

Automatic Dry Press (TPA006) Dorst EP70AUCTION#19683-33/1

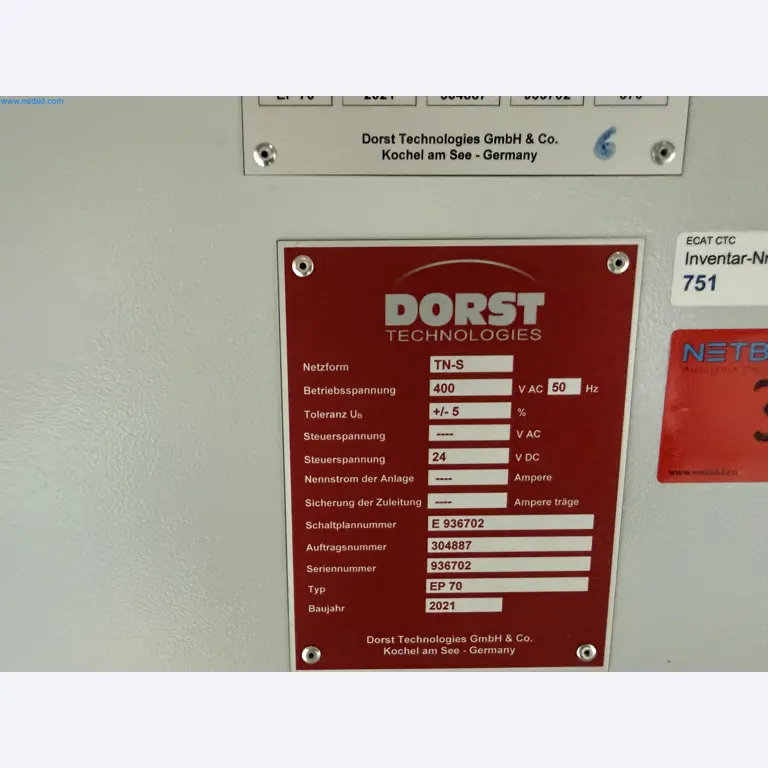

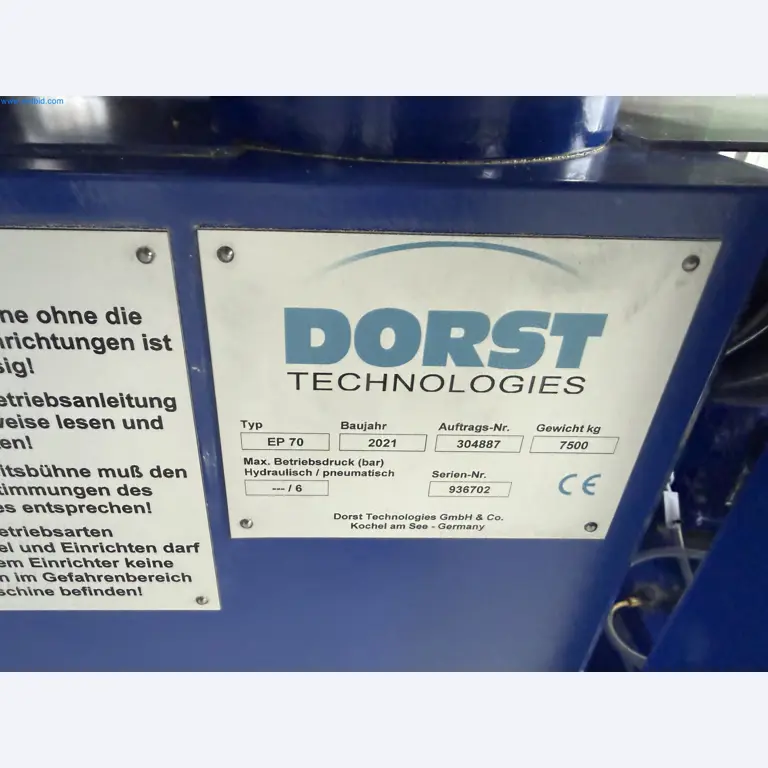

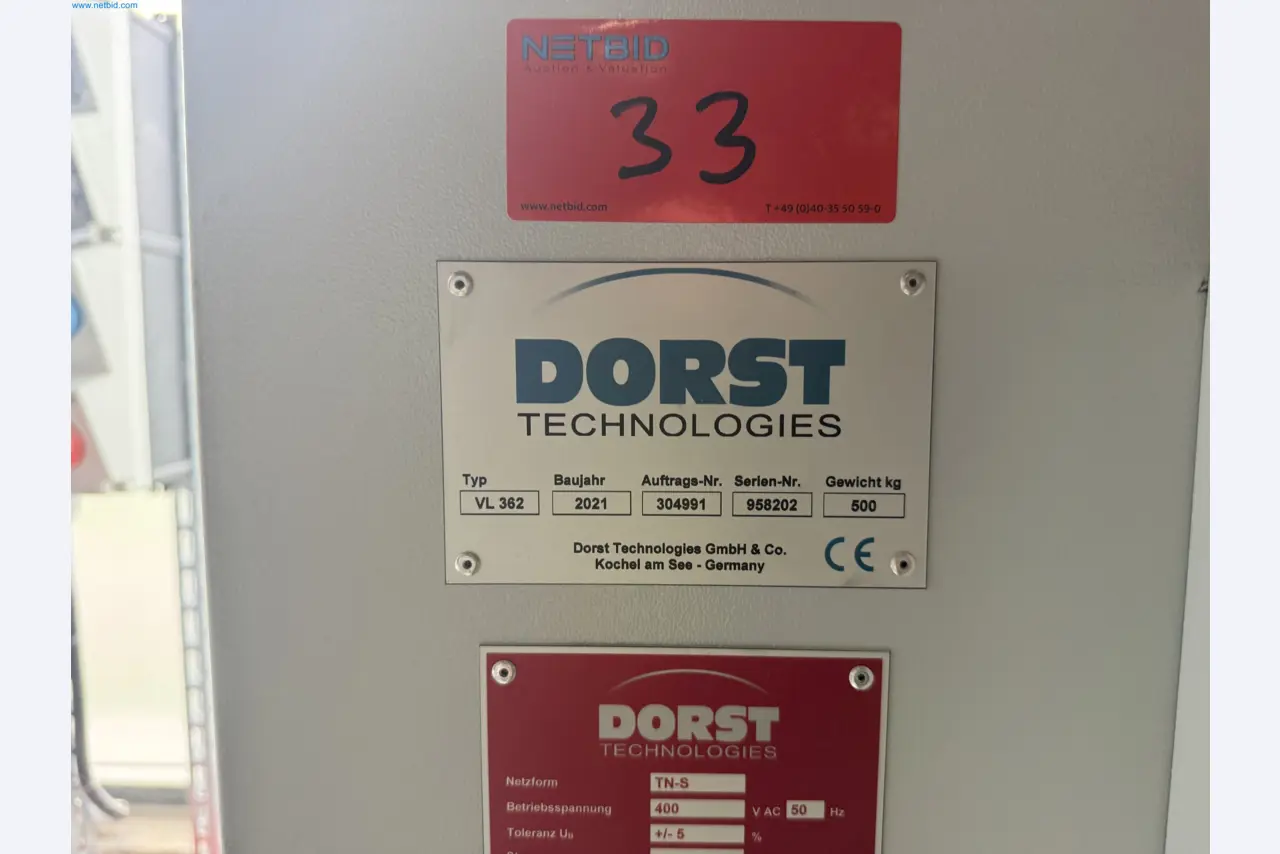

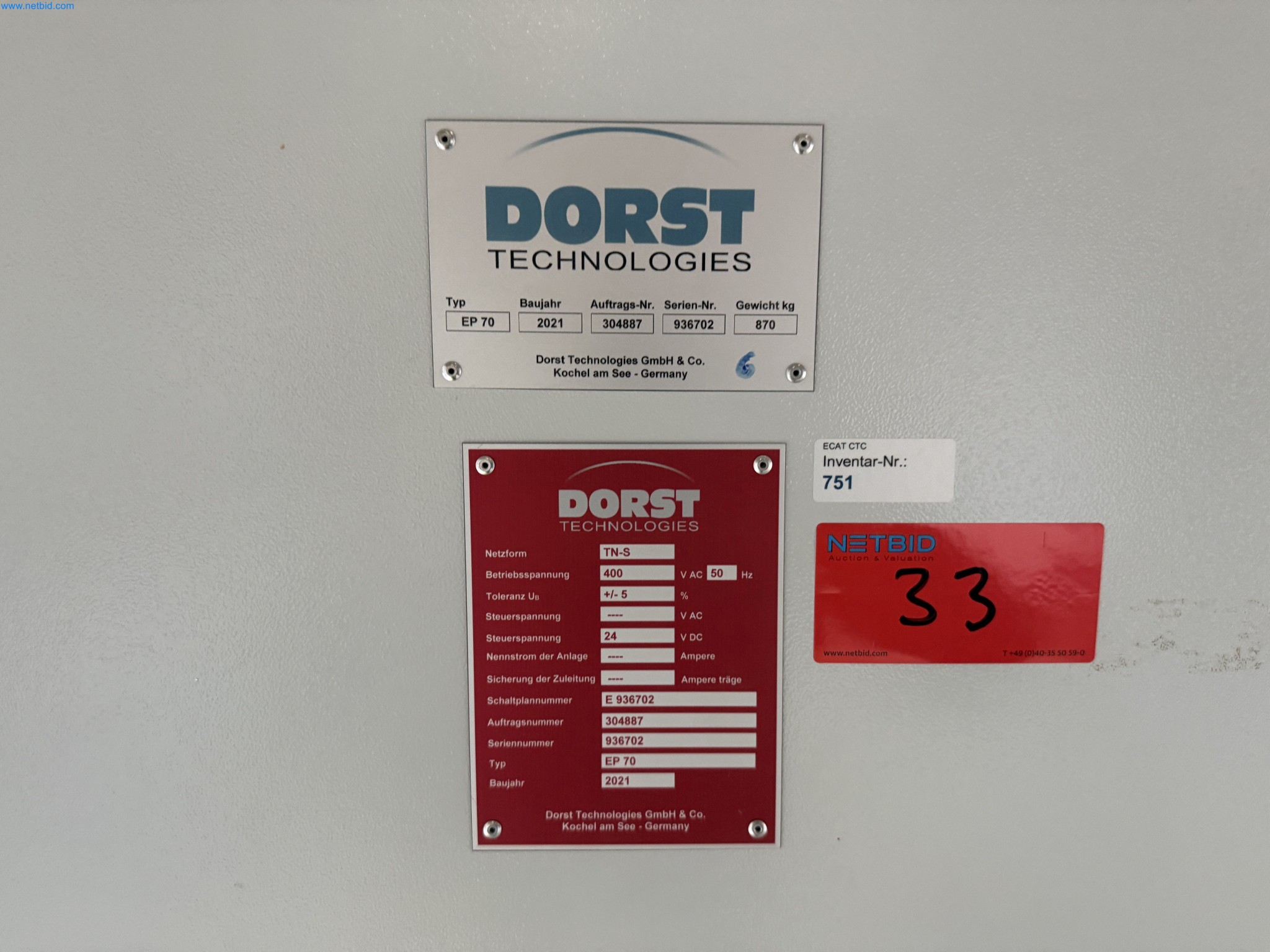

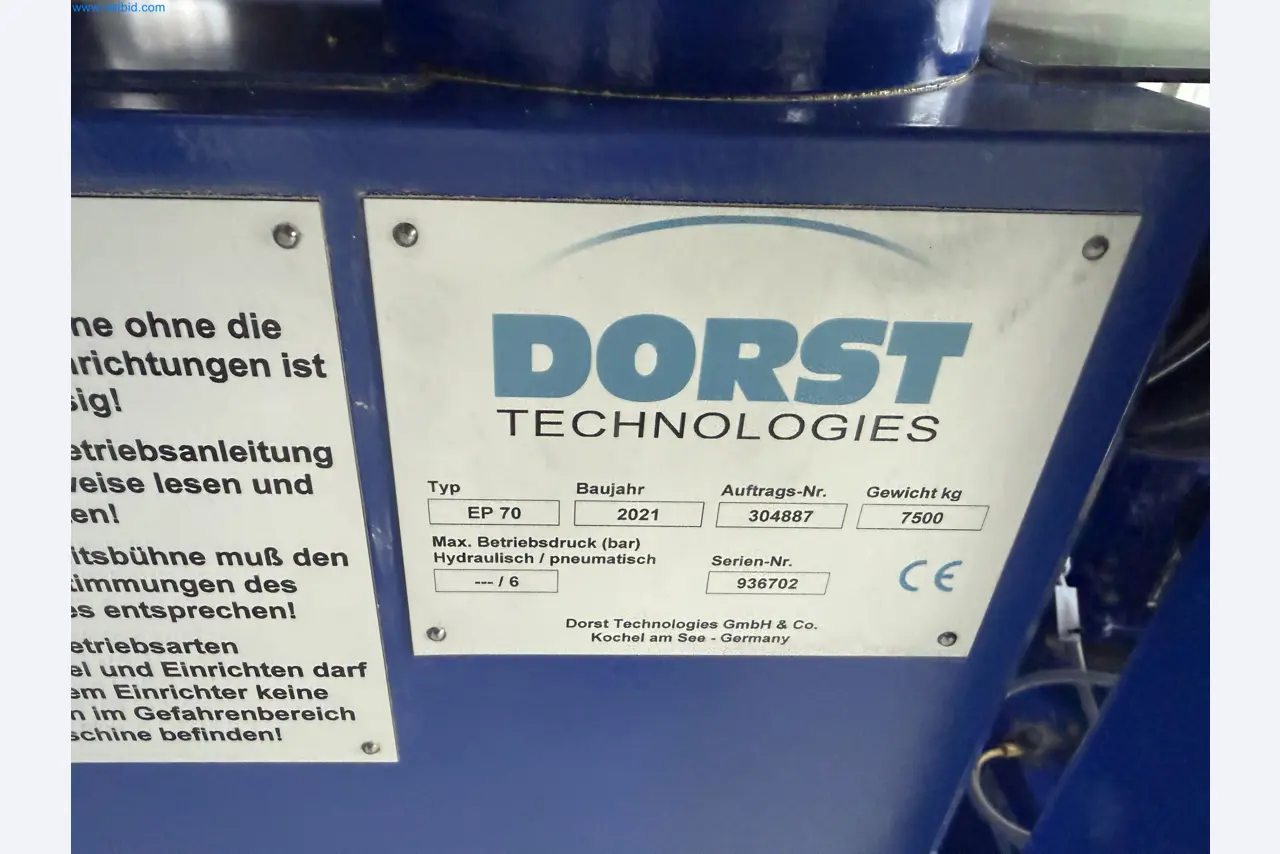

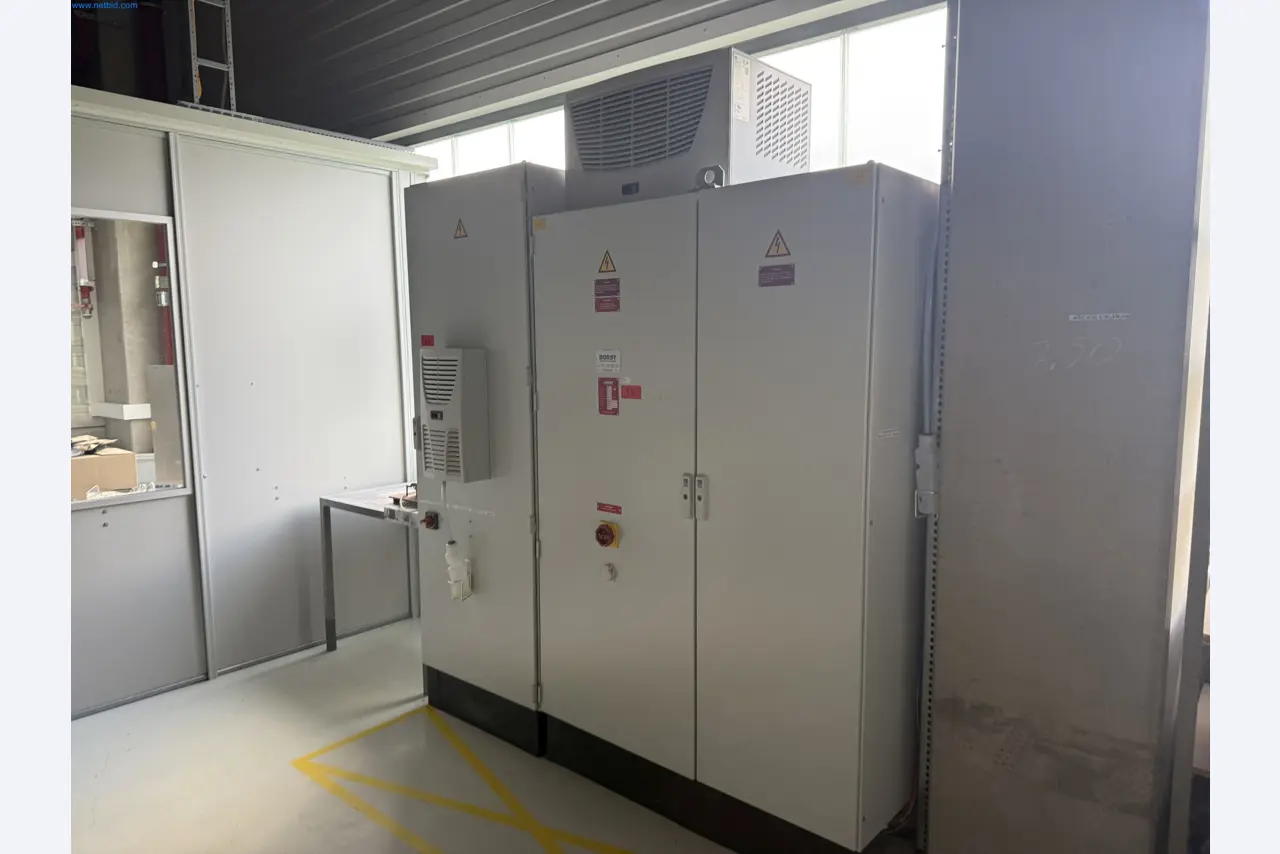

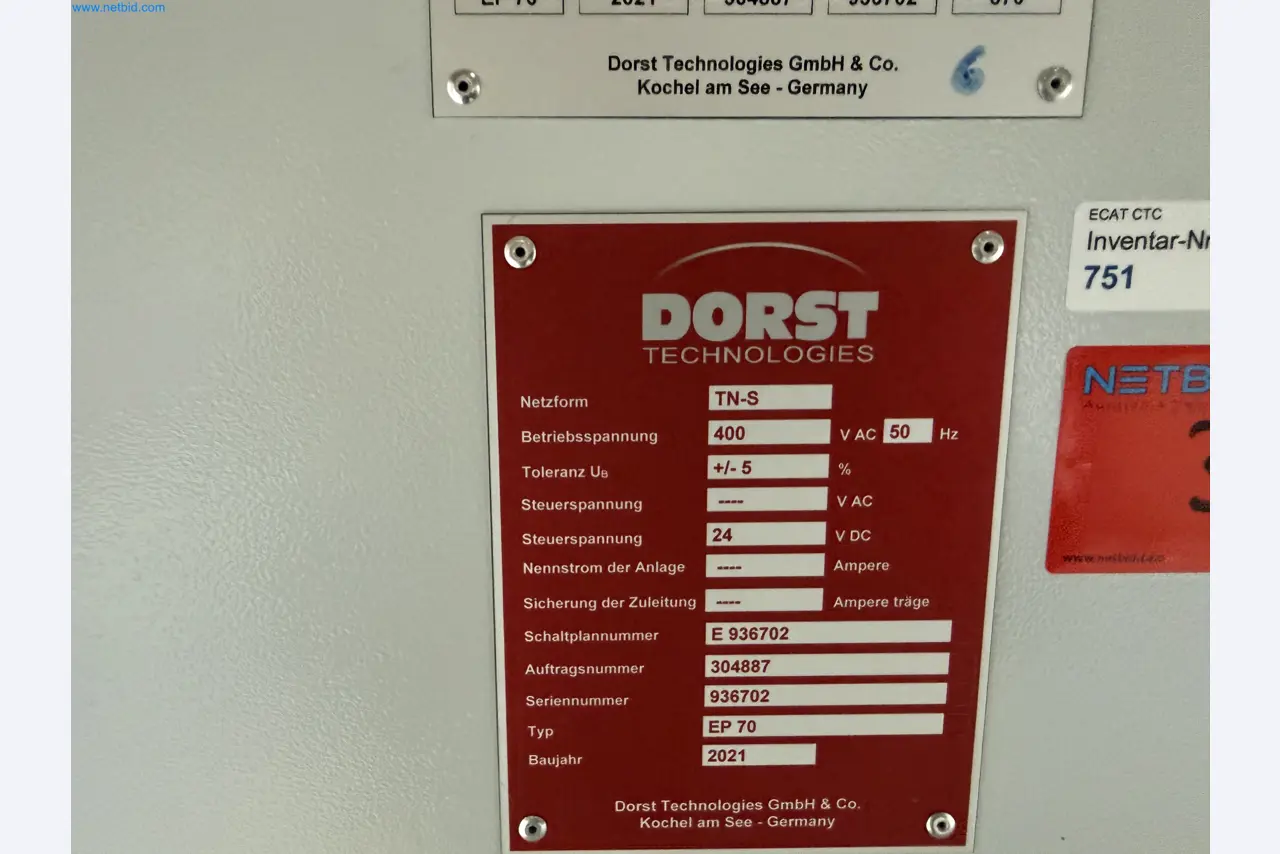

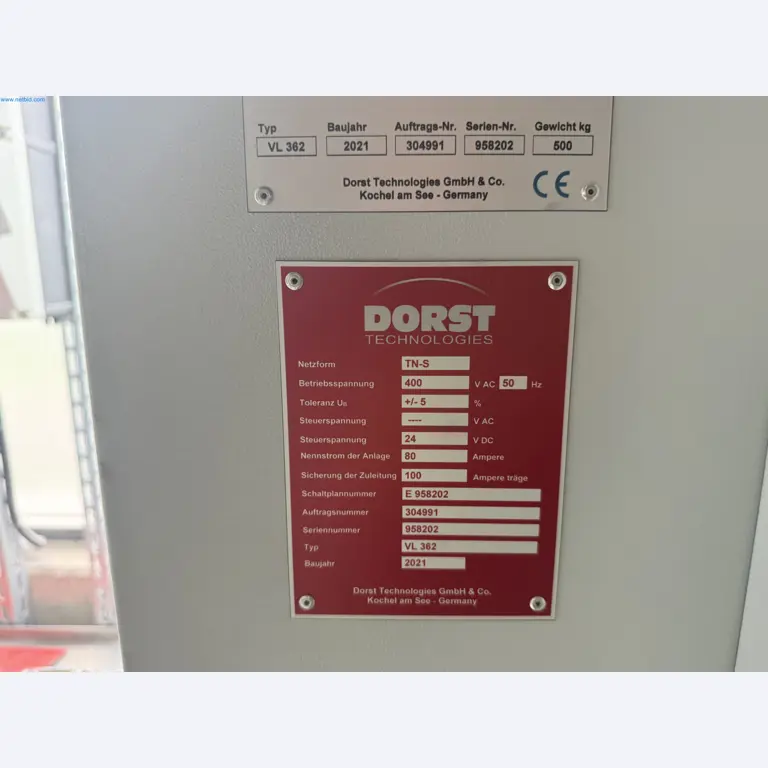

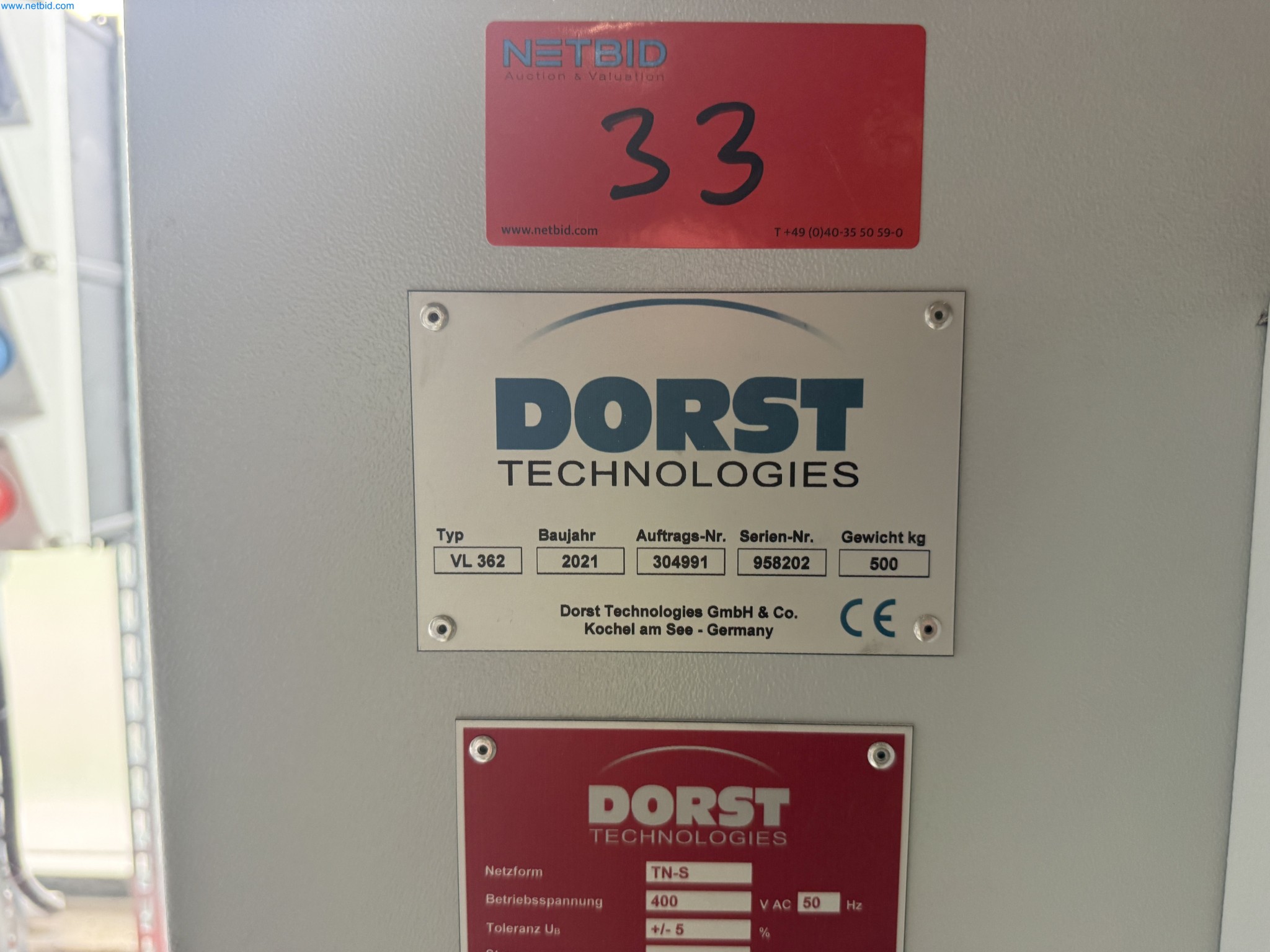

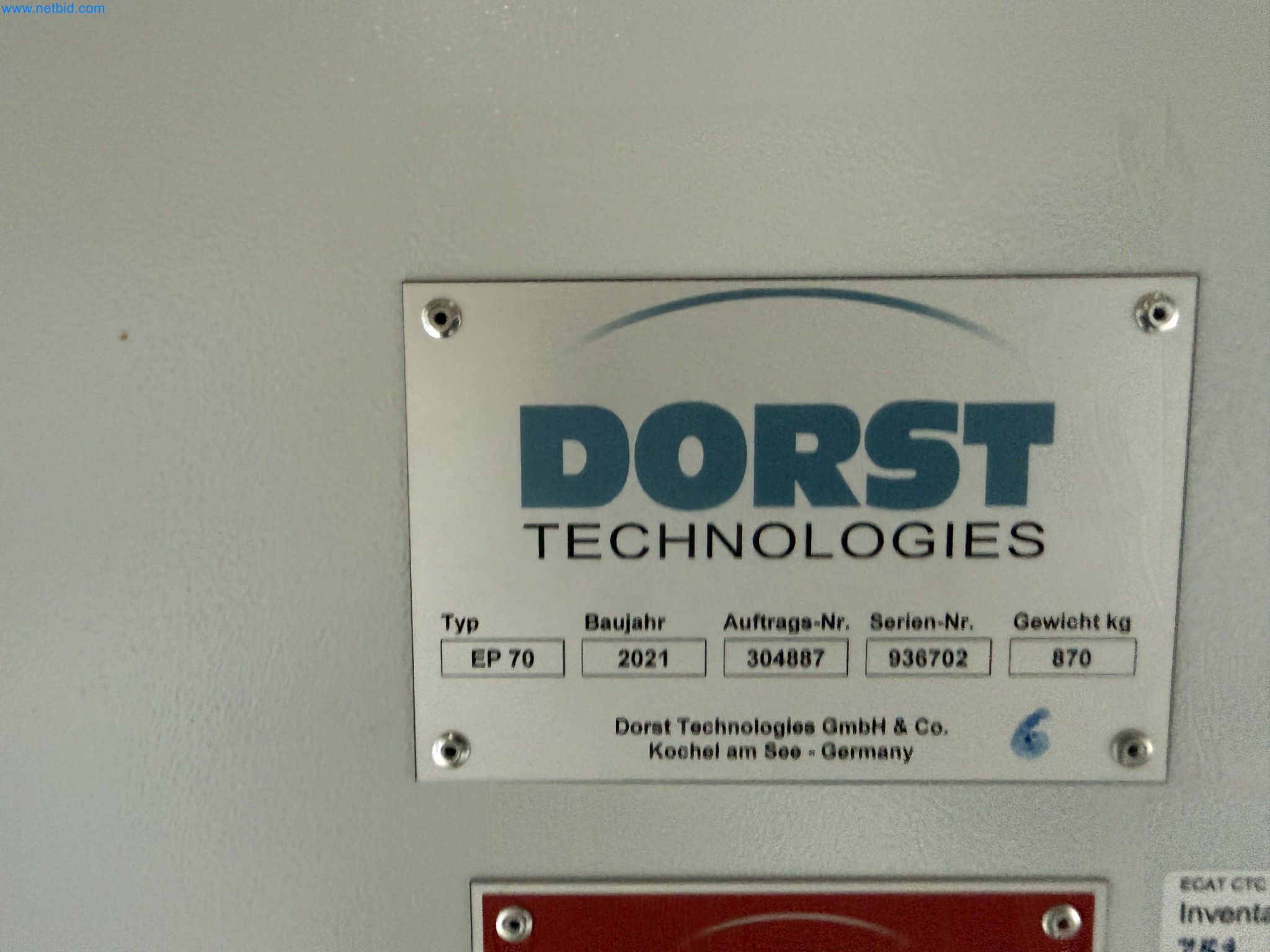

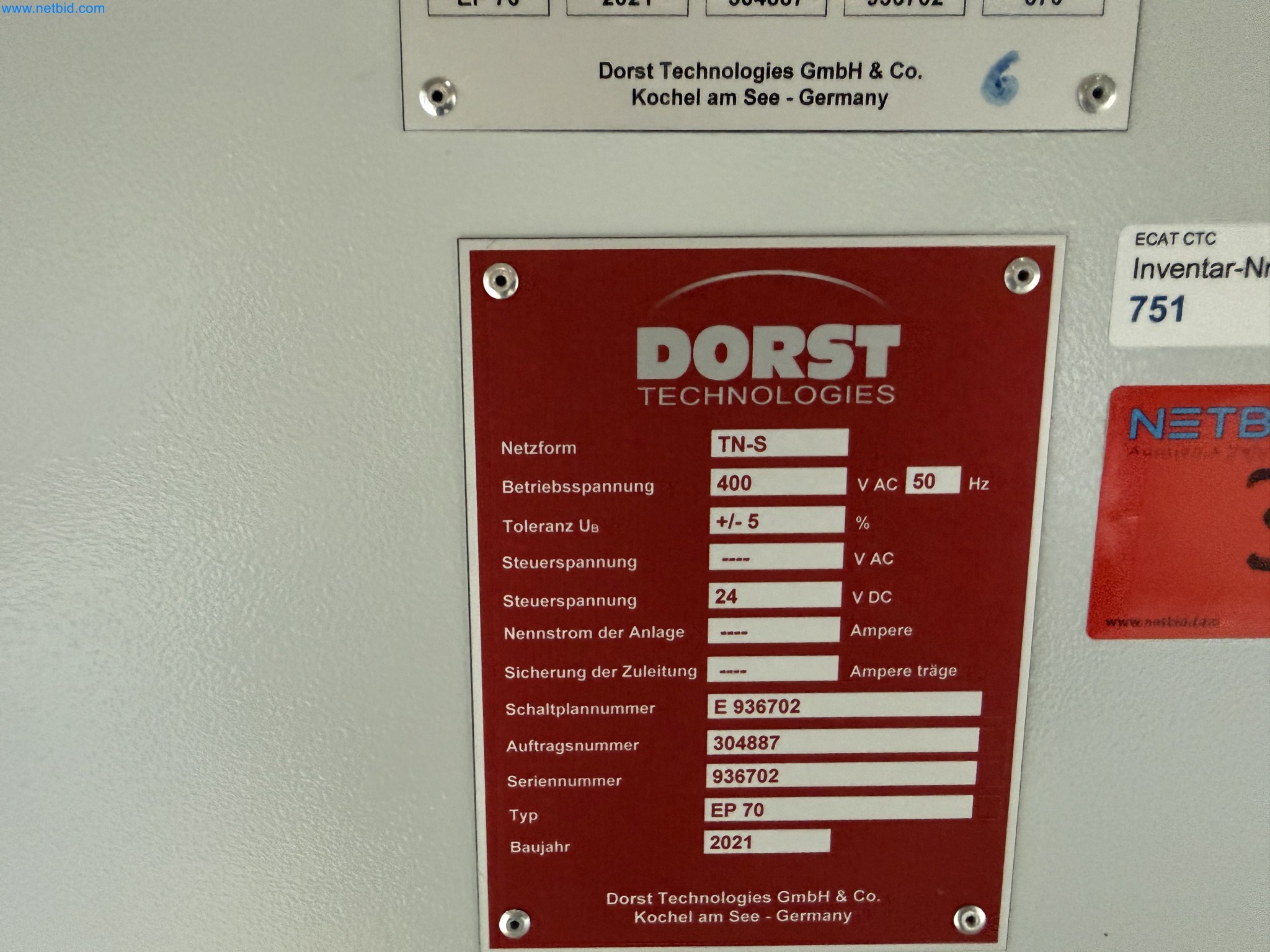

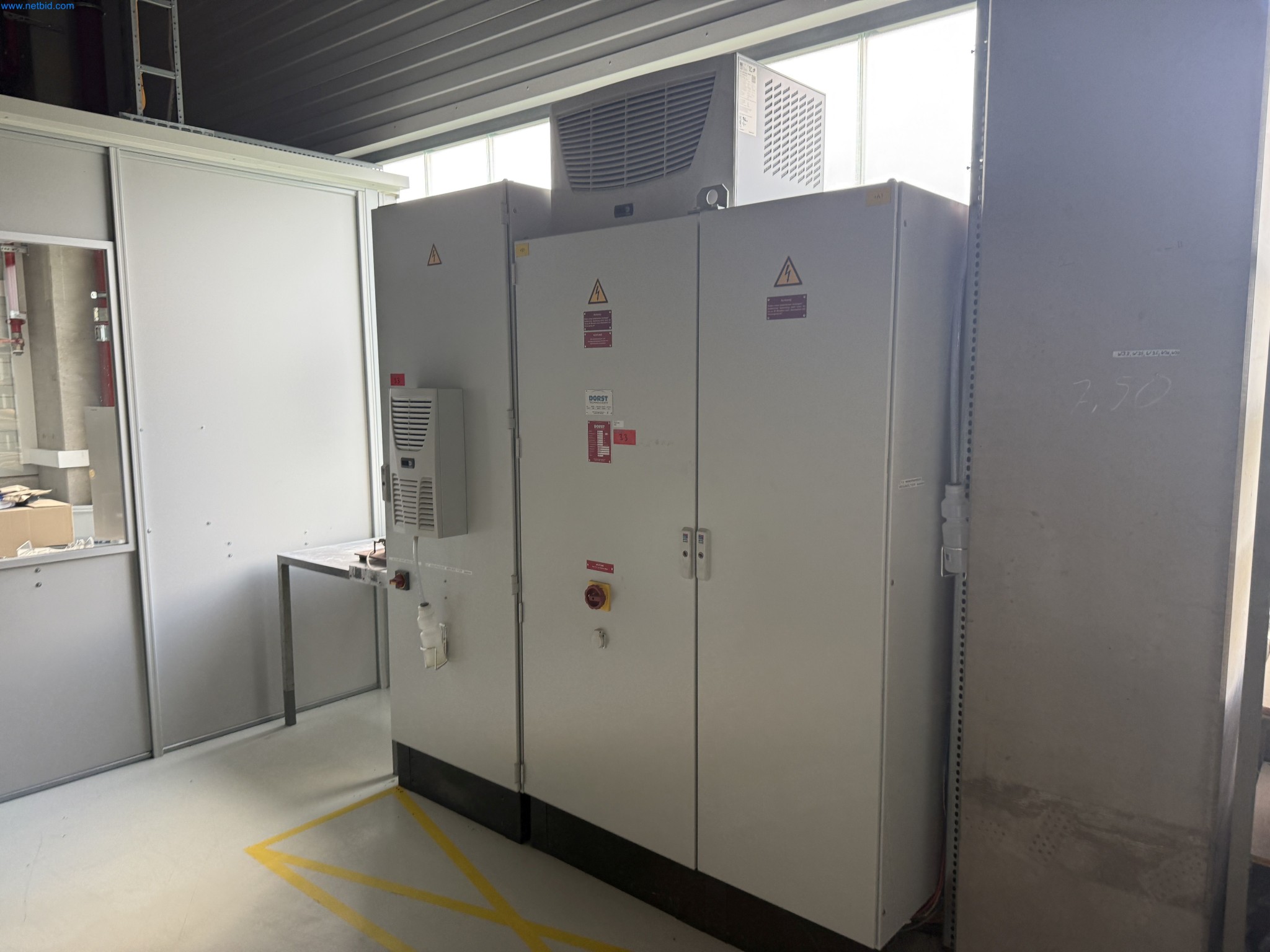

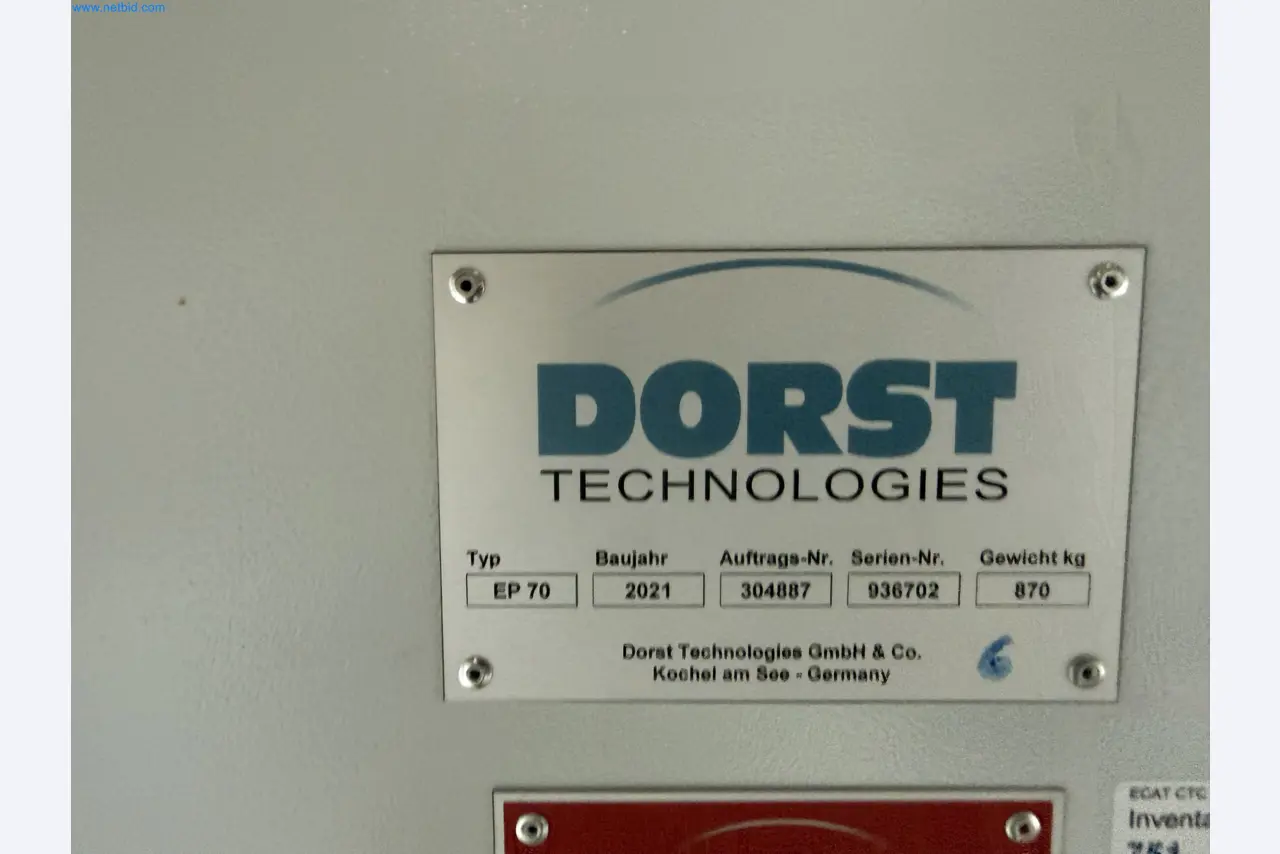

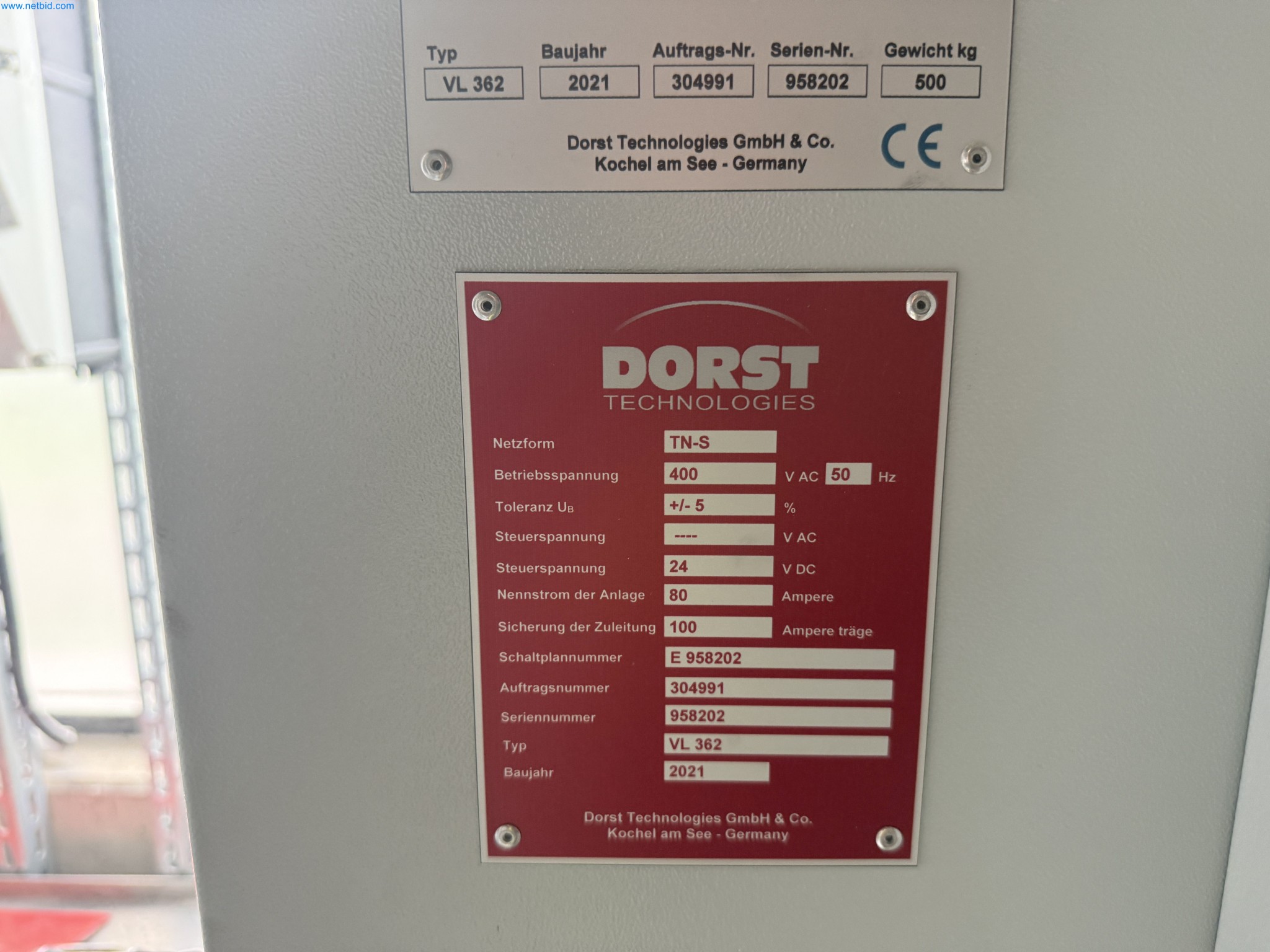

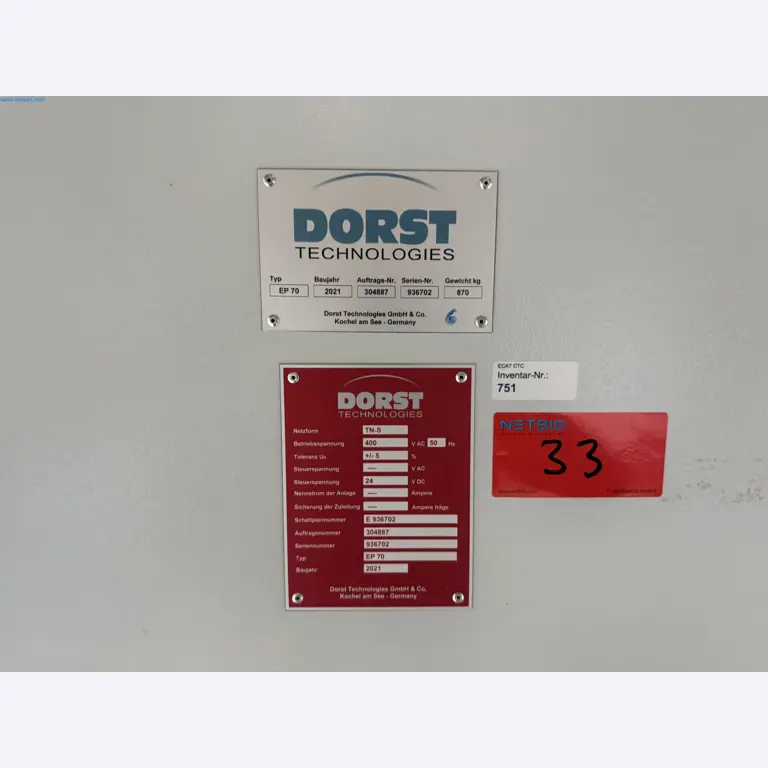

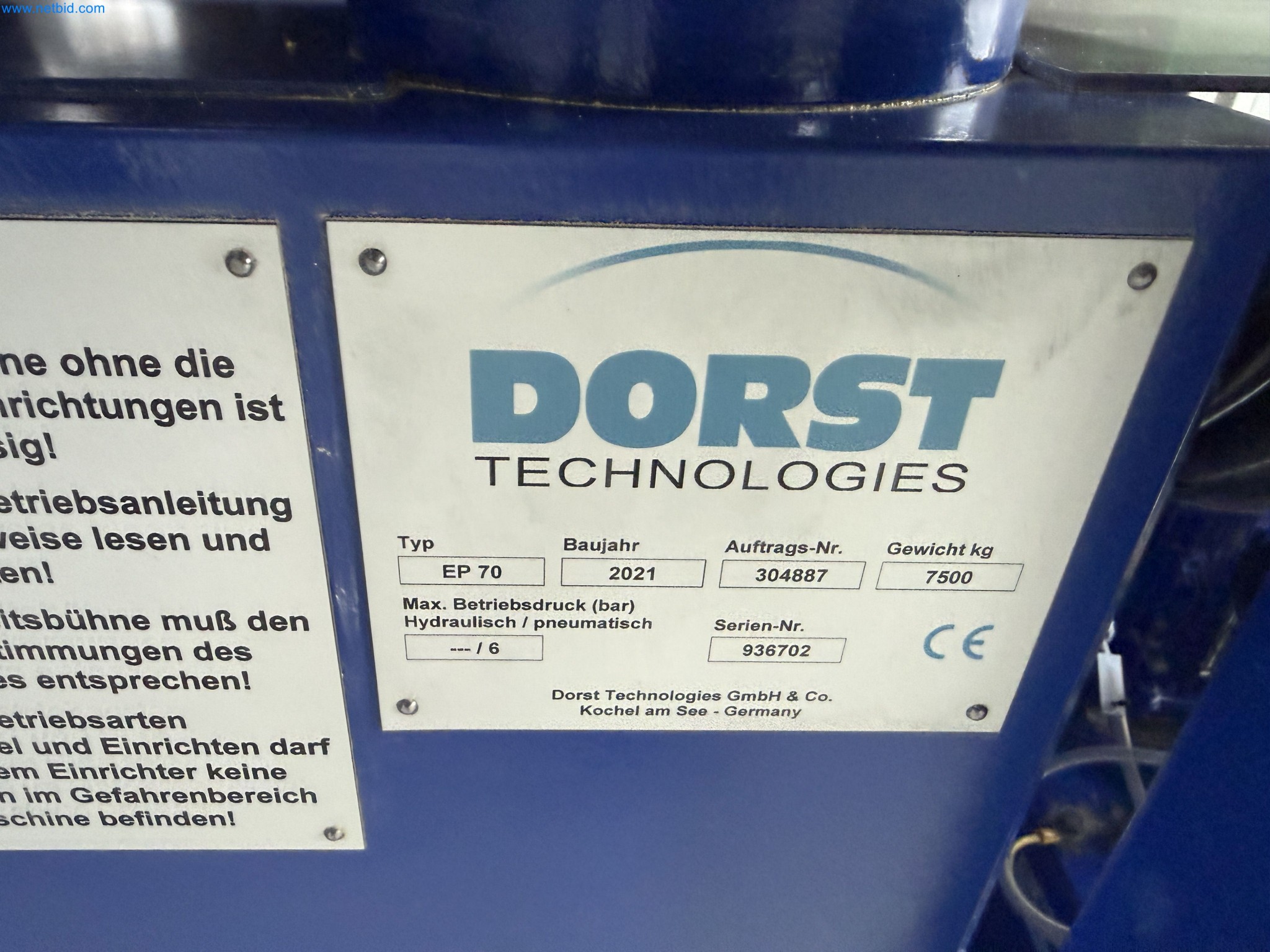

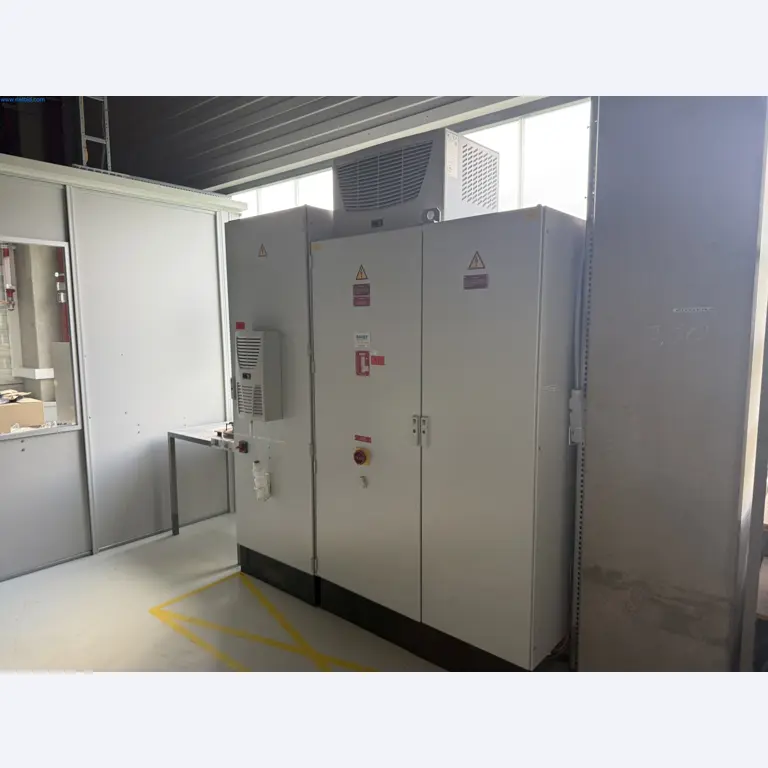

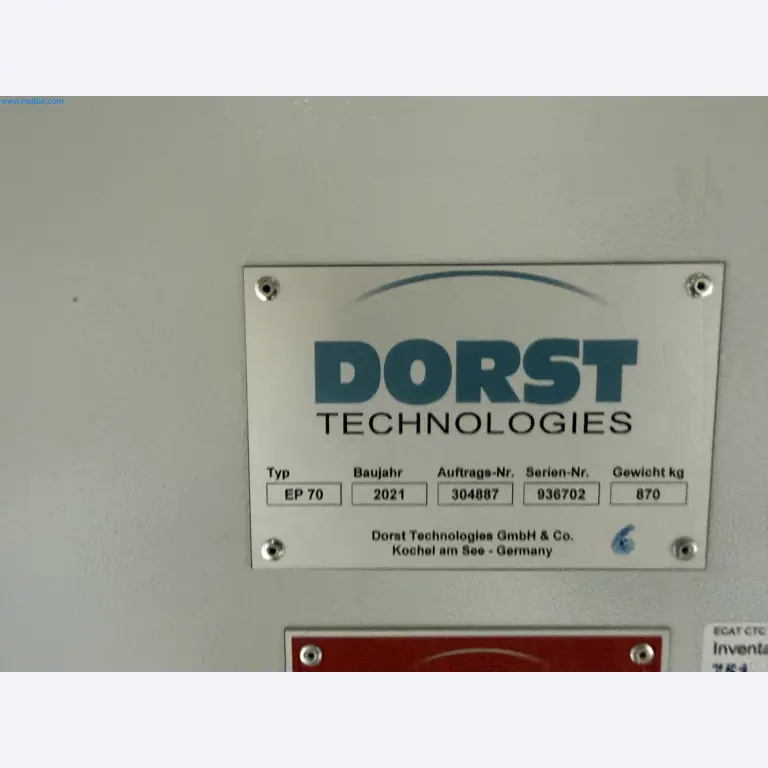

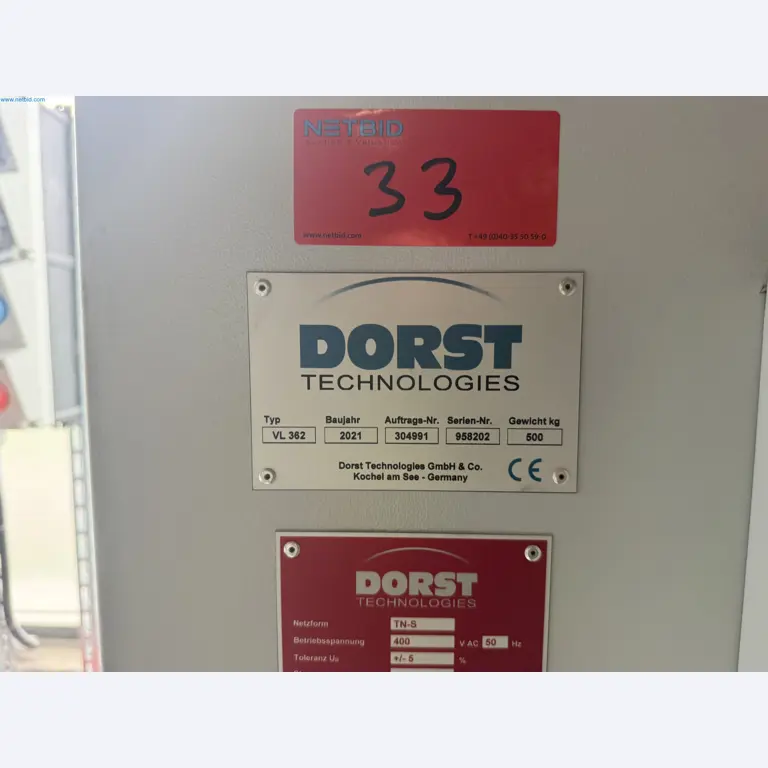

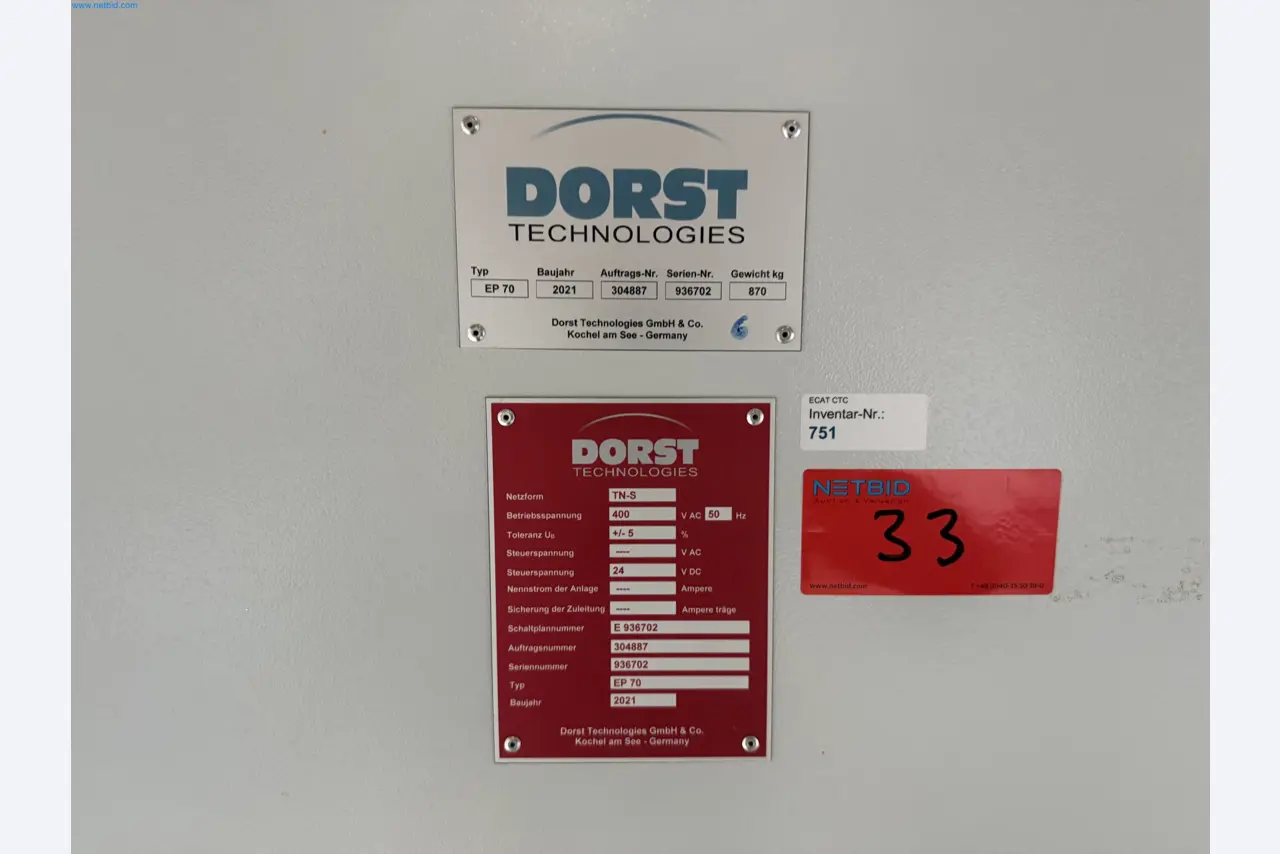

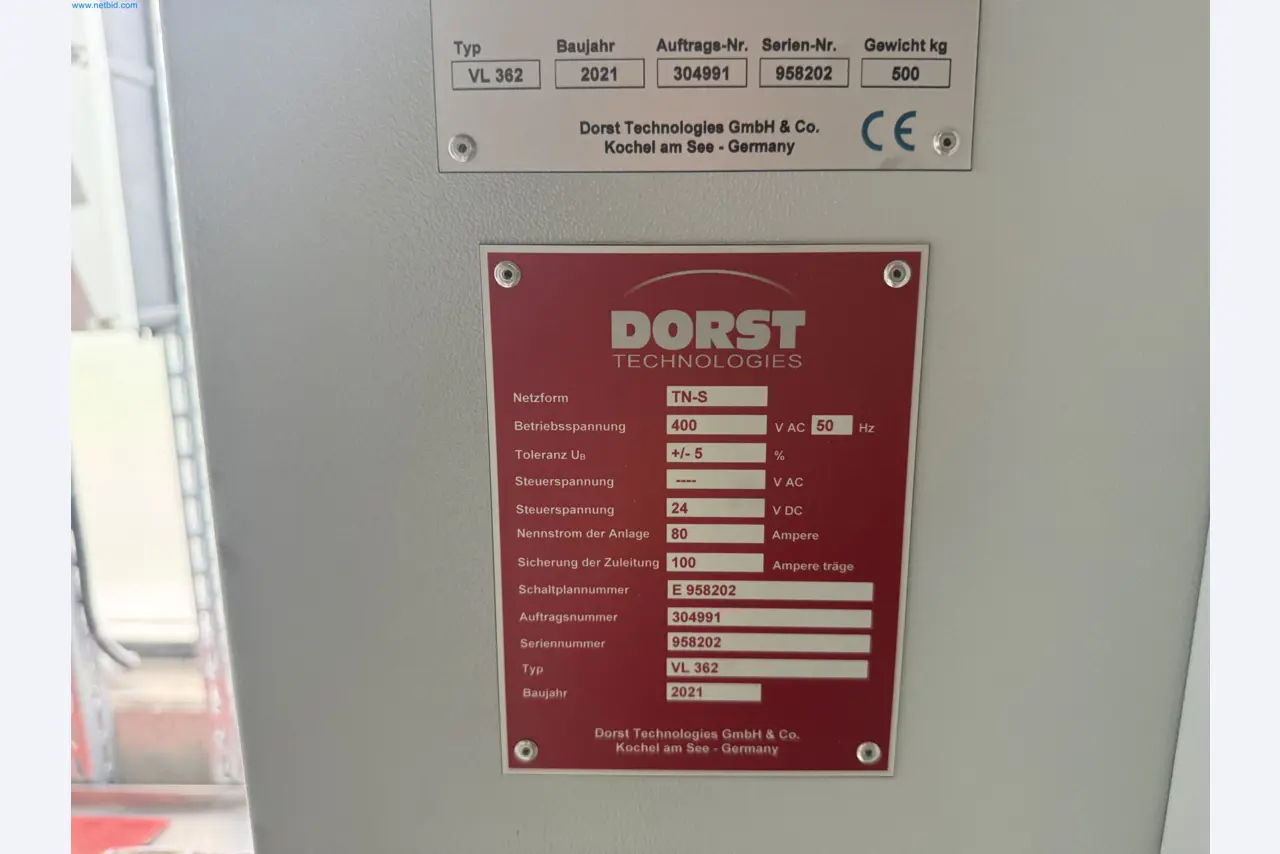

Serial No.: 936702, total operating hours: 9,471.24 h, curb weight: 7,500 kg, with control cabinet, manufactured by Dorst, Model EP70, year of manufacture: 2021, Serial No. 936702, net weight 870 kg, machine platform, emergency power supply, manufactured by Dorst, Type VL362, year of manufacture 2021, Serial No. 958202, net weight 500 kg, without installation system, maximum upper pressing force 700 kN, maximum upper stroke 300 mm, load force 7–700 kN; Pulling and holding force at the bottom: 200 kN each, stroke at the bottom: max. 150 mm, filling height: max. 130 mm; Center pin: max. 46 kN, stroke: 150 mm; Filling stroke: max. 235 mm; Power consumption: approx. 18 kW (average approx. 7 kW), 400 V AC, control voltage 24 V DC; Compressed air 6 bar, approx. 50 Nl/min; cooling water approx. 600 l/h; bearing oil approx. 35 l; press dimensions approx. 1530 x 1290 x 3920 mm (W x D x H), Electrical cabinets approx. 2,400 x 800 x 2,200 mm, energy buffer cabinet approx. 800 x 600 x 2,400 mm; net weight approx. 6,850 kg; Bachmann SLC284 control system, Siemens Sinamics S120 drives; sound pressure level 67 dB(A).
