Oven Riedhammer TP12,75/2X20/15-E-145AUCTION#19683-30
Details
Product Type
Riedhammer
Type
TP12,75/2X20/15-E-145
Construction Year
2021
Description

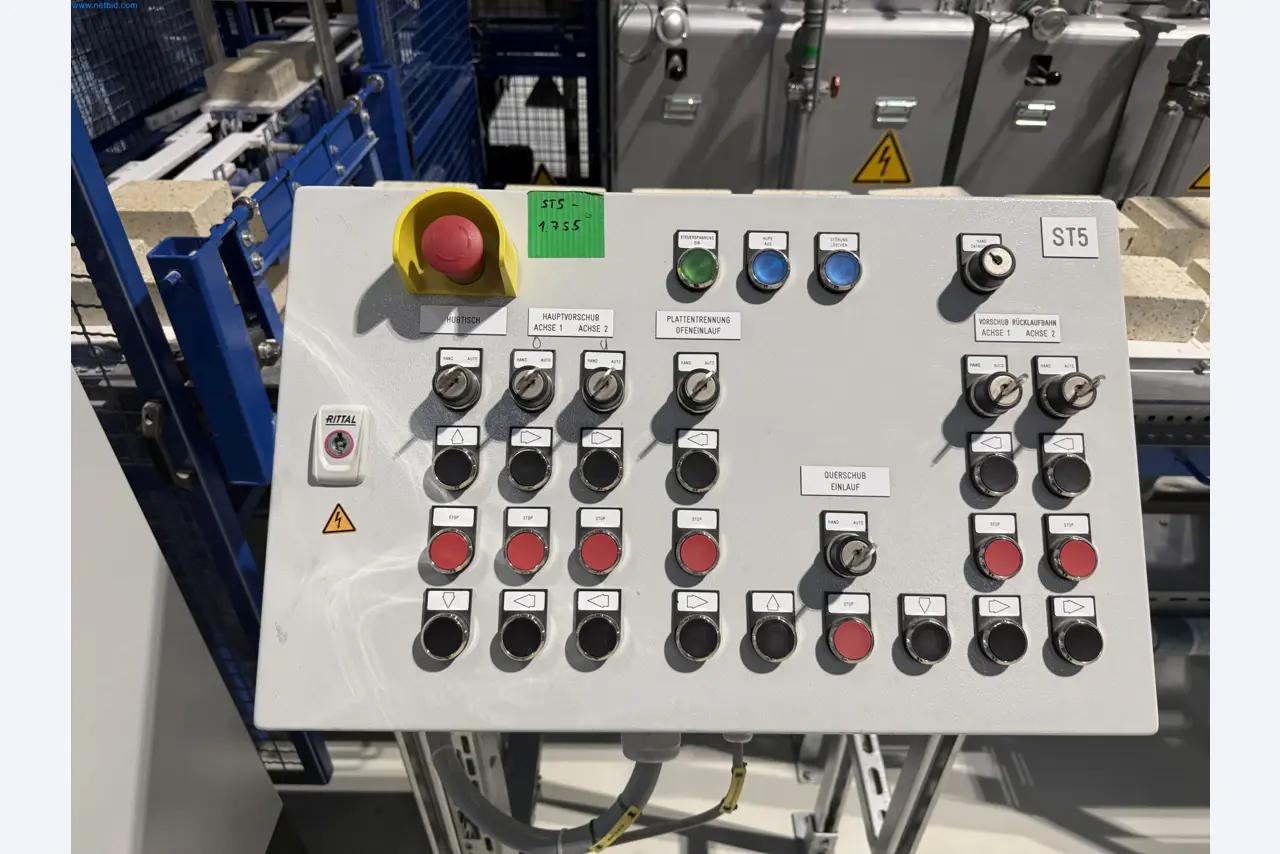

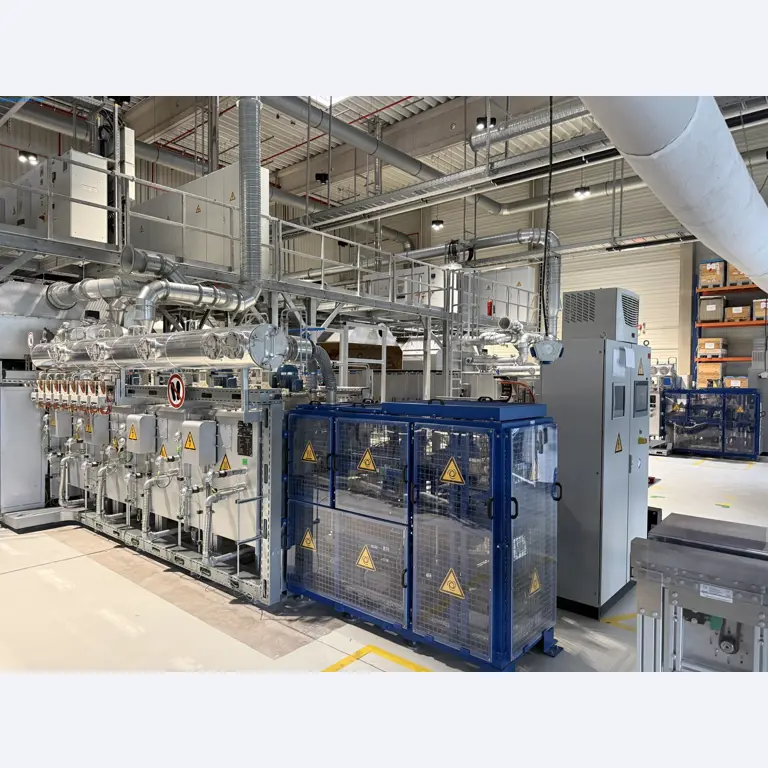

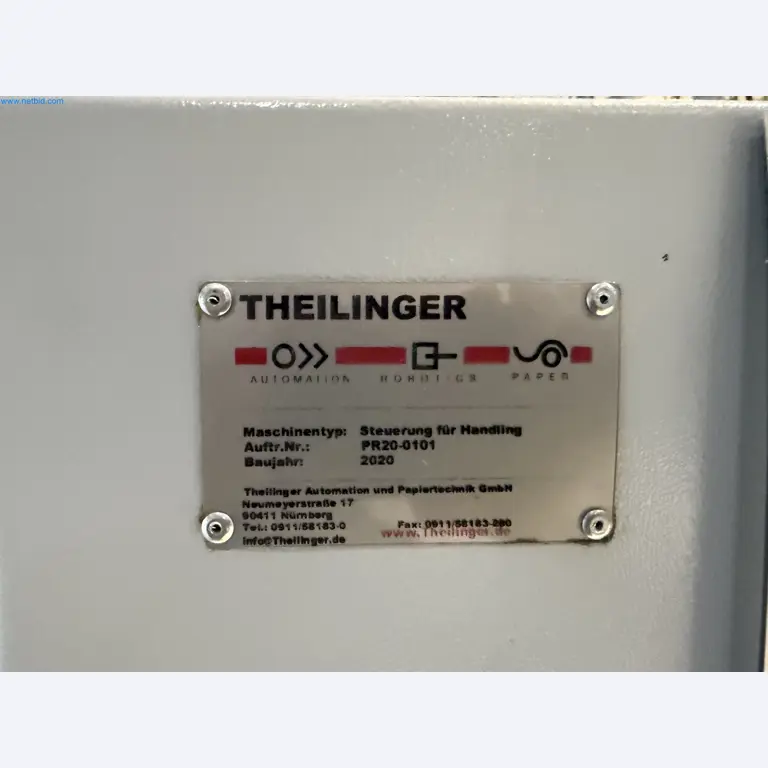

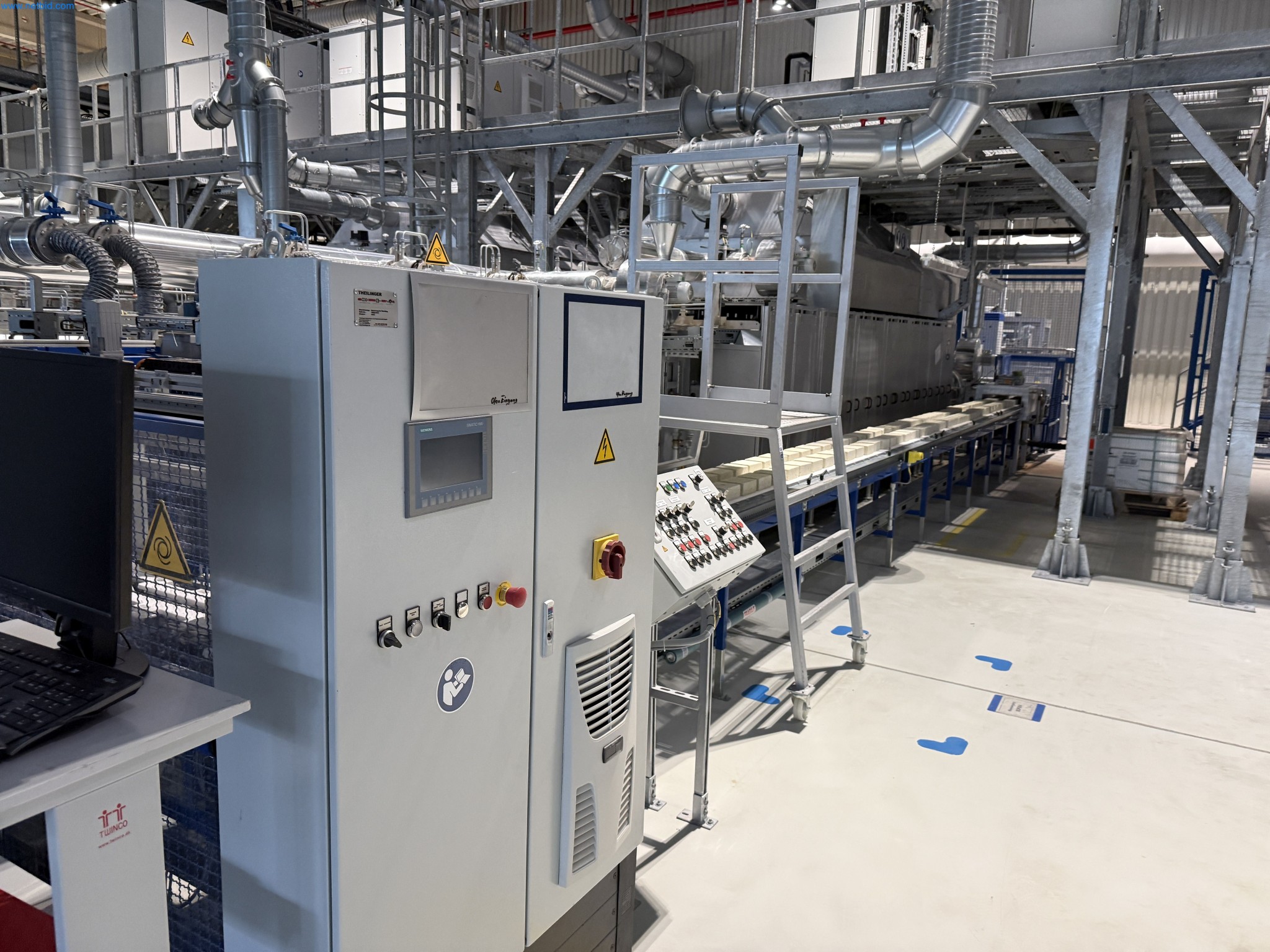

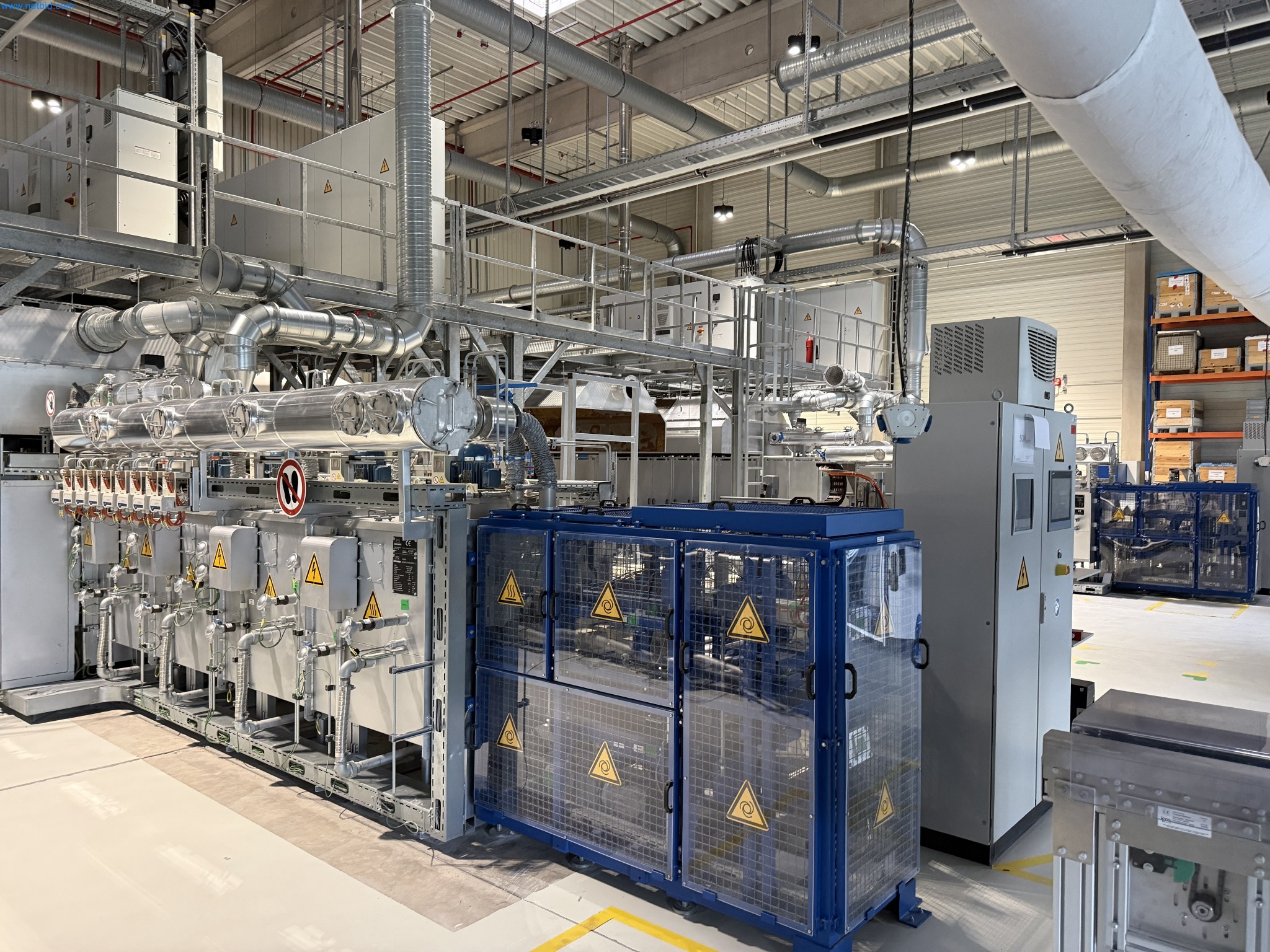

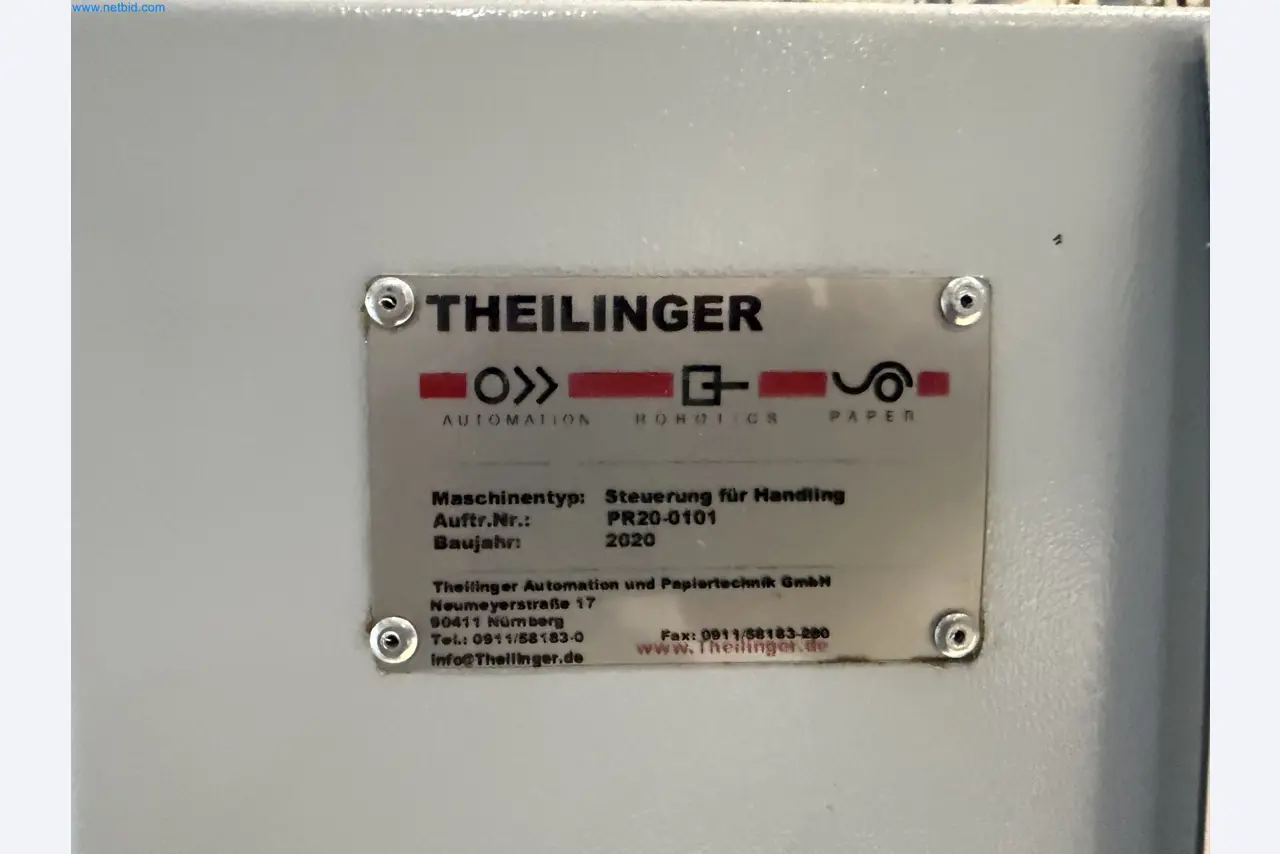

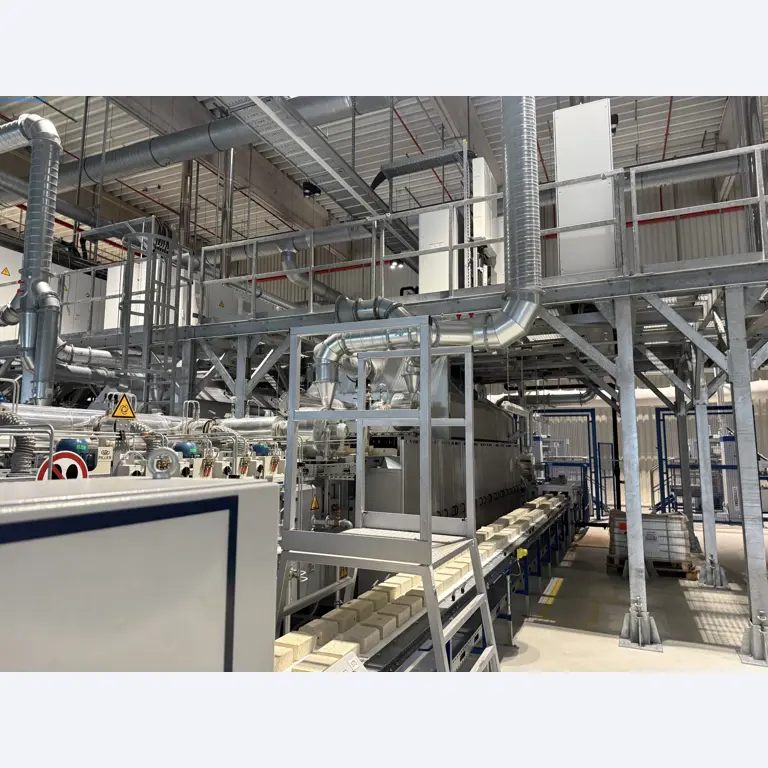

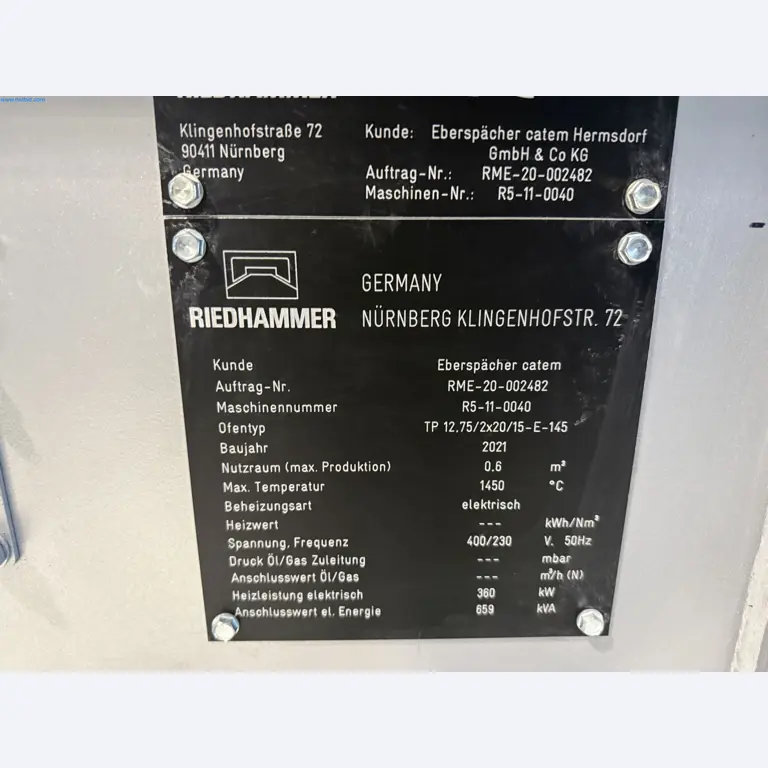

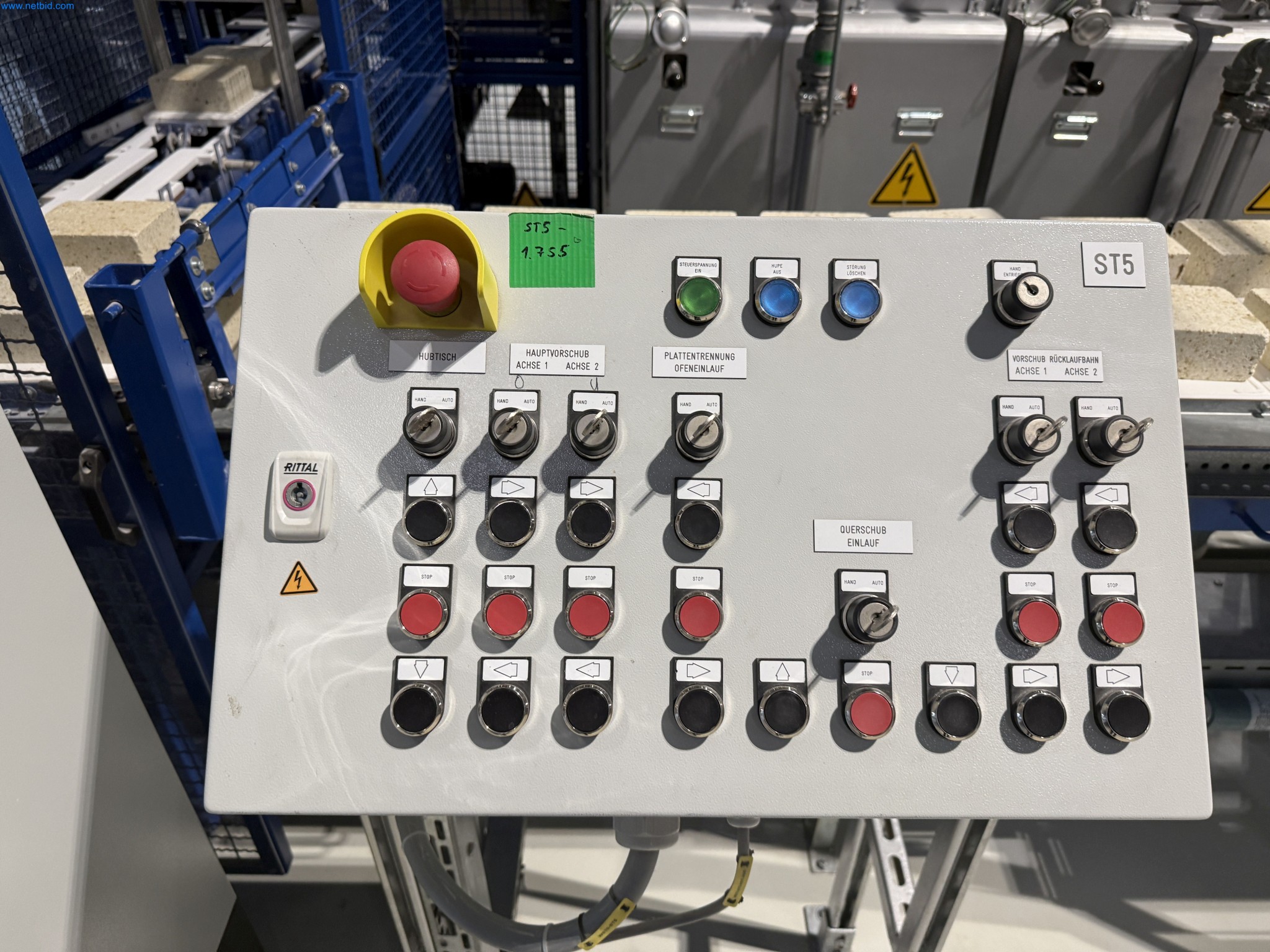

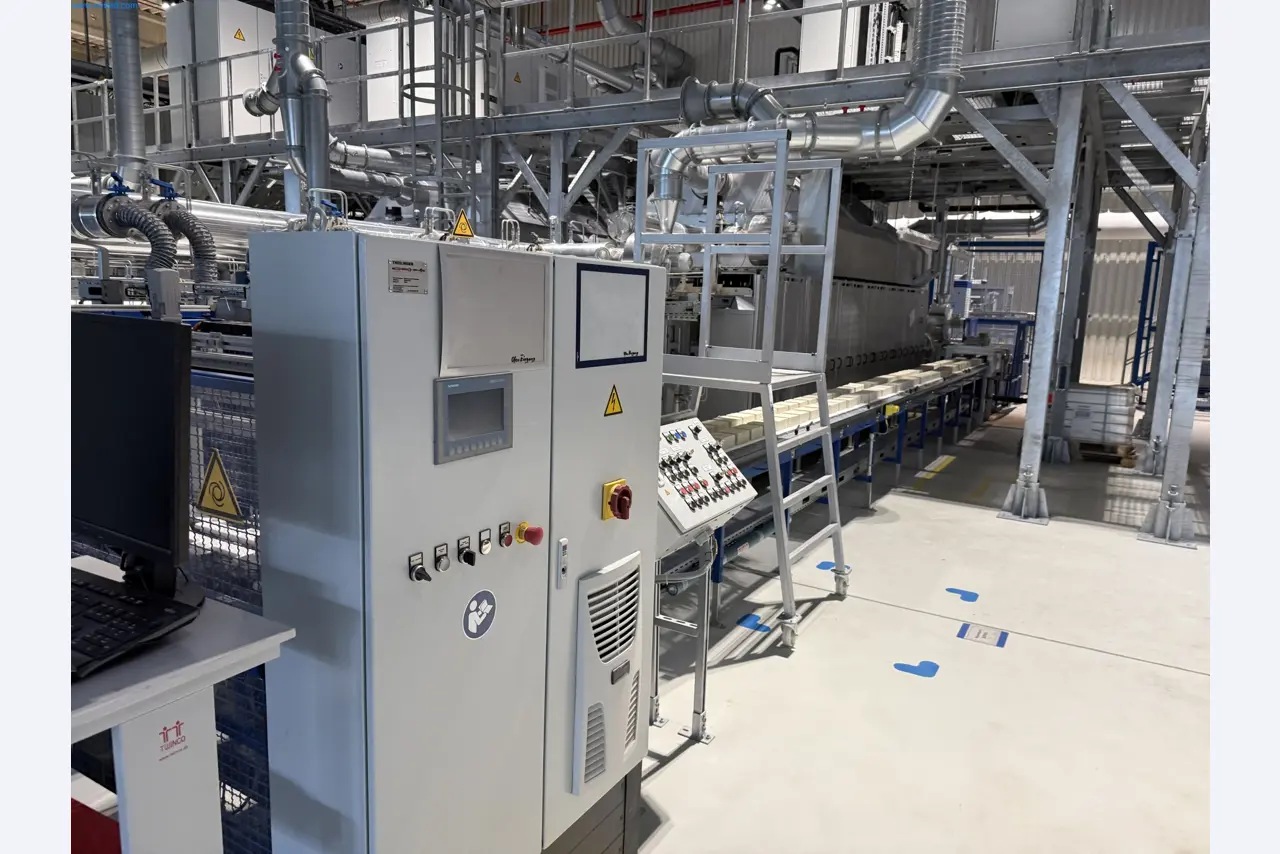

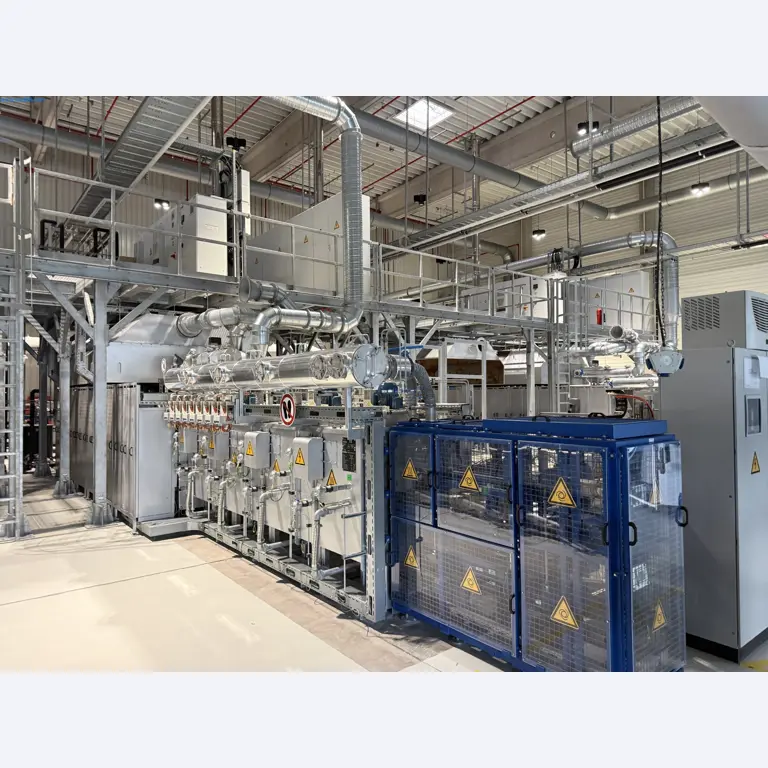

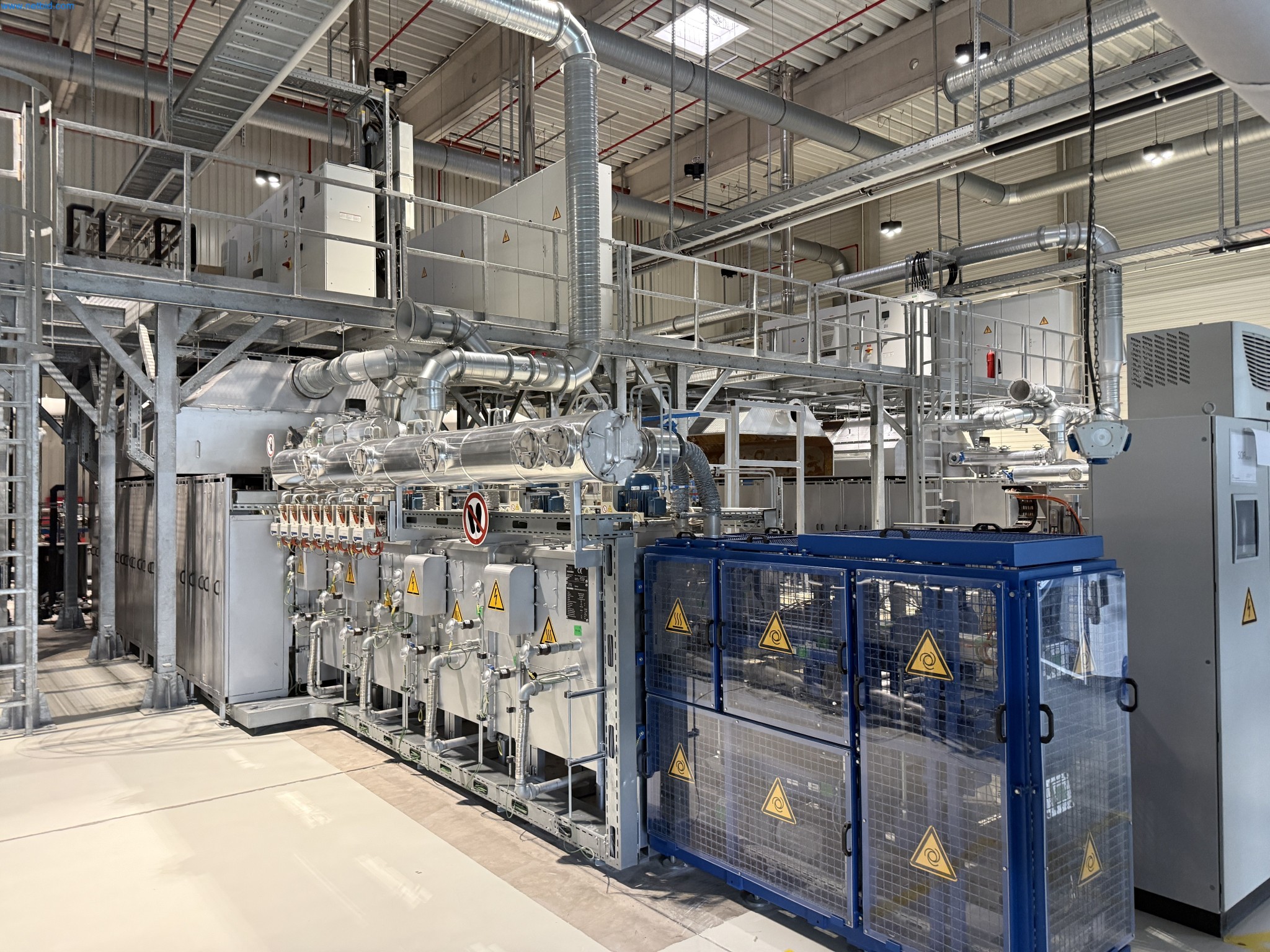

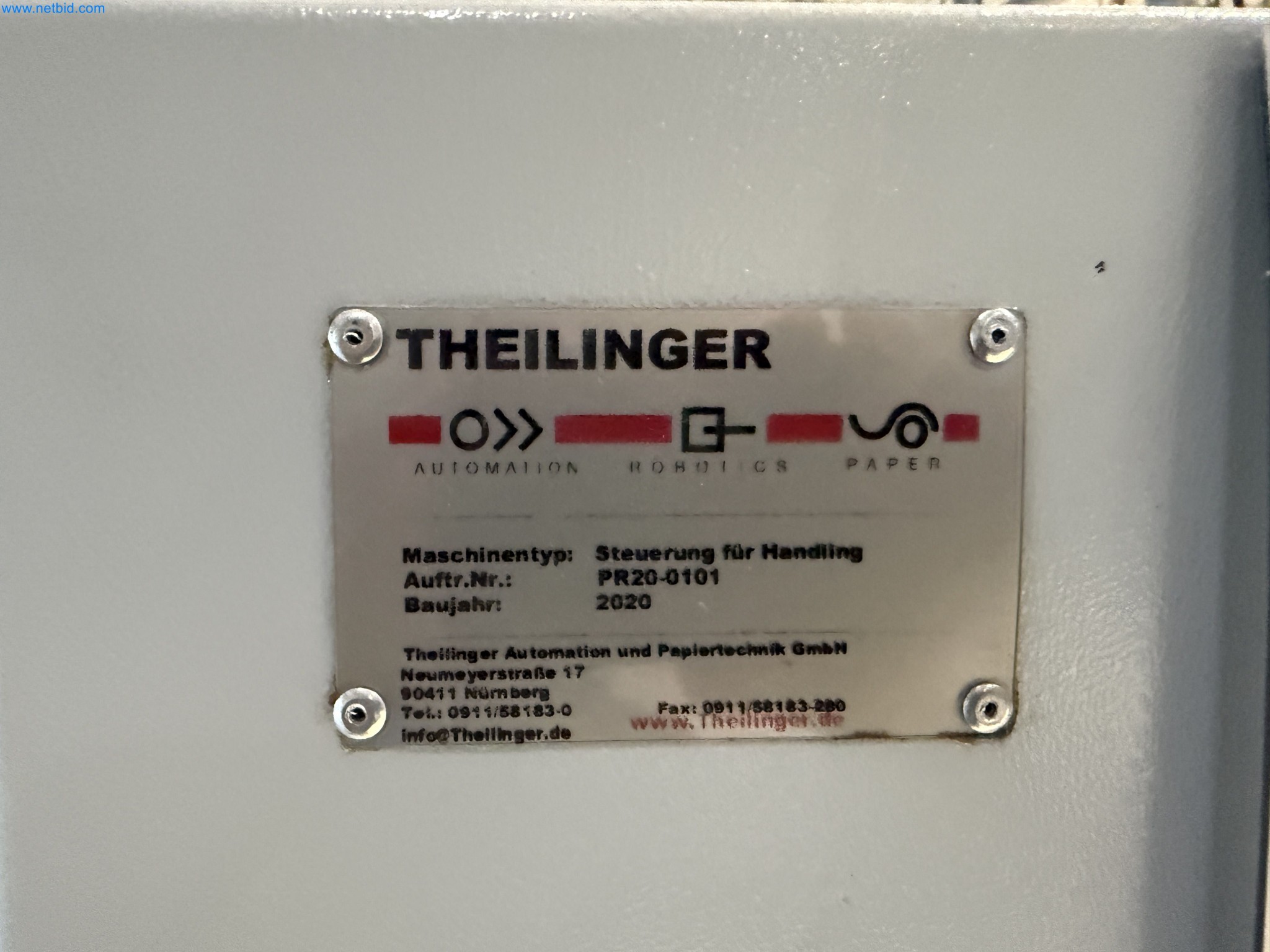

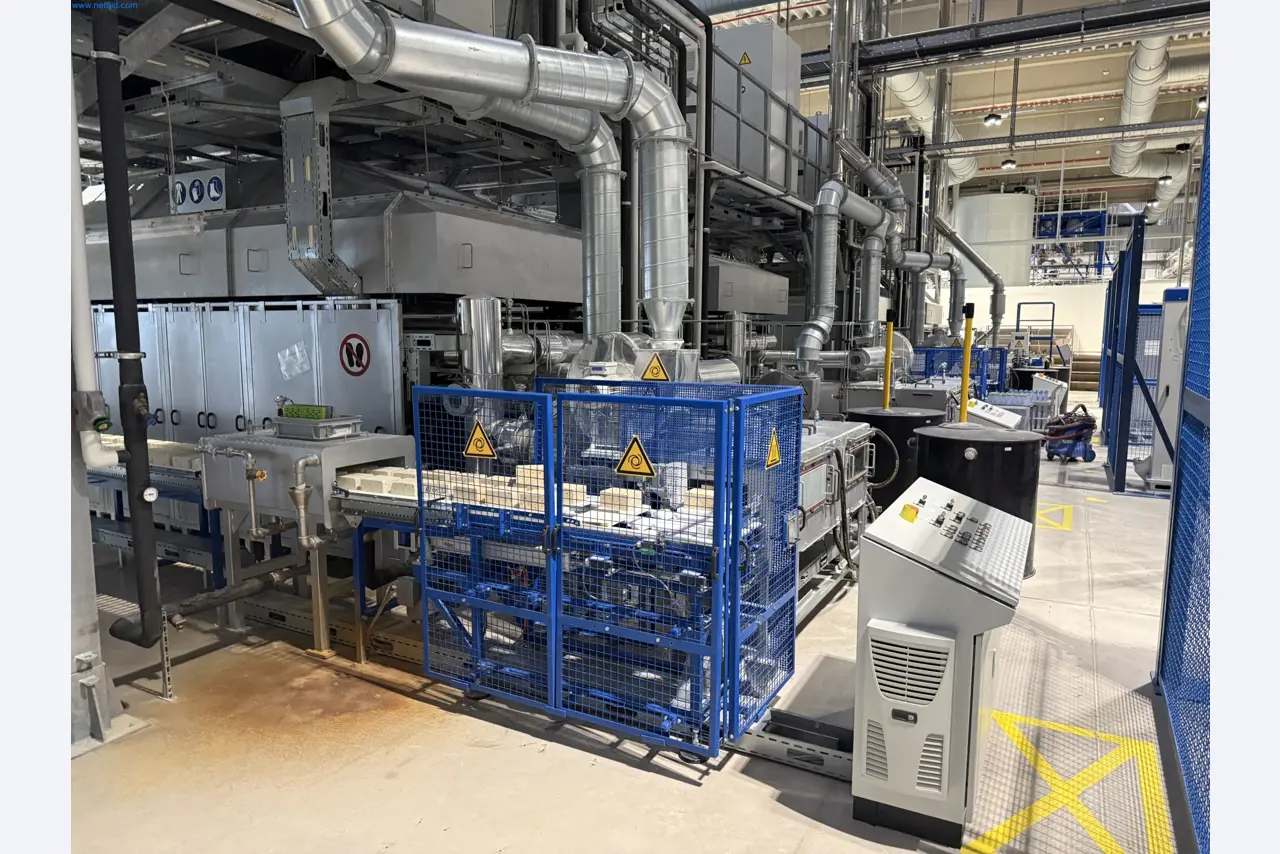

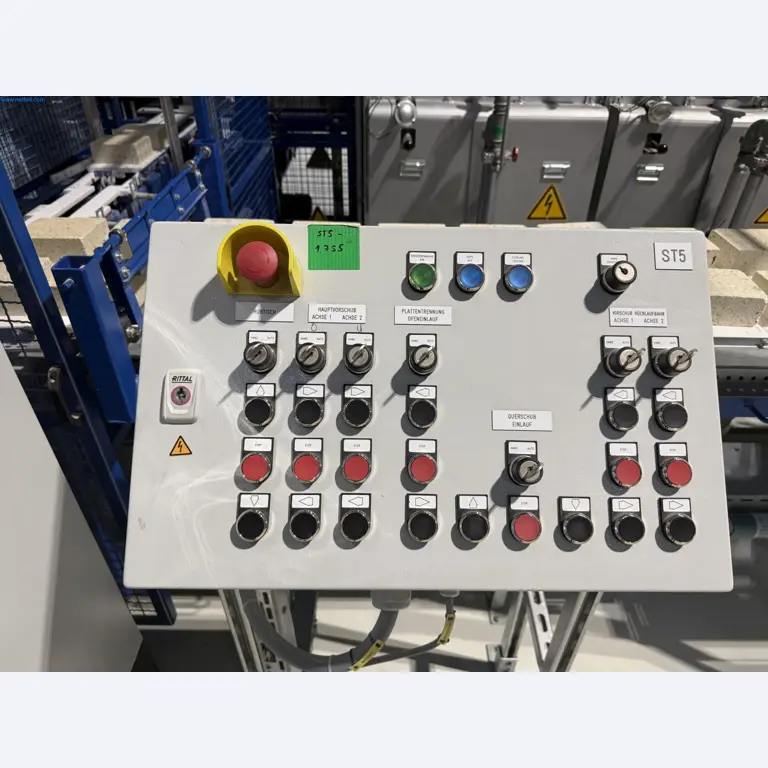

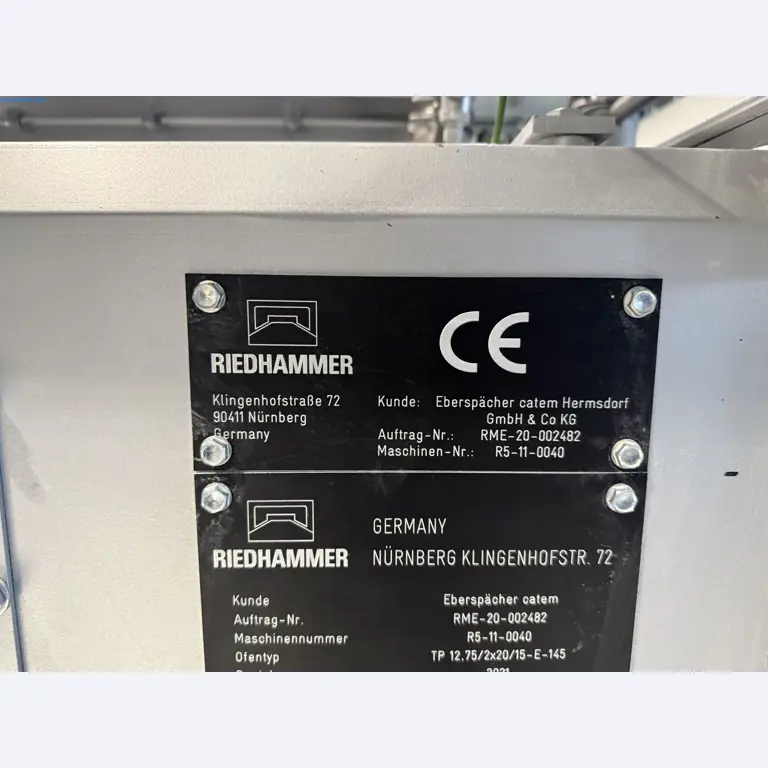

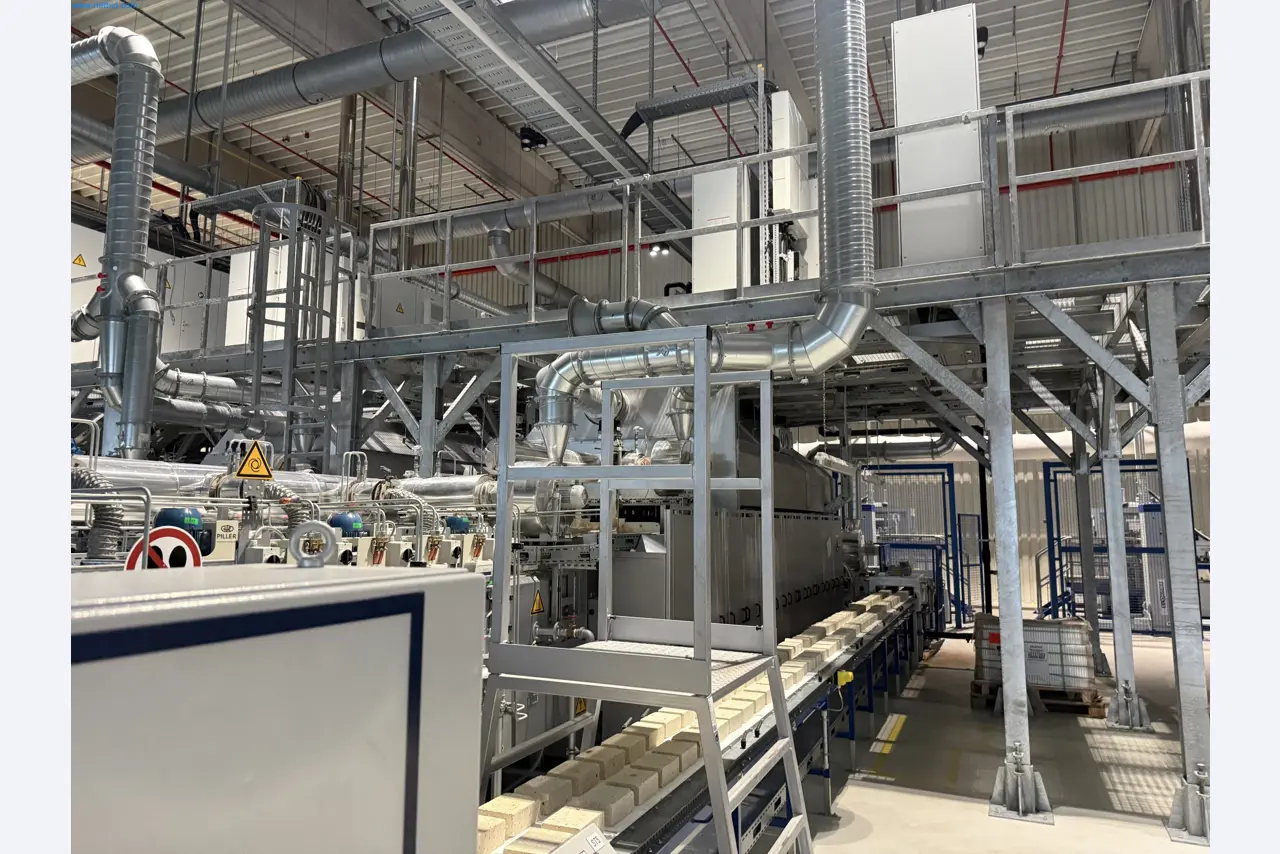

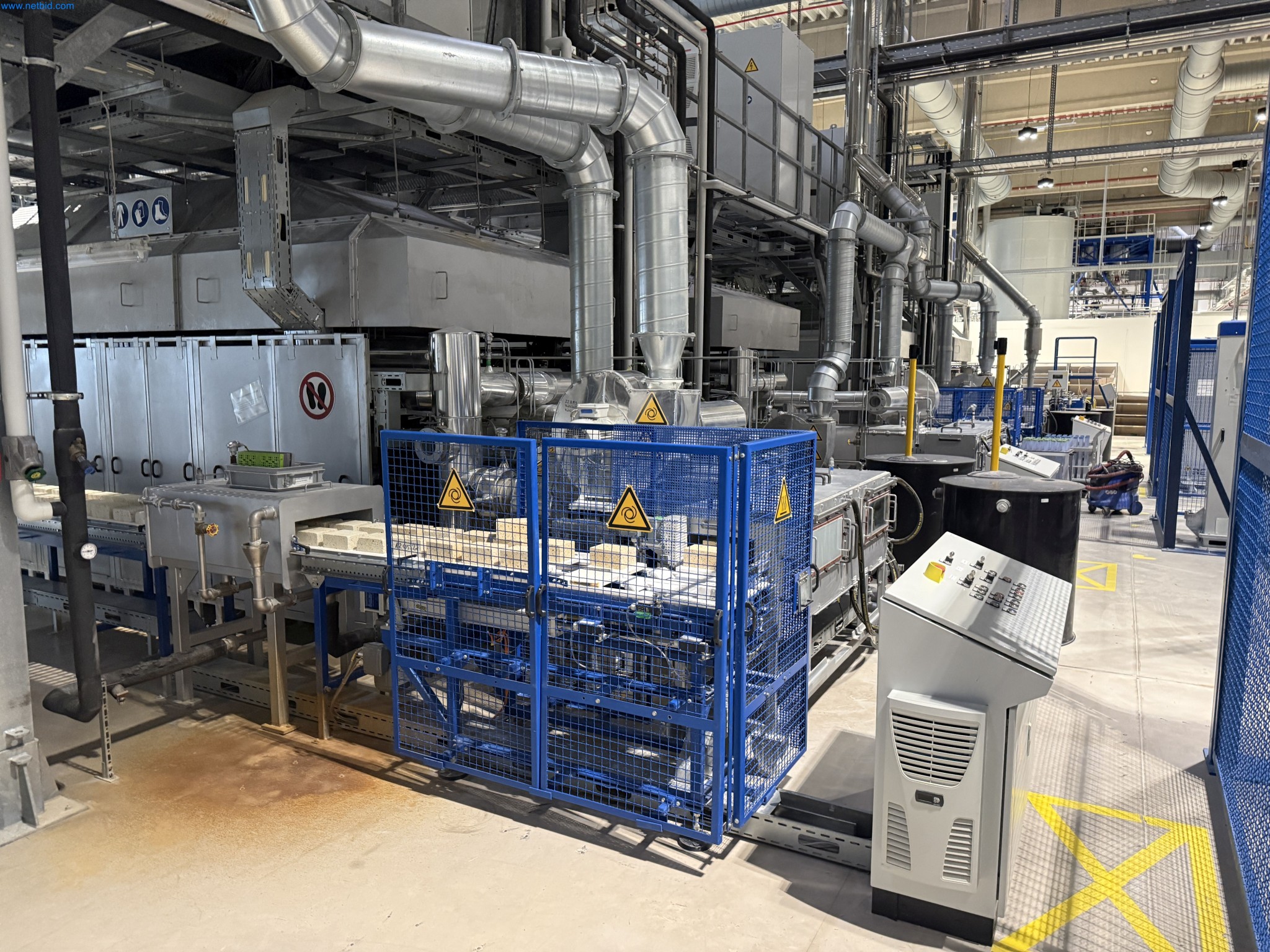

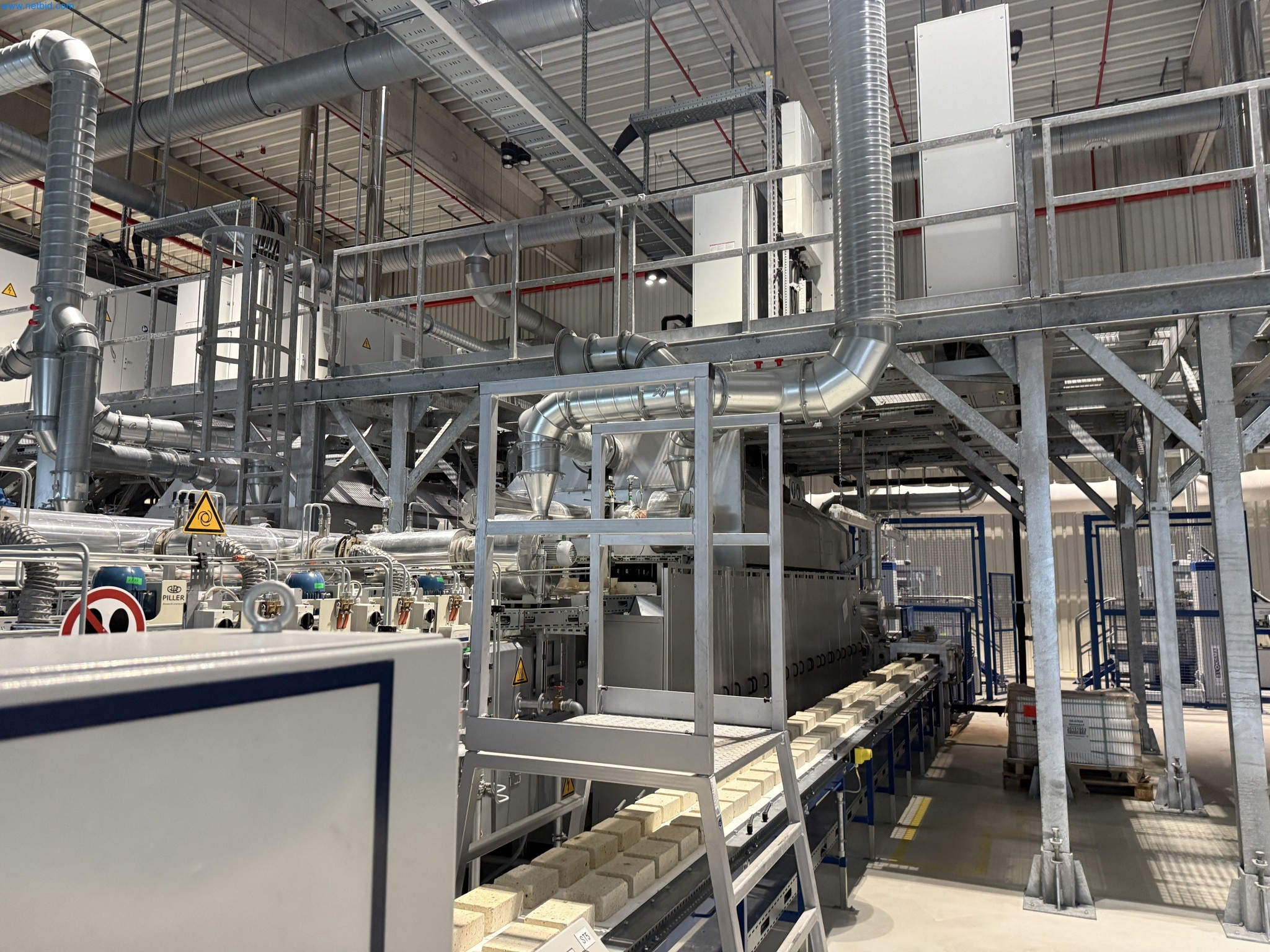

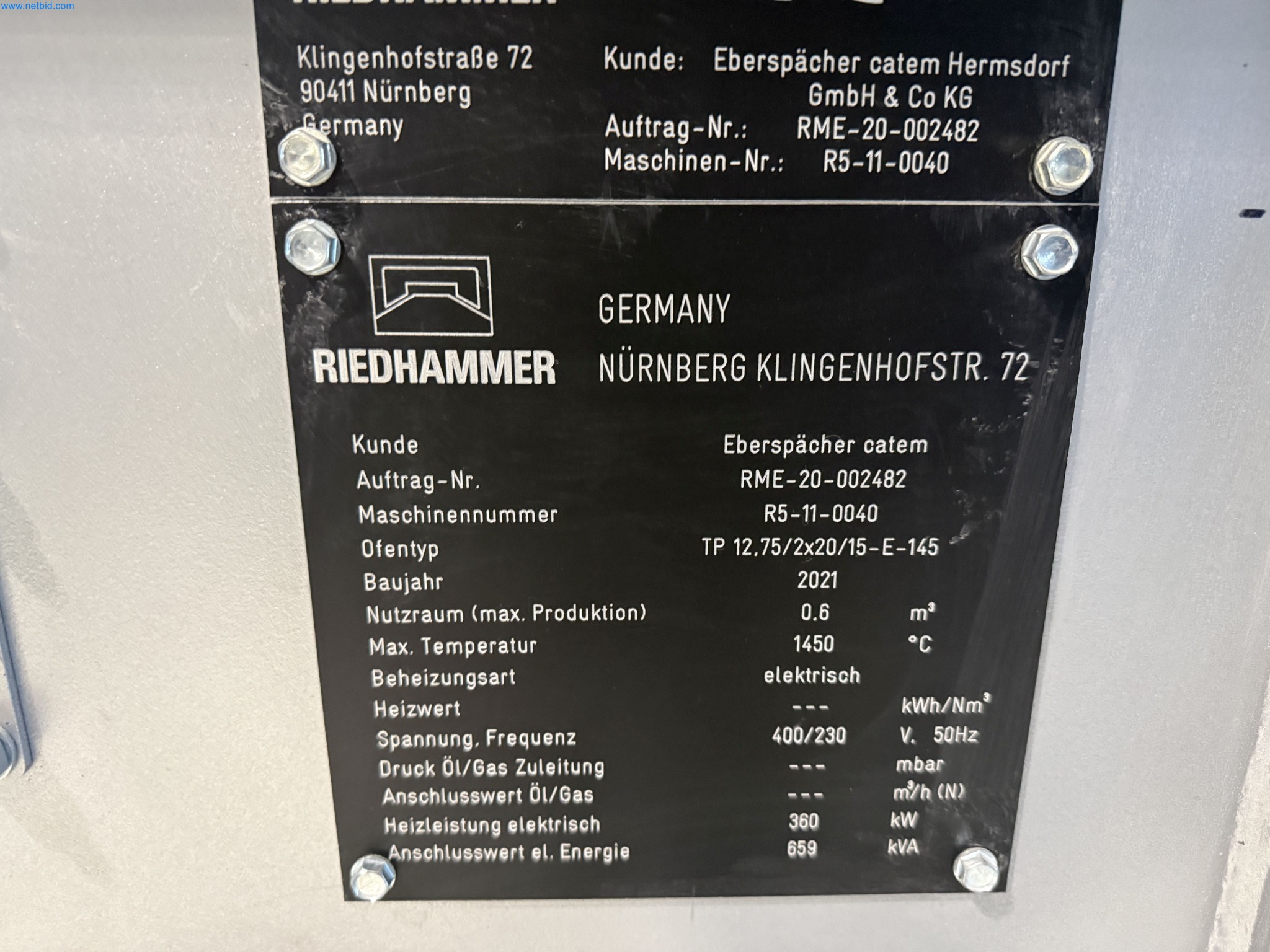

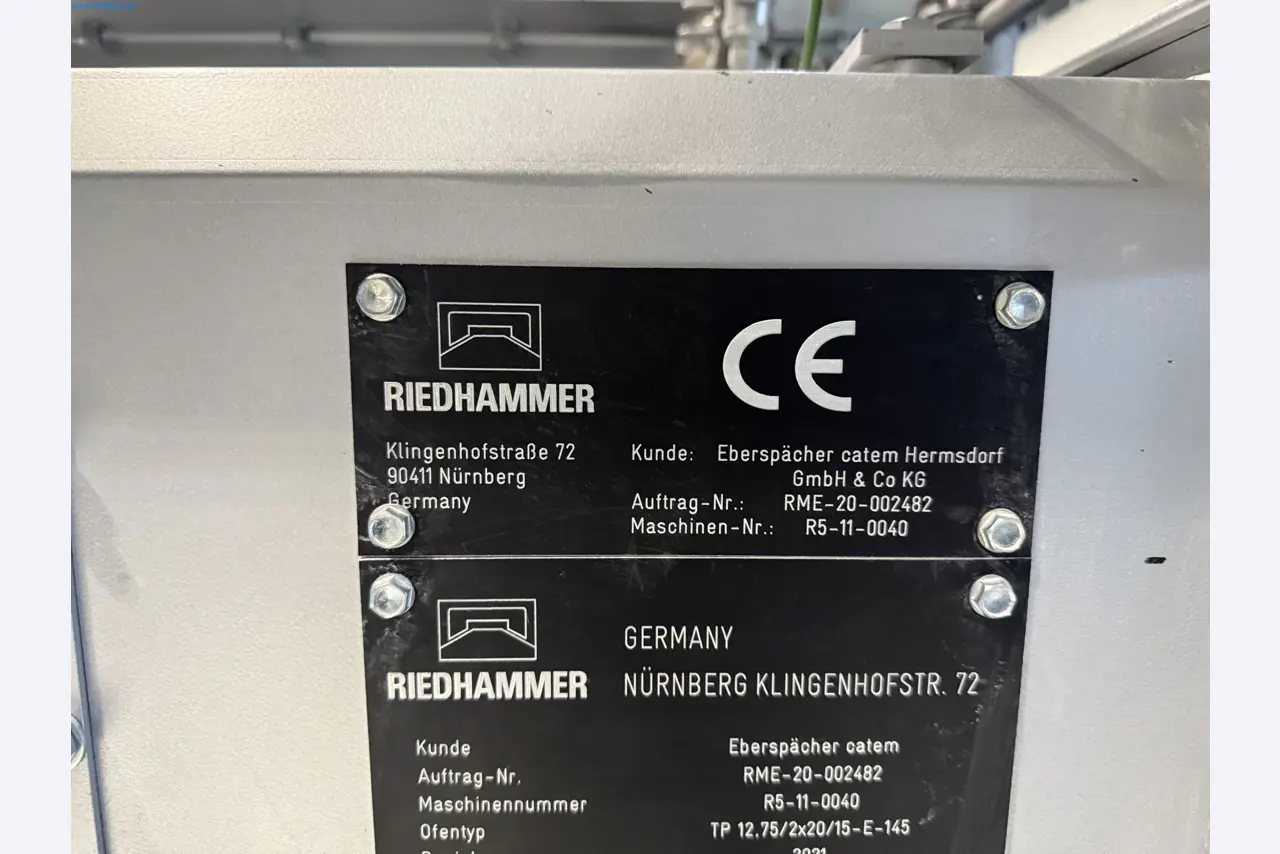

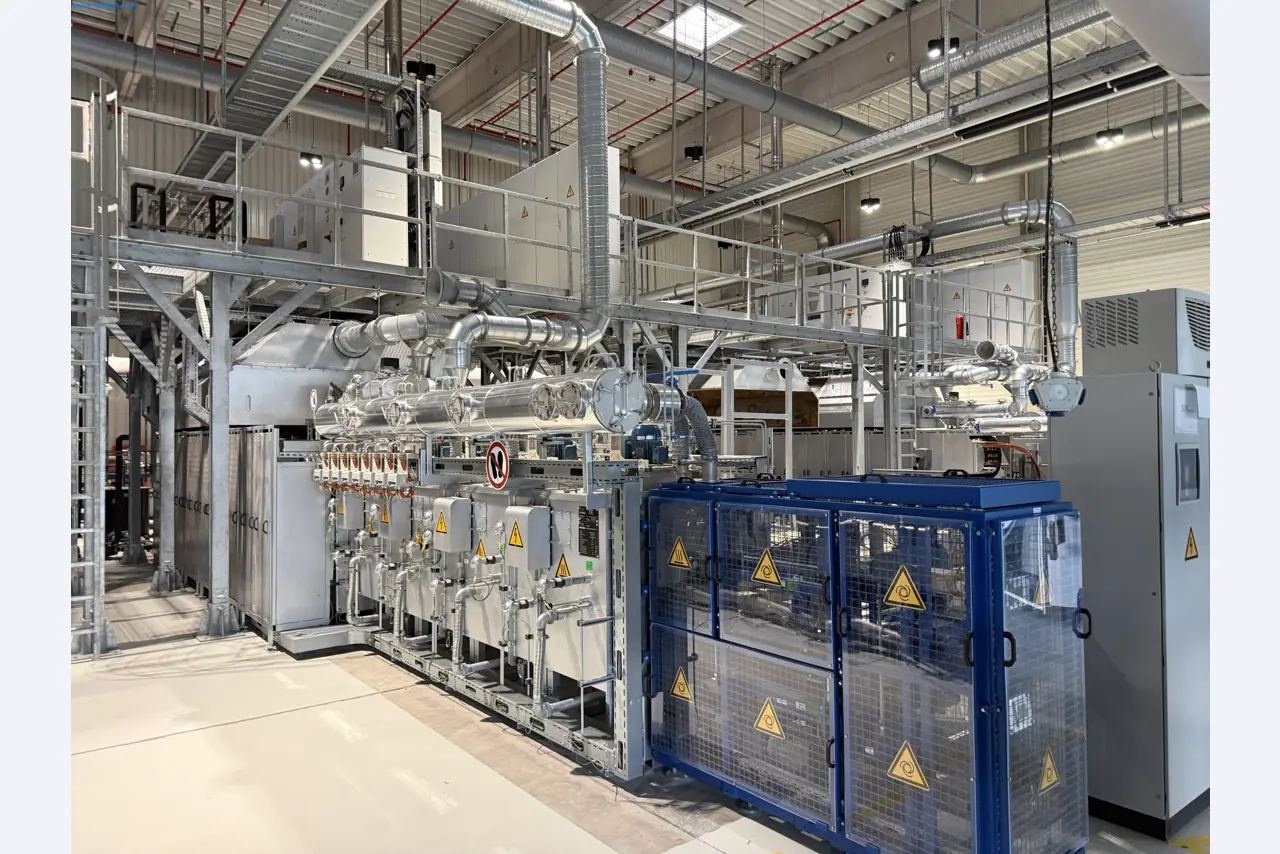

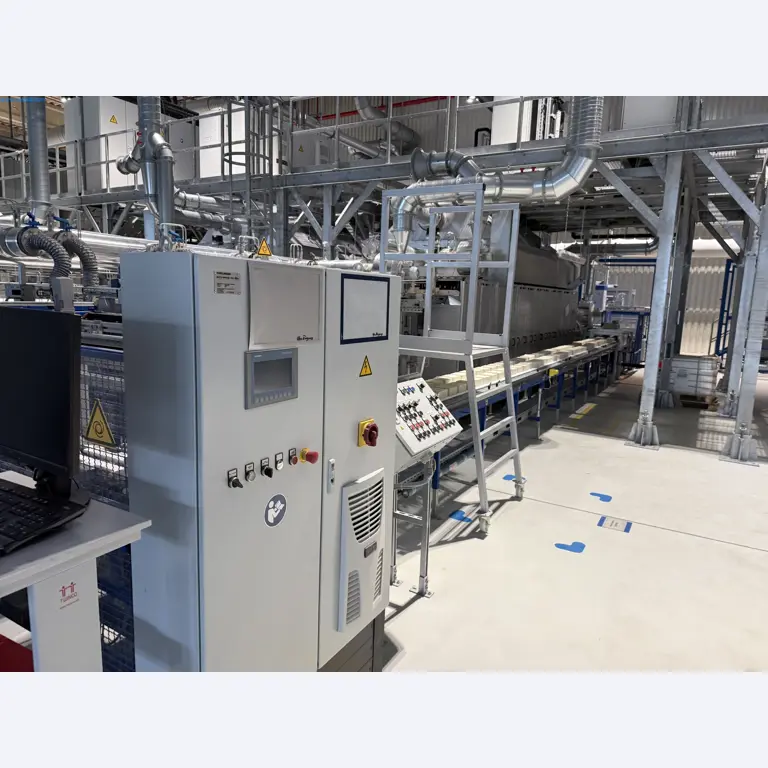

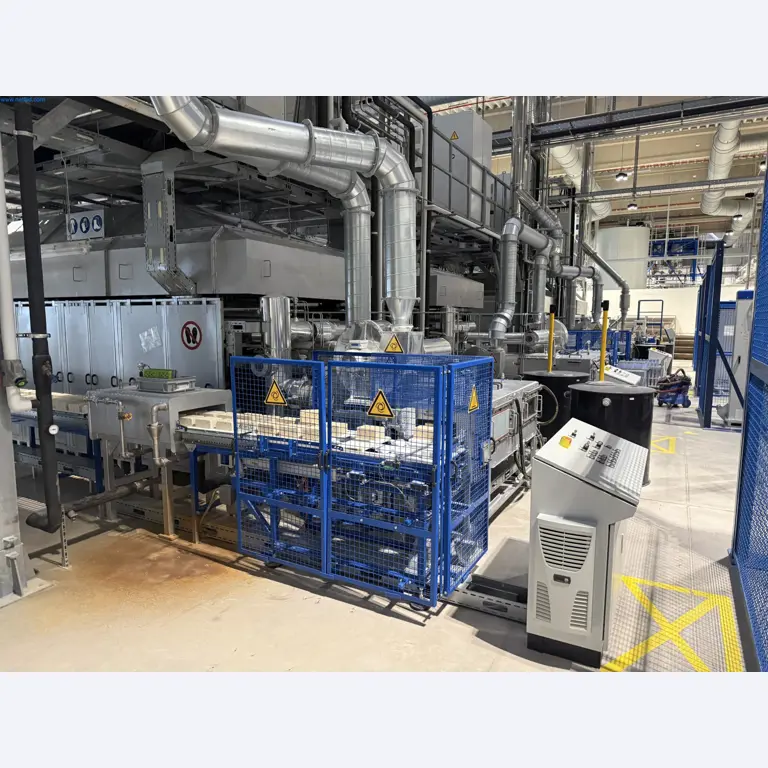

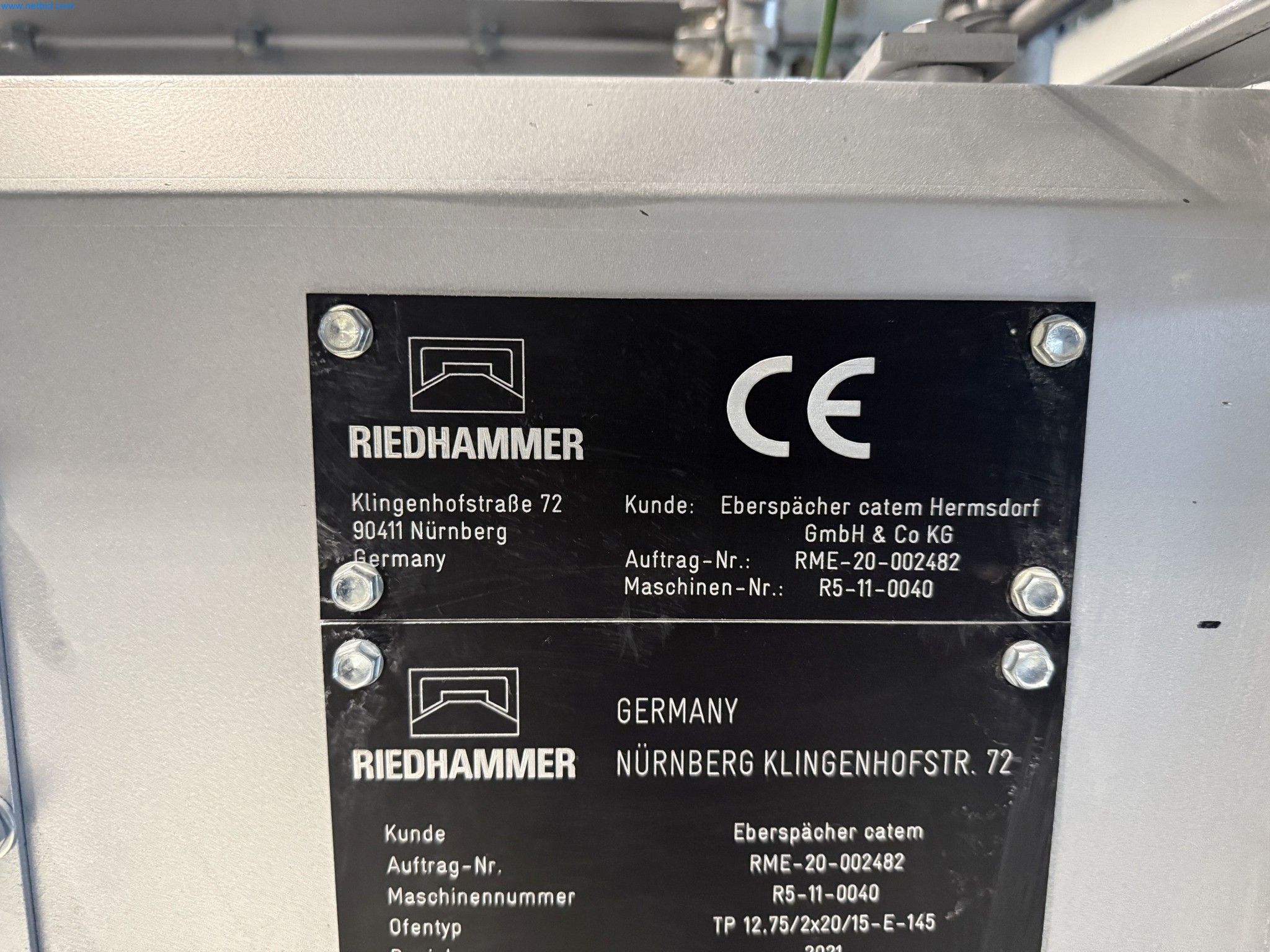

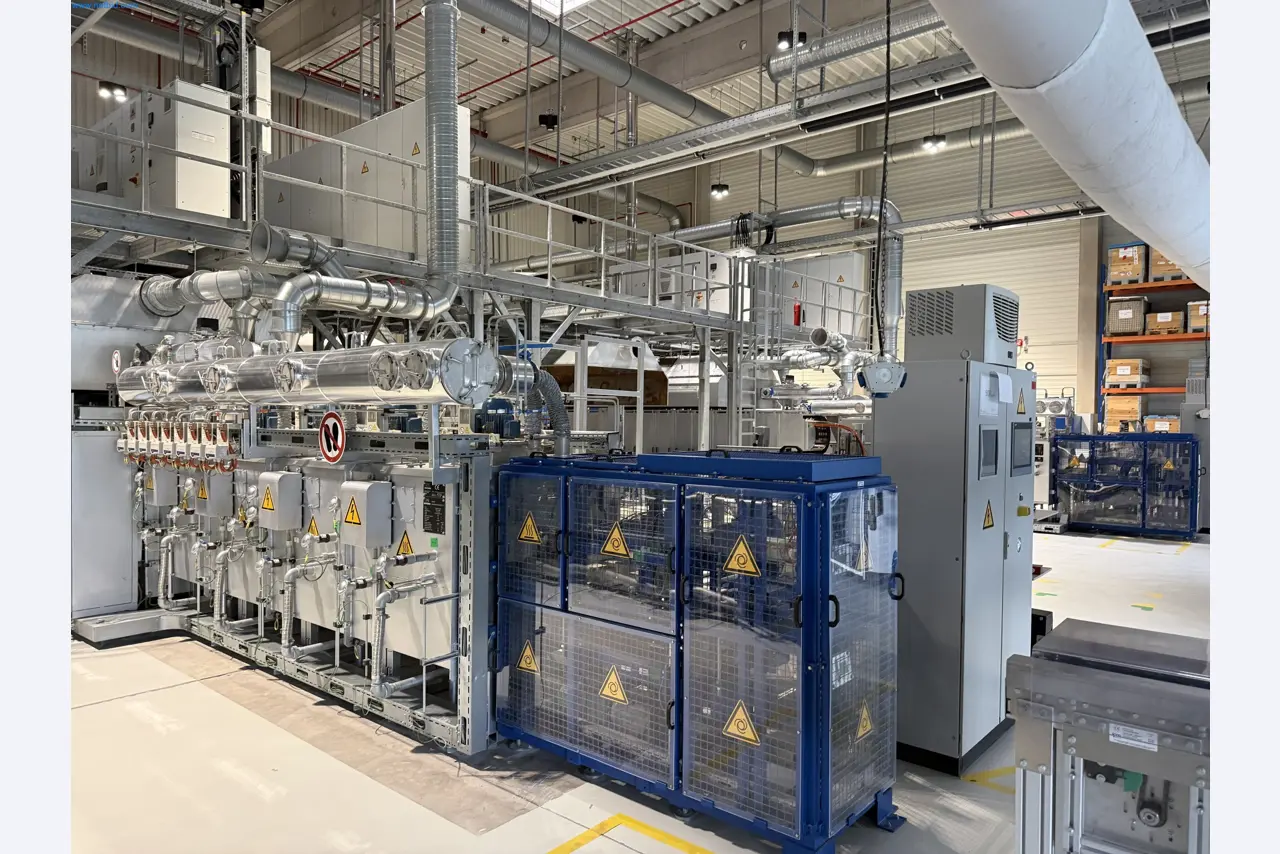

SN: R5-11-0040, usable volume 0.6 m³, max. temperature 1,470 °C, Heating type: electric, electric heating power: 360 kW, electric power rating: 659 kVA, with handling system, manufacturer: Theilinger, year of manufacture: 2020, machine platform, control cabinets, electrically heated two-lane tunnel furnace (continuous-flow furnace) for debinding and sintering PTC ceramics, order no. RME-21-002610, year of manufacture 2022; Furnace length 12.75 m; usable width 2 x 200 mm, usable height 150 mm; max. temperature for debinding 650 °C, sintering 1450 °C; Max. heating capacity: 360 kW; Kanthal wire heating and SiC heating elements; 19 control groups; conveyor plates: 202 x 202 mm, 126 in the furnace; conveyor speed: 126–450 mm/h; Furnace cycle time 9–31.7 h; measurement and control system 659 kVA, 400 V, 50 Hz, backup fuse 3 x 400 A; 19 load transformers; noise level < 80 dB(A).
Location
- 07629 Hermsdorf, Oststr. 11/ Produktion
Dates
Inspection
Mon, Nov. 16, 2026 - Tue, Nov. 17, 2026
After consulting with Mr. Kircher at: info@netbid.com
Pickup
Mon, Nov. 23, 2026 - Fri, Dec. 4, 2026
After consulting with Mr. Kircher at: info@netbid.com
Auction Terms
Special Terms: Cash payments are not accepted on site!
