Details
Product Type

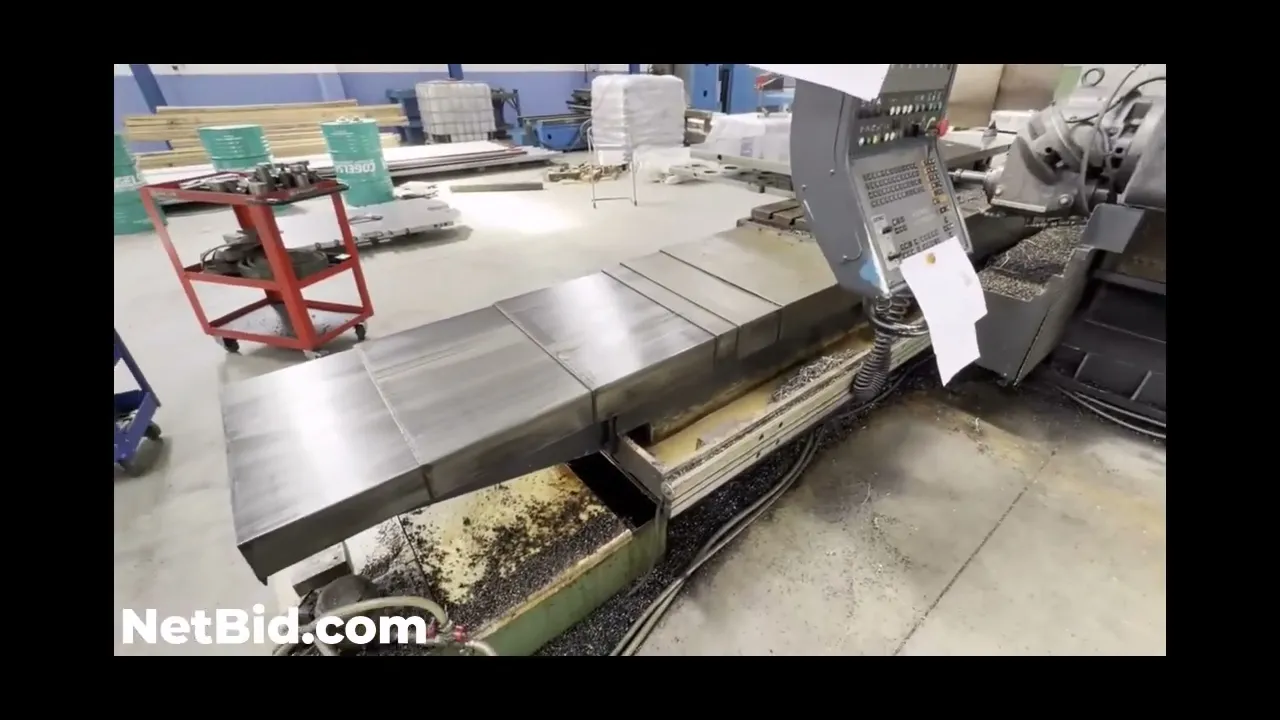

LAGUN GORATU
Type
G COSMOS 20
Construction Year
2004
Description
Controller: HEIDENHAIN GCOSMOS HD V2.1 / TNC 530 Digital
15.1" color screen
Memory capacity: ˜ 6 GB
CNC system
DIN / ISO programming
Interpolation: up to 5 linear axes / 3 circular axes
Integrated graphic simulation
Interface: RS 232 / RS 422
Machining graphic simulation Look Ahead function Ethernet
Machining capacities
Axis travels (GBM 21)
X Axis: 2000 mm
Y Axis: 1000 mm
Z Axis: 1000 mm
Feeds:
X/Y feed: up to 15,000 mm/min
Z feed: up to 15,000 mm/min
Working table:
Table size: 2100 × 800 mm
T-slots: 5 × 22 mm
Distance between slots: 140 mm
Maximum load capacity: 5000 kg (bed type)
Spindle
Taper: ISO 50 (DIN 69871)
Speed: 50 – 3000 rpm
Power:
Continuous: 22 kW
Max.: 27 kW
Motor type: AC digital S1/S6 (60%)
Universal head
Adjustable head with B axis (manual) and C axis (automatic via CNC)
Vertical and horizontal machining programming
Hydro-mechanical locking system with Hirth coupling
Mechanical Hirth serration locking
Spindle-driven actuation
Rotation time approx.: 15 seconds
Through spindle cooling (ready)
Spindle air blow-off / eject system
Angular + horizontal + vertical machining
Accuracy:
Positioning accuracy: 0.020 mm (ISO 230 2)
Repeatability: 0.010 mm
Resolution: 0.001 mm
Standard: ISO 230 2
Electrical data:
Power supply: 3 × 400 V / 50 Hz
Total consumption: ~38 kW
Total power: ˜ 21 kW
Voltage: 400 V
Frequency: 50 Hz
Approx. dimensions: 5618 × 3760 mm x 3350 mm
Approx. weight: 12,800 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
15.1" color screen
Memory capacity: ˜ 6 GB
CNC system
DIN / ISO programming
Interpolation: up to 5 linear axes / 3 circular axes
Integrated graphic simulation
Interface: RS 232 / RS 422
Machining graphic simulation Look Ahead function Ethernet
Machining capacities
Axis travels (GBM 21)
X Axis: 2000 mm
Y Axis: 1000 mm
Z Axis: 1000 mm
Feeds:
X/Y feed: up to 15,000 mm/min
Z feed: up to 15,000 mm/min
Working table:
Table size: 2100 × 800 mm
T-slots: 5 × 22 mm
Distance between slots: 140 mm
Maximum load capacity: 5000 kg (bed type)
Spindle
Taper: ISO 50 (DIN 69871)
Speed: 50 – 3000 rpm
Power:
Continuous: 22 kW
Max.: 27 kW
Motor type: AC digital S1/S6 (60%)
Universal head
Adjustable head with B axis (manual) and C axis (automatic via CNC)
Vertical and horizontal machining programming
Hydro-mechanical locking system with Hirth coupling
Mechanical Hirth serration locking
Spindle-driven actuation
Rotation time approx.: 15 seconds
Through spindle cooling (ready)
Spindle air blow-off / eject system
Angular + horizontal + vertical machining
Accuracy:
Positioning accuracy: 0.020 mm (ISO 230 2)
Repeatability: 0.010 mm
Resolution: 0.001 mm
Standard: ISO 230 2
Electrical data:
Power supply: 3 × 400 V / 50 Hz
Total consumption: ~38 kW
Total power: ˜ 21 kW
Voltage: 400 V
Frequency: 50 Hz
Approx. dimensions: 5618 × 3760 mm x 3350 mm
Approx. weight: 12,800 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
Location
- 2445-036 Pataias
Dates
Inspection
Safety shoes are required for the tour.
The tour is only possible after prior registration at carrico@netbid.com.
The tour is only possible after prior registration at carrico@netbid.com.
Pickup
05.07.2026 - 10.07.2026
Safety shoes are required for collection.
Collection is only possible after prior registration at carrico@netbid.com.
Collection is only possible after prior registration at carrico@netbid.com.
