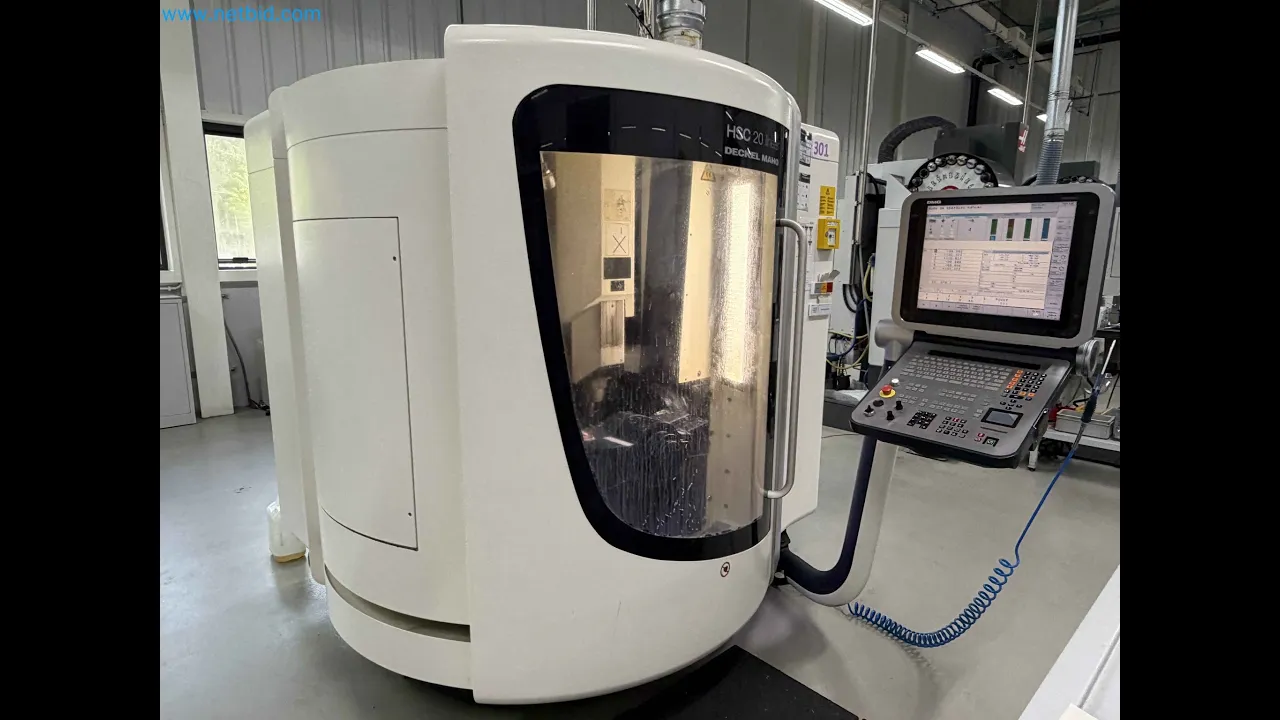

5-Axis High-Speed Machining Center (Linear Drive) DMG MORI SAUER HSC 20 linearTRADING#19565-SM01 (19569-1)
Details
Product Type
DMG MORI SAUER
Type
HSC 20 linear
Construction Year
2012
Description
CNC System
Kinematics and Axes
Technology
Feed rates and speeds
Axis travels
Accuracy
5-Axis System (A + C)
C Axis
A Axis (tilting)
Spindle (HSC)
System
Taper
Tool Magazine (ATC)
Electrical Data
Transformer
Pneumatic System
Cooling System
Equipment and Accessories
Approx. dimensions: 2020 × 2196 × 2385 mm
Approx. weight: 3,750 kg
Optional dismantling and loading cost provided by third parties: €500.
Any additional costs related to lot preparation and packaging requirements for transport, provided by third parties, are available upon request.
- Controller: Heidenhain iTNC 530
- Interface: DMG ERGOline
- Capabilities:
- high-precision 3D machining
- 5-axis interpolation
- advanced HSC cycles
Kinematics and Axes
Technology
- Configuration: 5 simultaneous axes (X, Y, Z + A + C)
- Linear motors on axes X, Y, Z
- no ball screws
- no backlash
- high precision and dynamics
Feed rates and speeds
- Max programmable feed rate: 40,000 mm/min (40 m/min)
- Rapid traverse: 40 m/min
- Resolution: 0.001 mm (1 µm)
- Manual mode: 20 – 5,000 mm/min
Axis travels
- X: 200 mm
- Y: 200 mm
- Z: 280 mm
Accuracy
- Resolution: 0.001 mm
- Positioning accuracy: ~0.005 mm
5-Axis System (A + C)
C Axis
- Rotation: 360° continuous
- Speed: up to 150 rpm
- Table diameter: Ø 190 mm
- Center bore: Ø 50 H6
A Axis (tilting)
- Range: -10° to +130°
- Max load: 10 kg
Spindle (HSC)
- Max speed: 42,000 rpm
- Rated power (S1): ~15 kW
- Peak power (S6): ~19.5 kW
- Max torque: ~6 Nm
System
- liquid cooling
- thermal sensor (160°C)
Taper
- HSK-E32 (DIN 69893)
- pneumatic/mechanical clamping
Tool Magazine (ATC)
- Capacity: 24 tools
- Max diameter: 40 mm
- Max length: 200 mm
- Max tool weight: 2 kg
- Total magazine weight: 50 kg
Electrical Data
- Power supply: 3N/PE – 400/230V – 50/60 Hz
- Installed power: ~50 kVA
- Typical consumption (5 axes): 65–70 kVA
- Current:
- Rated: ~95–100 A
- Max.: ~115 A
- Recommended fuse: 100–125 A
Transformer
- Power: 80 kVA
- Multi-voltage (200–500 V)
Pneumatic System
- Pressure:
- Min.: 6 bar
- Max.: 10 bar
- Air consumption:
- Base: 12 m³/h
- With air blow: 25 m³/h
Cooling System
- External chiller (RB 334):
- Capacity: 3.3 kW
- Flow rate: ~16–25 l/min
- Pressure: up to 10 bar
Equipment and Accessories
- Laser measurement system (tool measurement)
- Extraction system (graphite / dry machining)
- Quick clamping system (zero-point)
- Spindle cooling chiller (3.3 kW)
- Electrical cabinet air conditioning
- SCHUNK device
- Original DMG software (CD Fremdmodule)
- Complete documentation + logbook
- Serial number: 1179 000264 7
Approx. dimensions: 2020 × 2196 × 2385 mm
Approx. weight: 3,750 kg
Optional dismantling and loading cost provided by third parties: €500.
Any additional costs related to lot preparation and packaging requirements for transport, provided by third parties, are available upon request.
