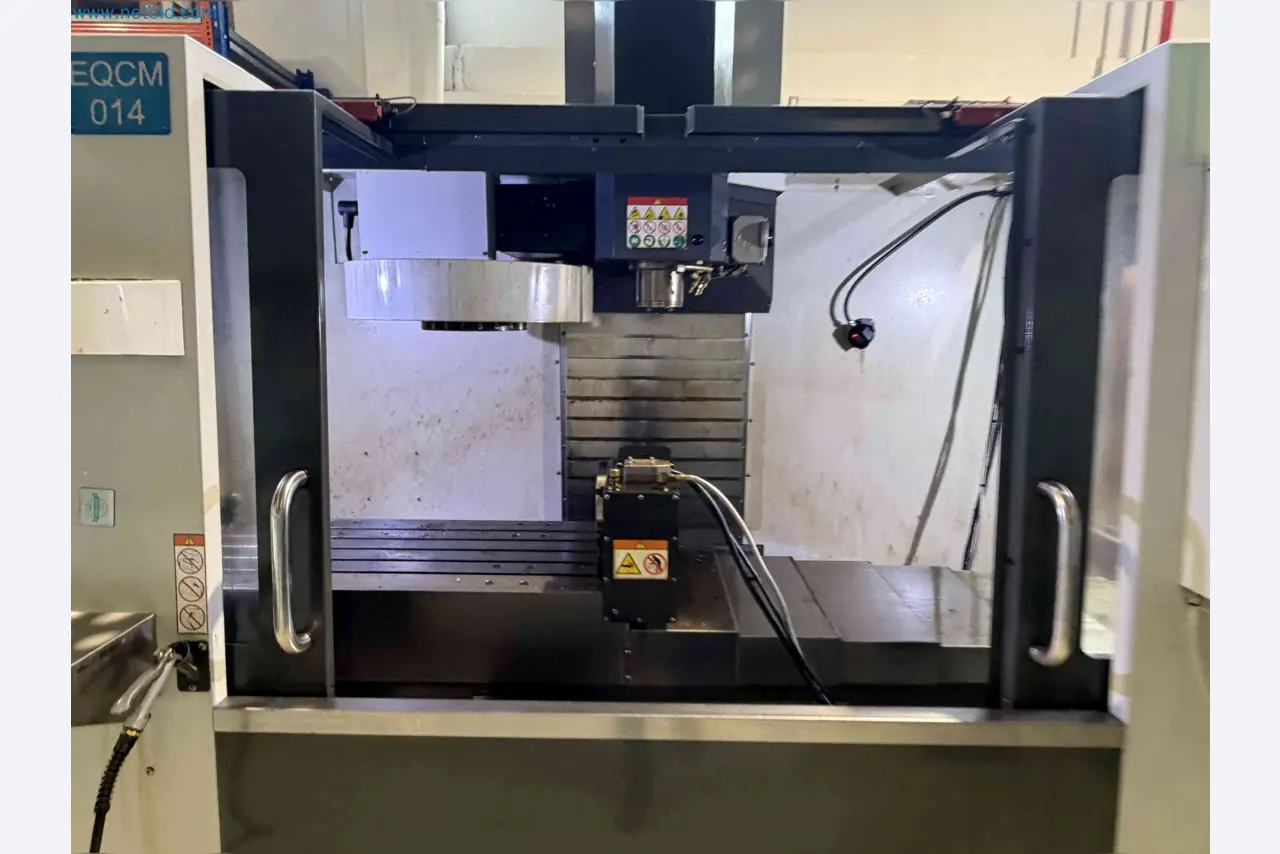

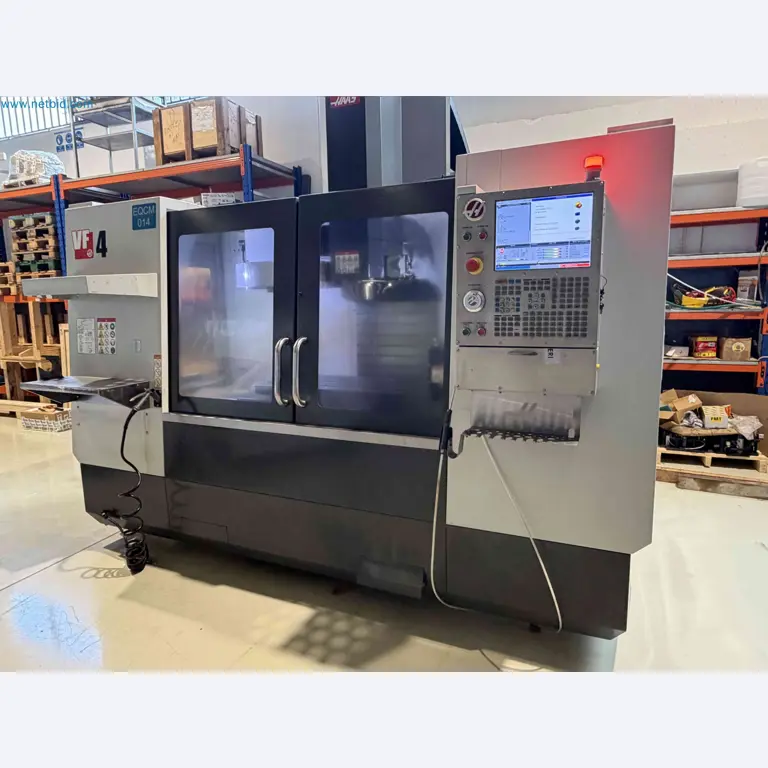

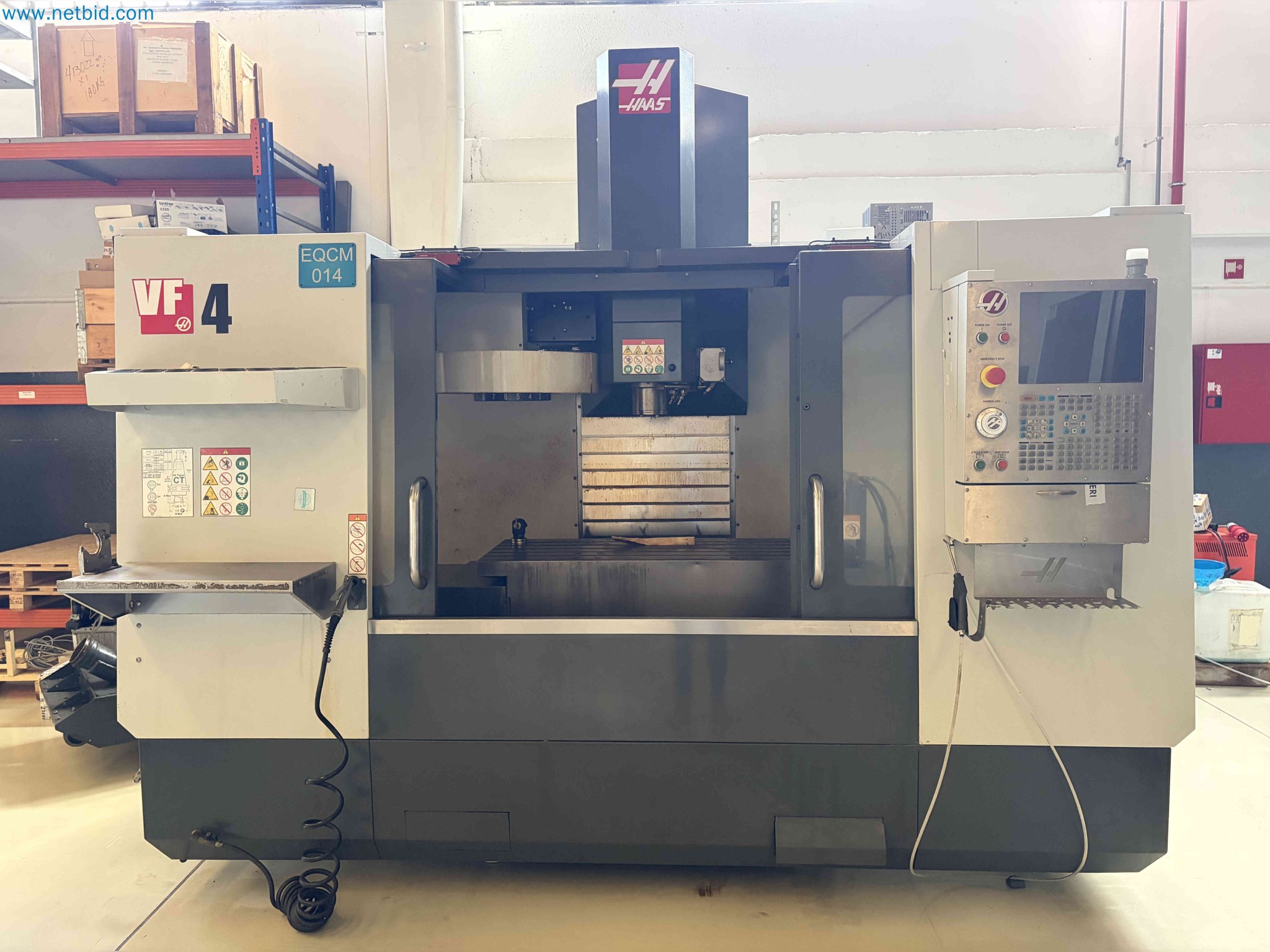

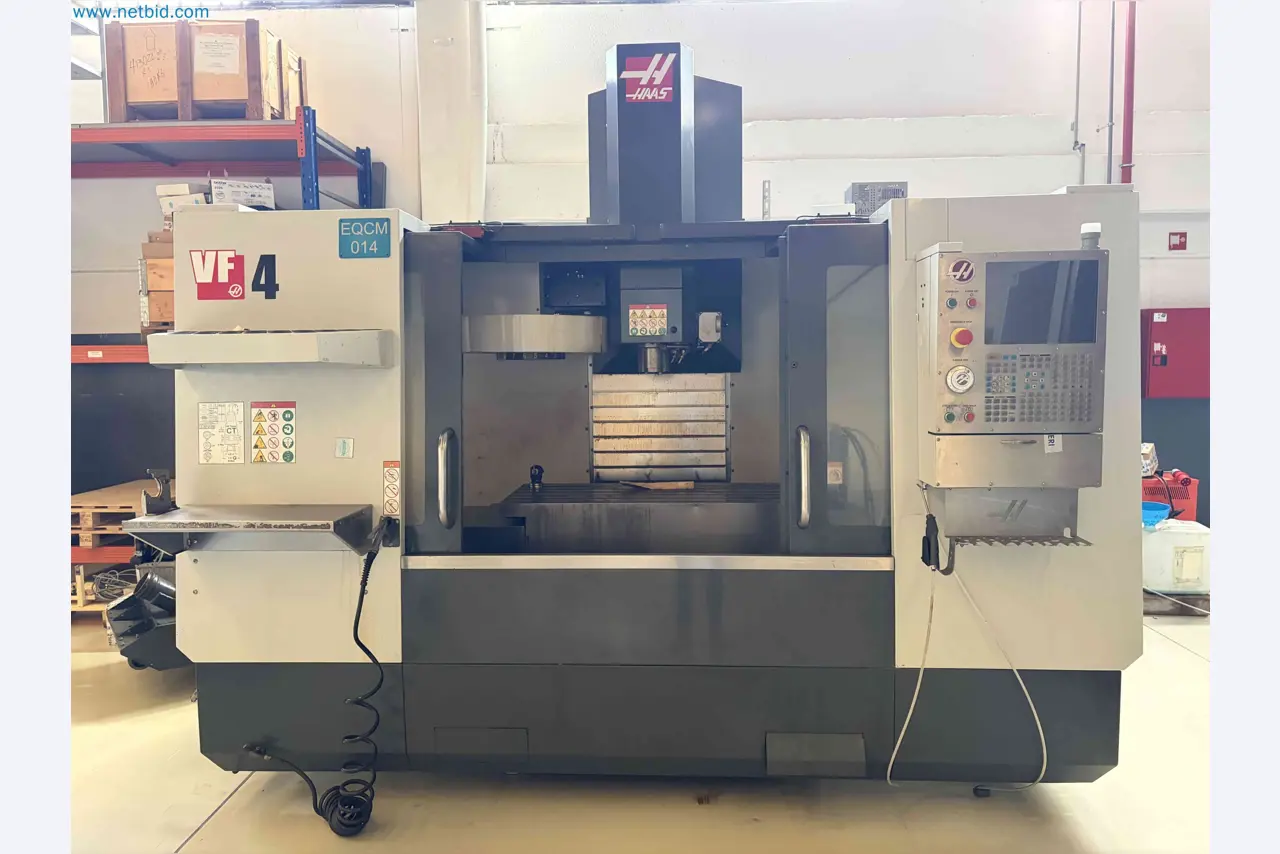

Details

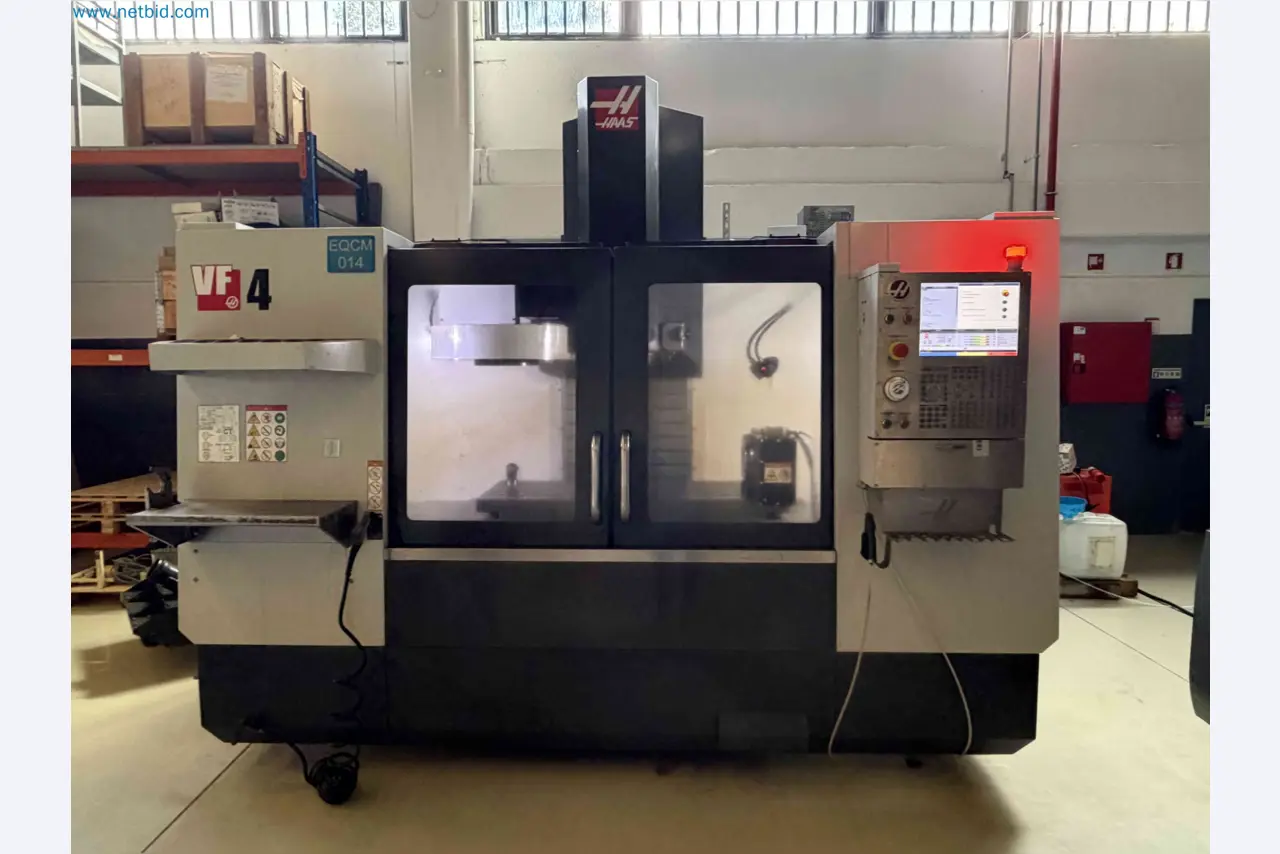

Product Type

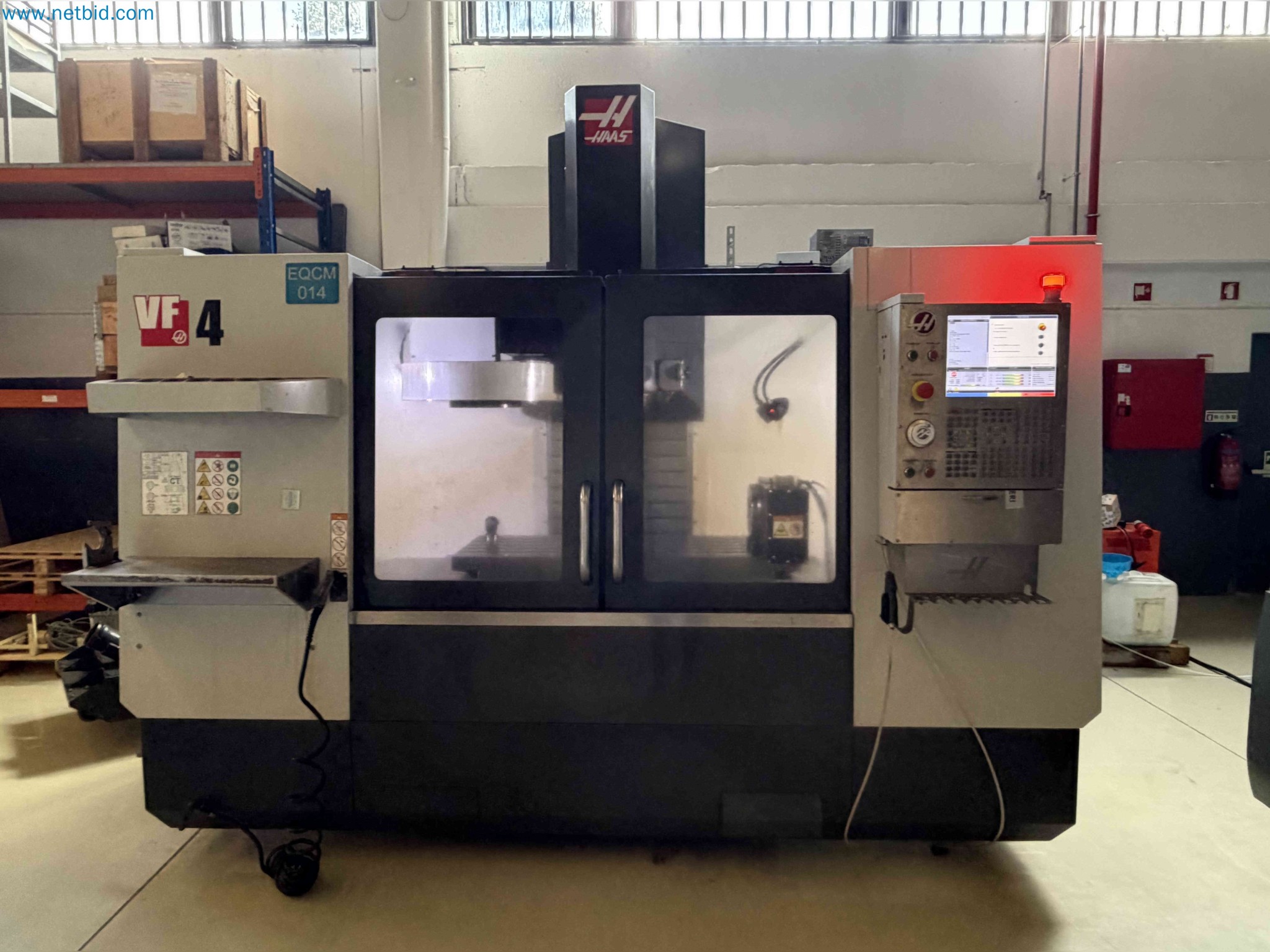

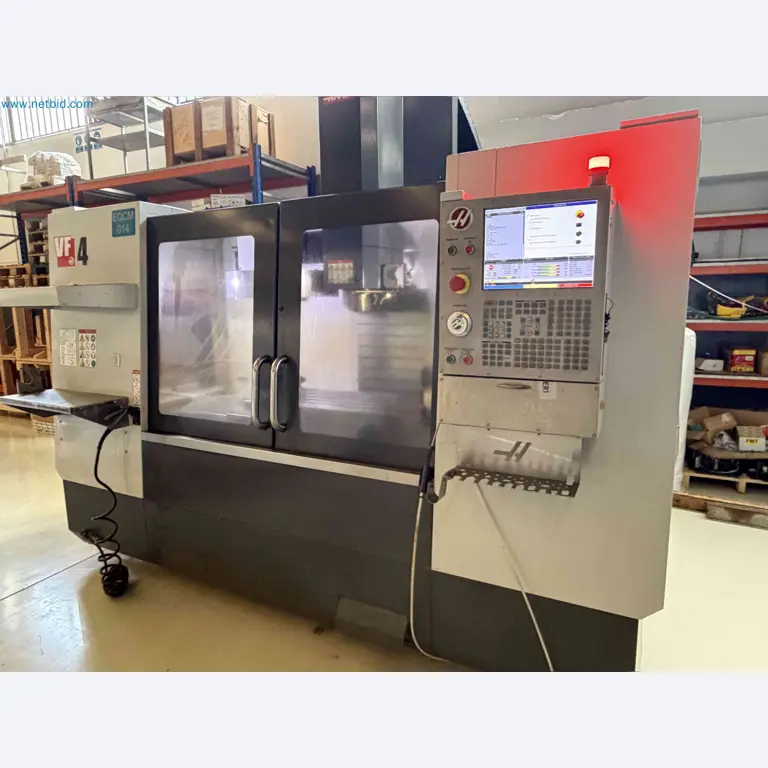

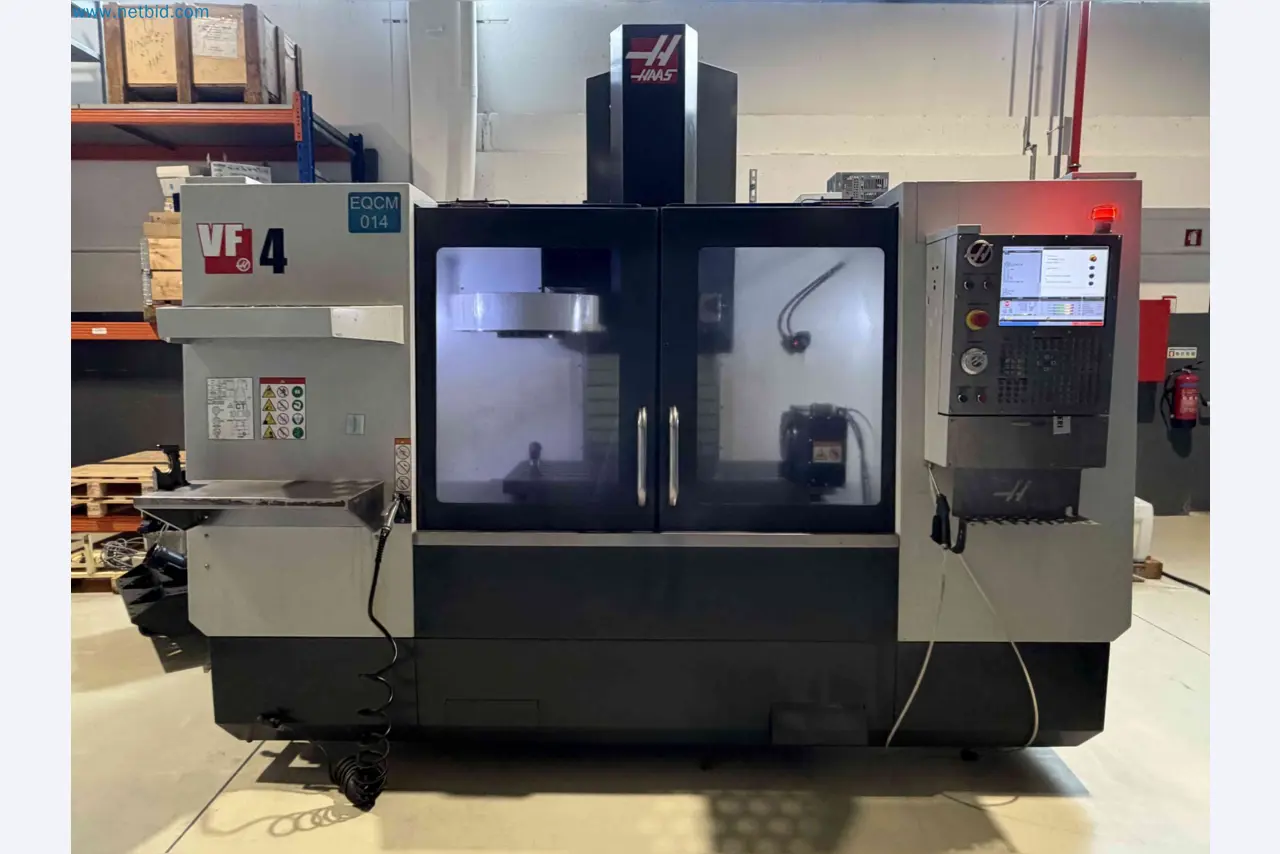

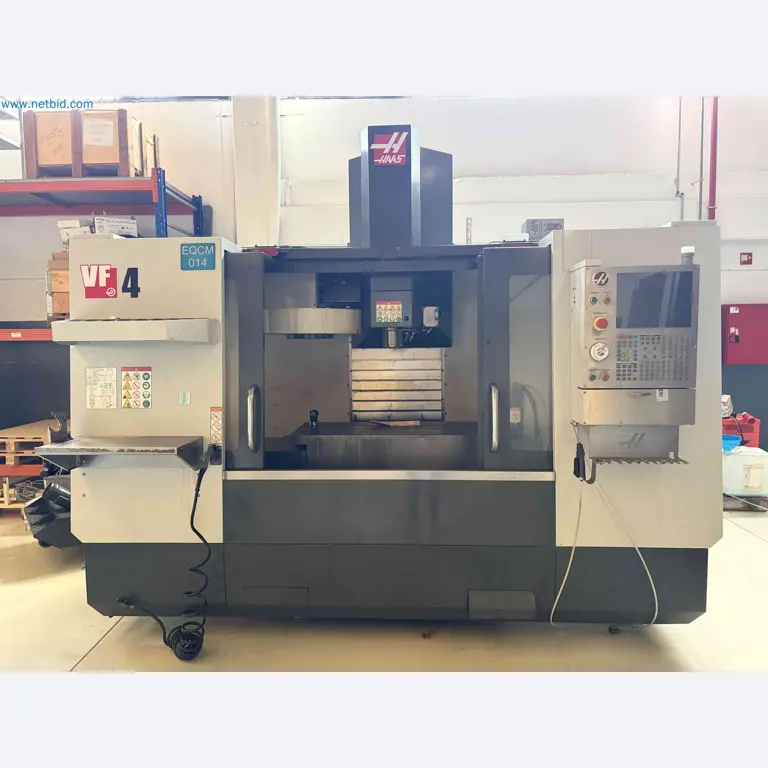

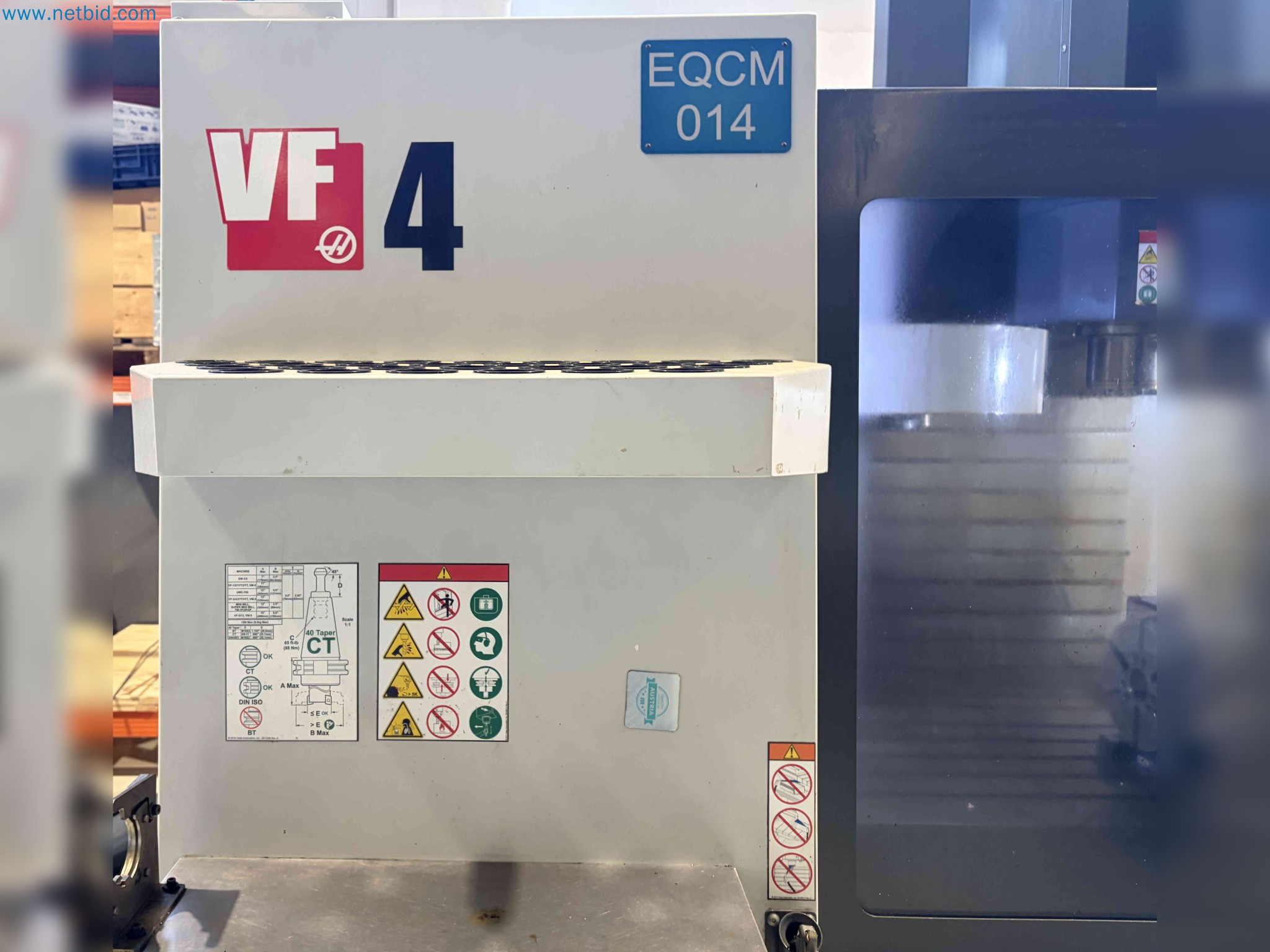

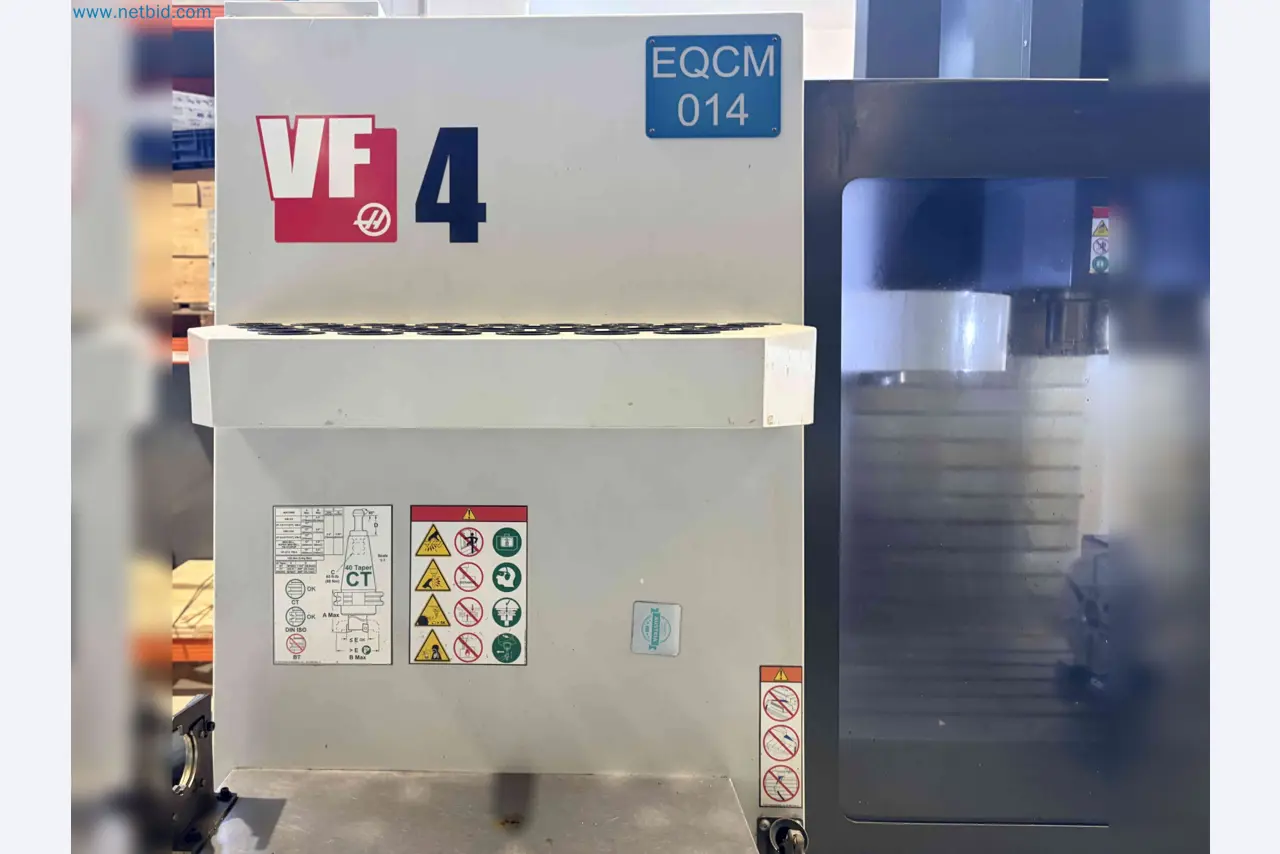

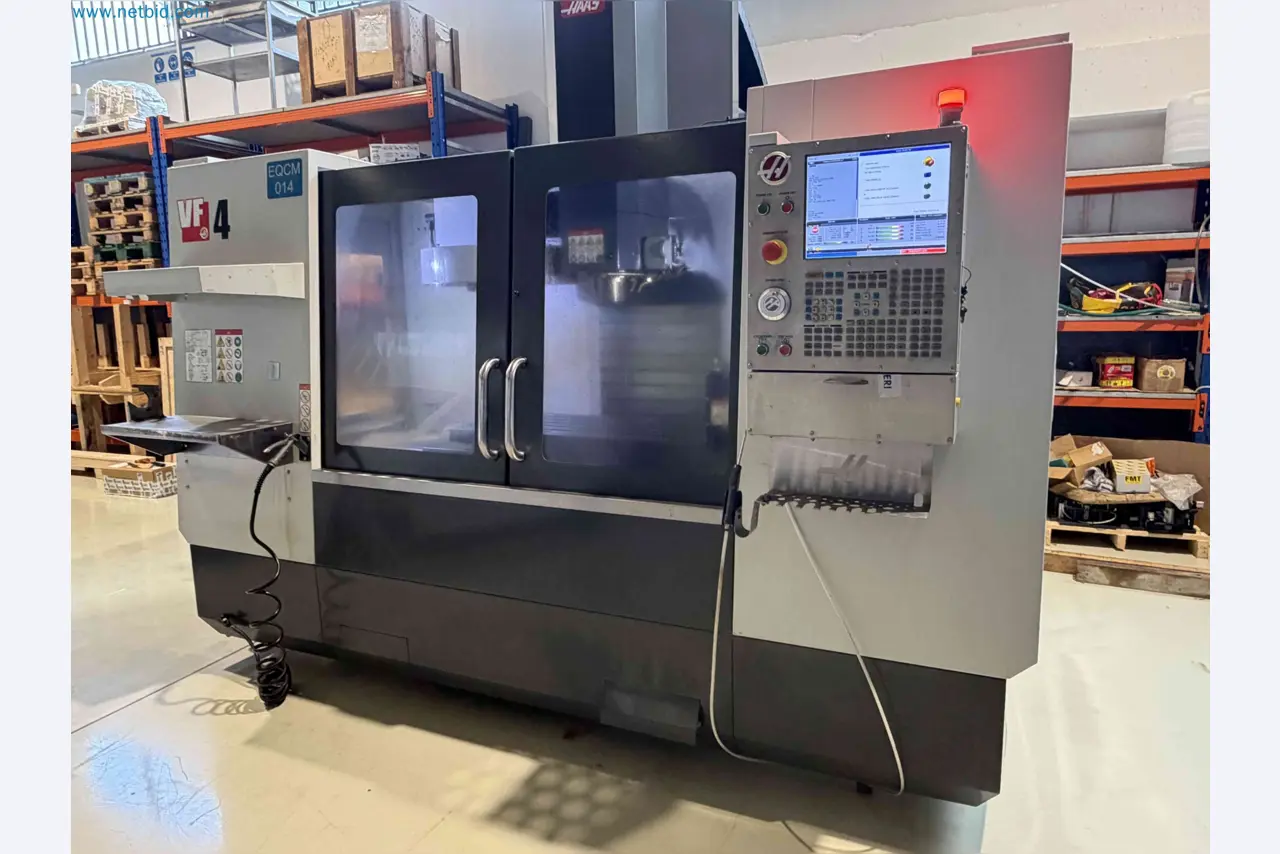

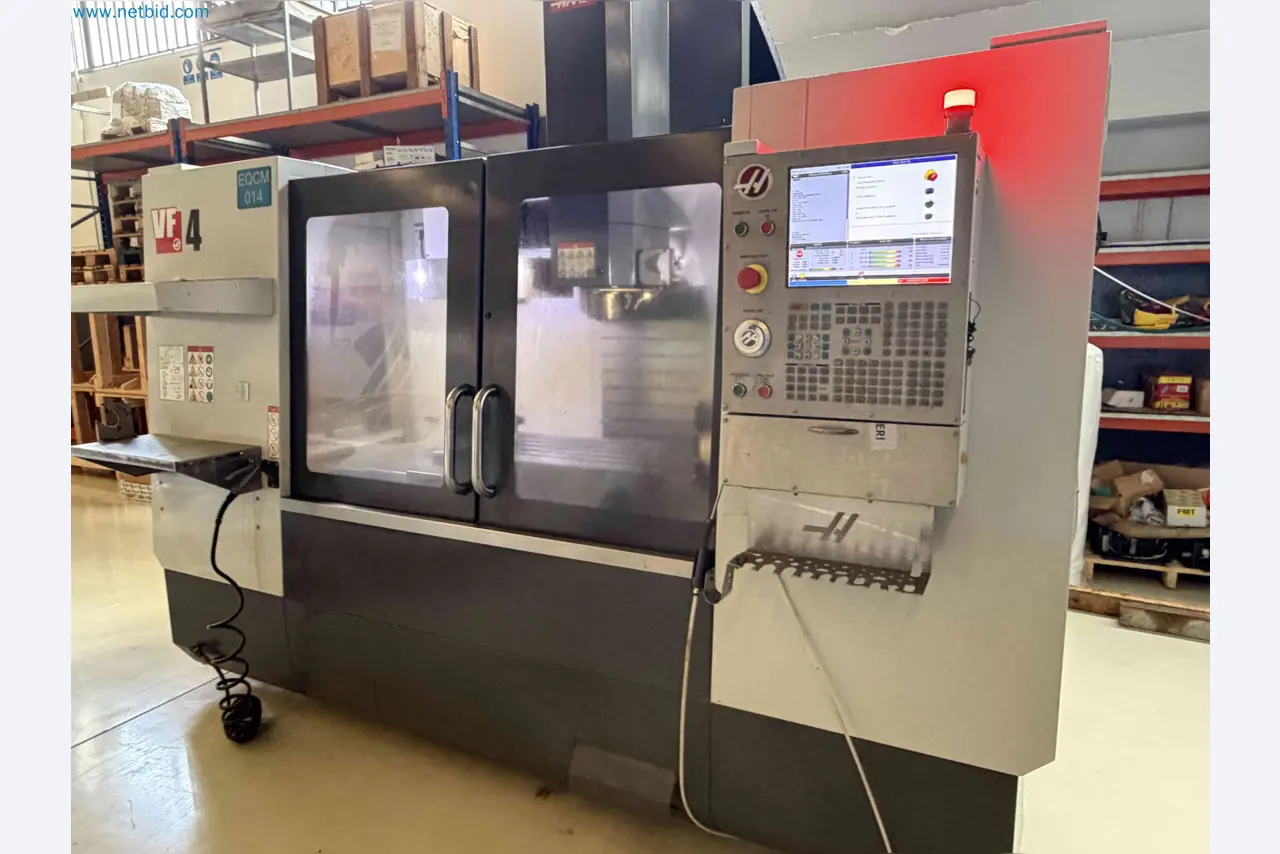

HAAS
Type

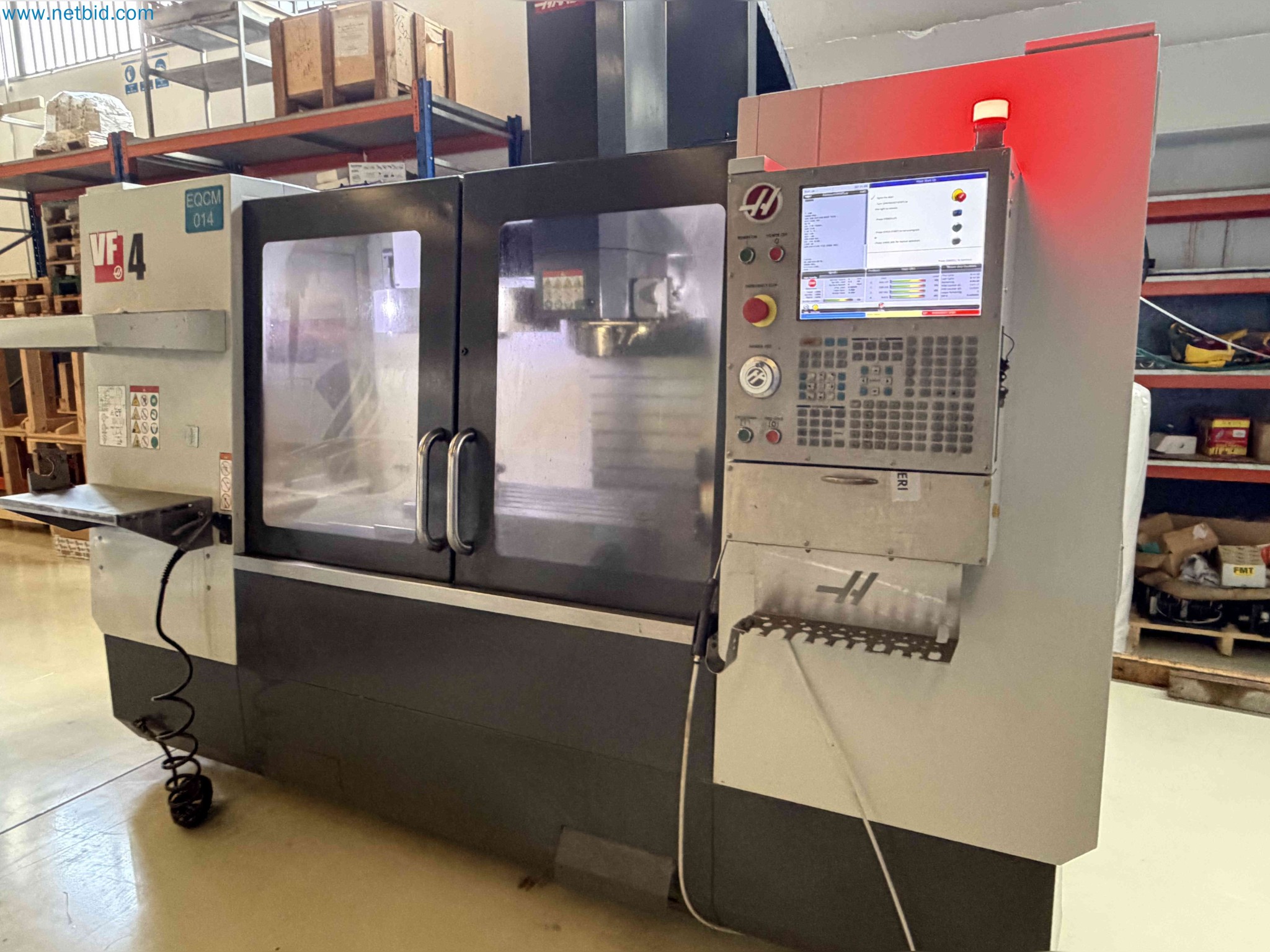

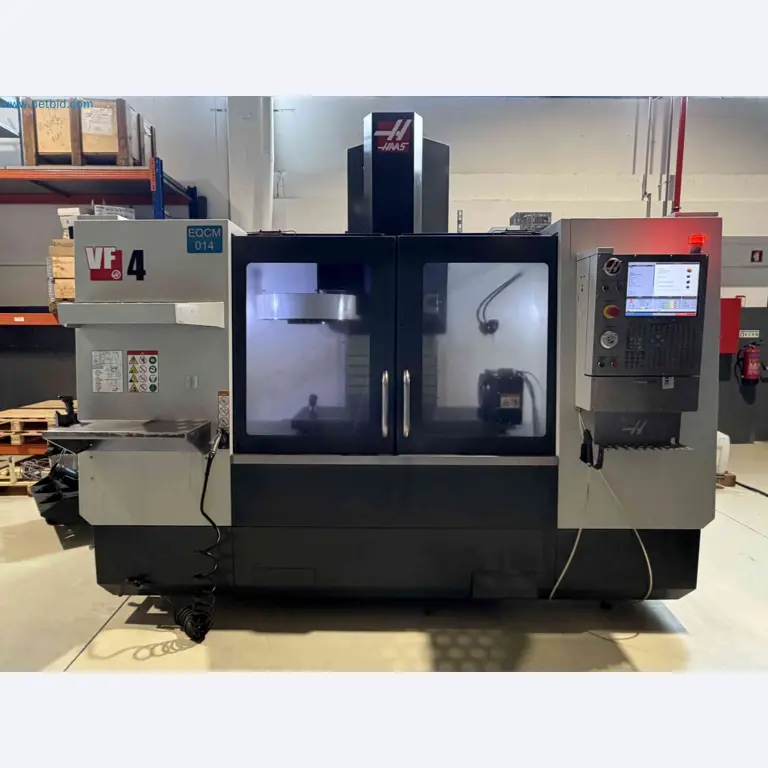

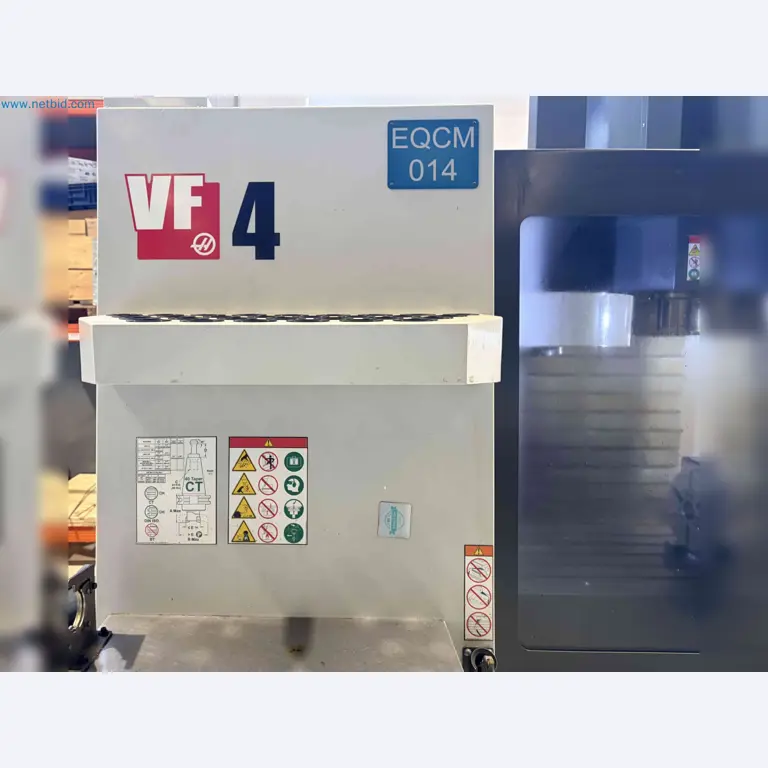

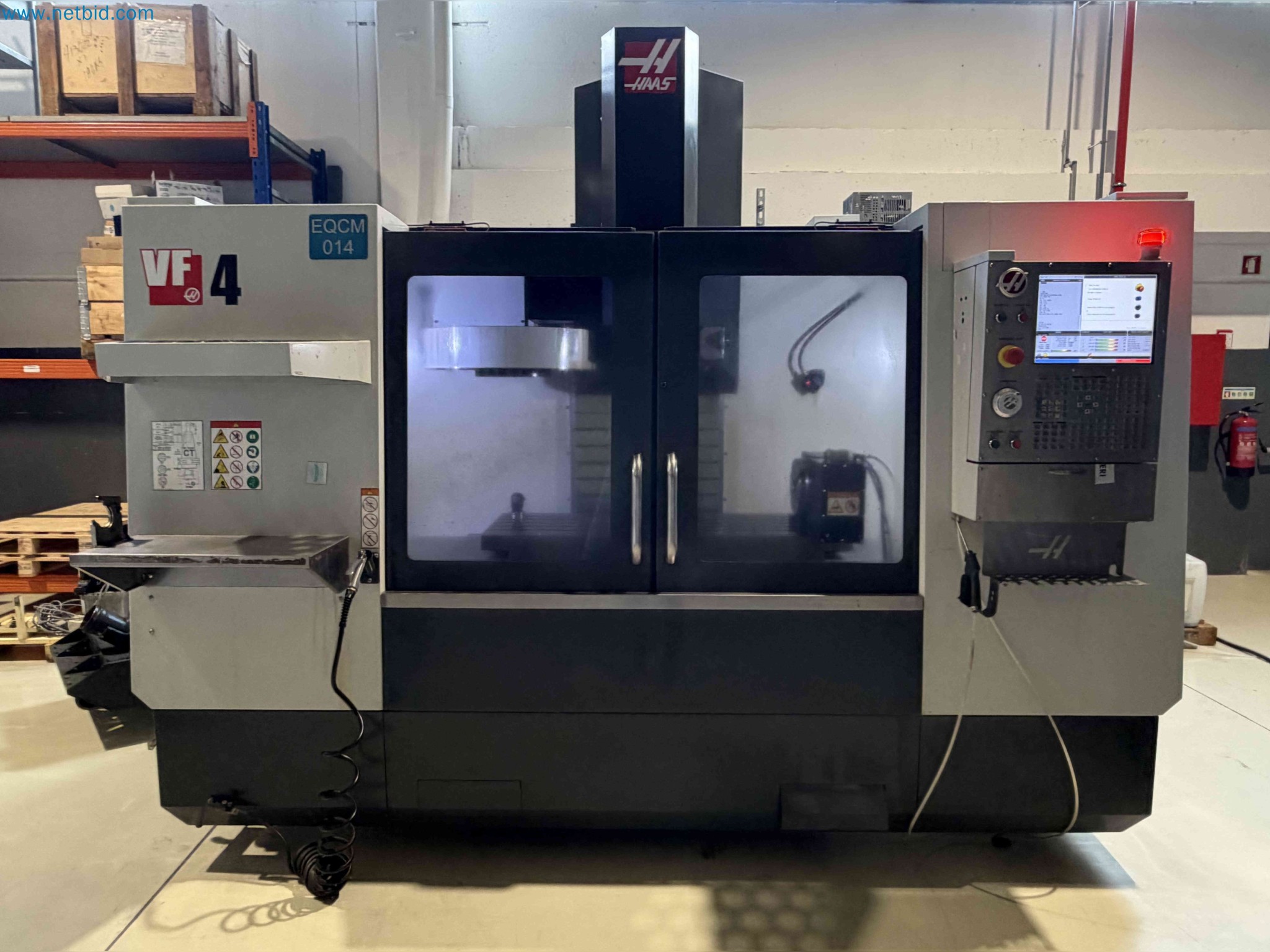

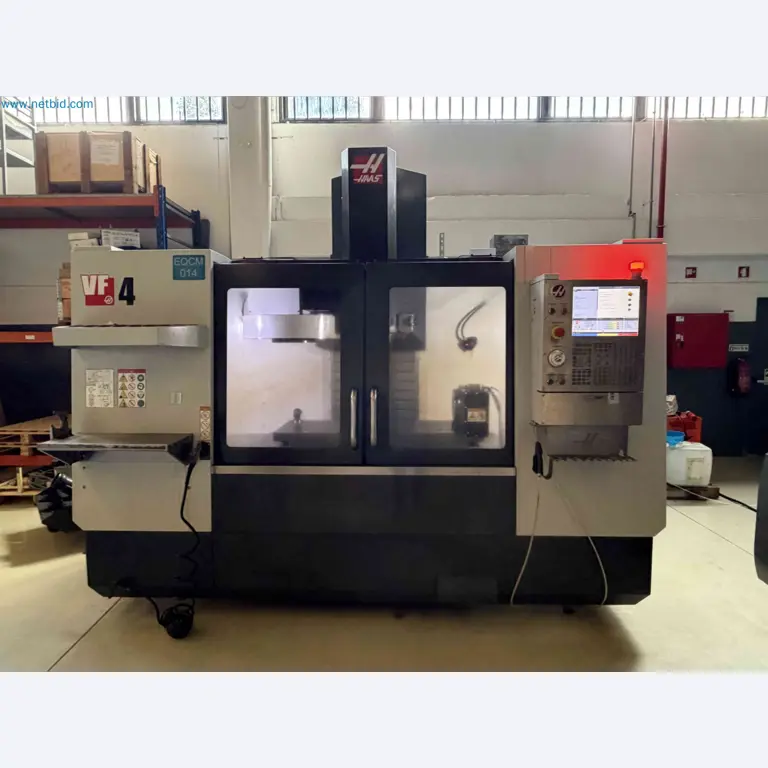

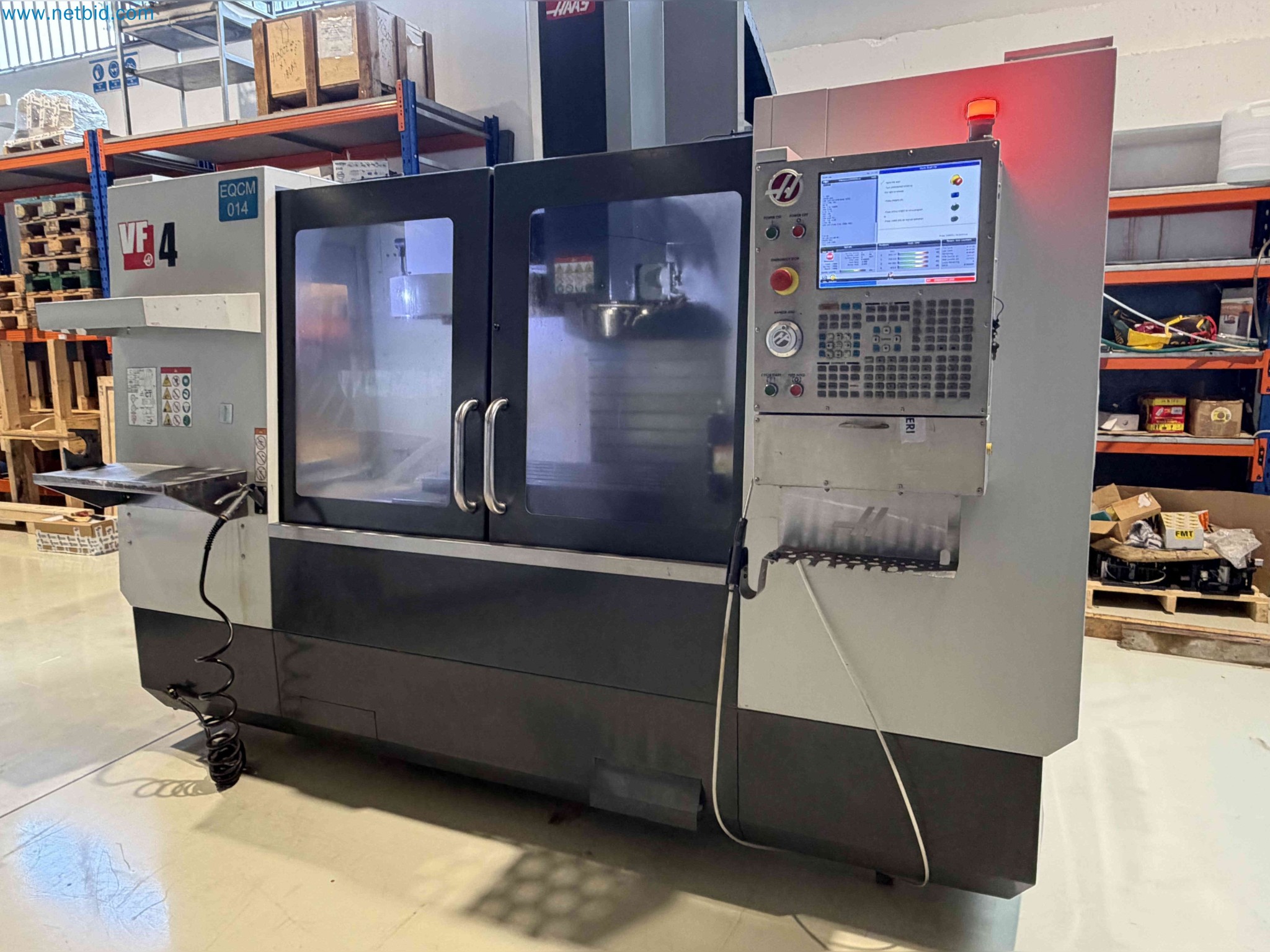

VF - 4
Construction Year
2017
Description
Axes:
X: 1,270 mm
Y: 508 mm
Z: 635 mm

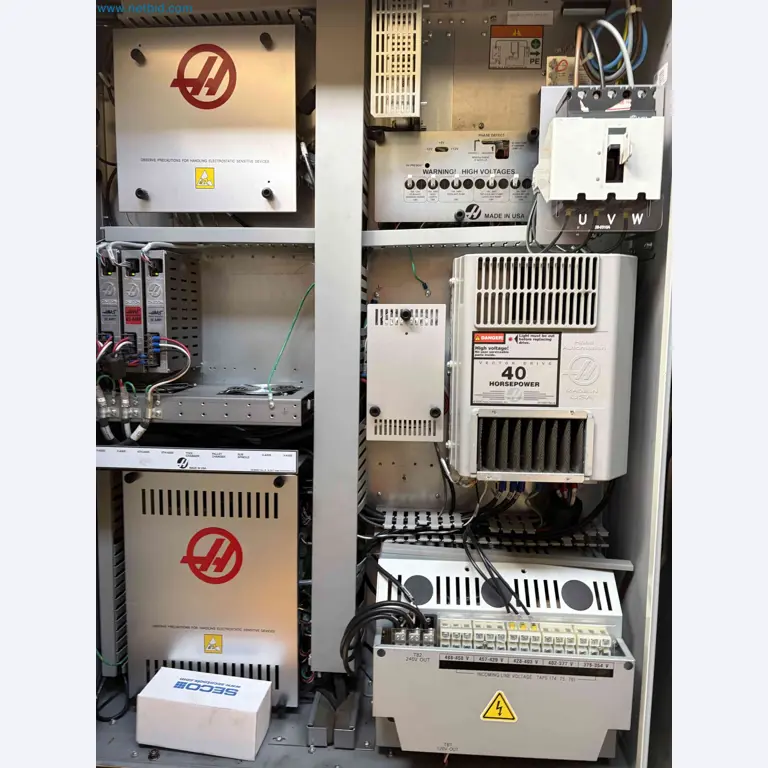

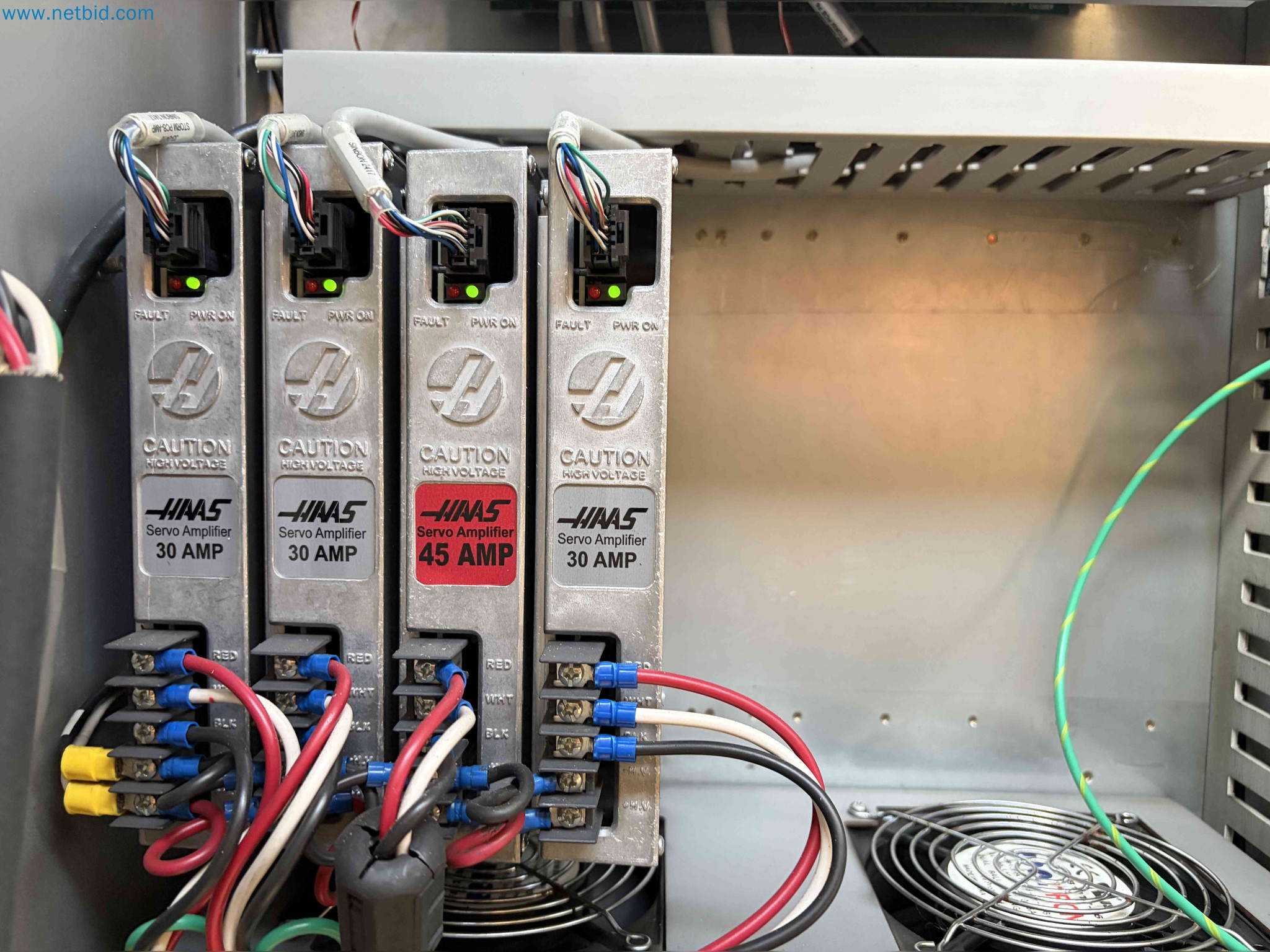

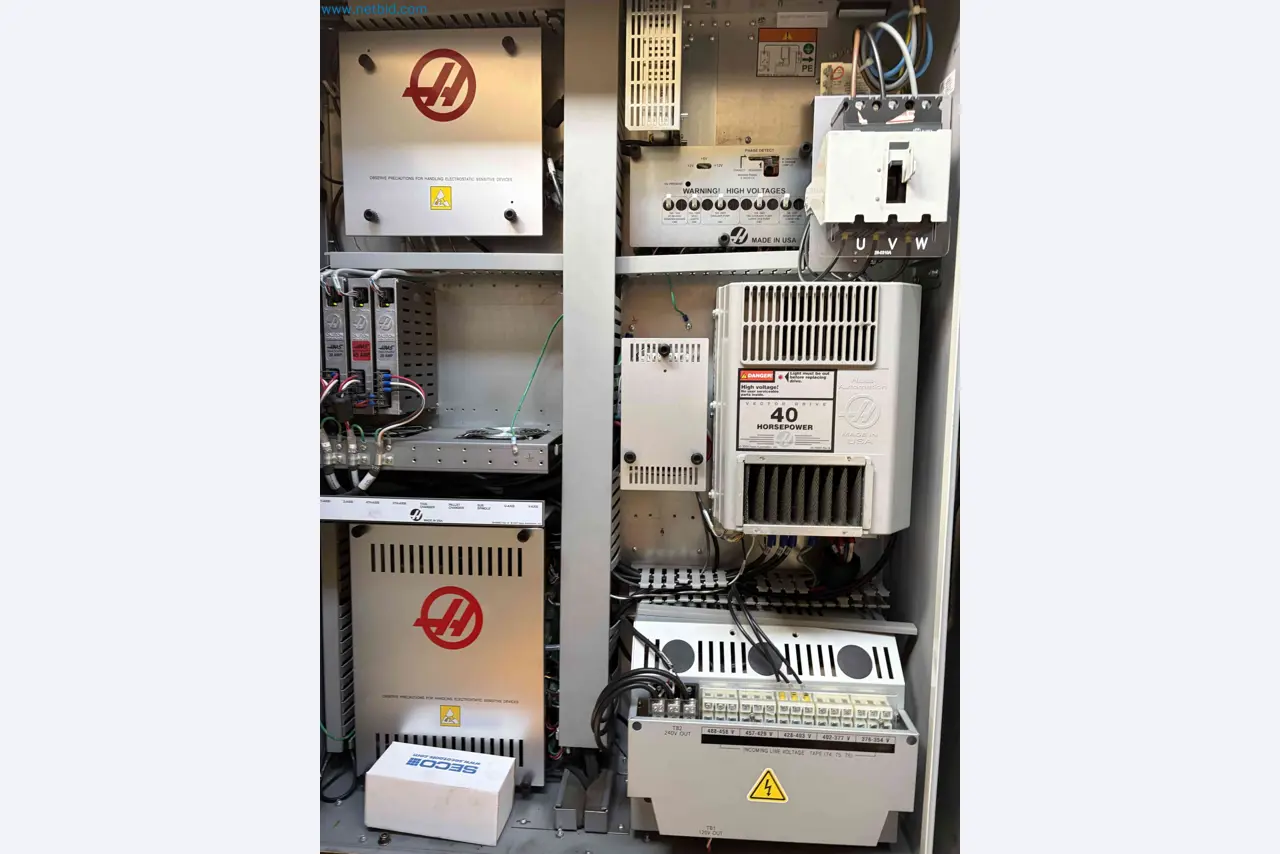

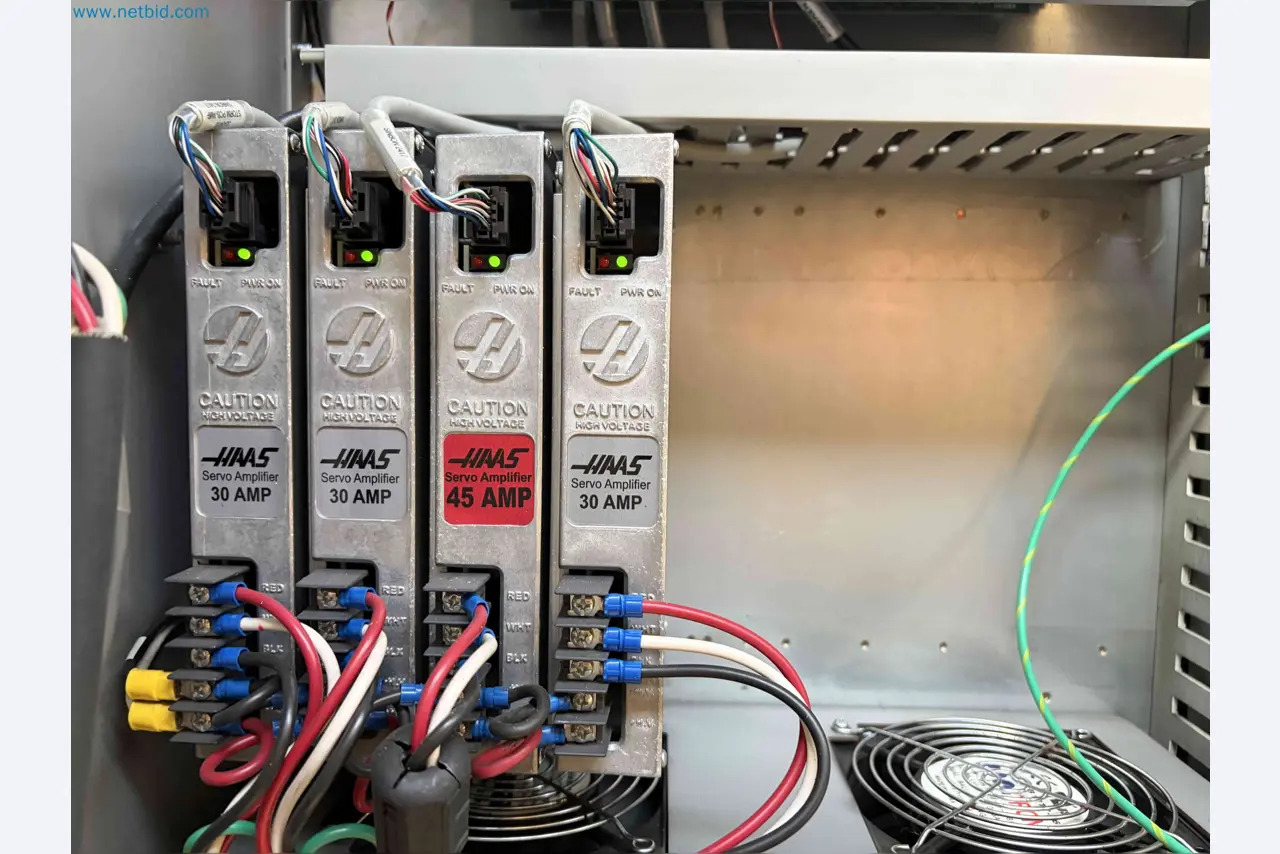

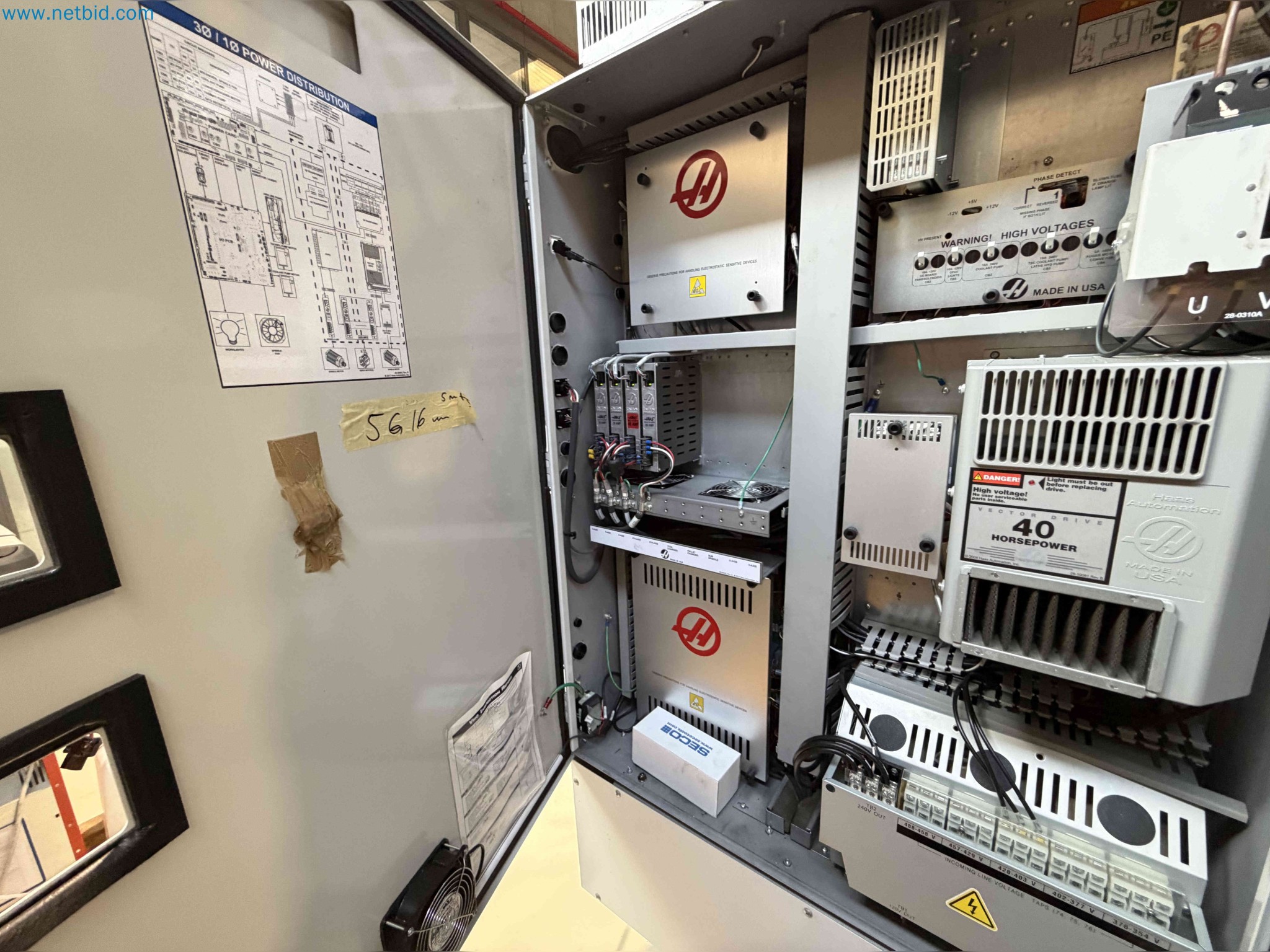

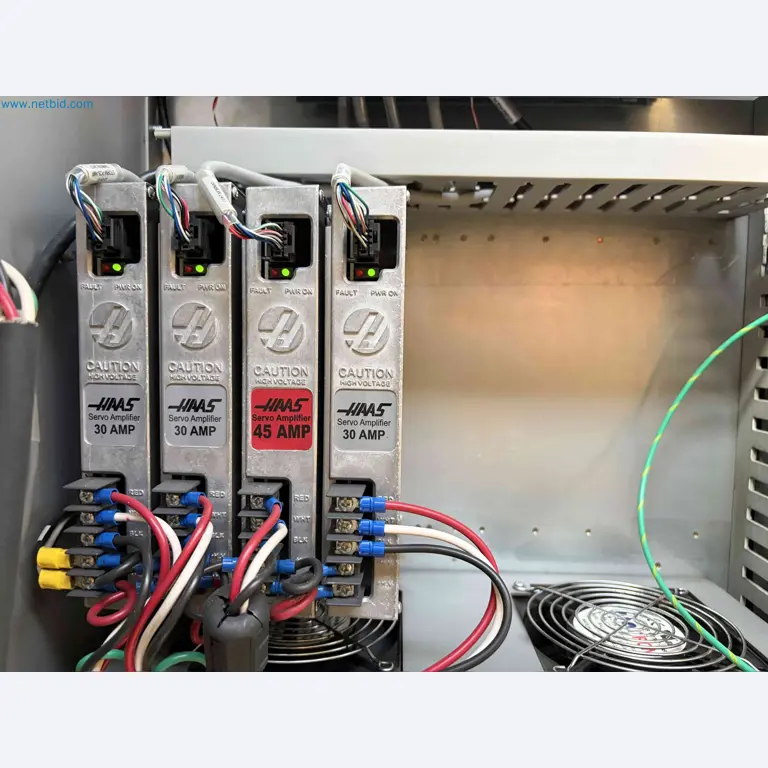

Servo drives (axes)
3x Servo Amplifier 30 AMP
1x Servo Amplifier 45 AMP

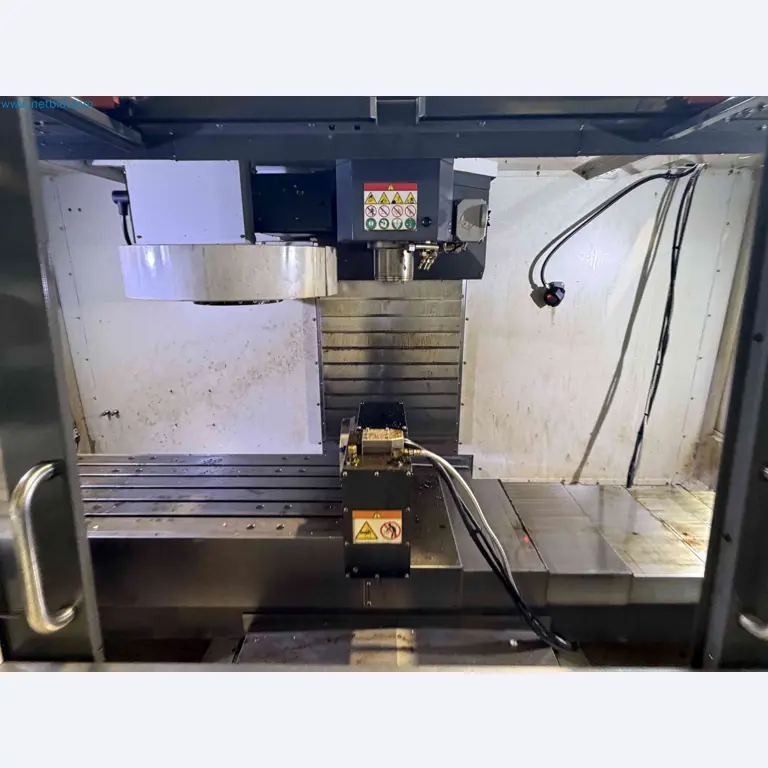

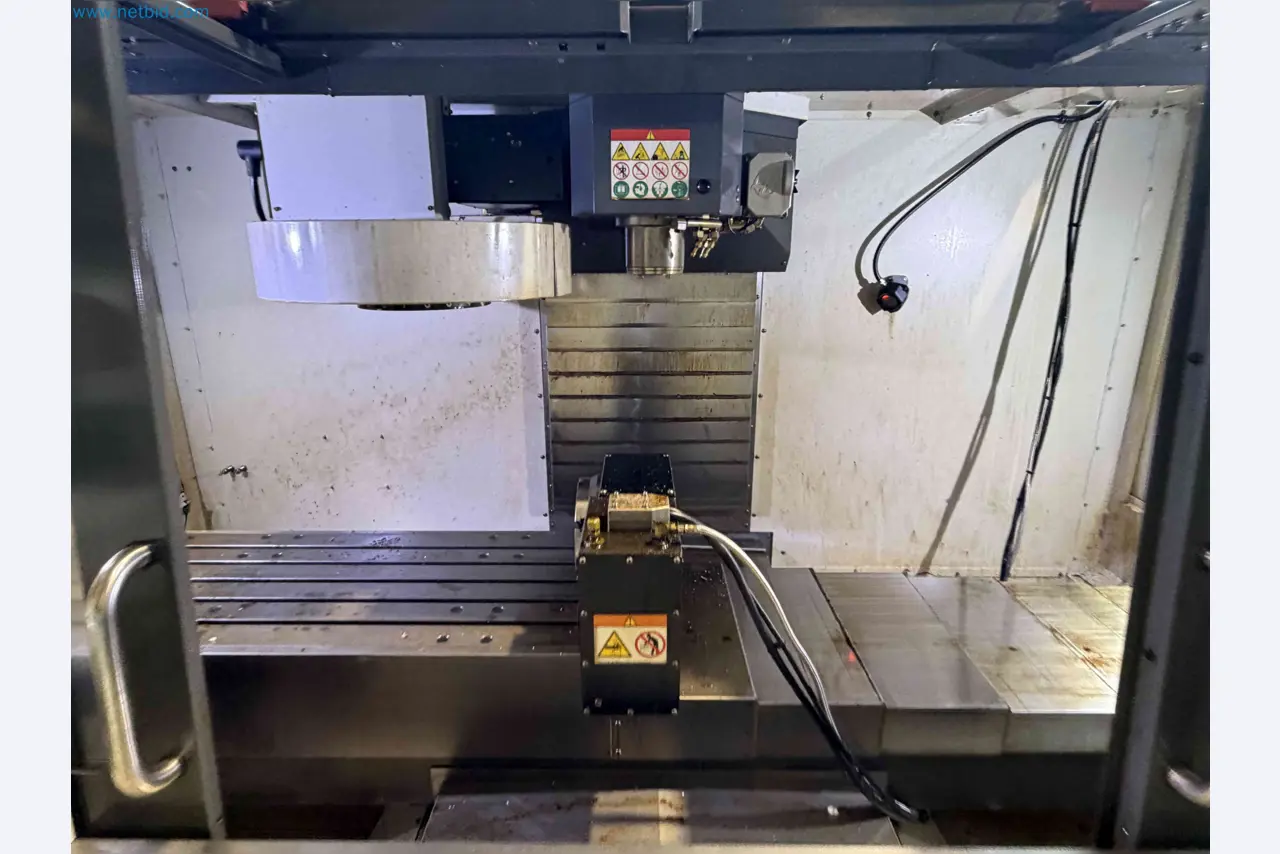

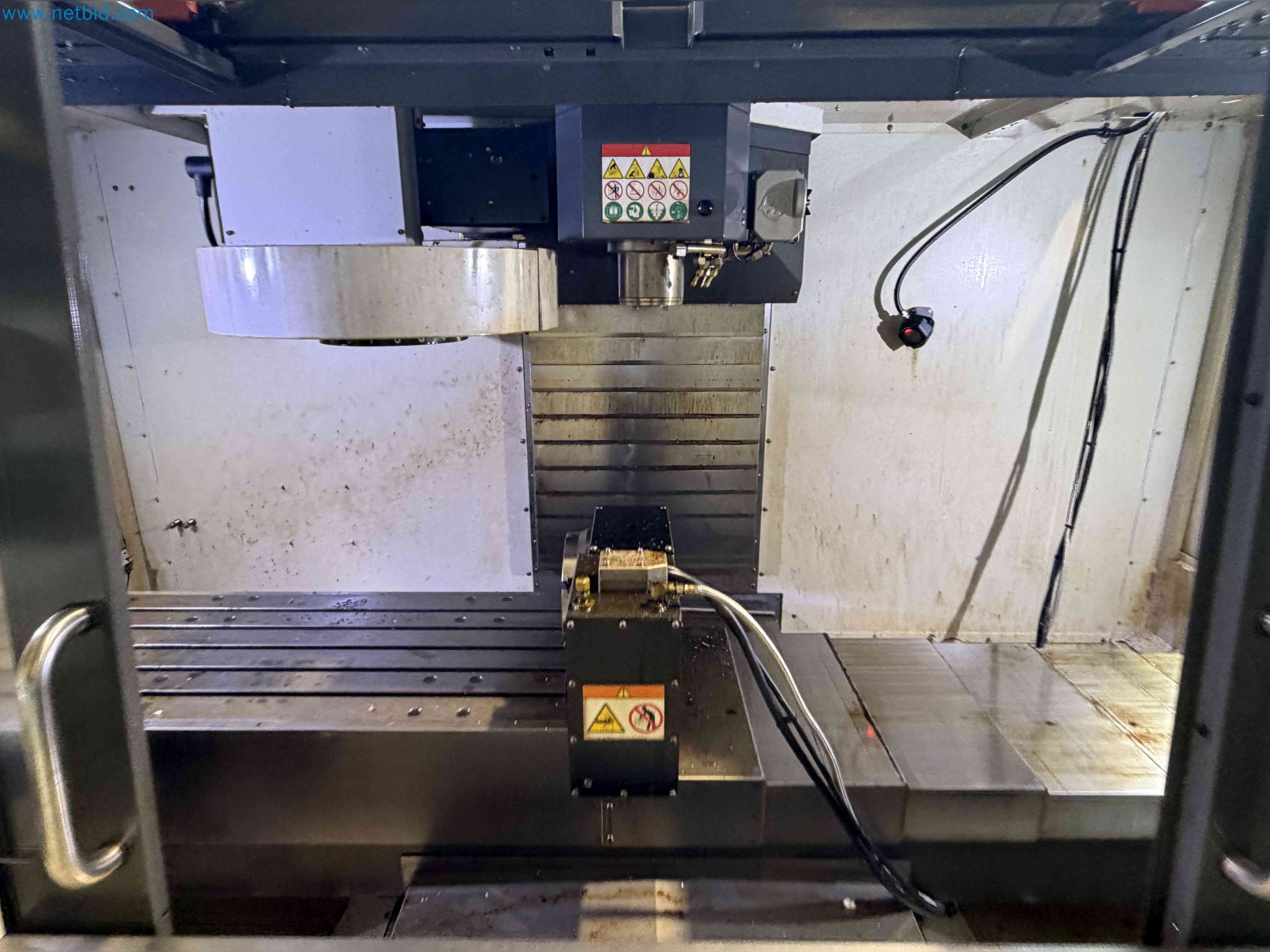

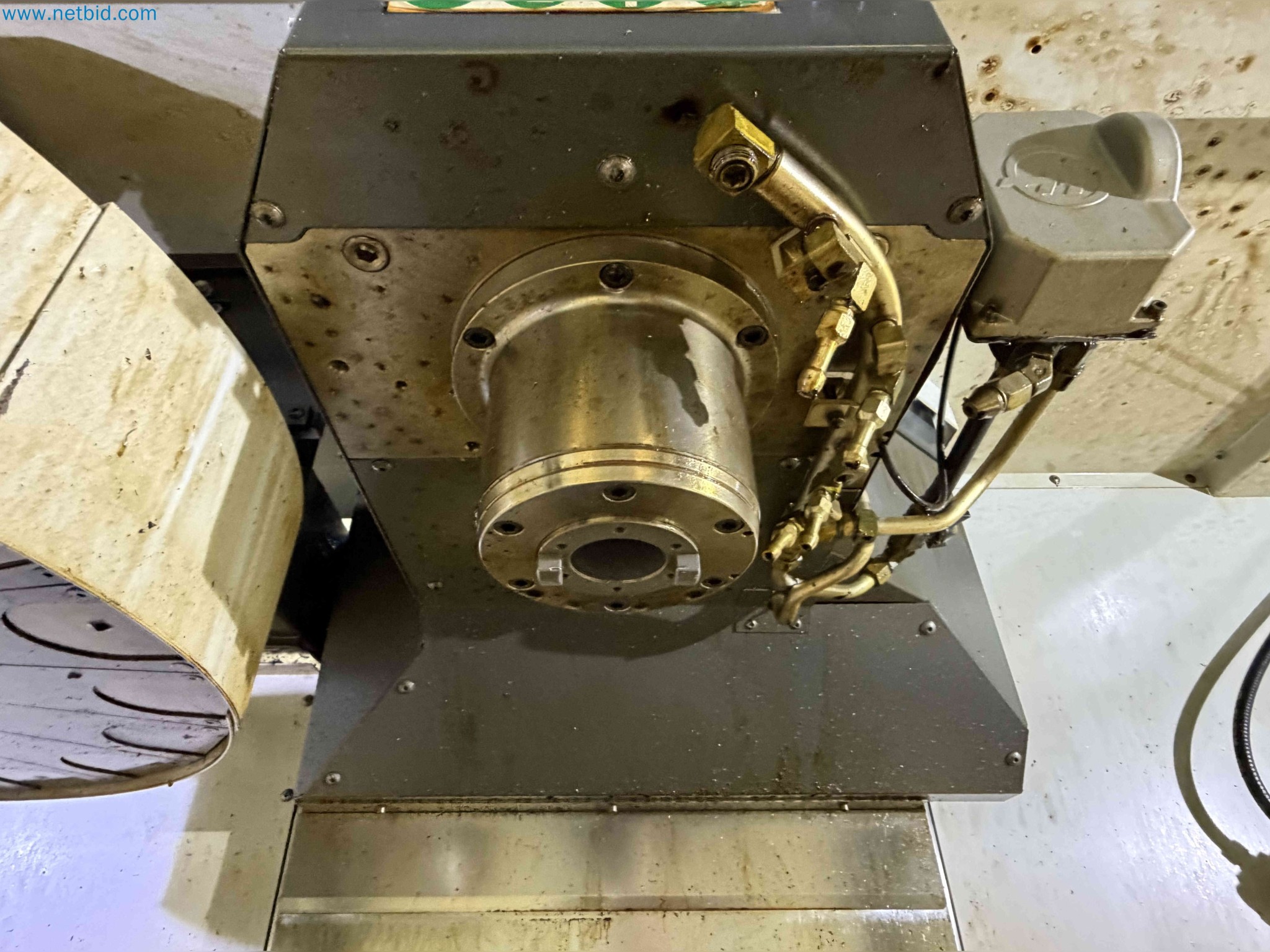

4th Axis
Allows 4-axis machining

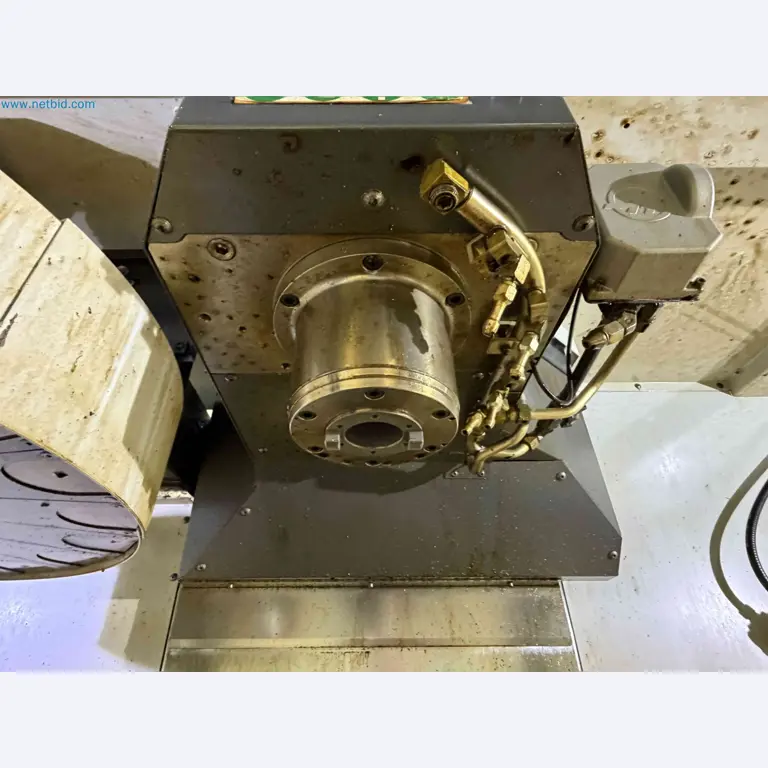

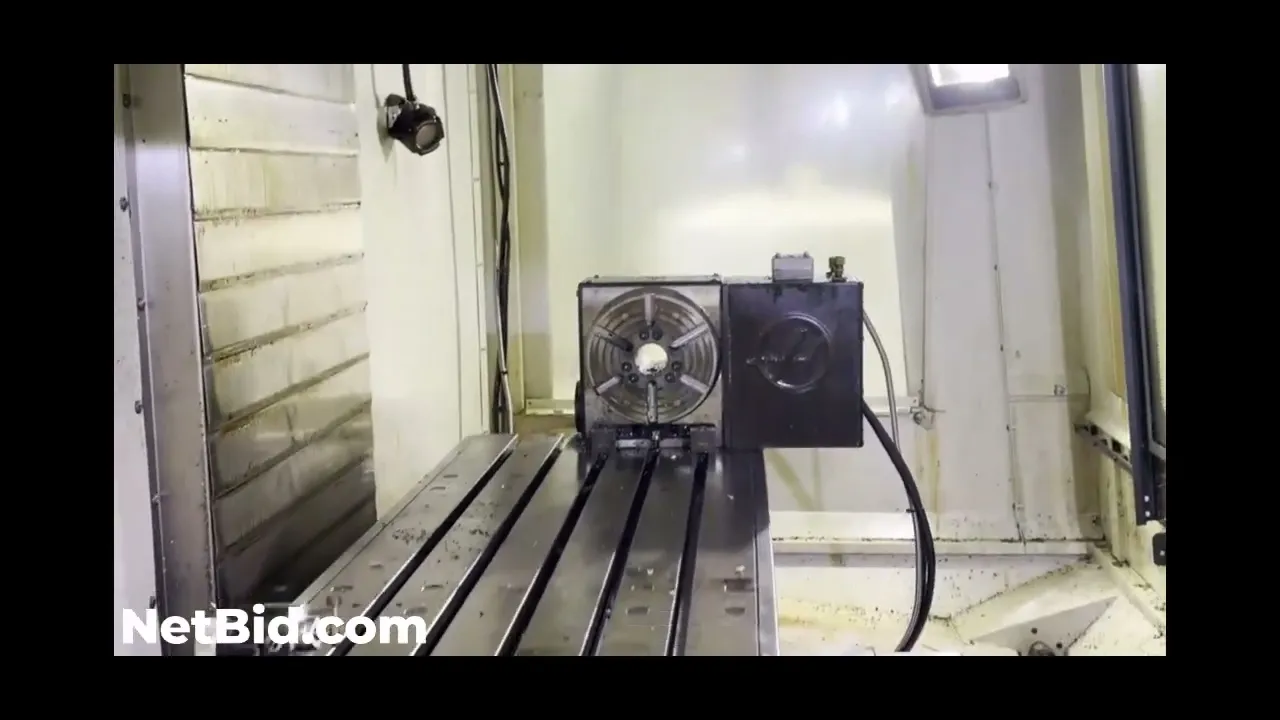

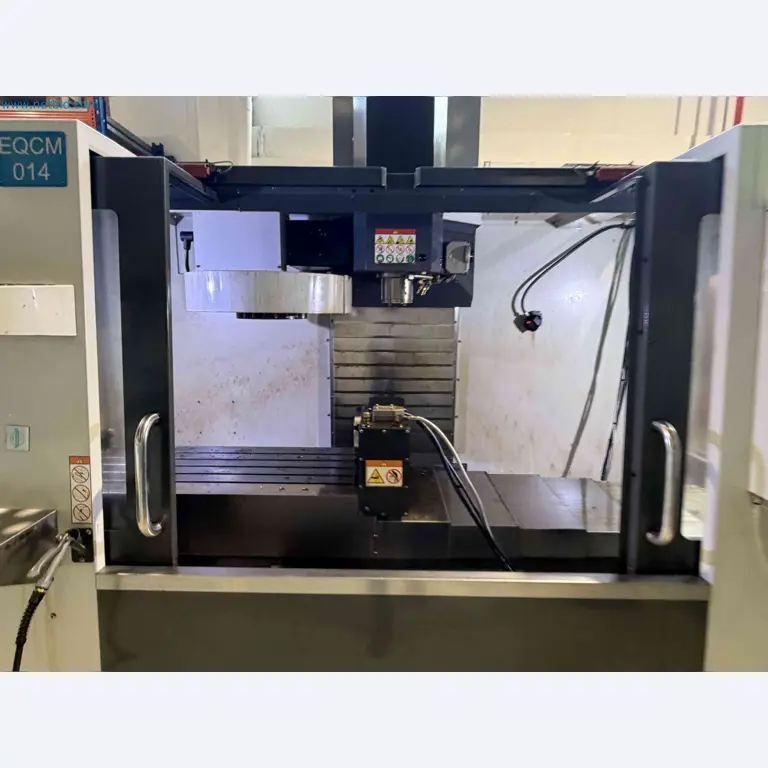

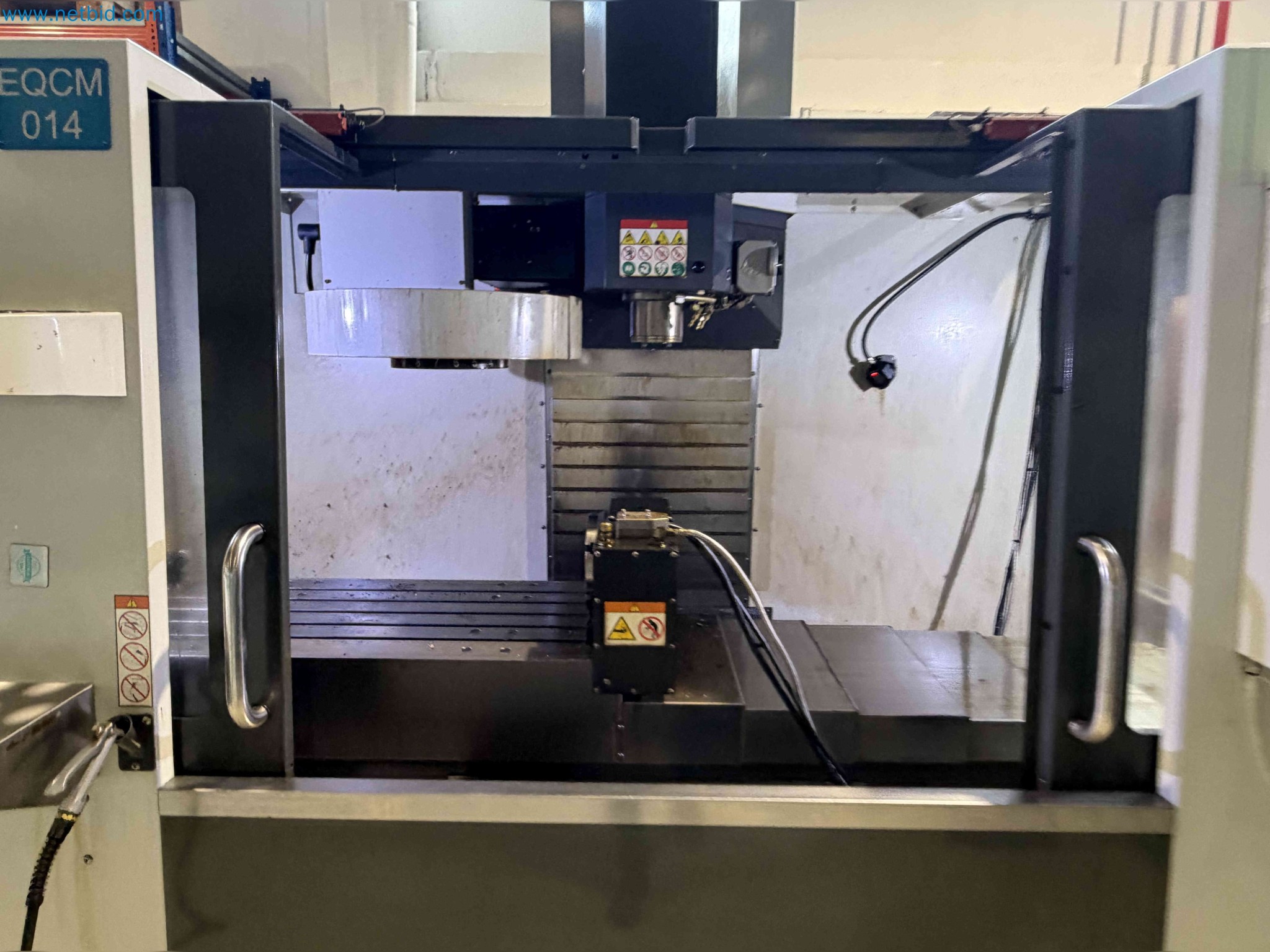

Rotary table installed

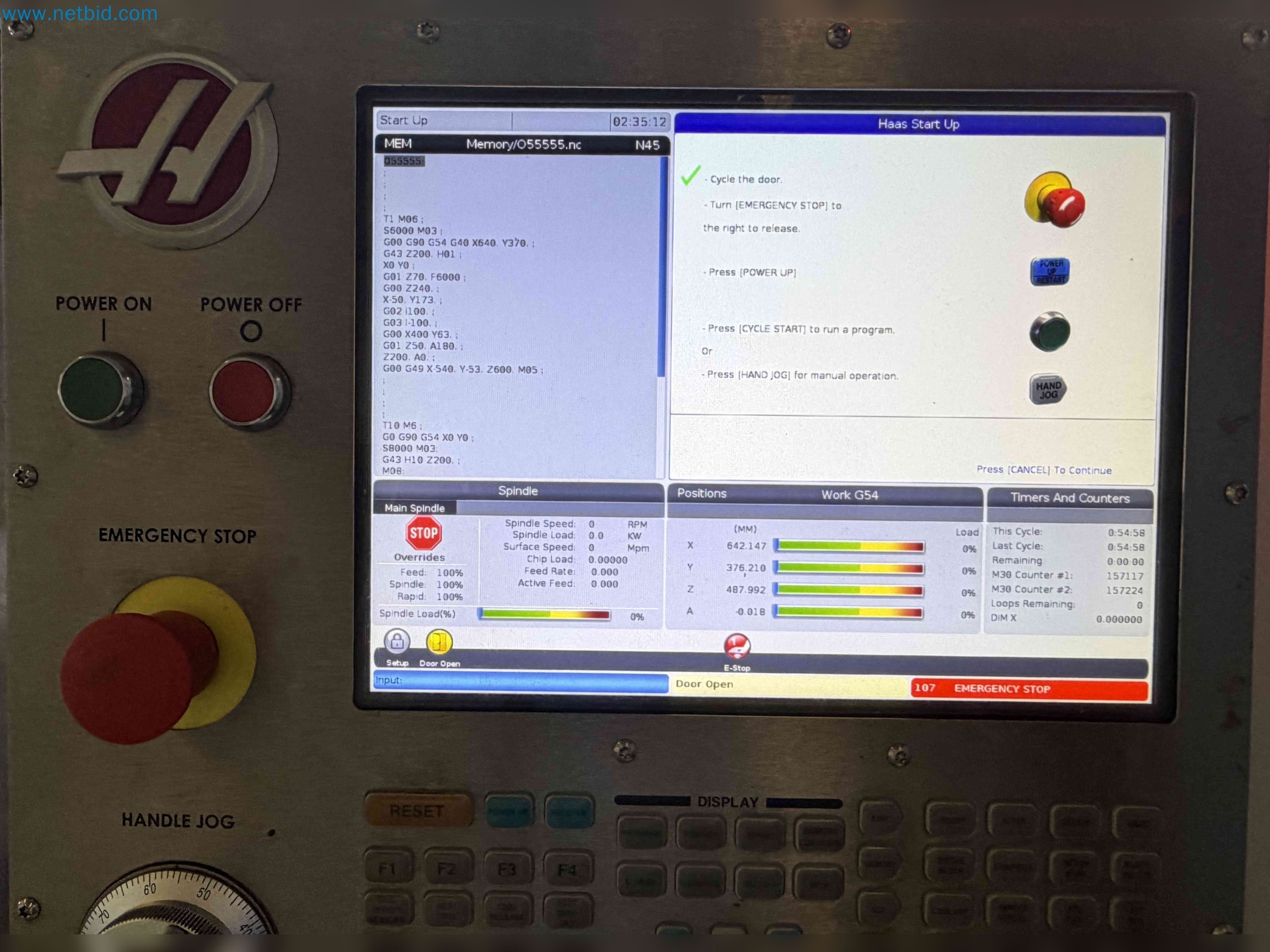

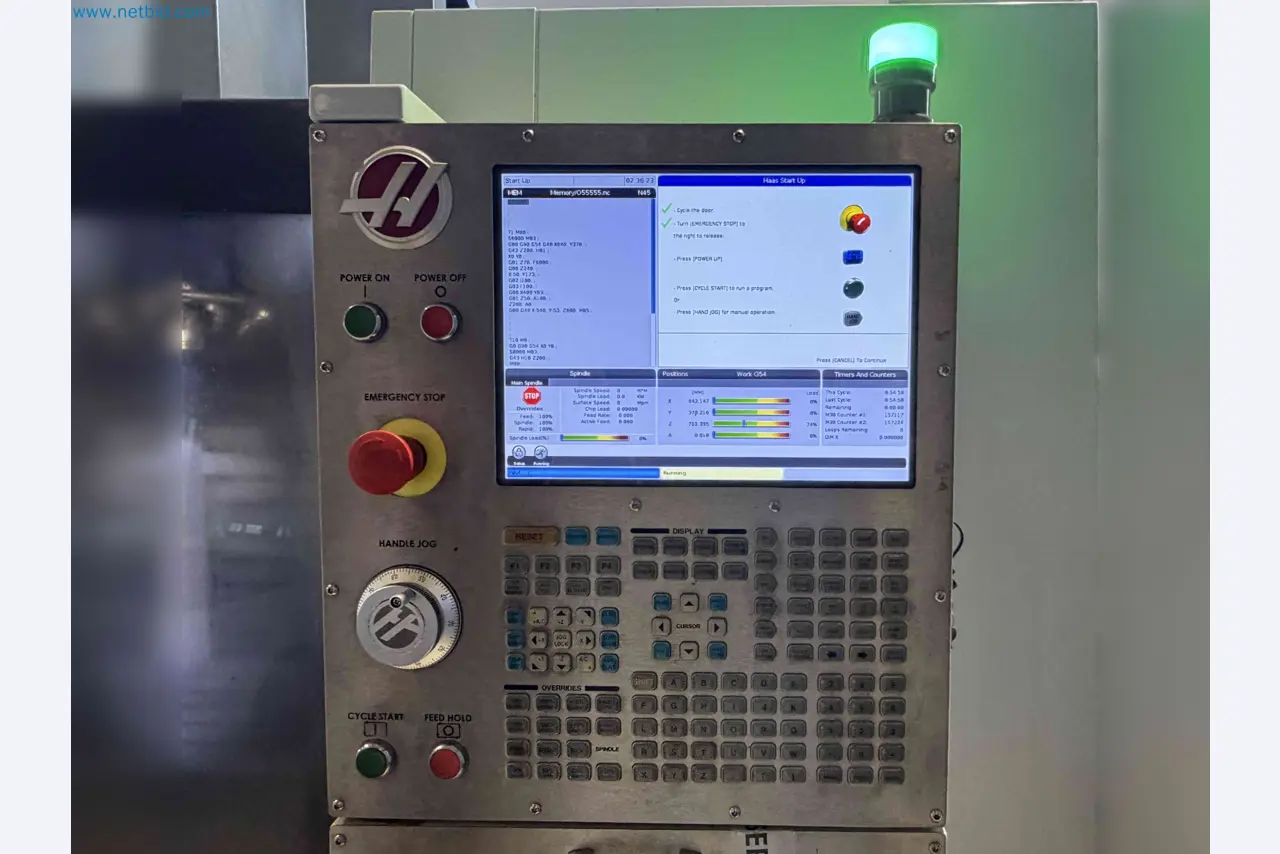

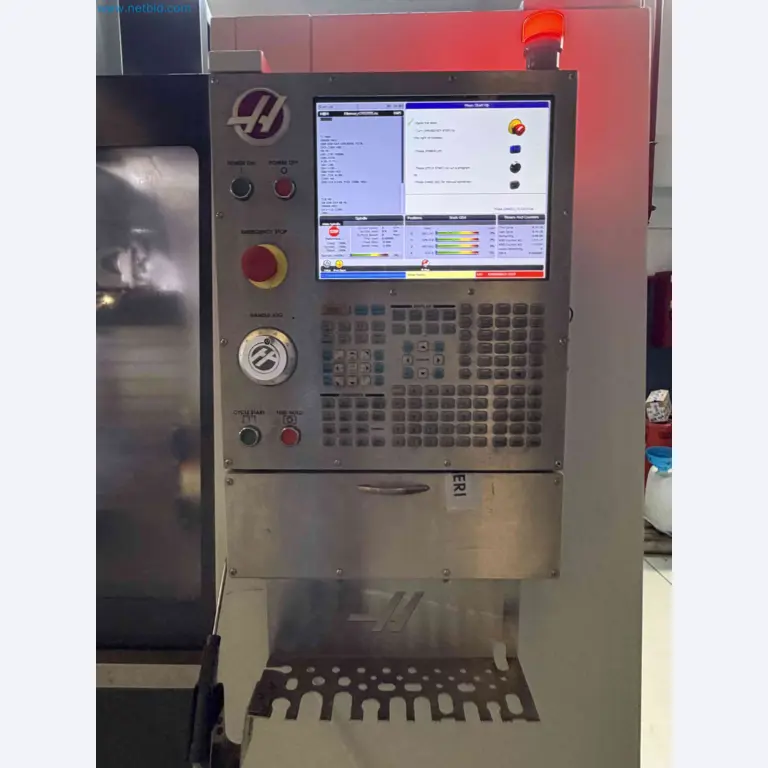

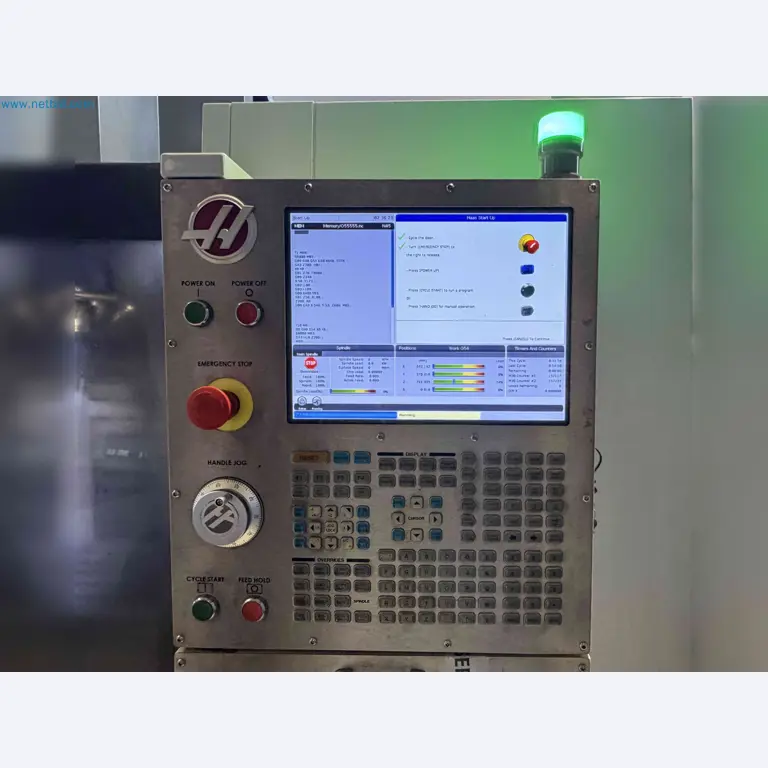

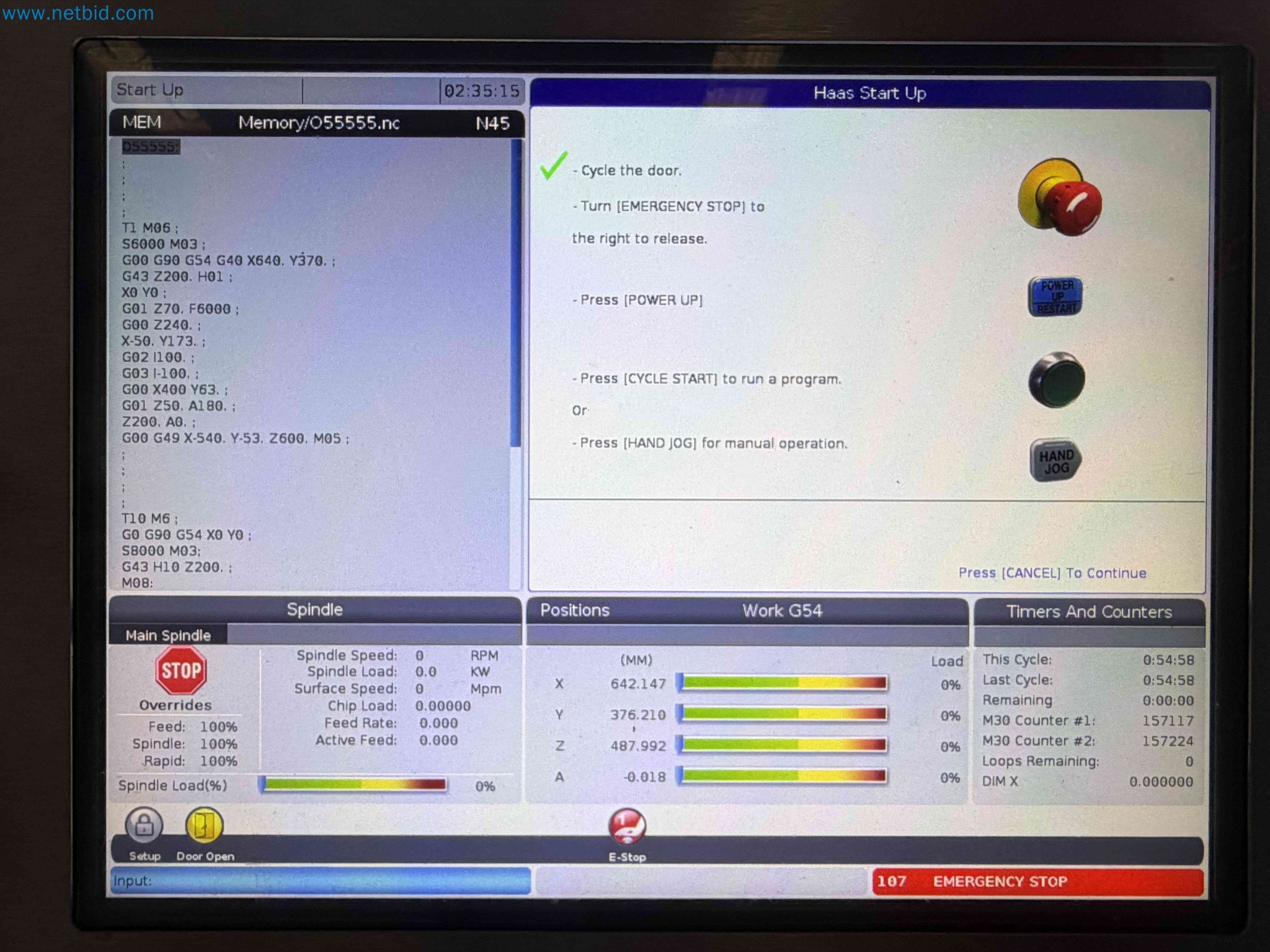

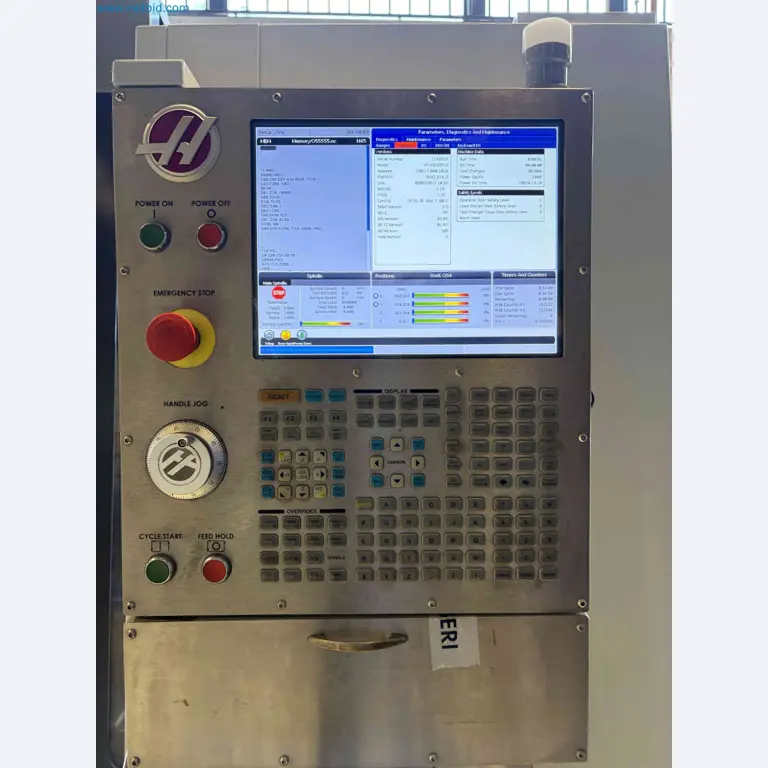

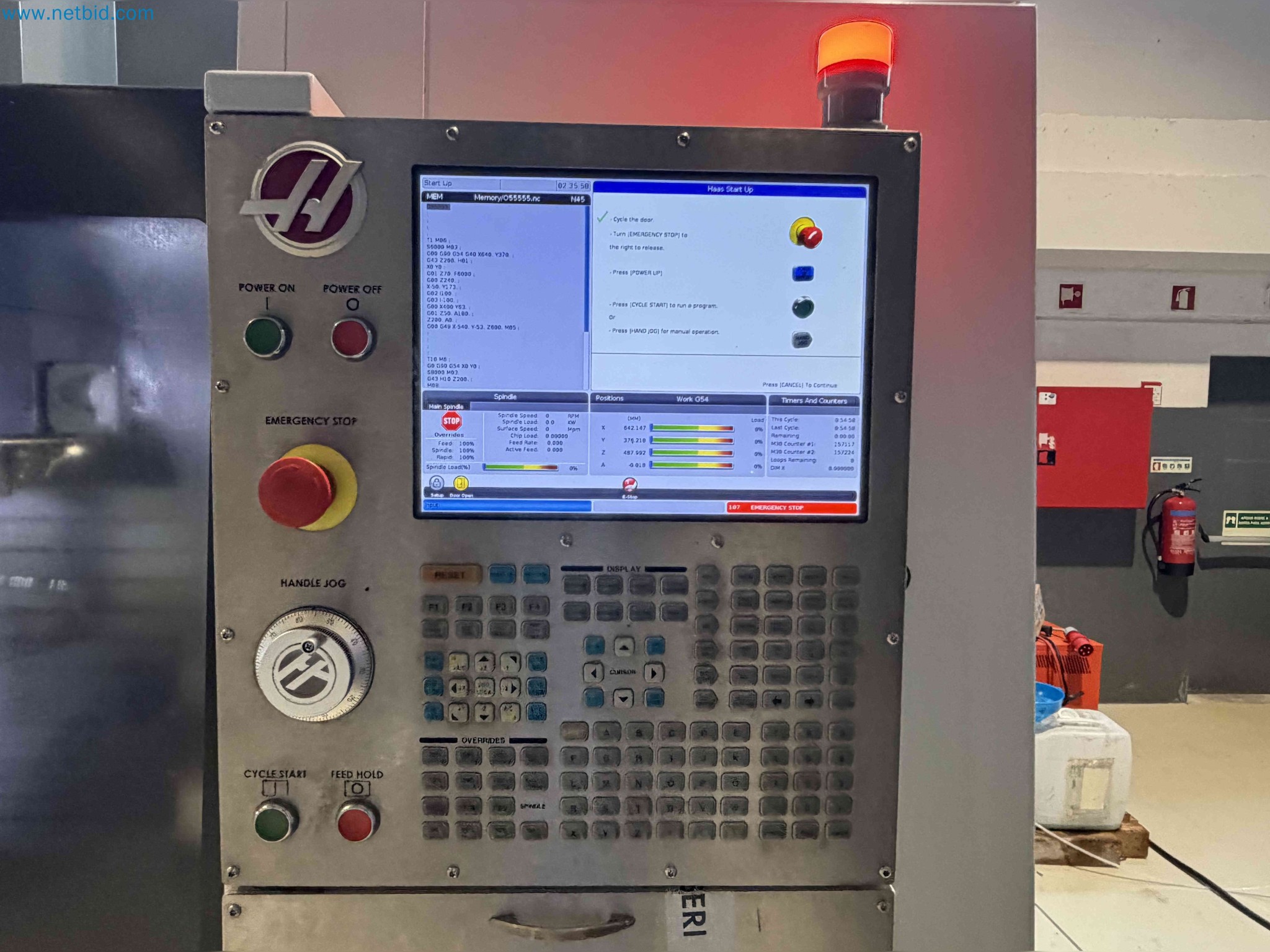

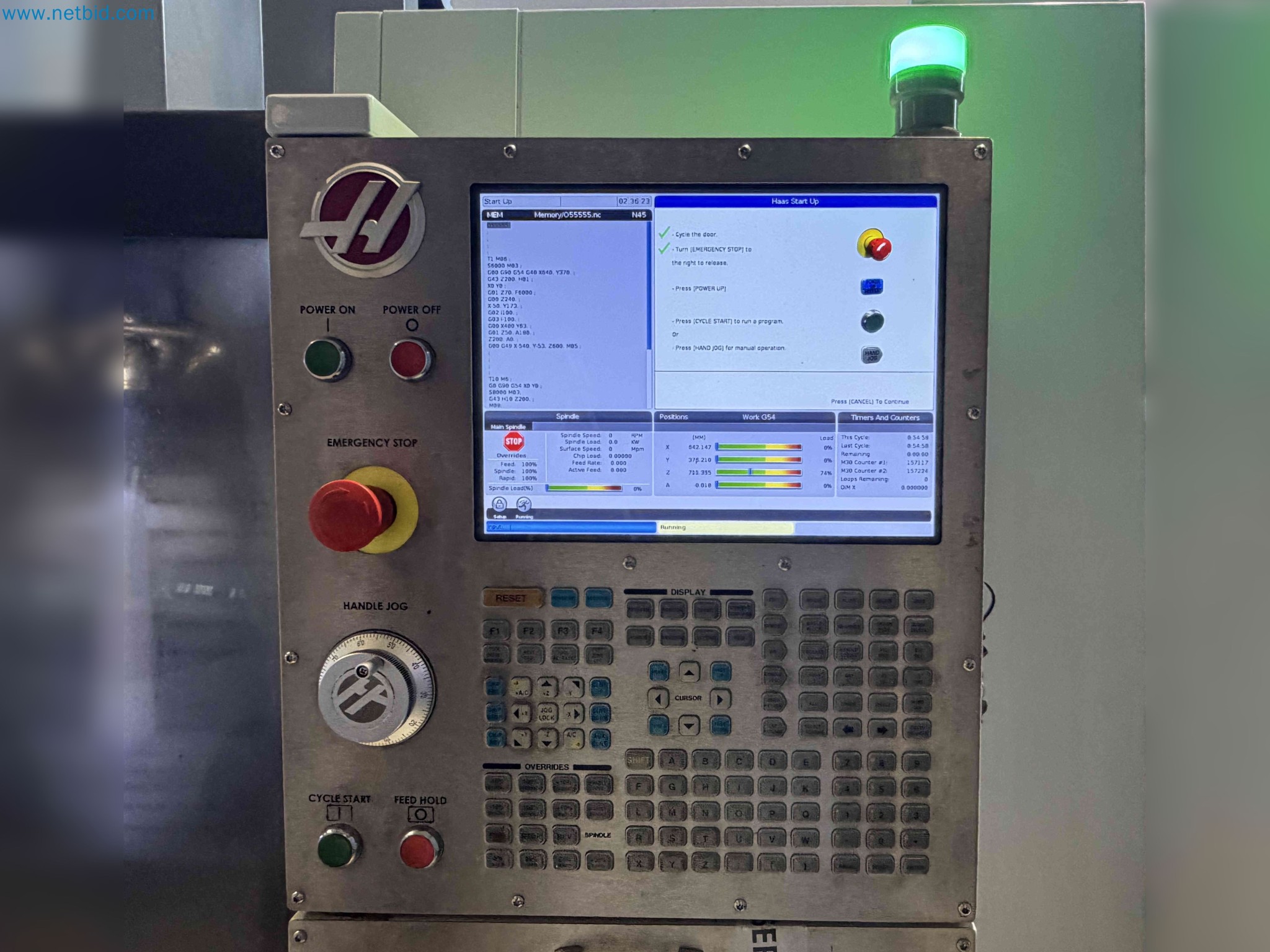

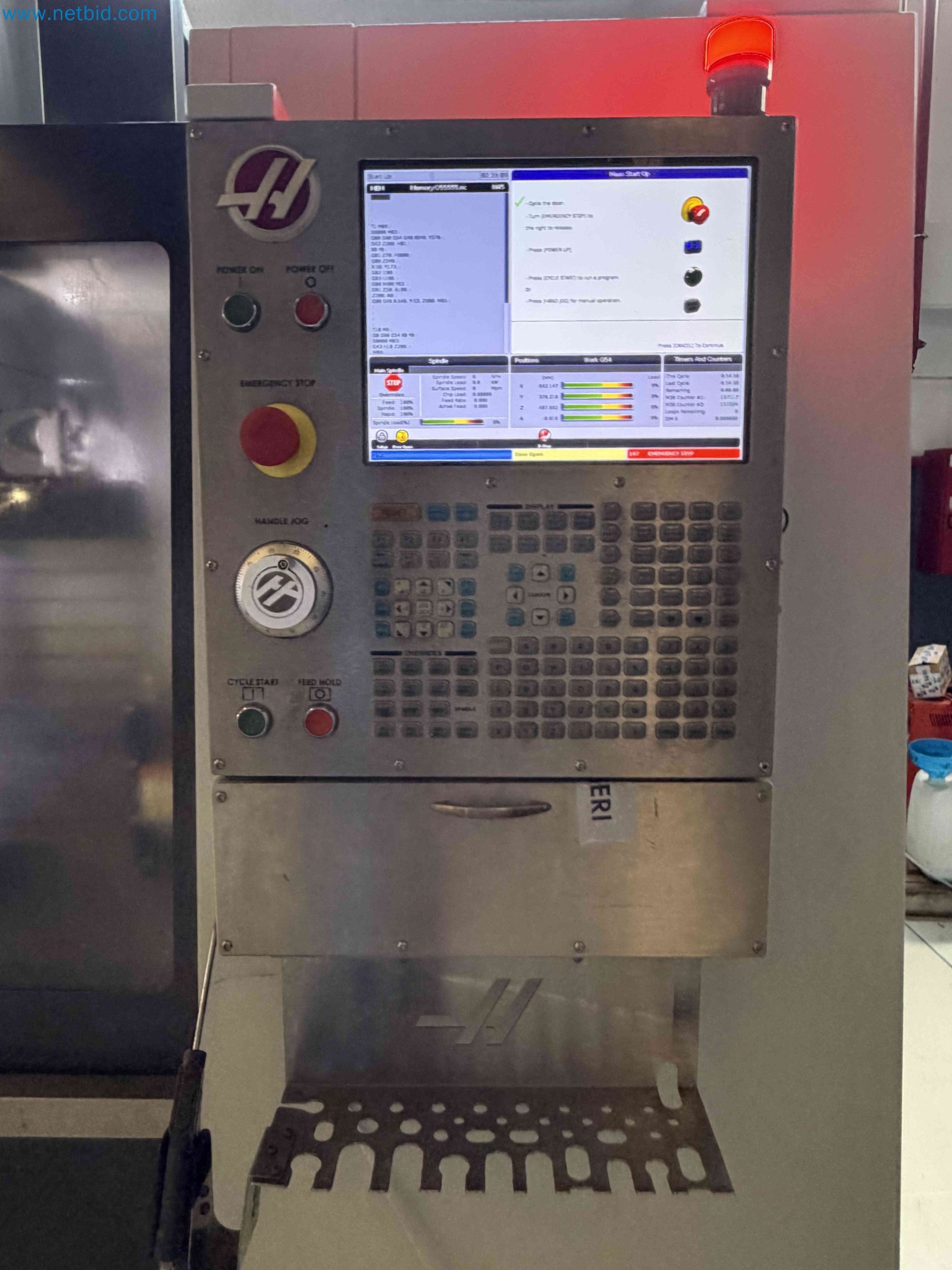

Control and CNC

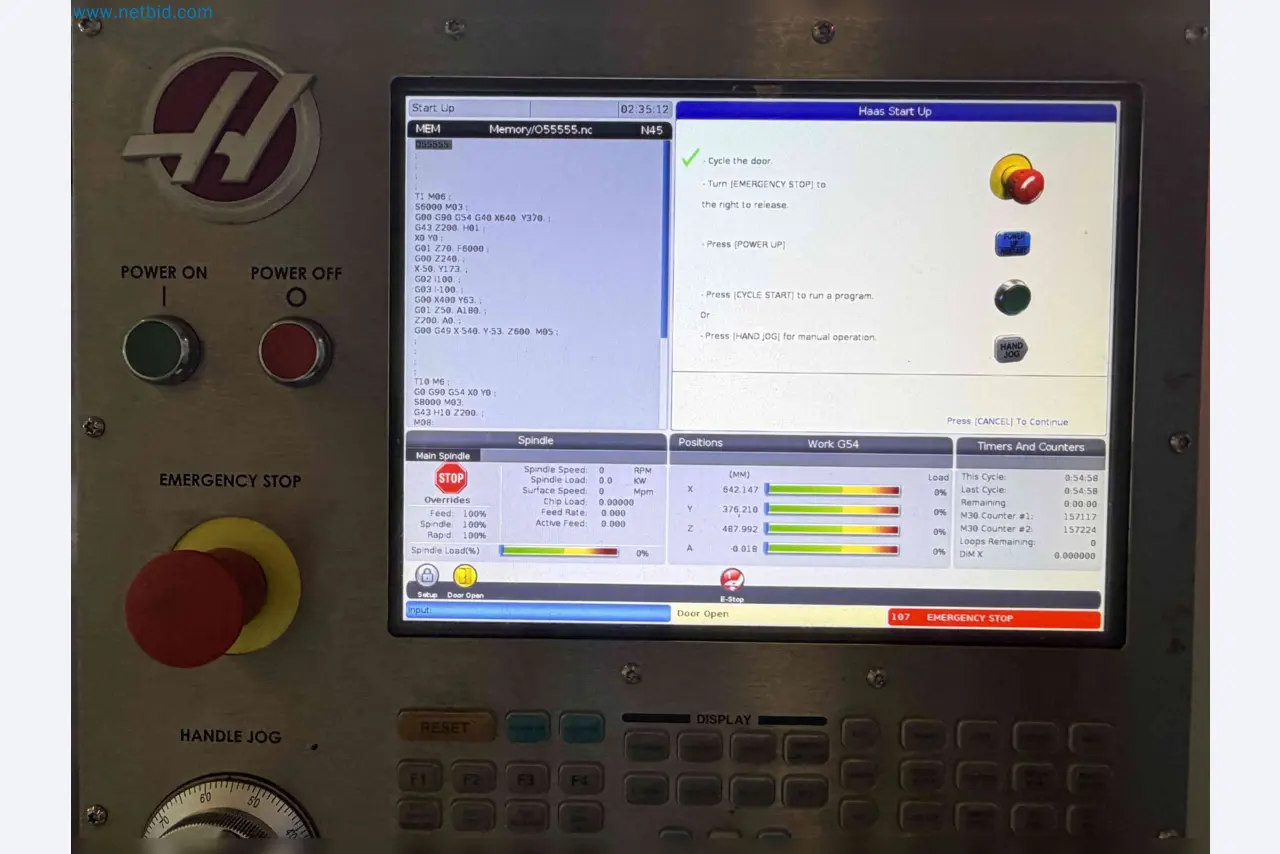

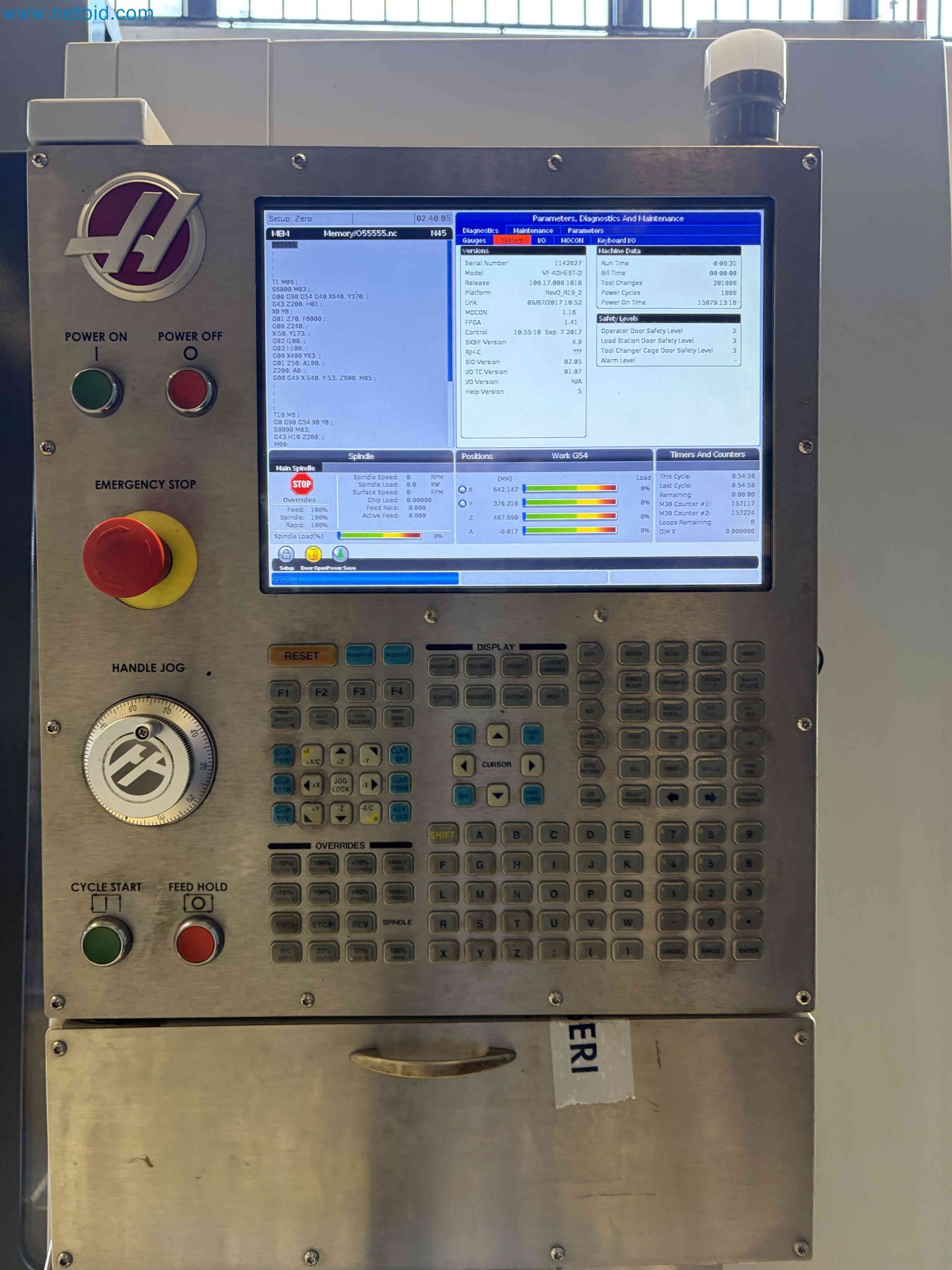

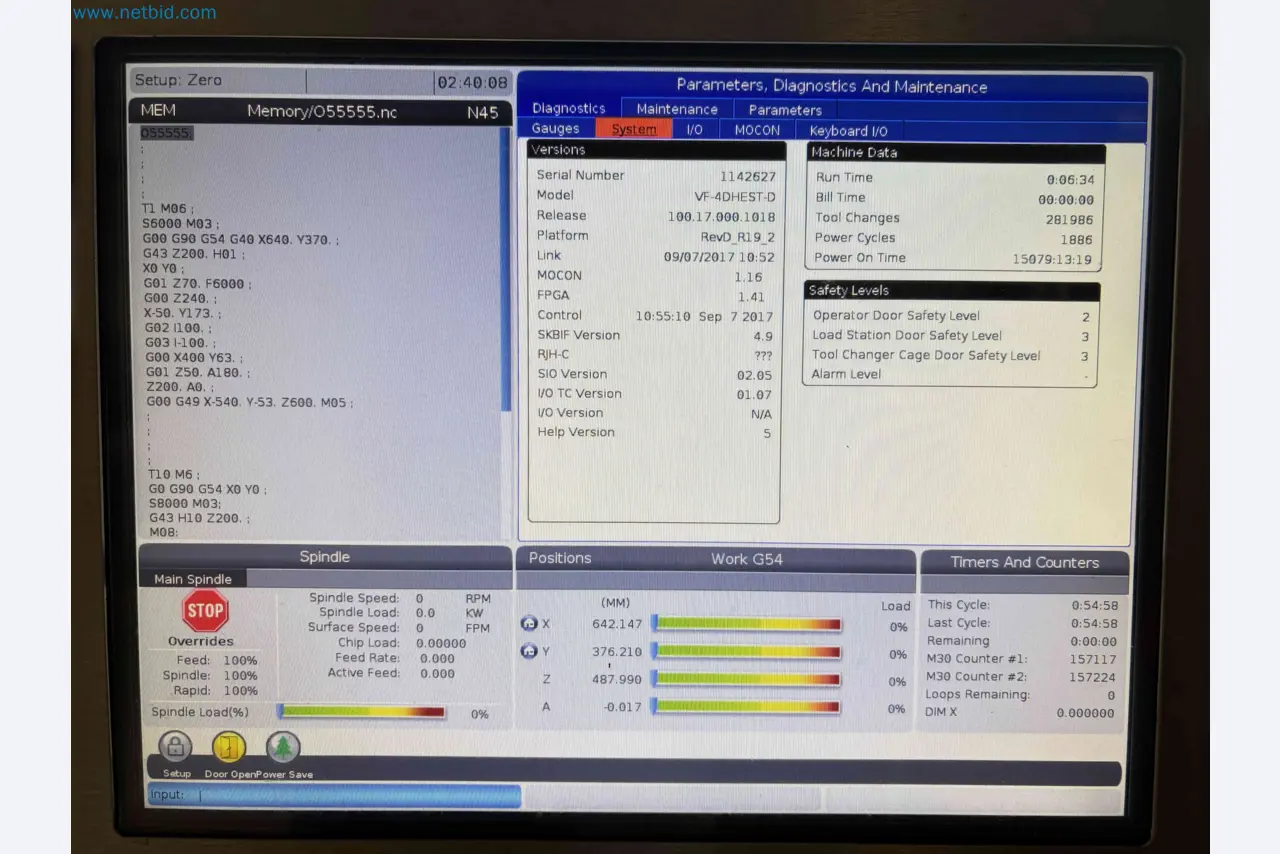

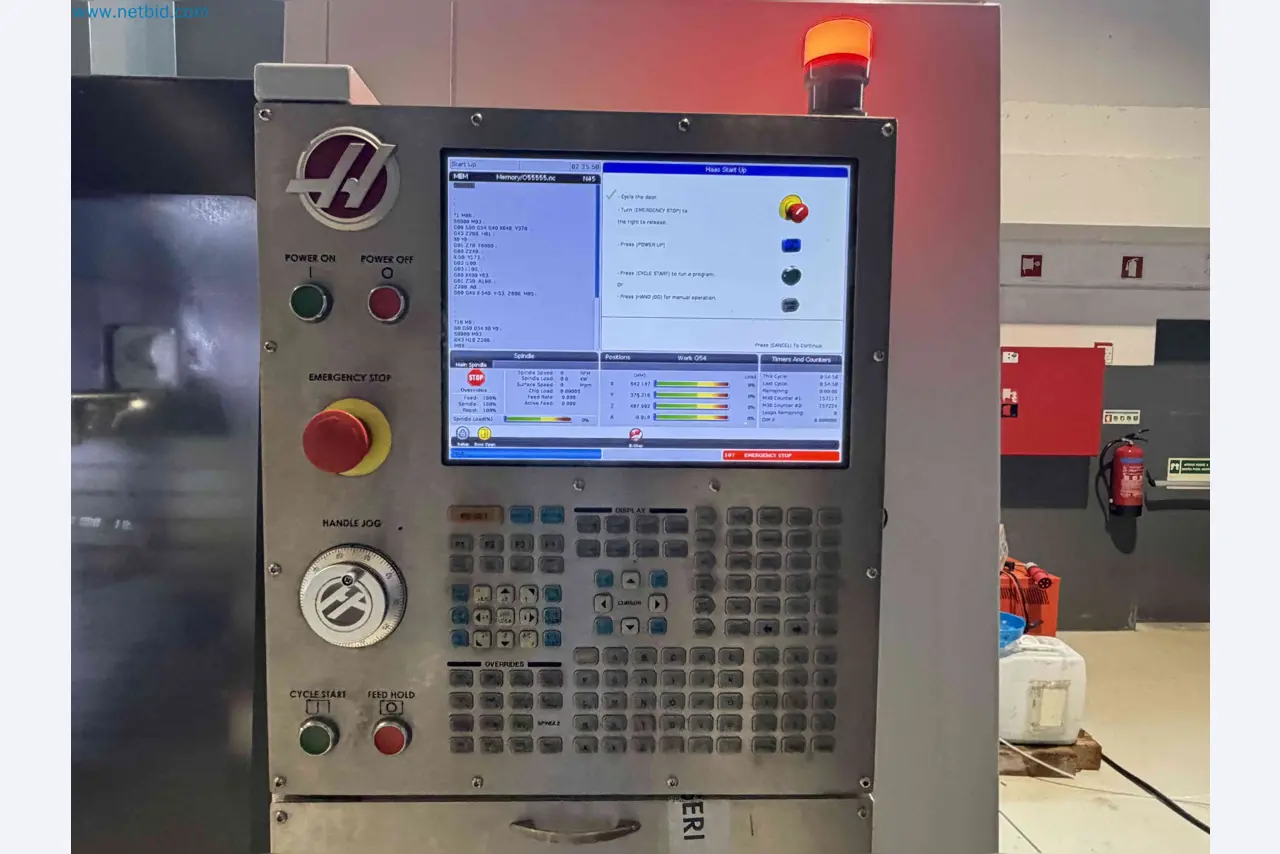

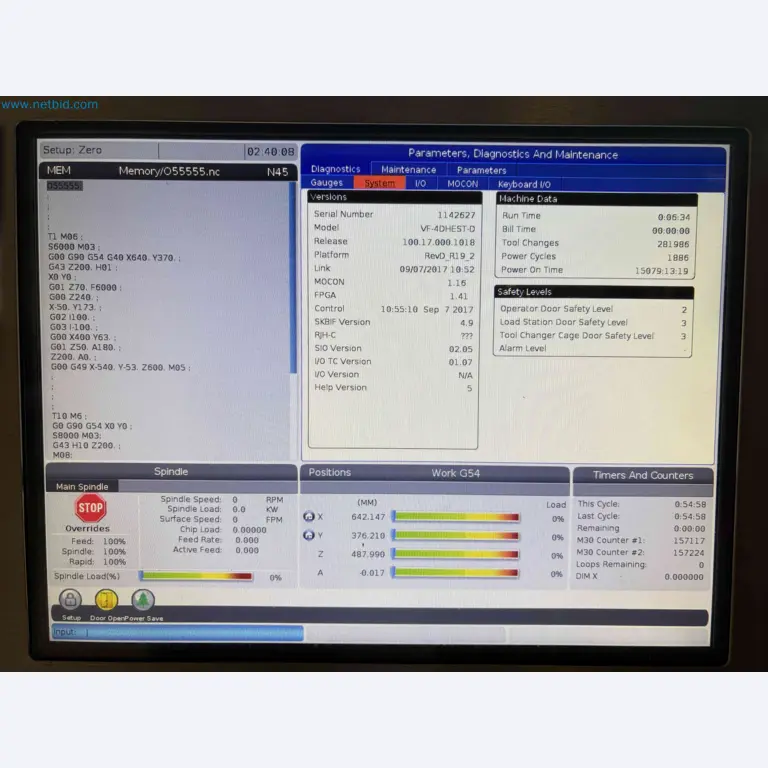

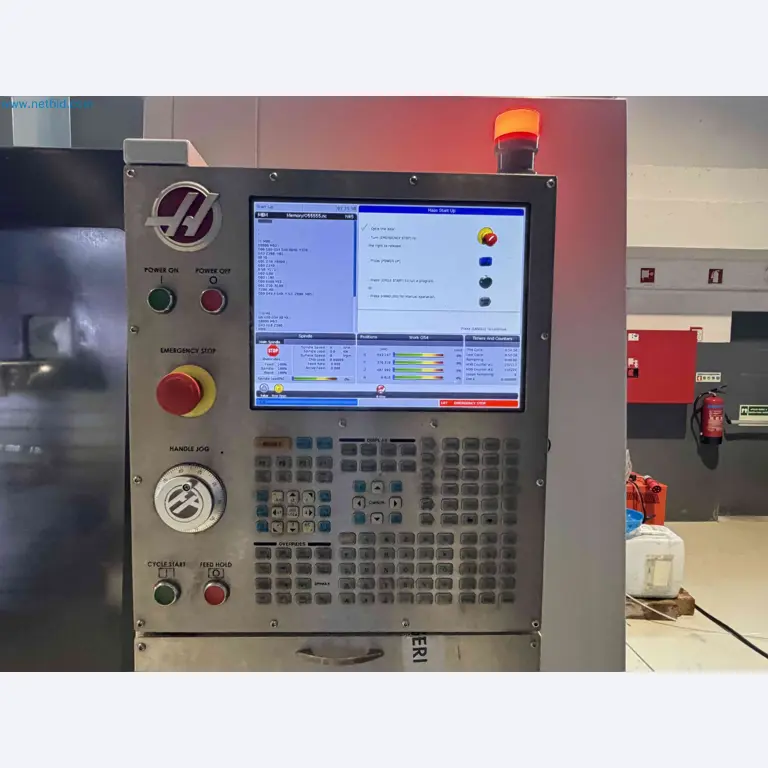

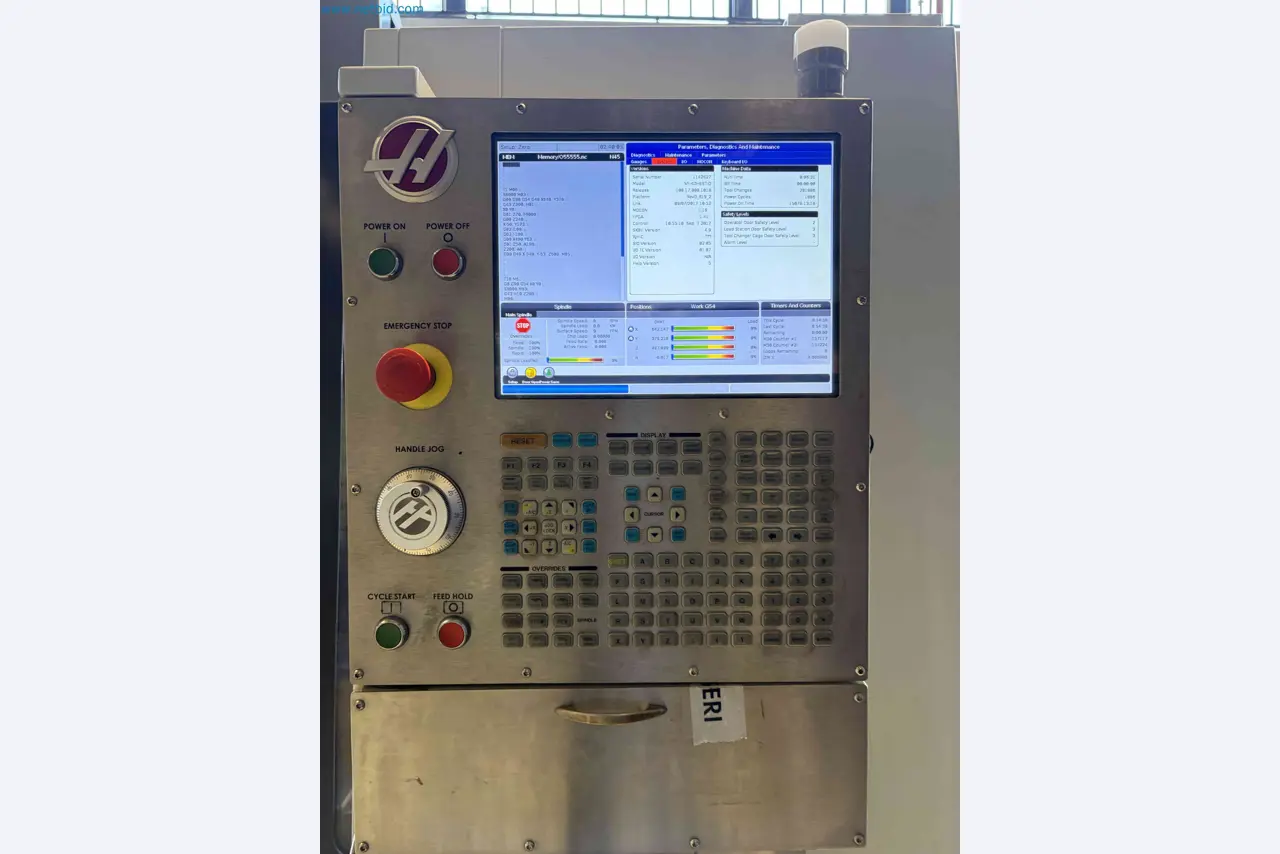

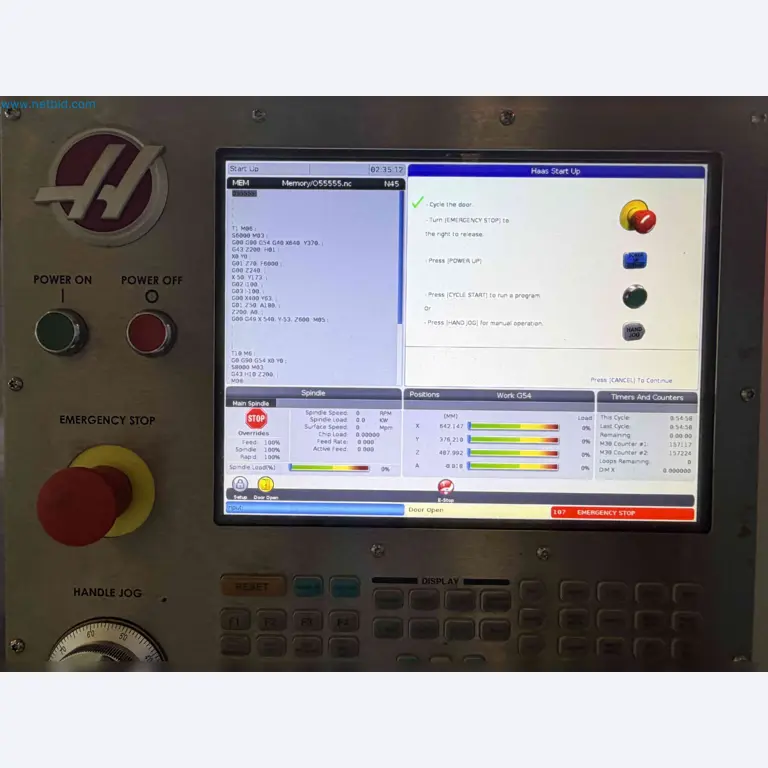

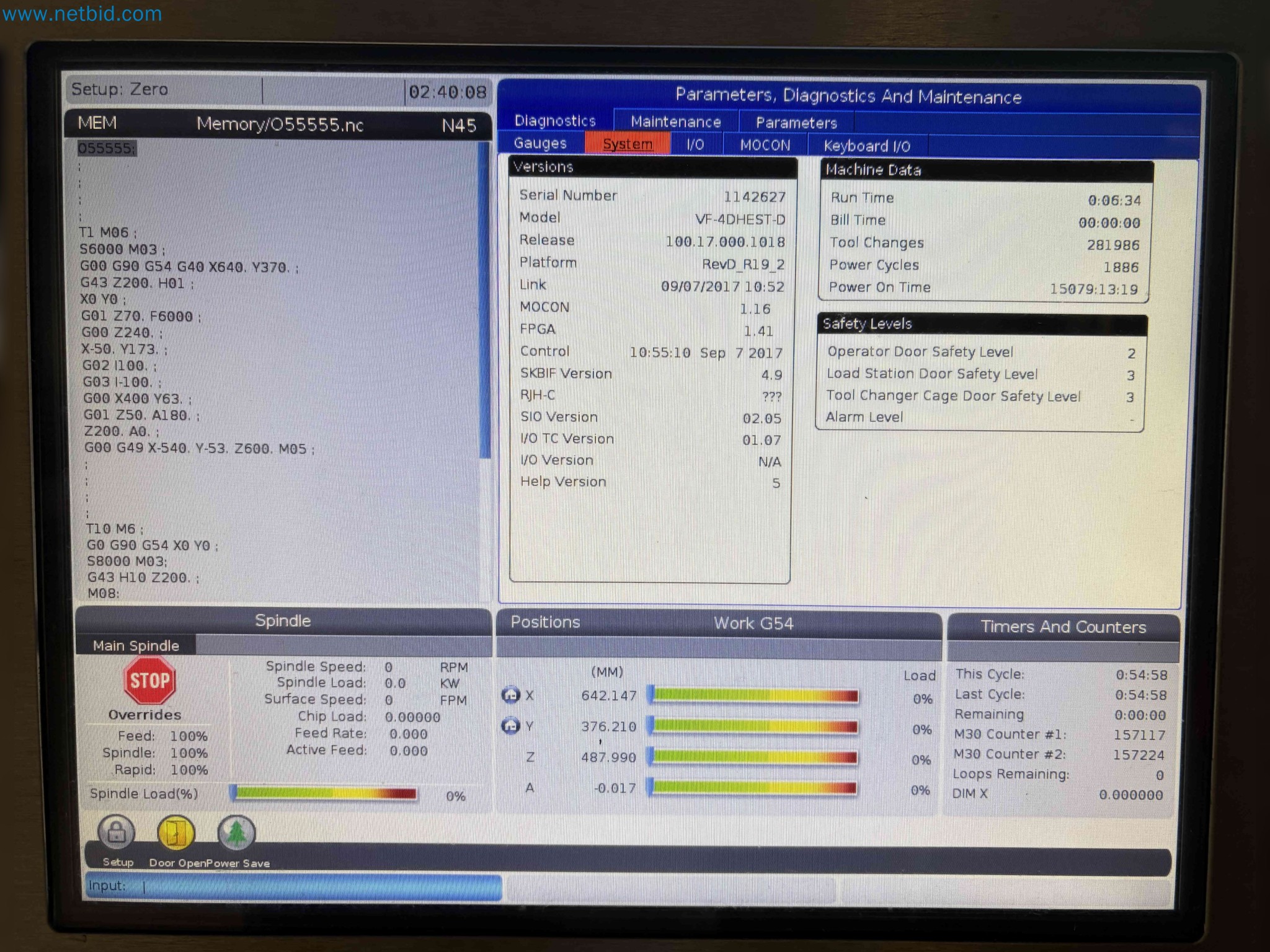

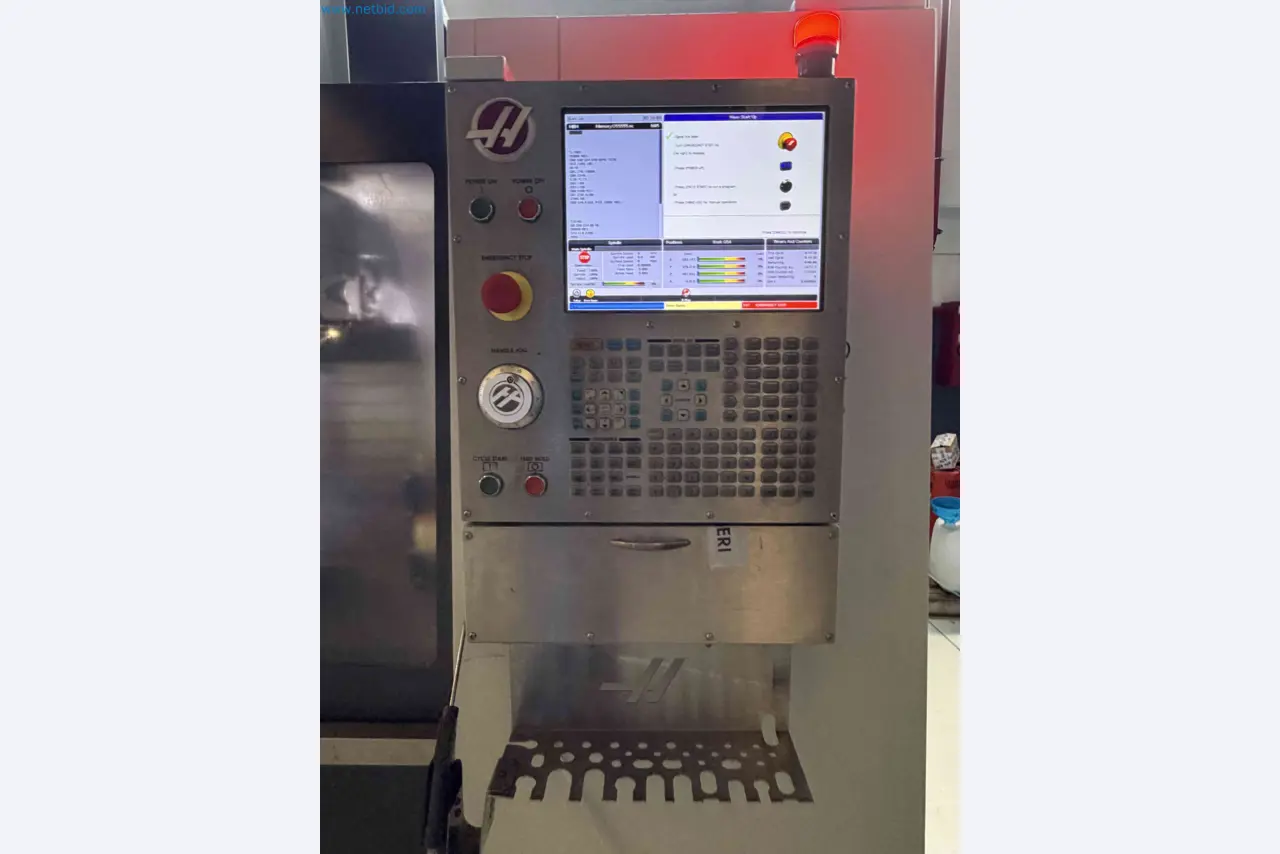

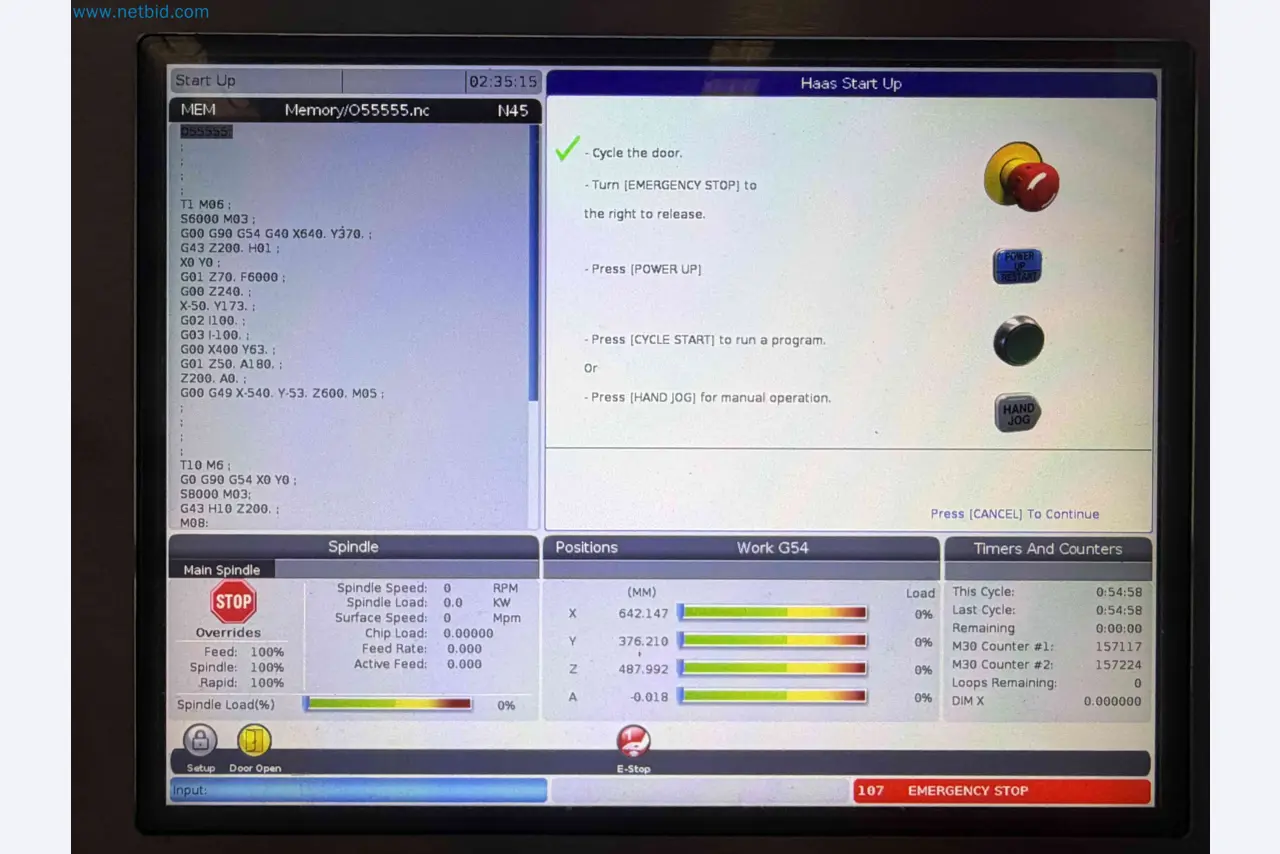

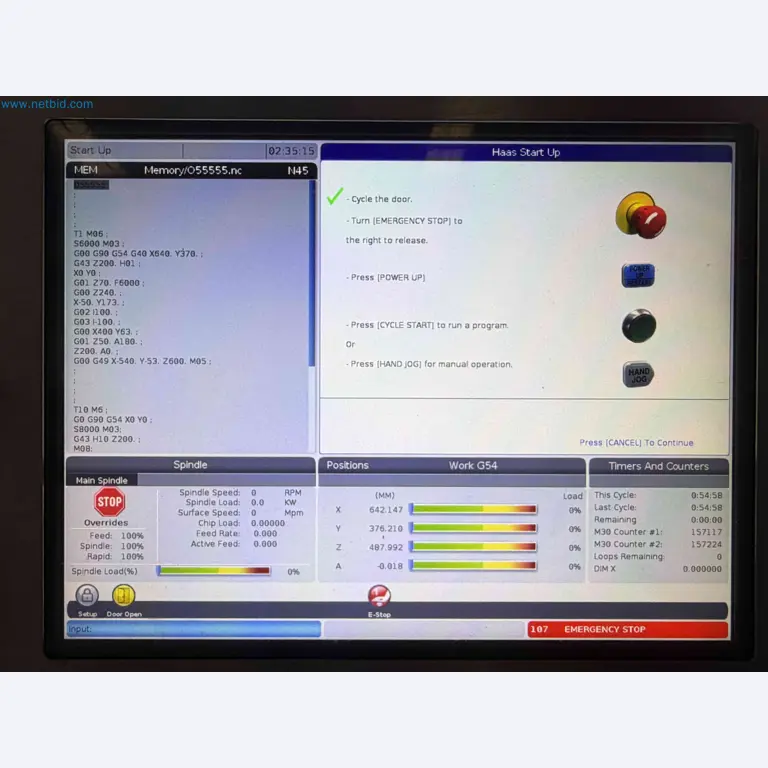

HAAS Next Generation Control (NGC)
ISO programming

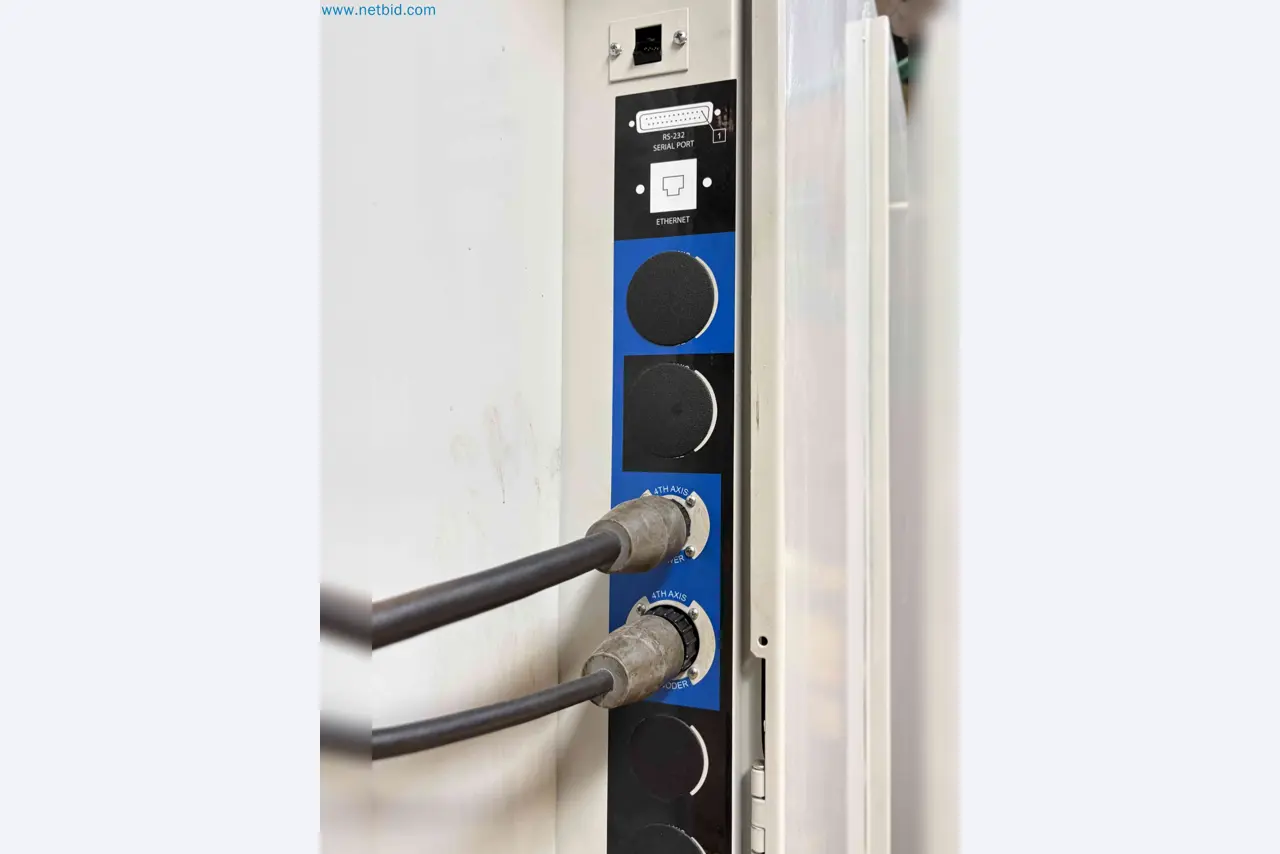

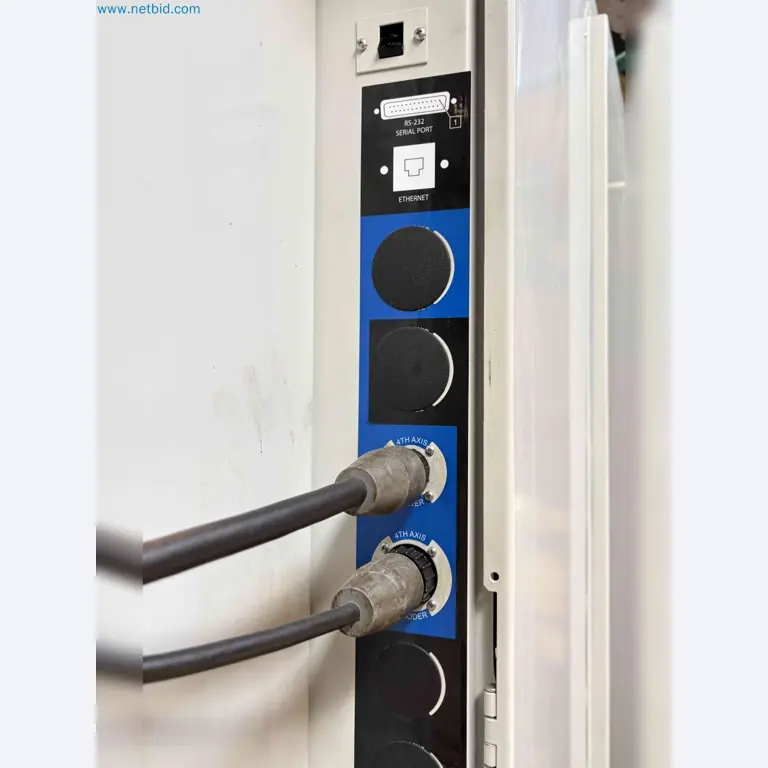

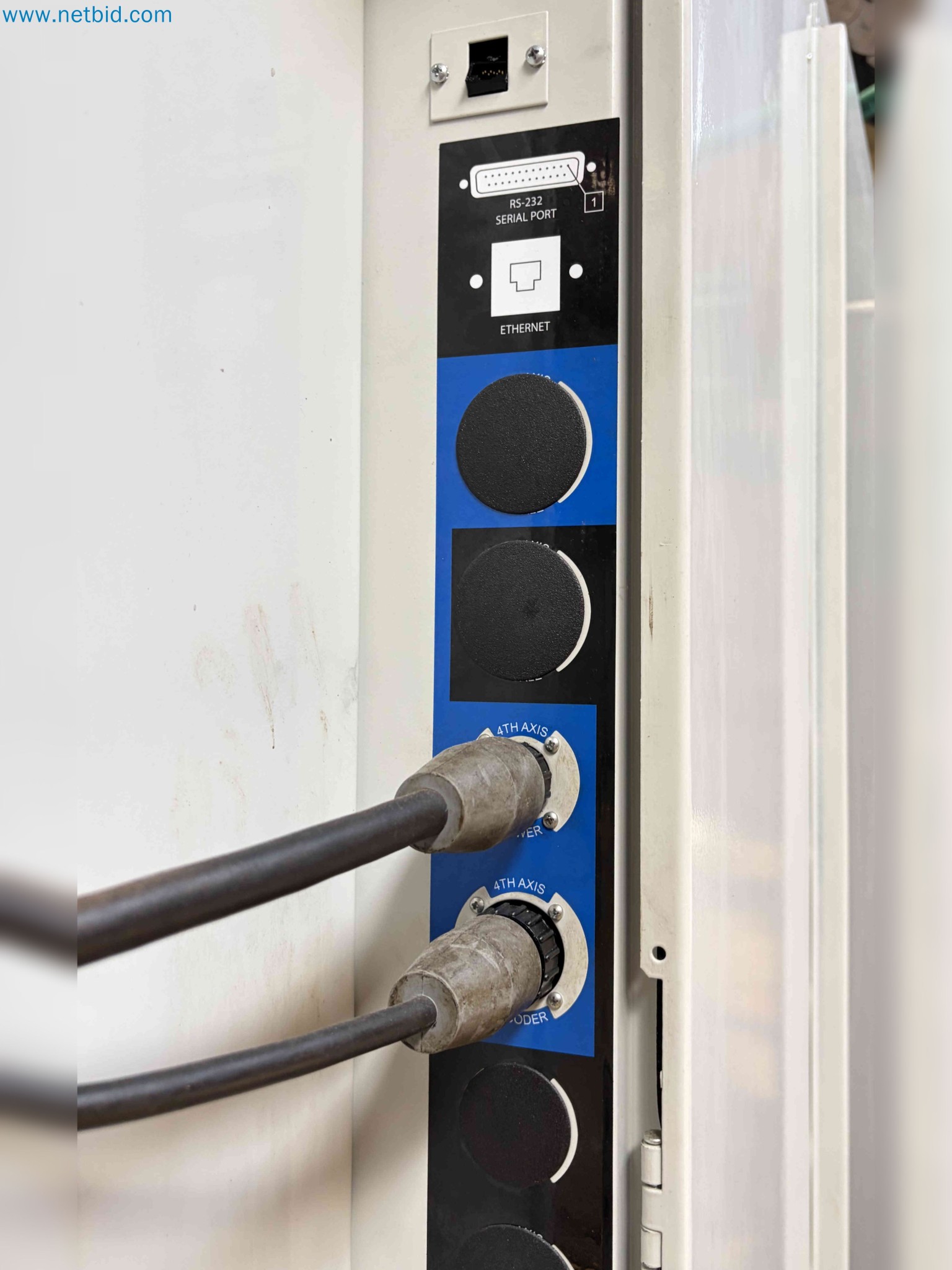

Connectivity:
Ethernet
RS-232
Allows:
network connection
program transfer
CAM / DNC integration

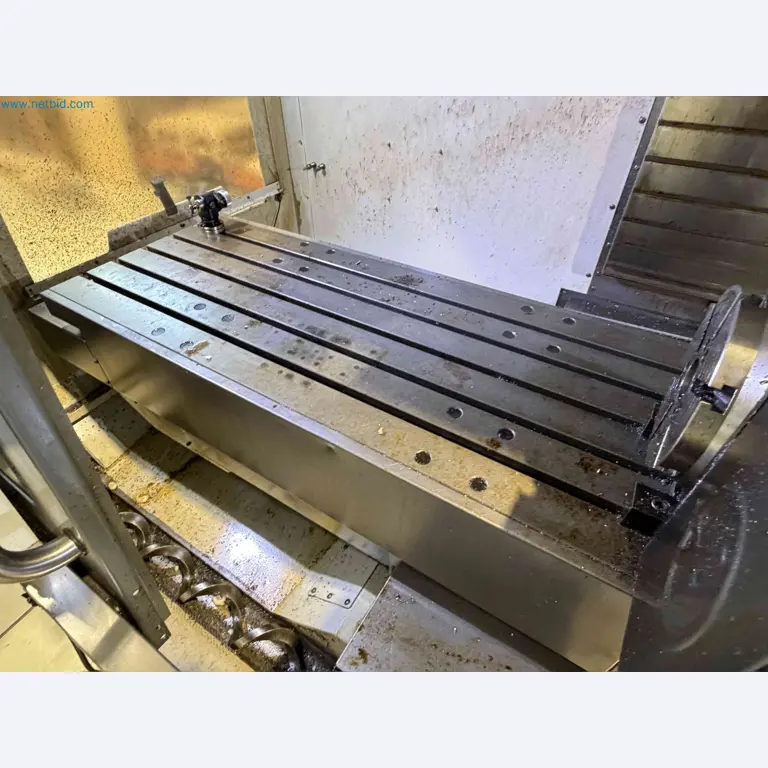

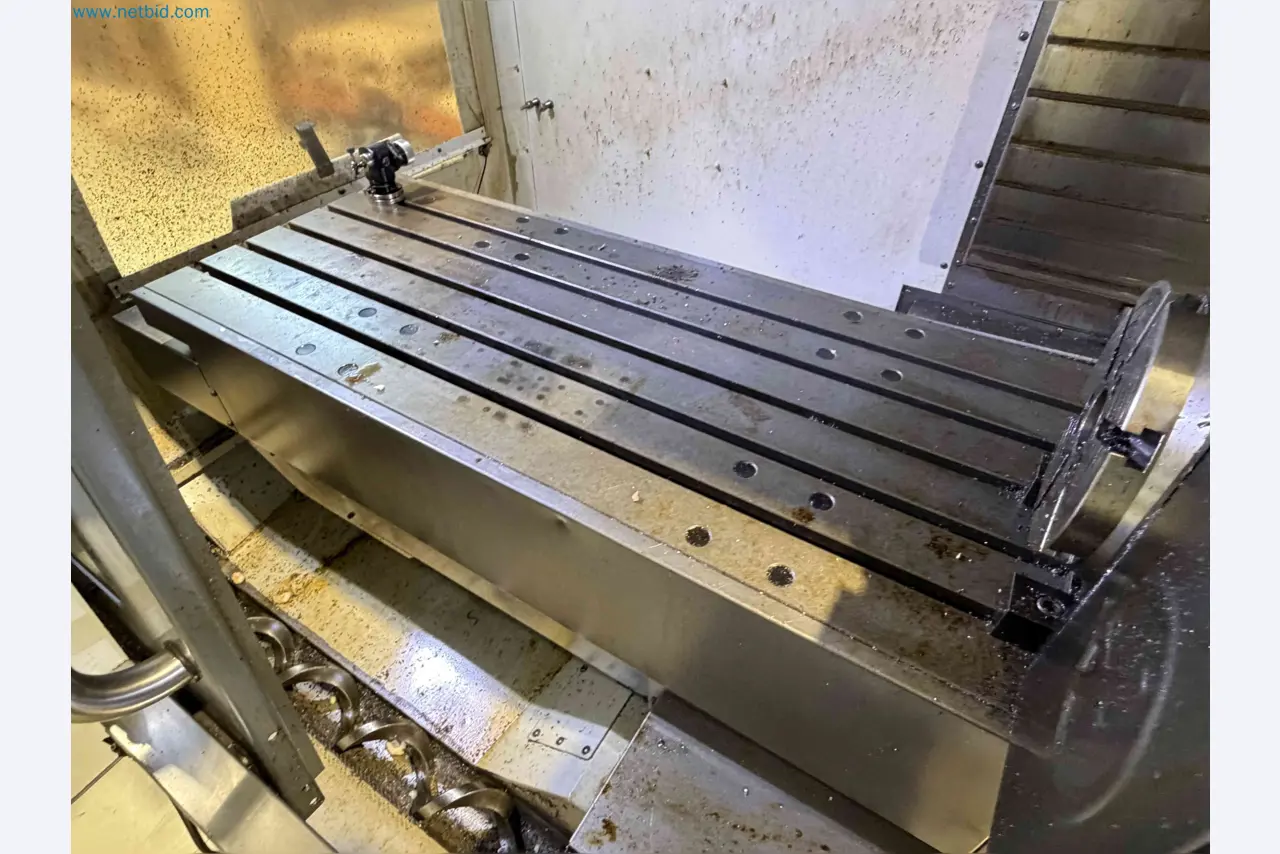

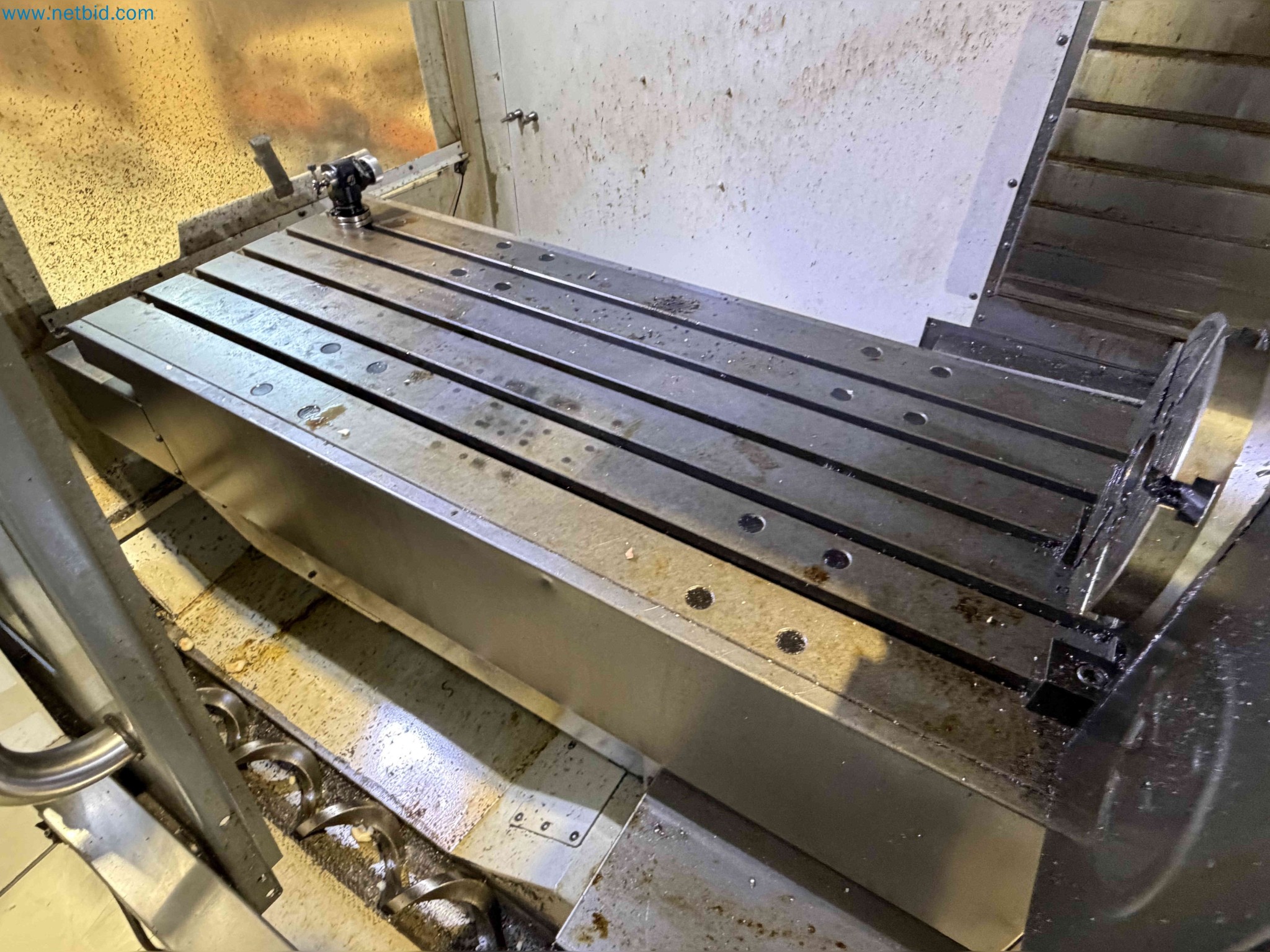

Approx. dimensions: 1320 x 457 mm

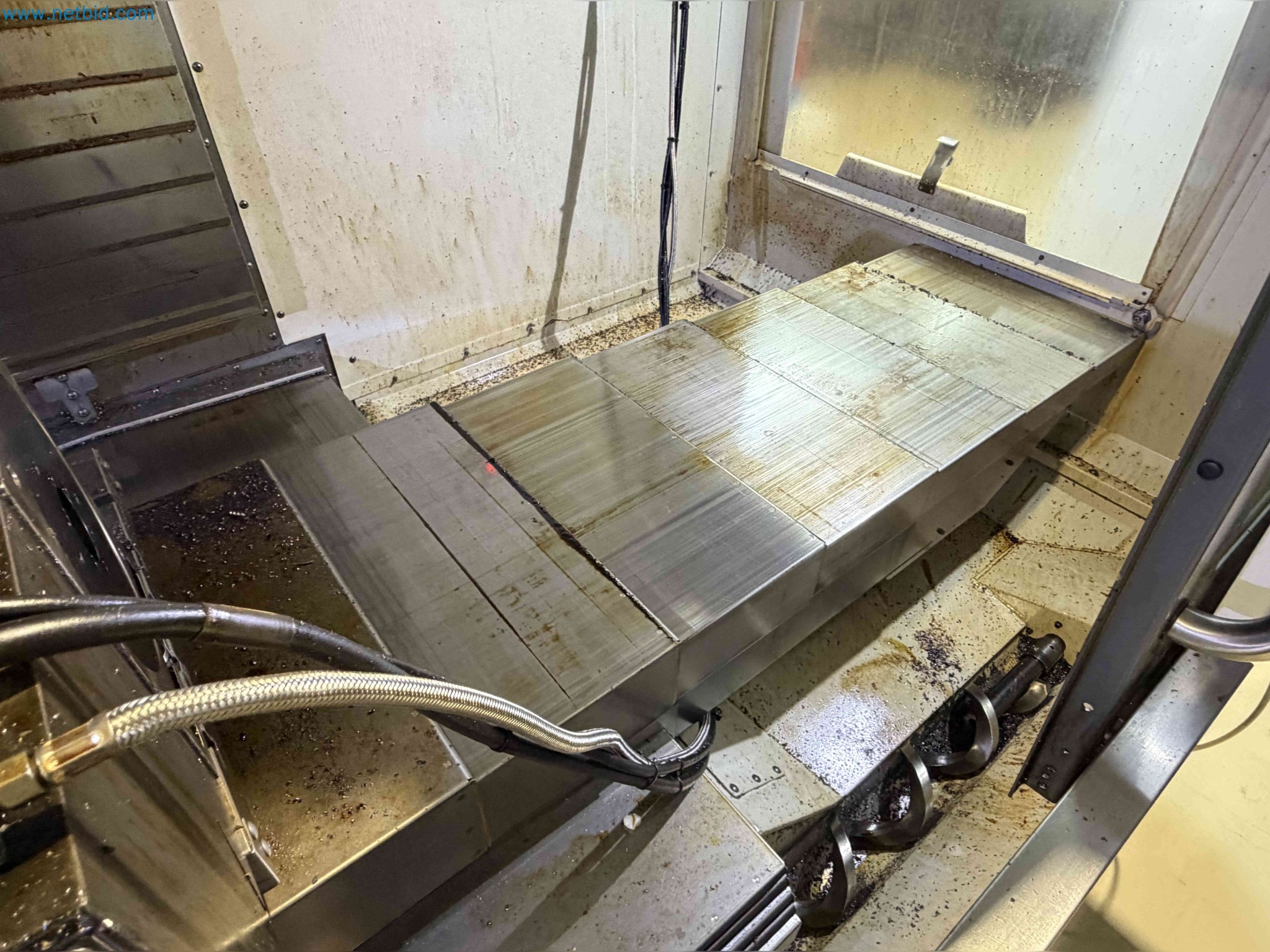

T-slots

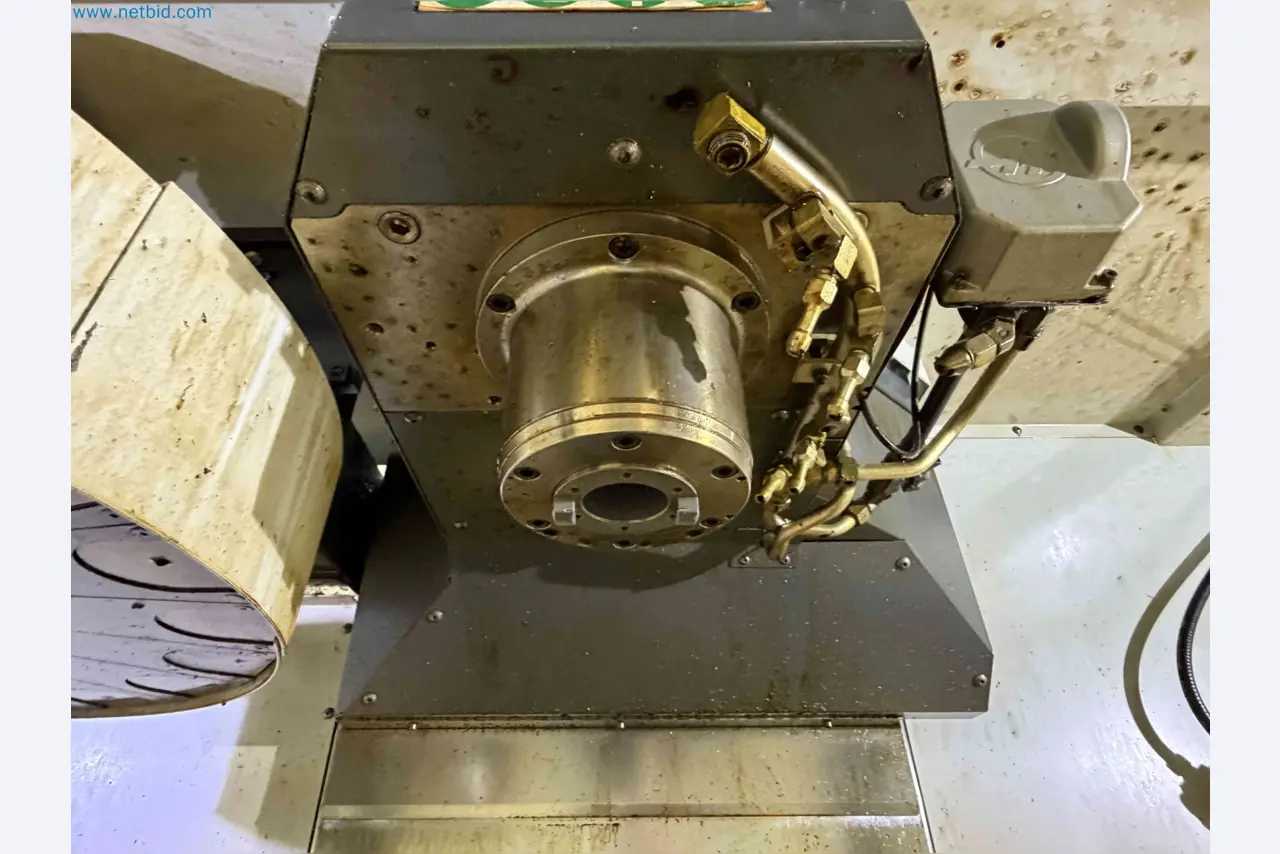

Spindle (High performance):
Taper: BT40 / CT40 / ISO40
Speed: up to 8,100 rpm
Power: 40 HP (~30 kW)

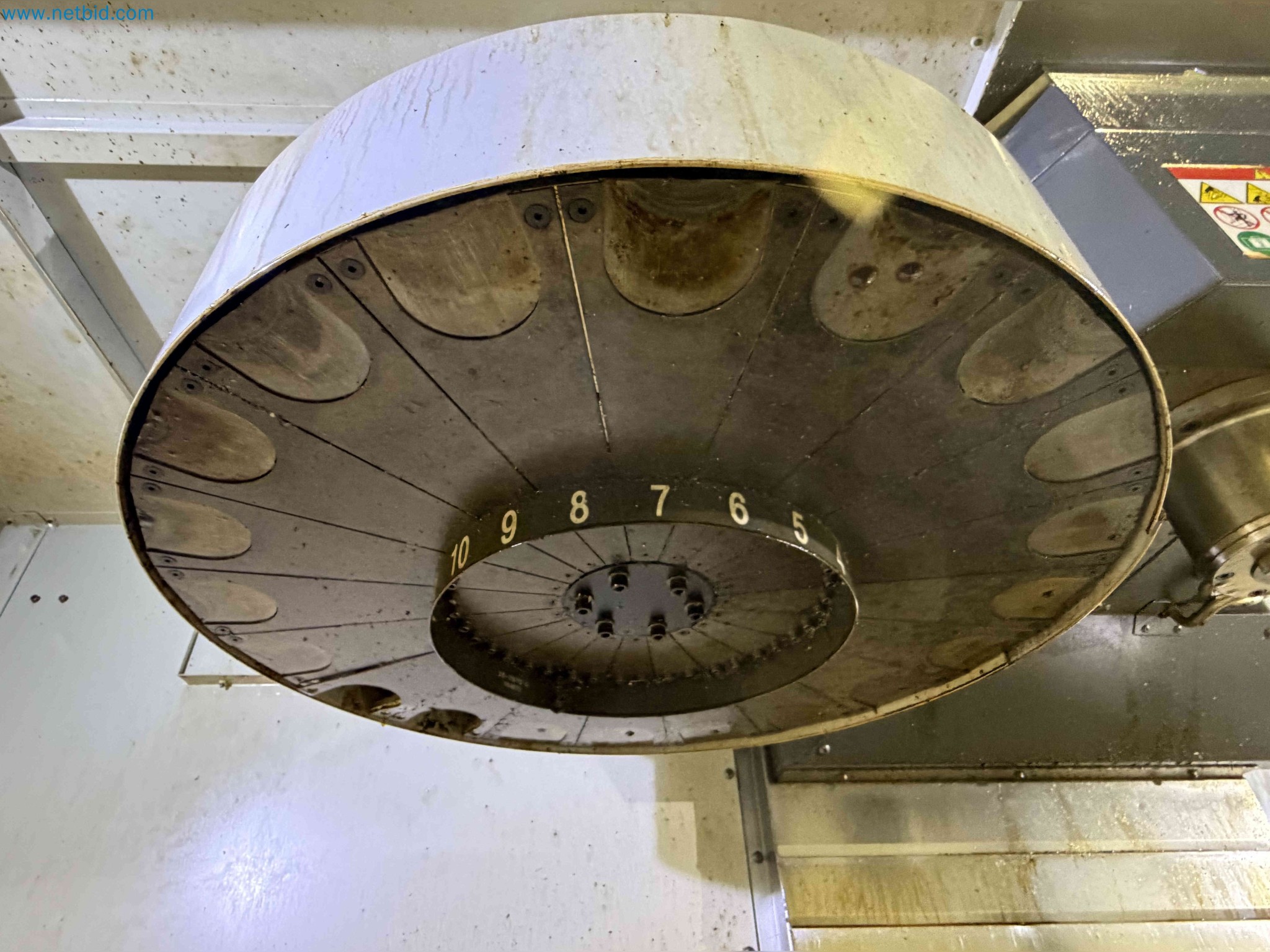

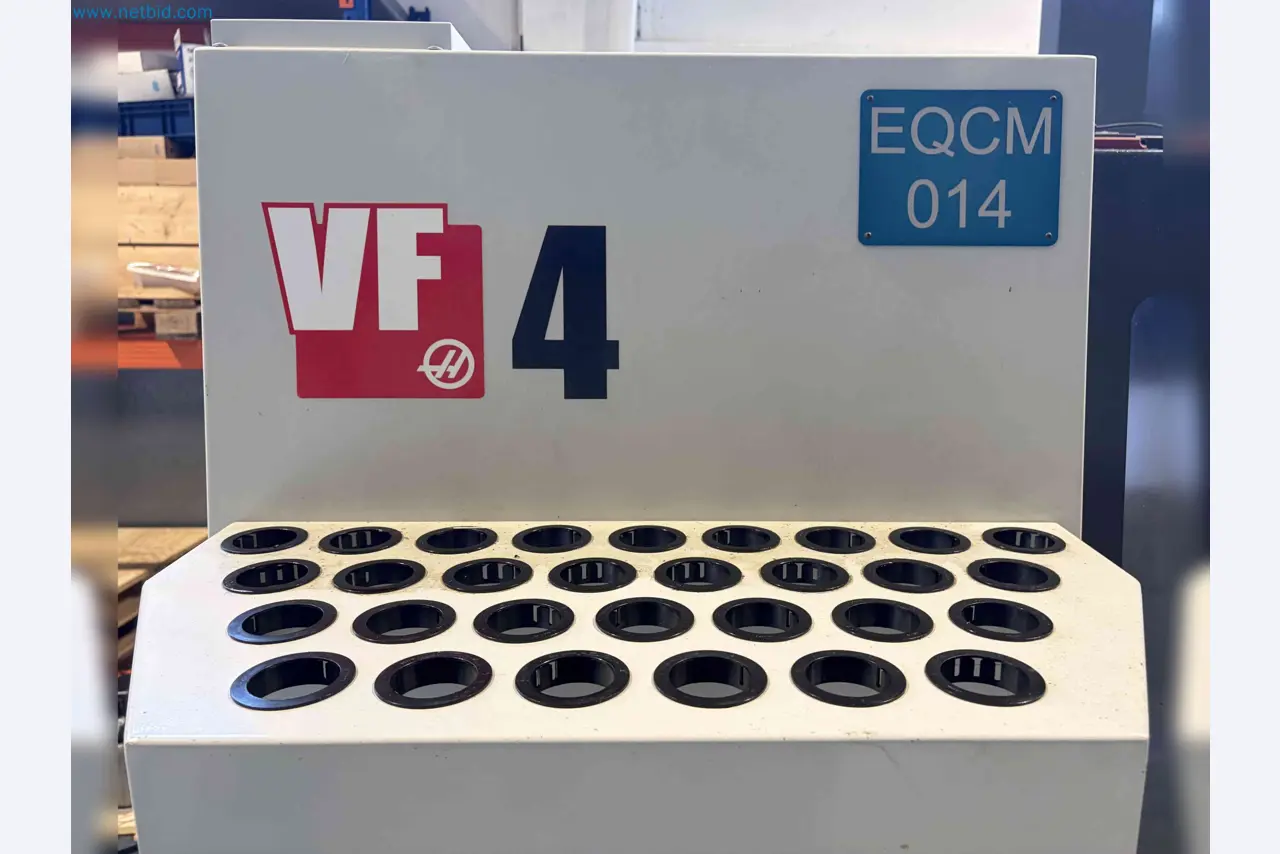

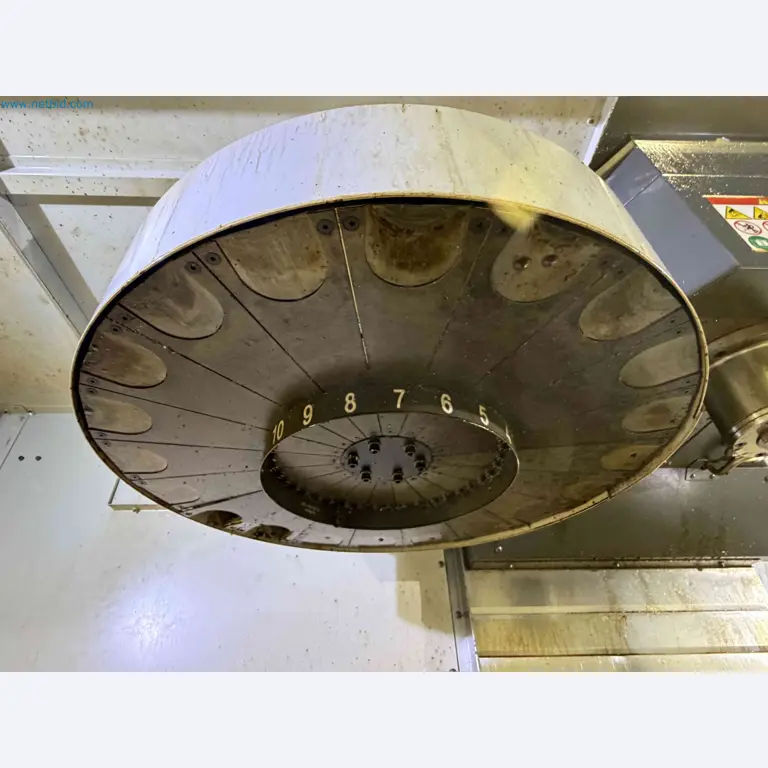

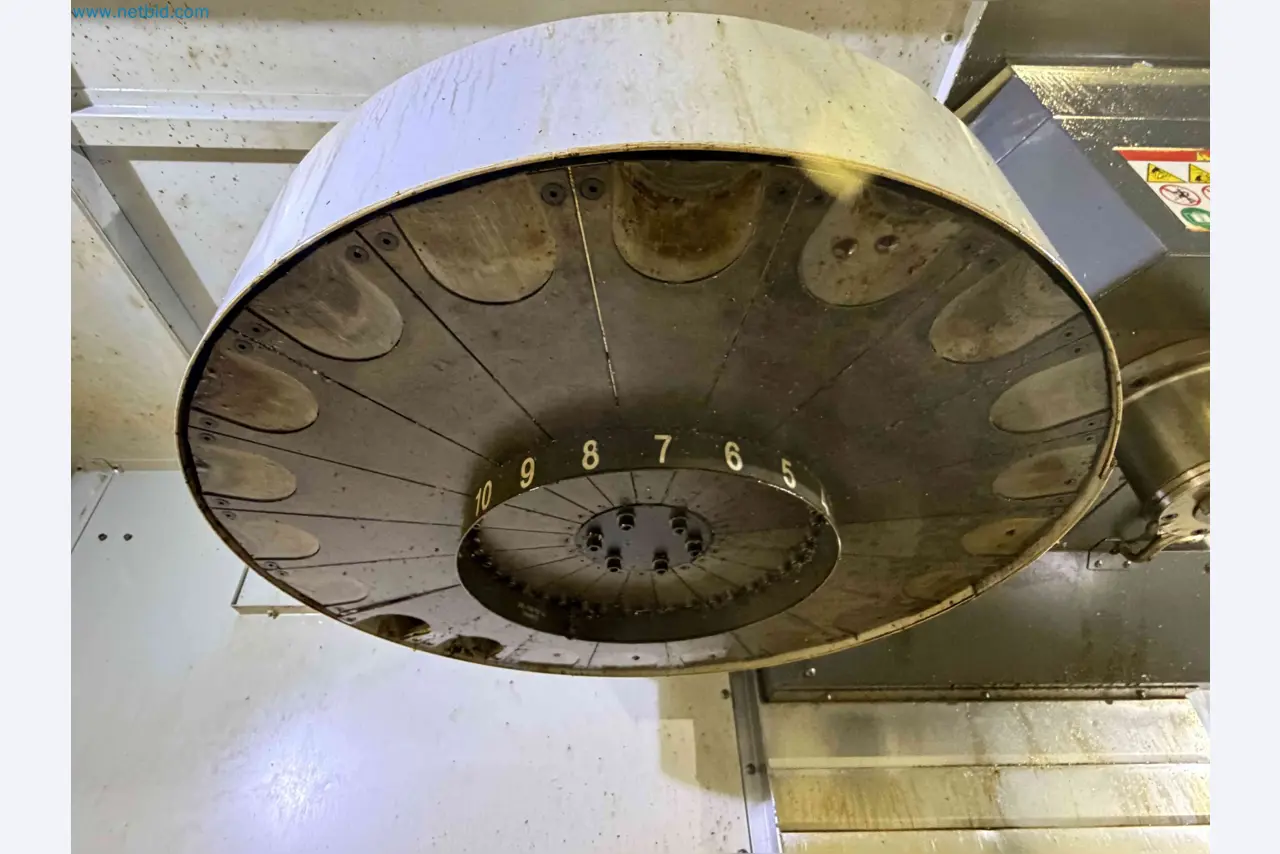

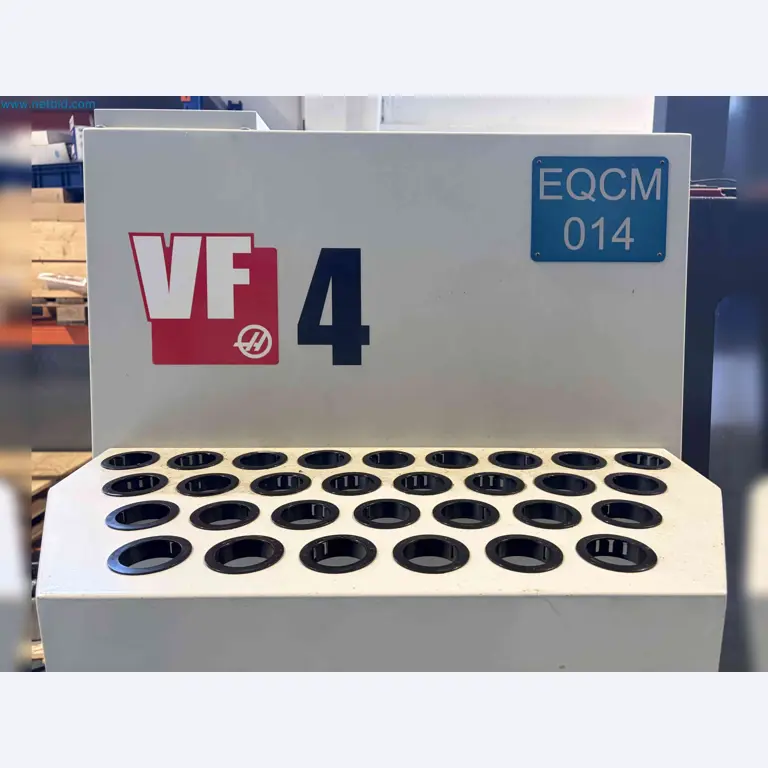

ATC – Tool Changer
Type: carousel (umbrella)
Capacity: 20 tools
Feeds:
Rapid feeds: ~25–30 m/min

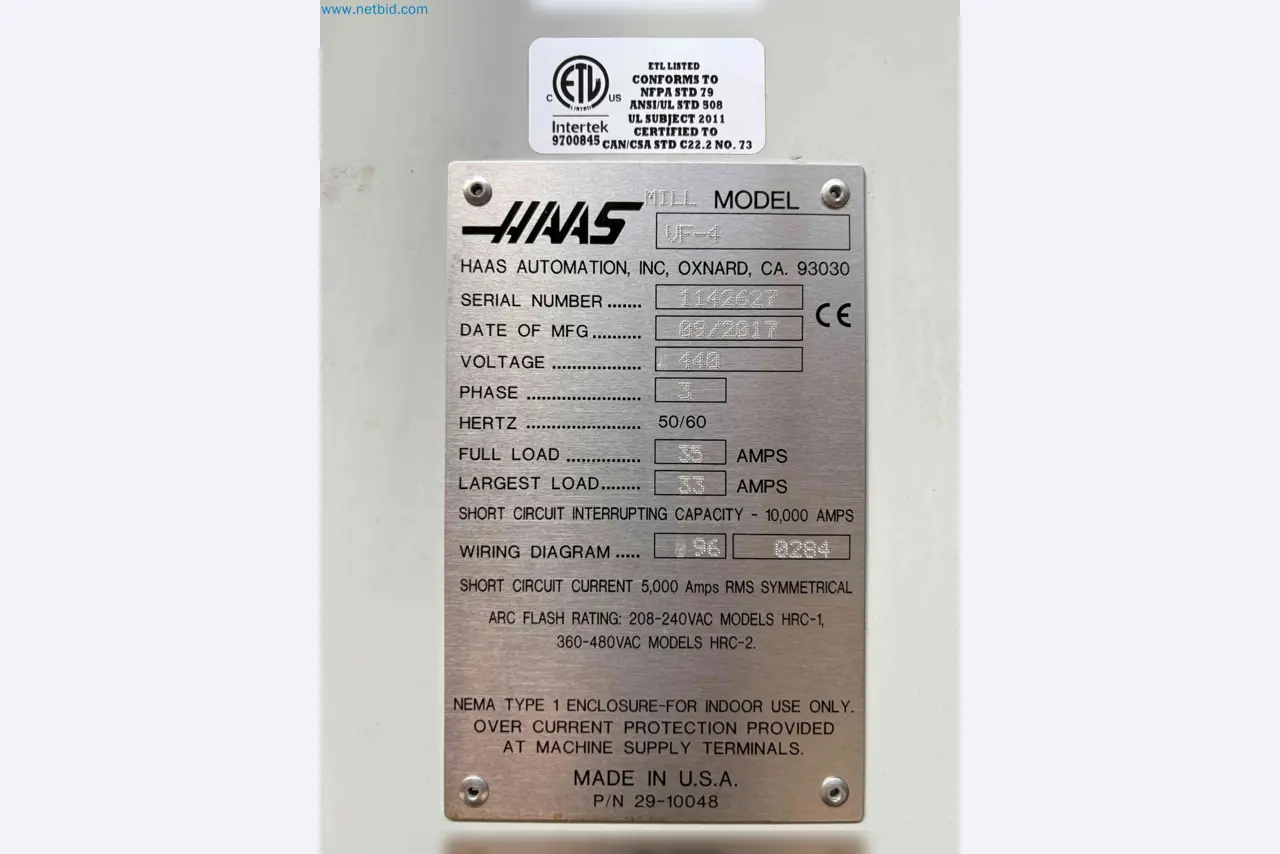

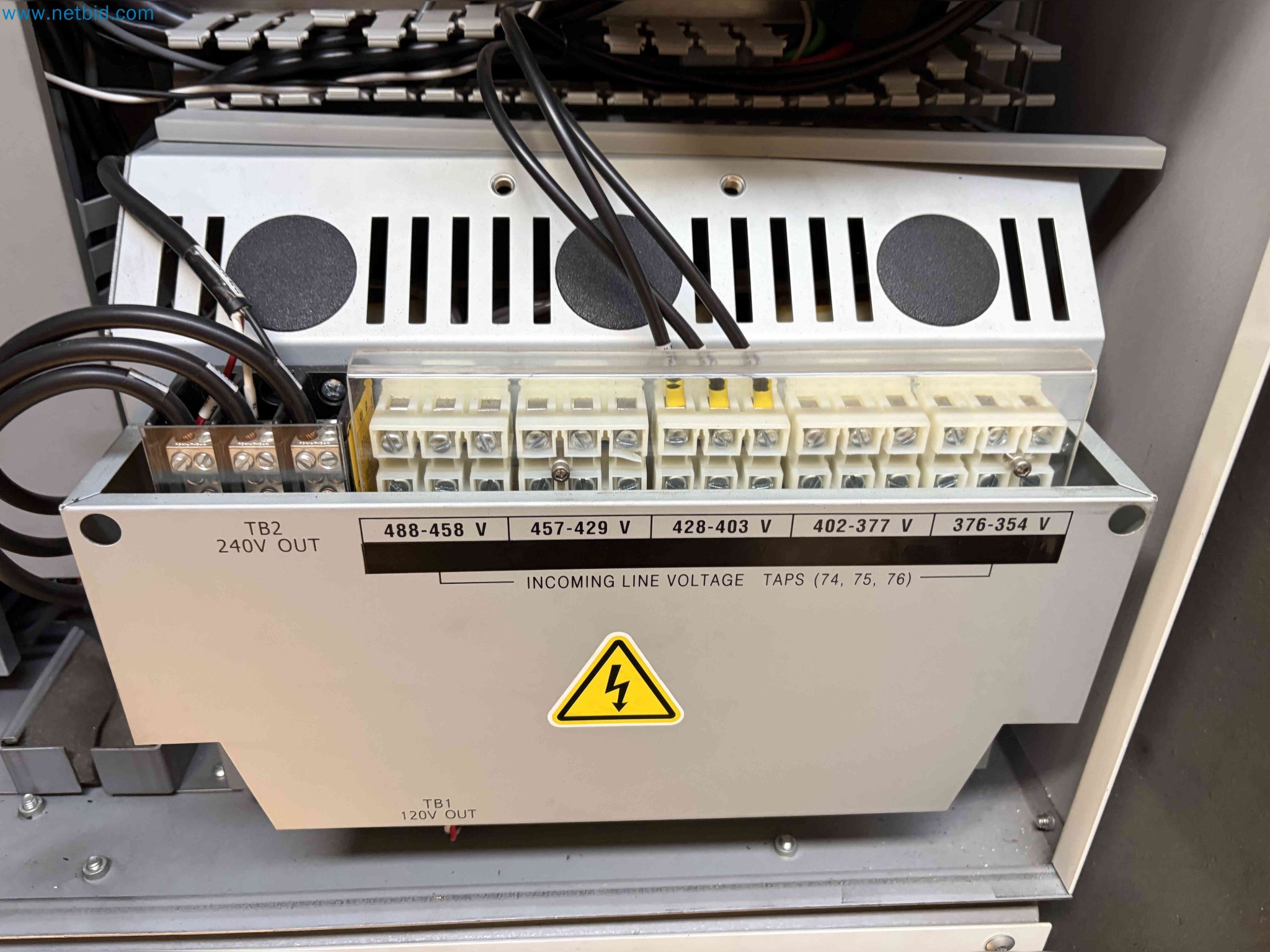

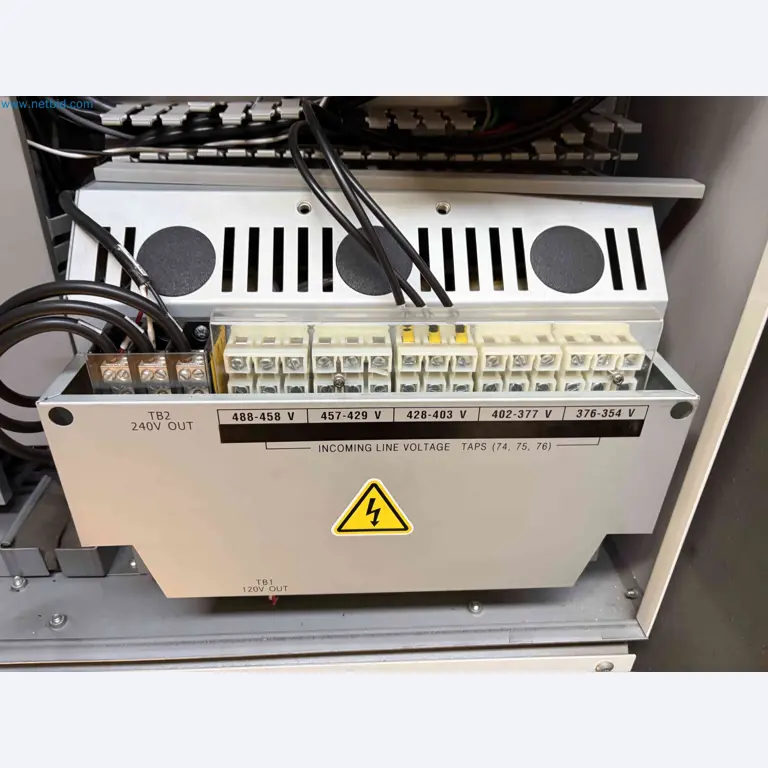

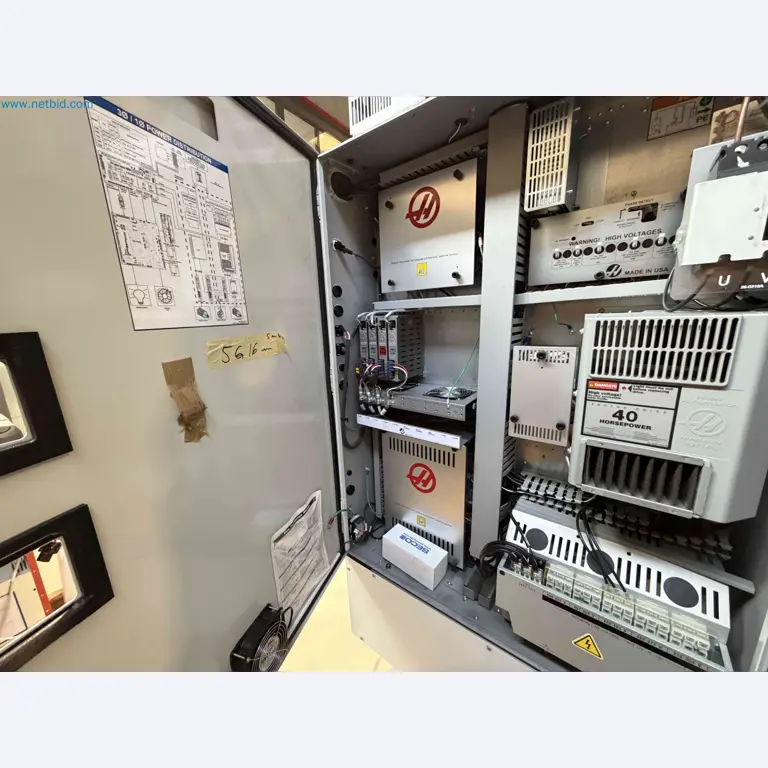

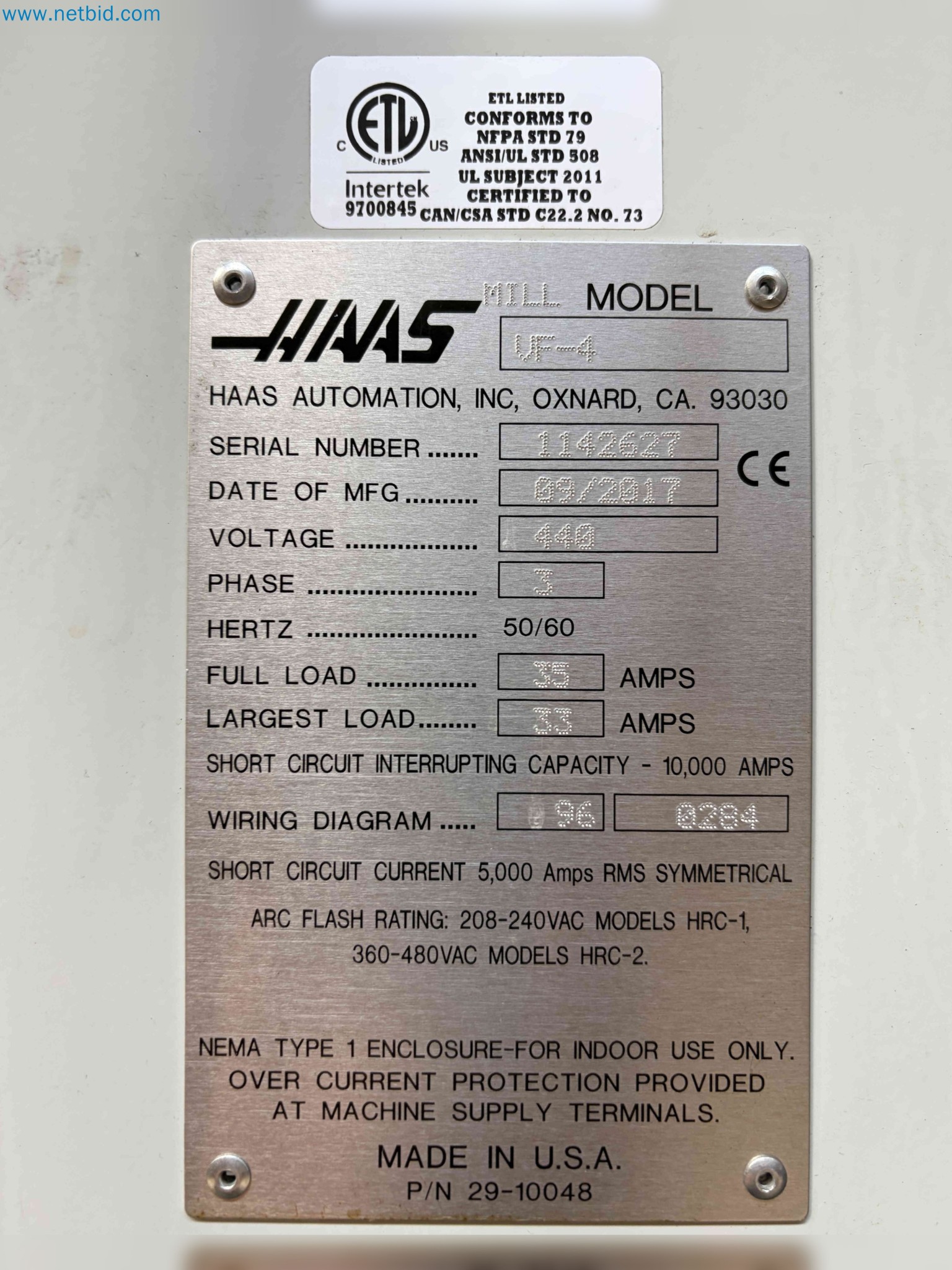

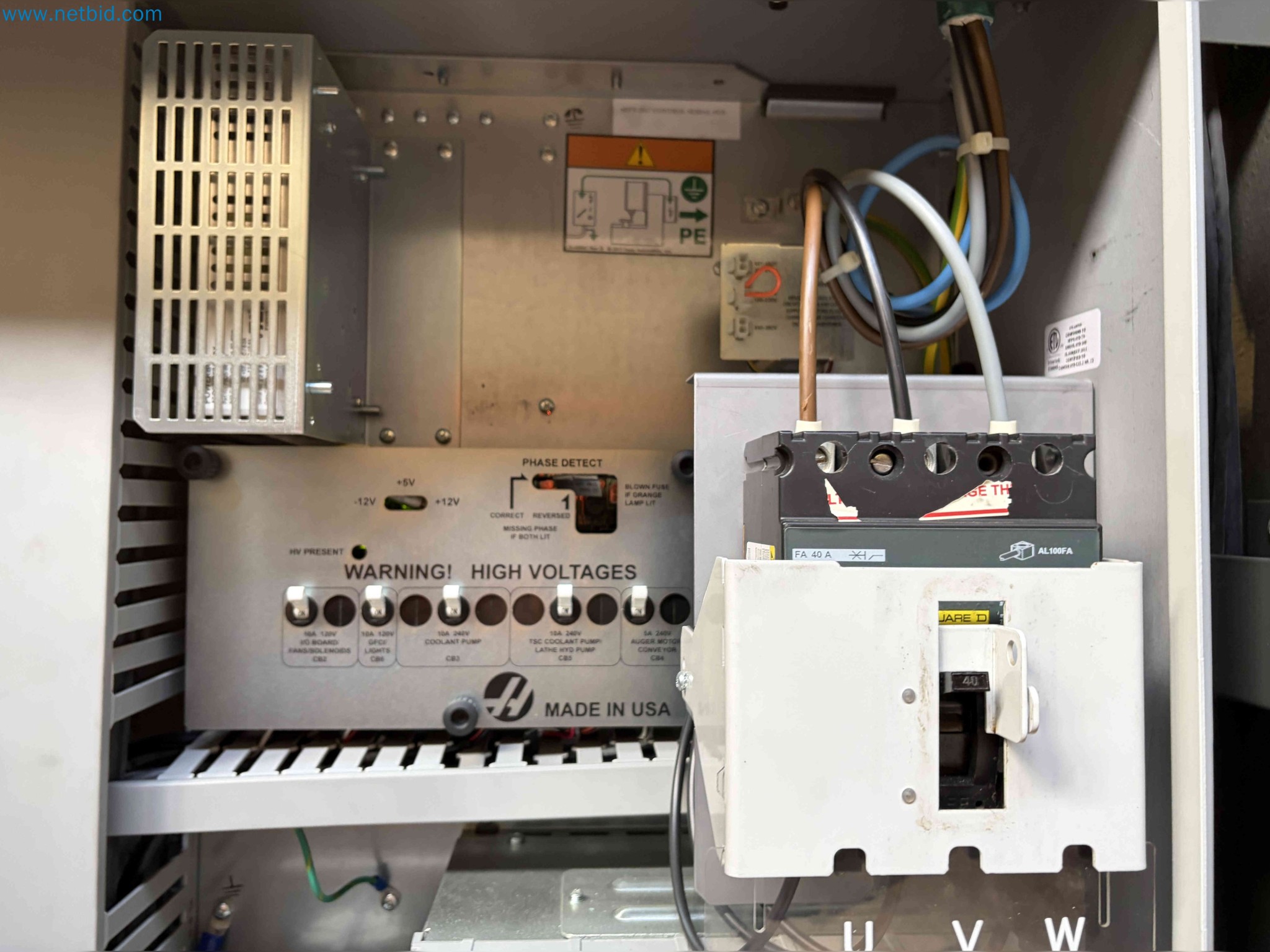

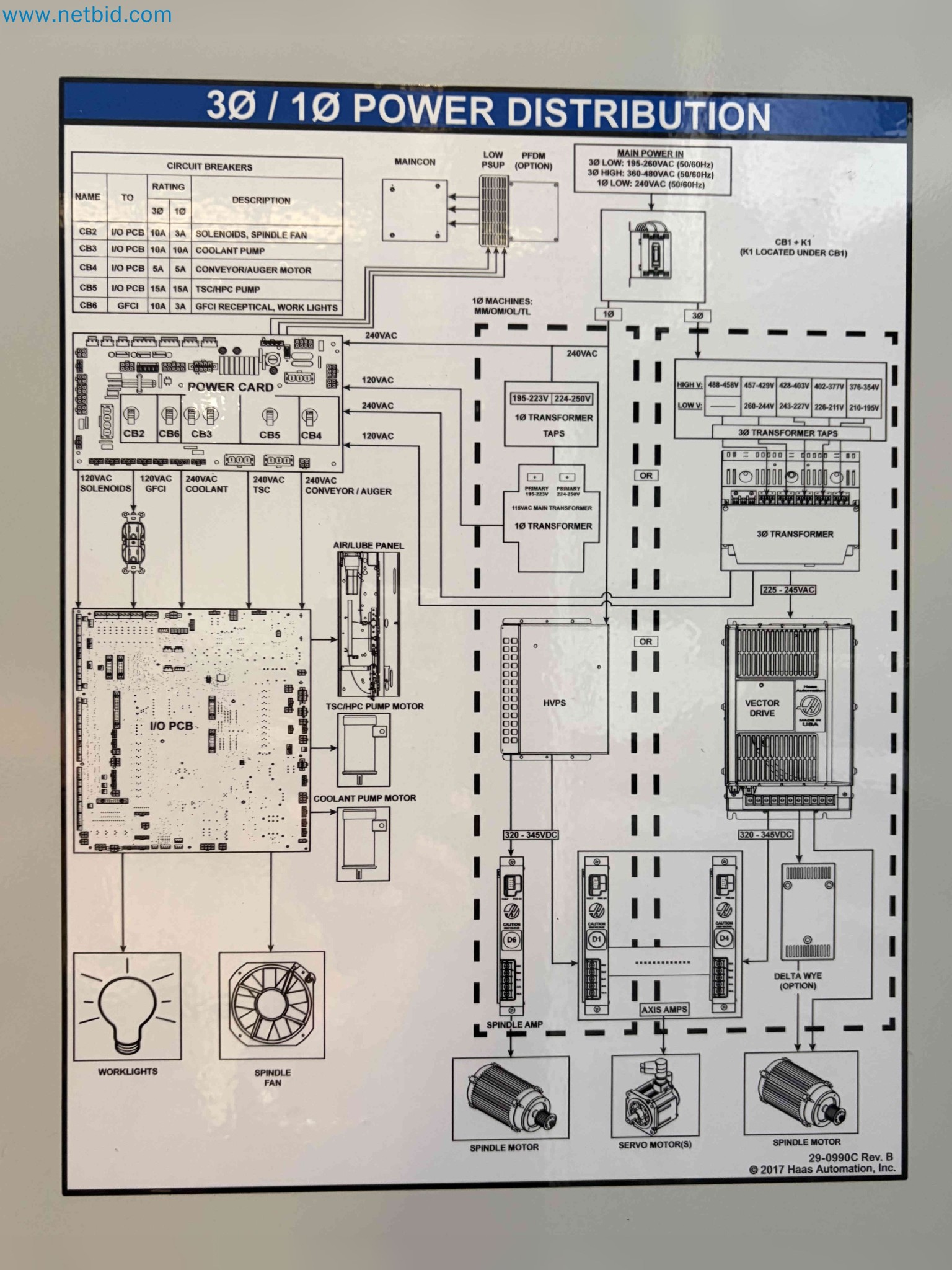

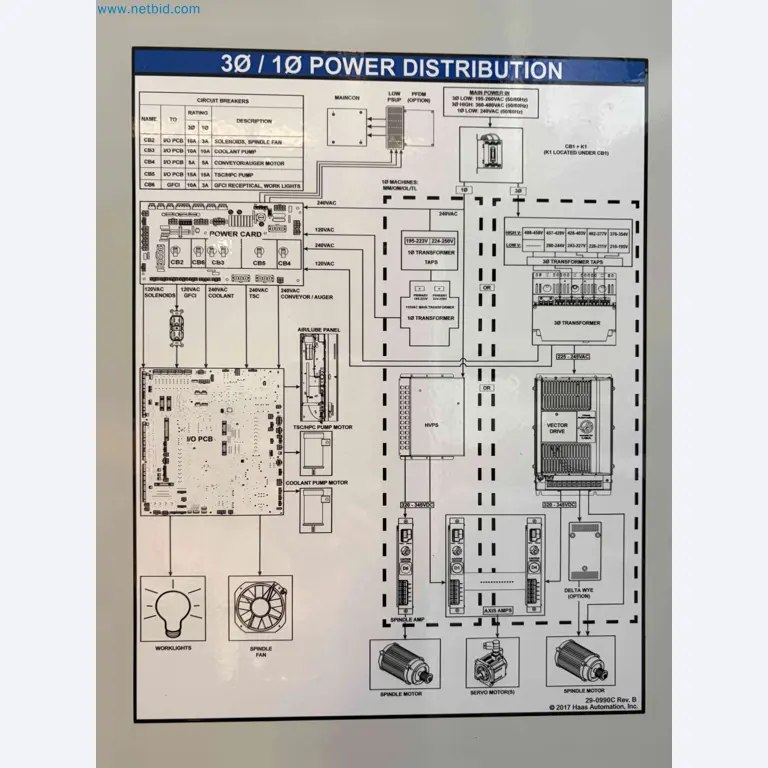

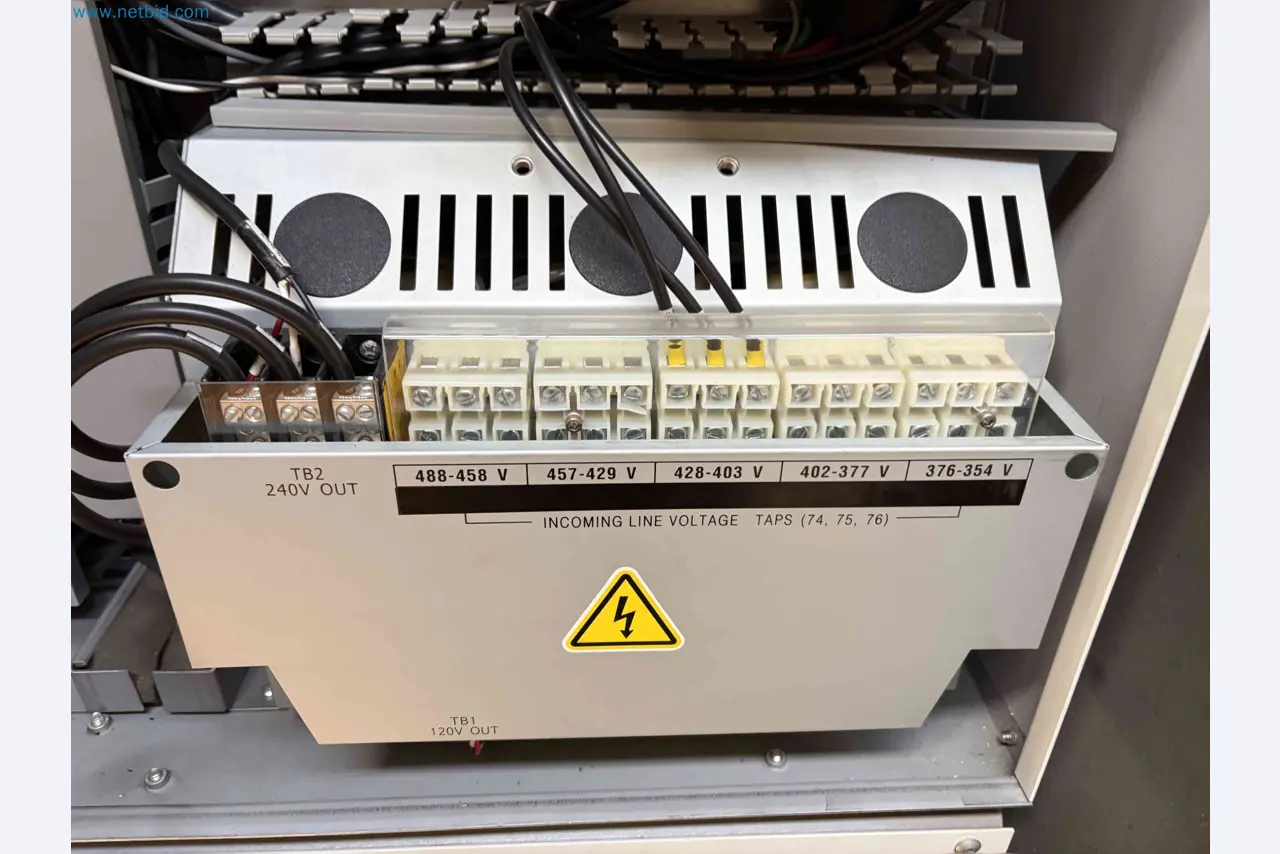

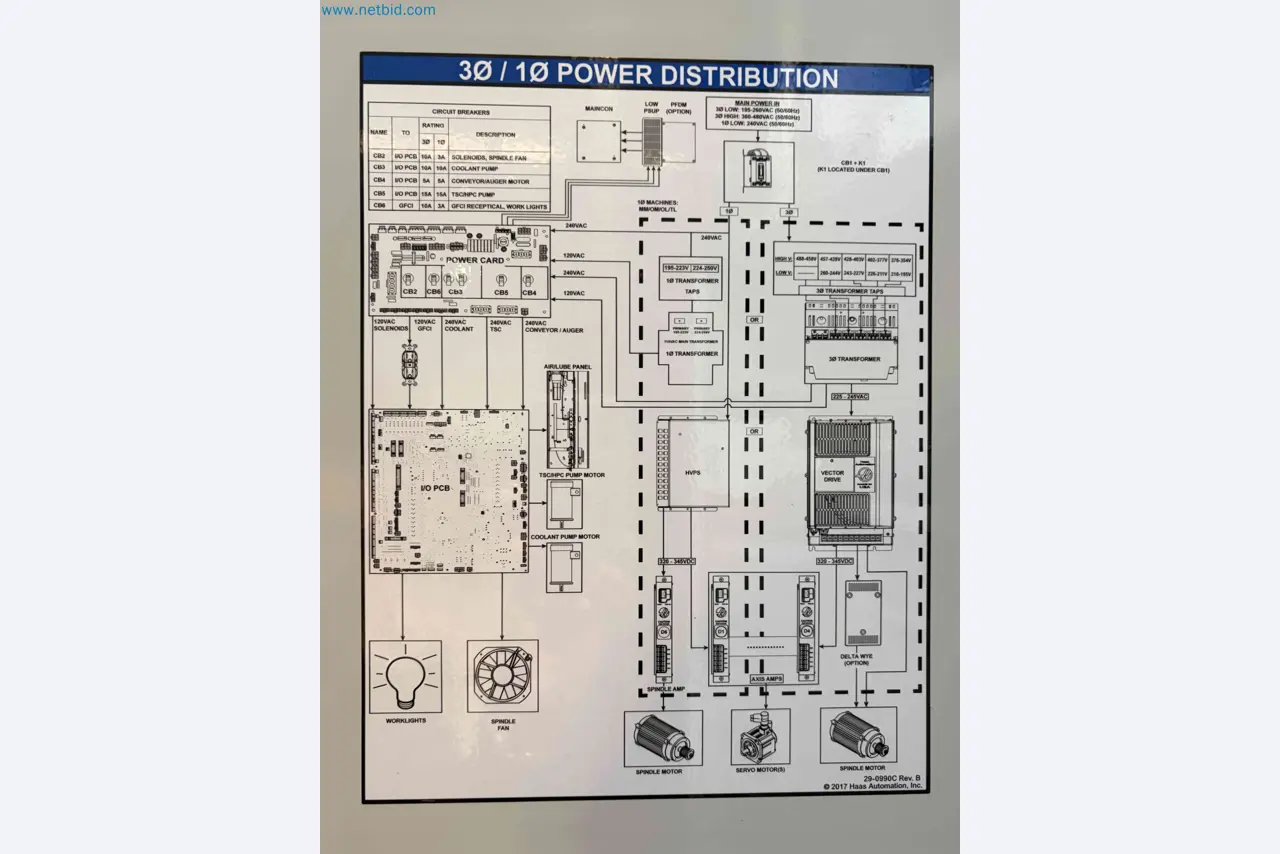

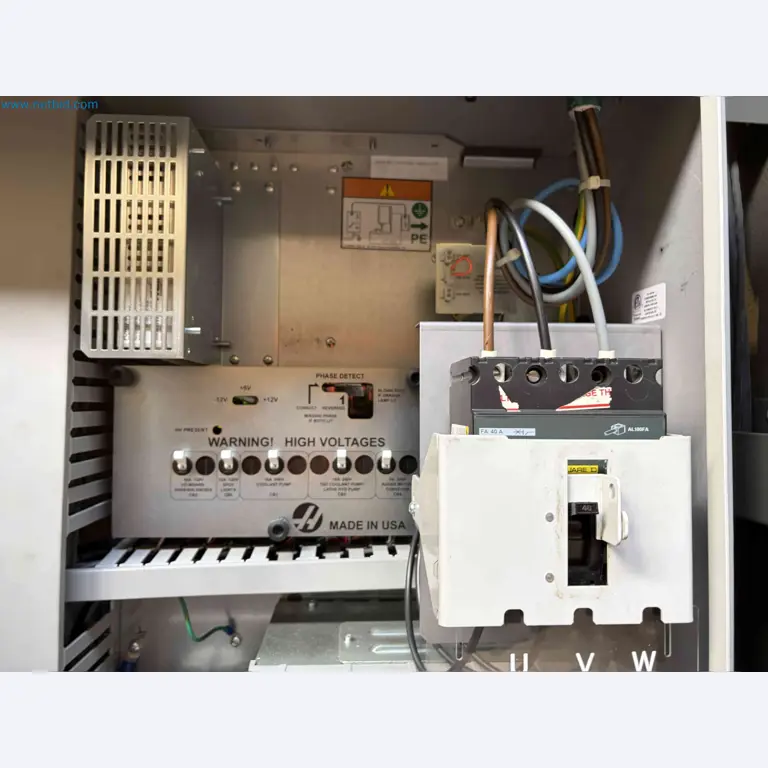

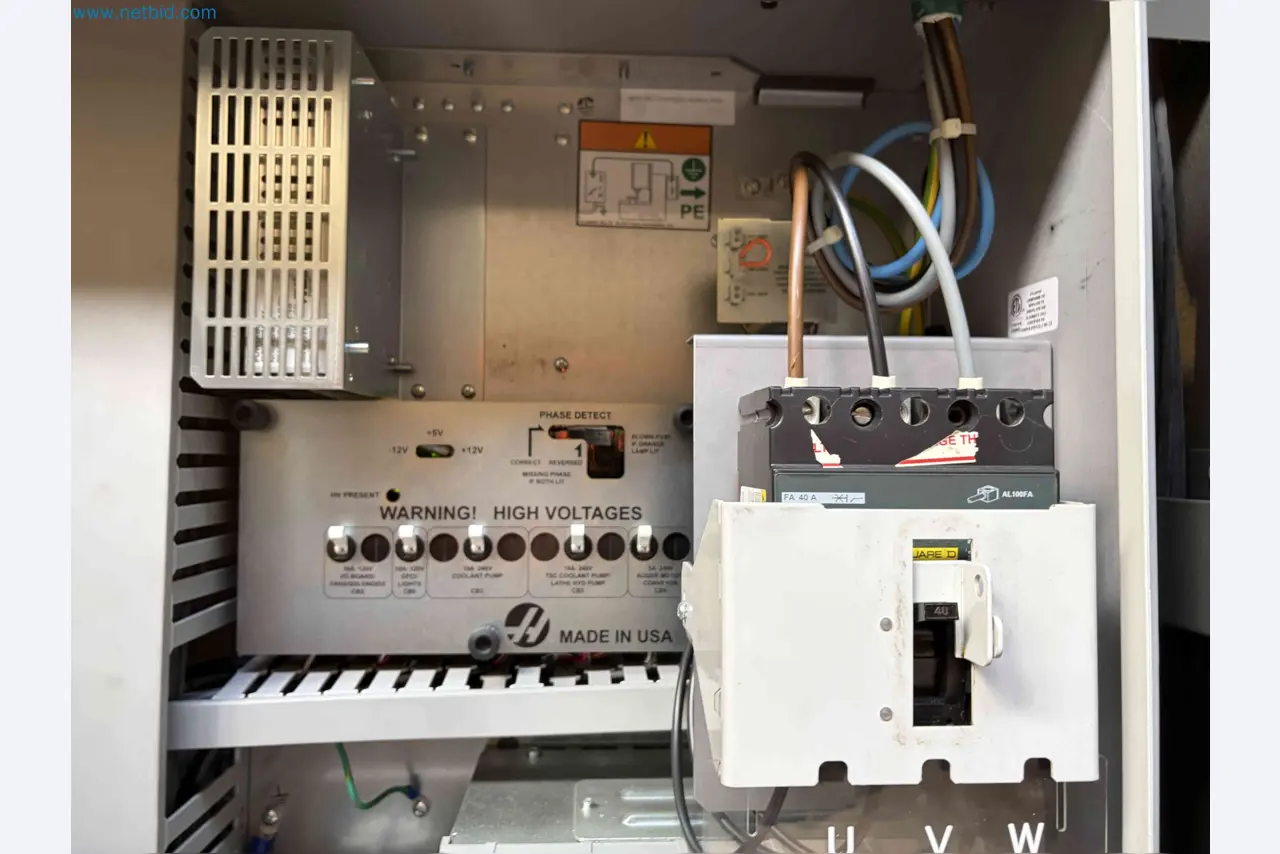

Electrical System:
Power supply: 440V
Phases: 3-phase
Frequency: 50 / 60 Hz
Consumption: ~35 A

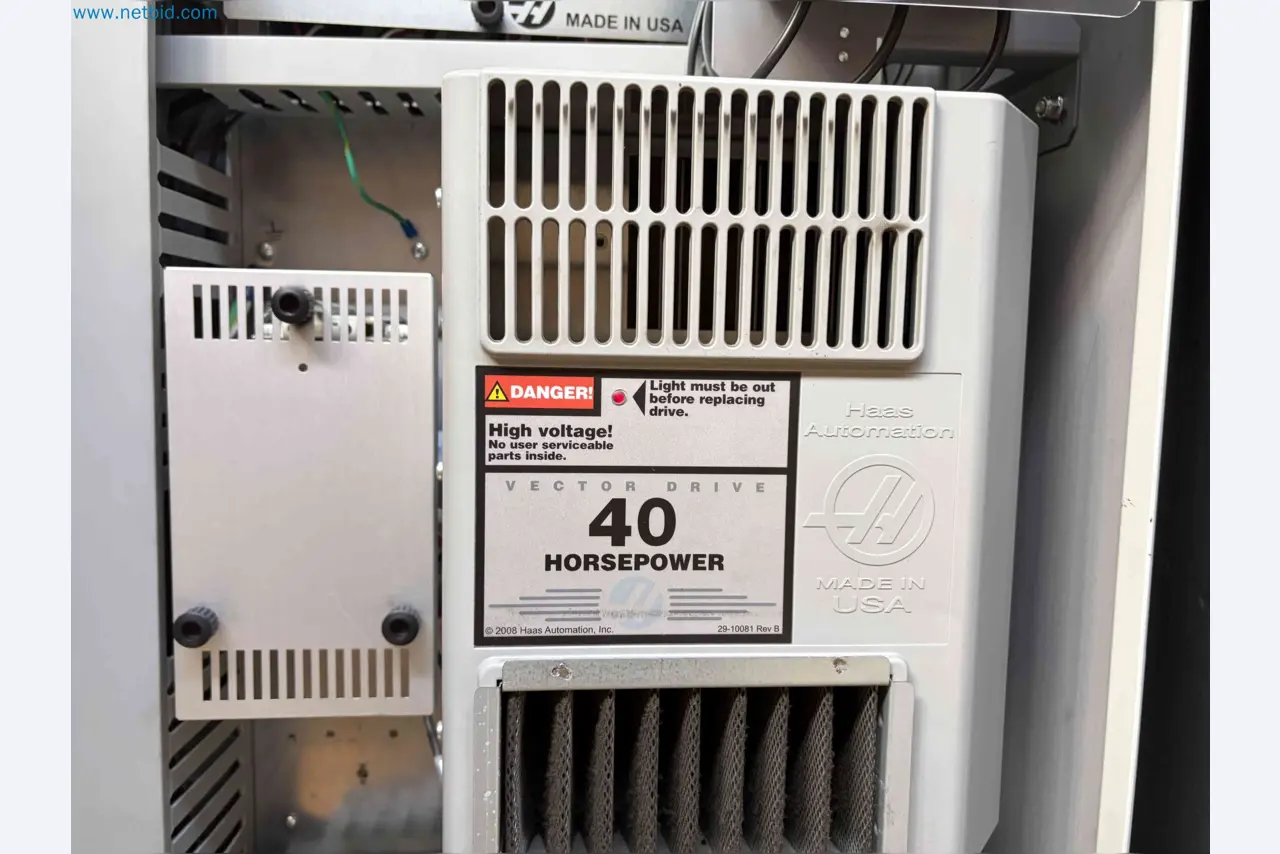

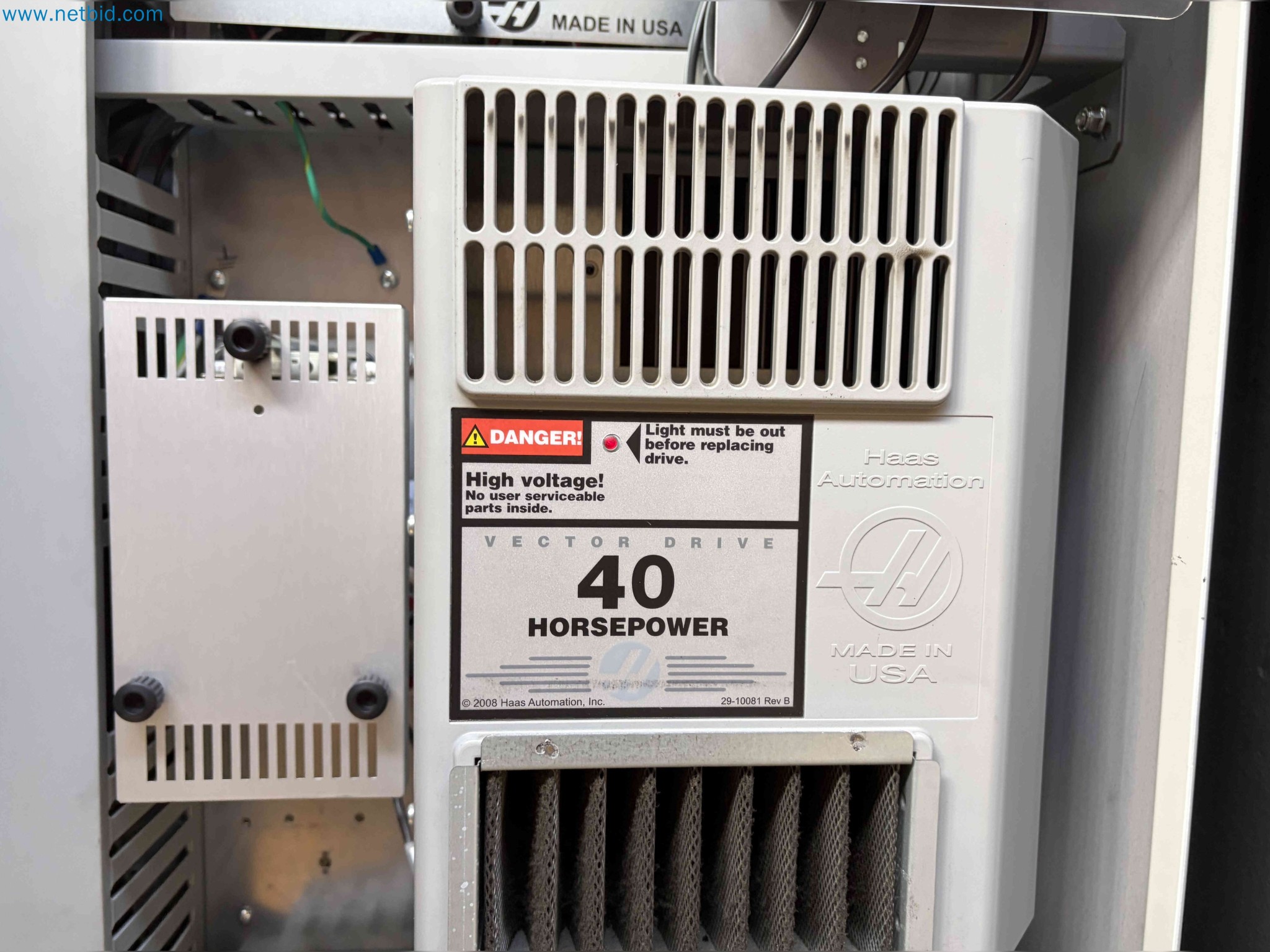

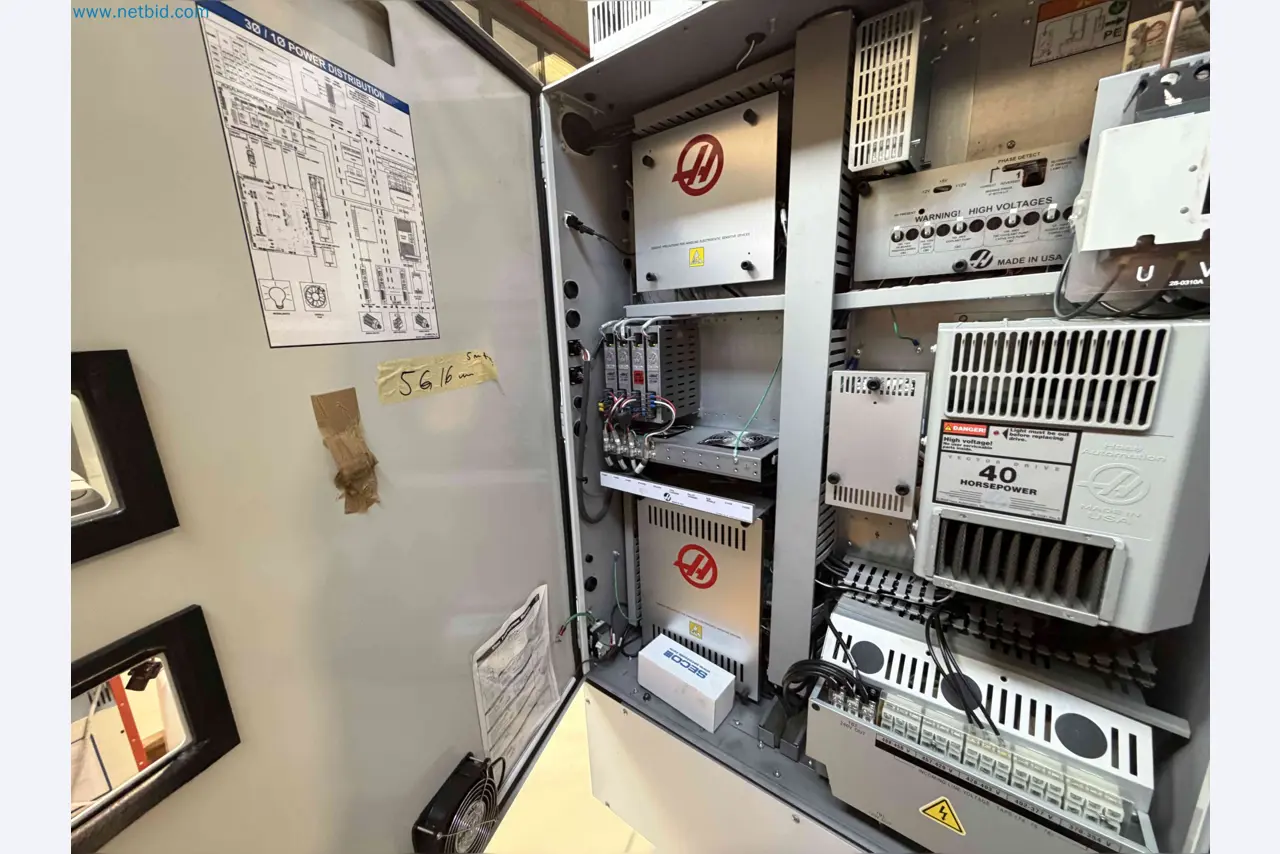

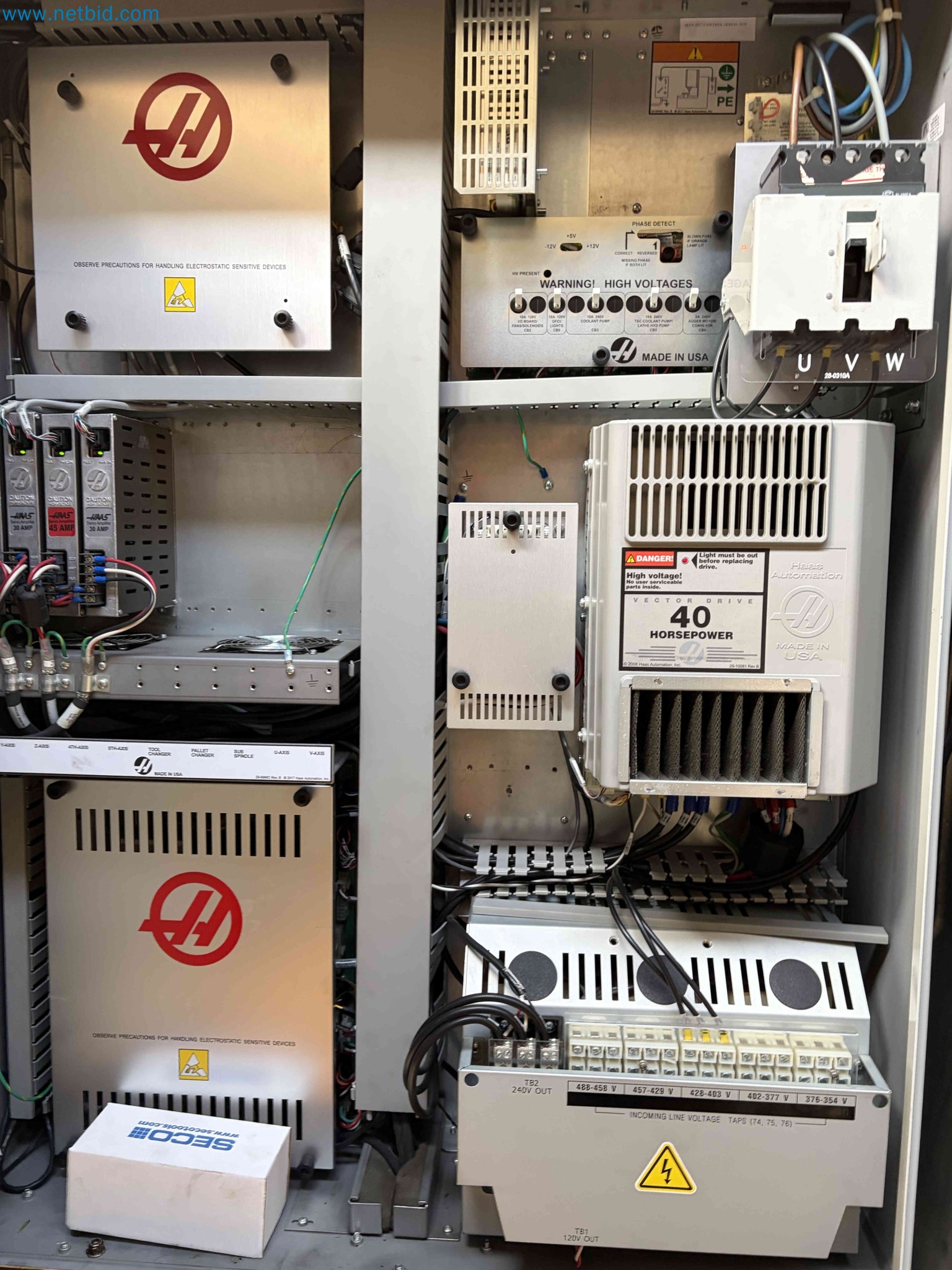

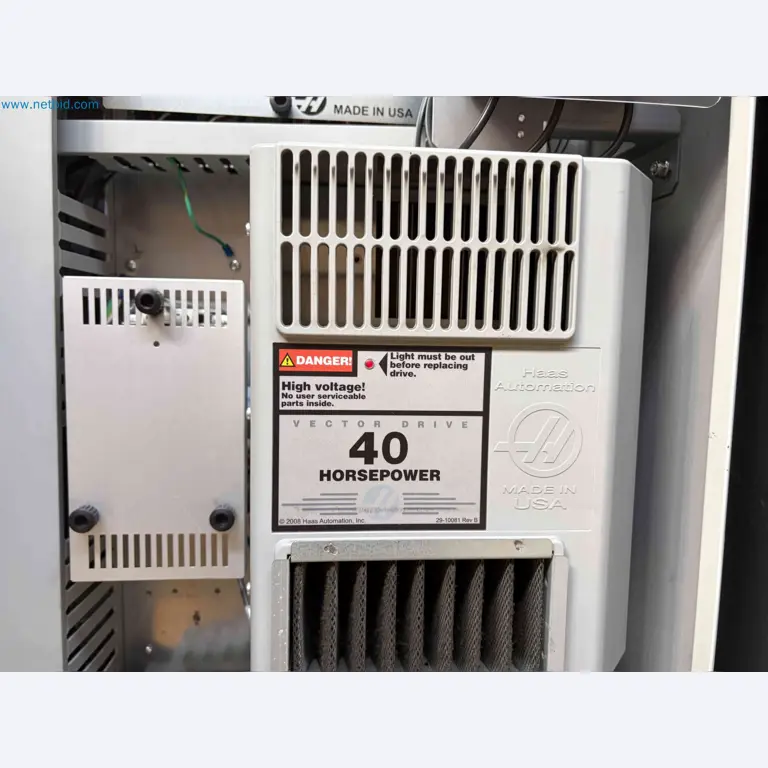

Drive System
Spindle drive
Haas Vector Drive
Power: 40 HP

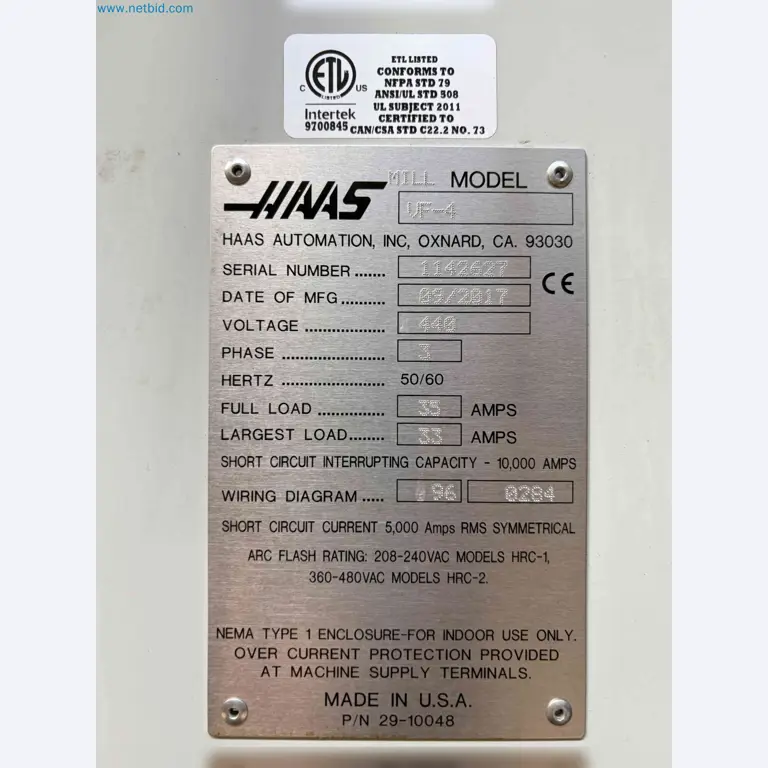

Serial number: 1142627
Approx. dimensions: 3300 x 2400 x 2600 mm
Approximate weight: 6,500 kg
Optional disassembly and loading cost provided by third parties: €500.
Any additional costs related to lot preparation and packaging requirements for transport, provided by third parties, are available upon request.
X: 1,270 mm
Y: 508 mm
Z: 635 mm
Servo drives (axes)
3x Servo Amplifier 30 AMP
1x Servo Amplifier 45 AMP
4th Axis
Allows 4-axis machining
Rotary table installed
Control and CNC
HAAS Next Generation Control (NGC)
ISO programming
Connectivity:
Ethernet
RS-232
Allows:
network connection
program transfer
CAM / DNC integration
Approx. dimensions: 1320 x 457 mm
T-slots
Spindle (High performance):
Taper: BT40 / CT40 / ISO40
Speed: up to 8,100 rpm
Power: 40 HP (~30 kW)
ATC – Tool Changer
Type: carousel (umbrella)
Capacity: 20 tools
Feeds:
Rapid feeds: ~25–30 m/min
Electrical System:
Power supply: 440V
Phases: 3-phase
Frequency: 50 / 60 Hz
Consumption: ~35 A
Drive System
Spindle drive
Haas Vector Drive
Power: 40 HP
Serial number: 1142627
Approx. dimensions: 3300 x 2400 x 2600 mm
Approximate weight: 6,500 kg
Optional disassembly and loading cost provided by third parties: €500.
Any additional costs related to lot preparation and packaging requirements for transport, provided by third parties, are available upon request.
Location
- 4485-062 Fajozes
Dates
Inspection
Safety shoes are required for the tour.
The tour is available only by prior appointment at carrico@netbid.com.
The tour is available only by prior appointment at carrico@netbid.com.
Pickup
20.07.2026 - 24.07.2026
Safety shoes are required for pickup.
Pickup is only available by prior appointment at carrico@netbid.com.
Pickup is only available by prior appointment at carrico@netbid.com.
