Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Cnc Machining Centres, Edm Machines And Mould Manufacturing Equipment

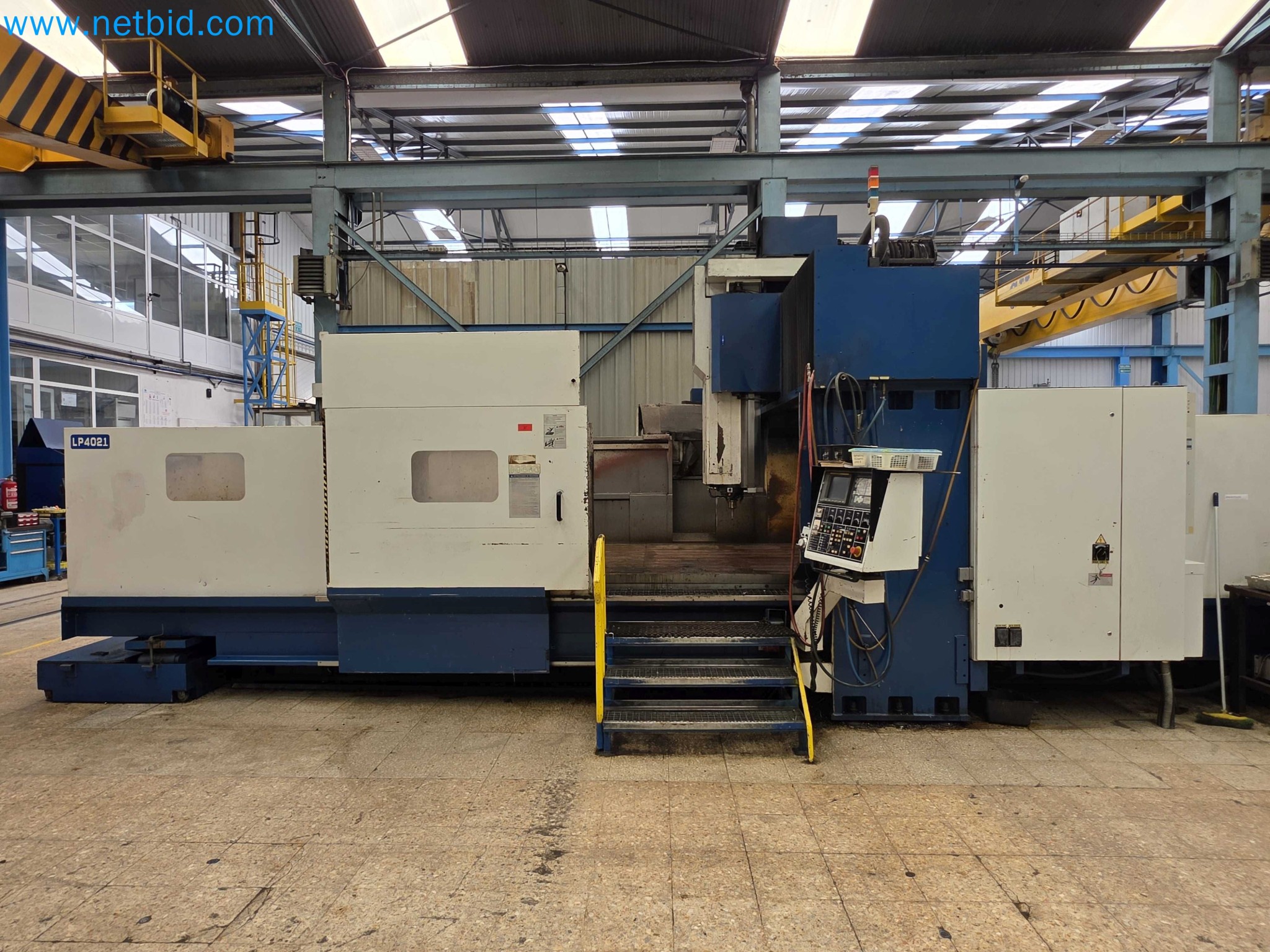

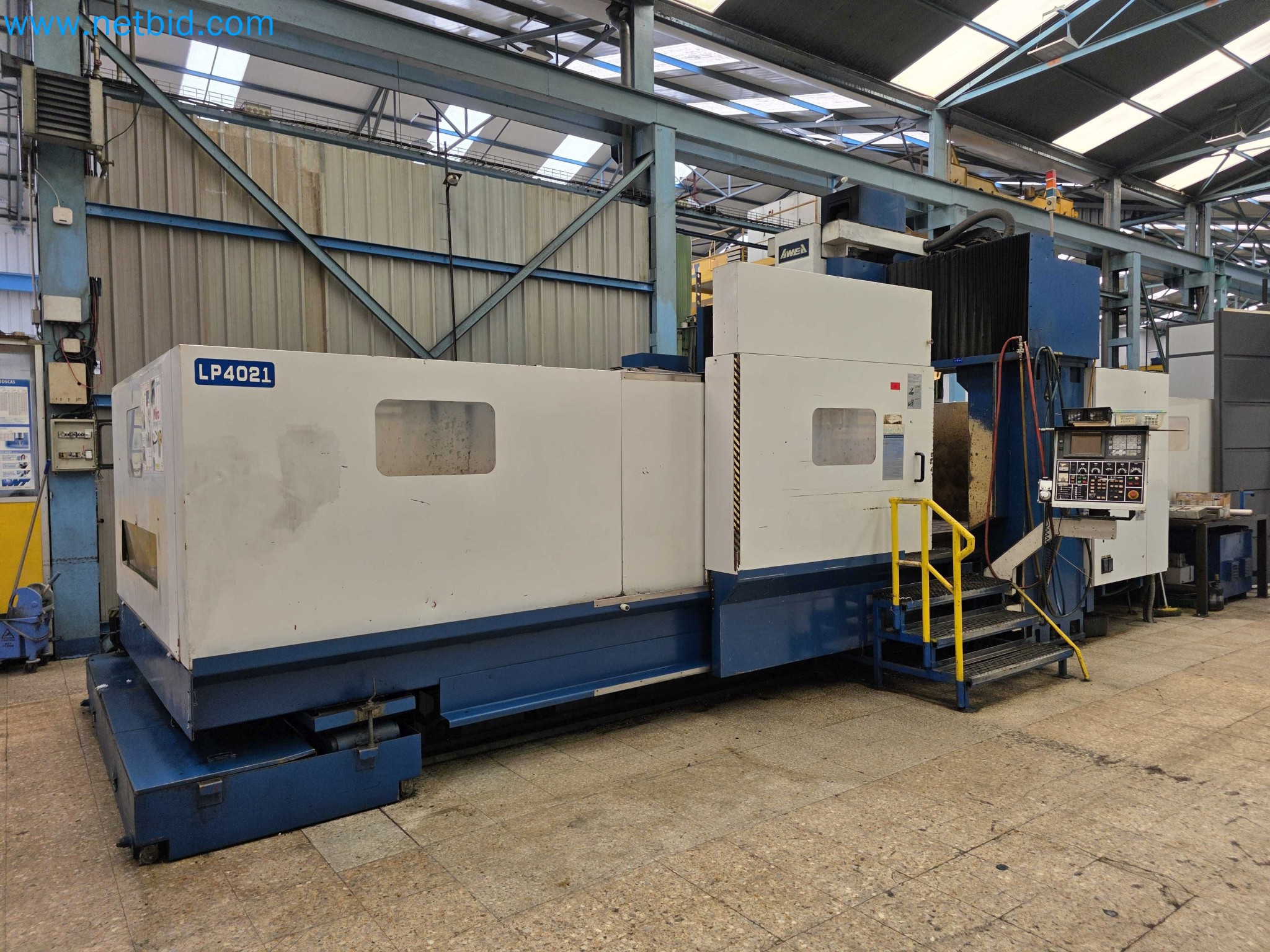

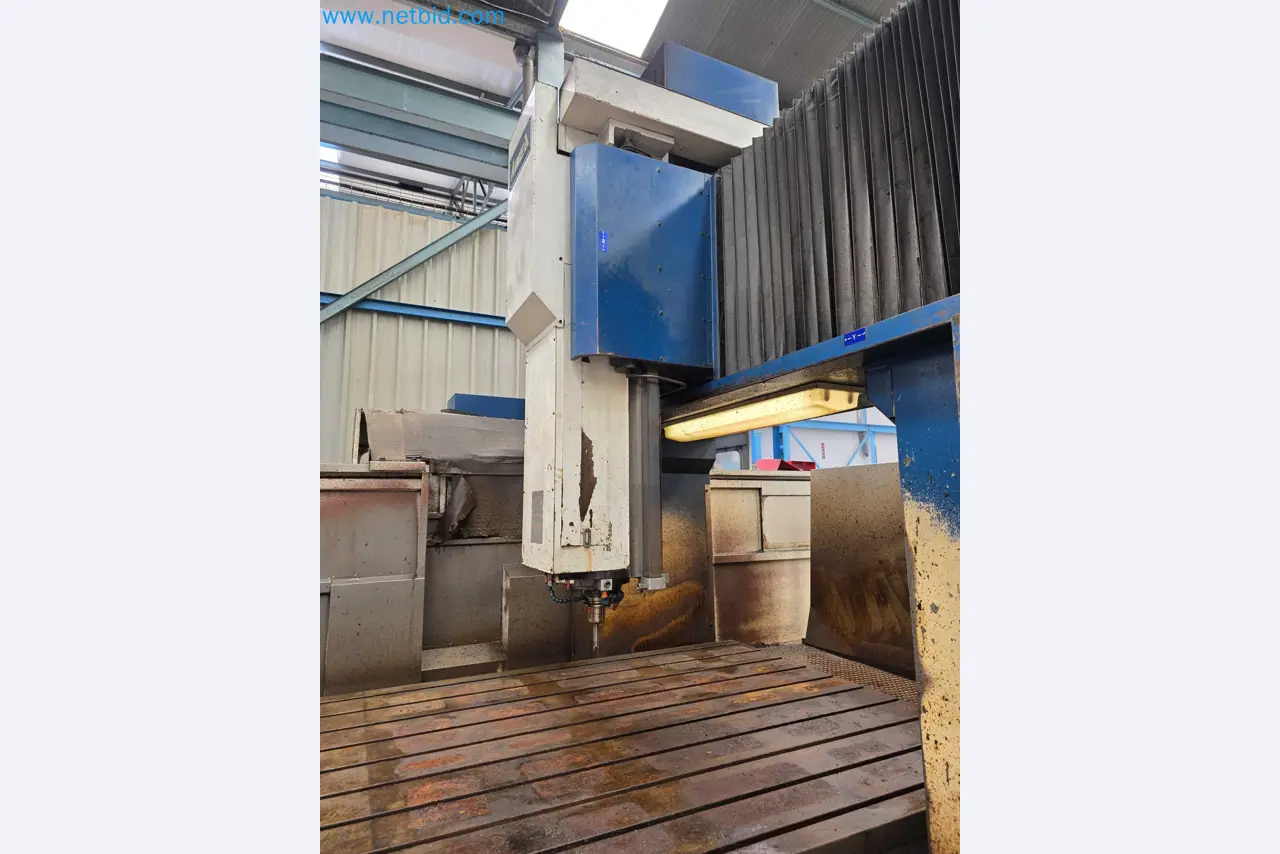

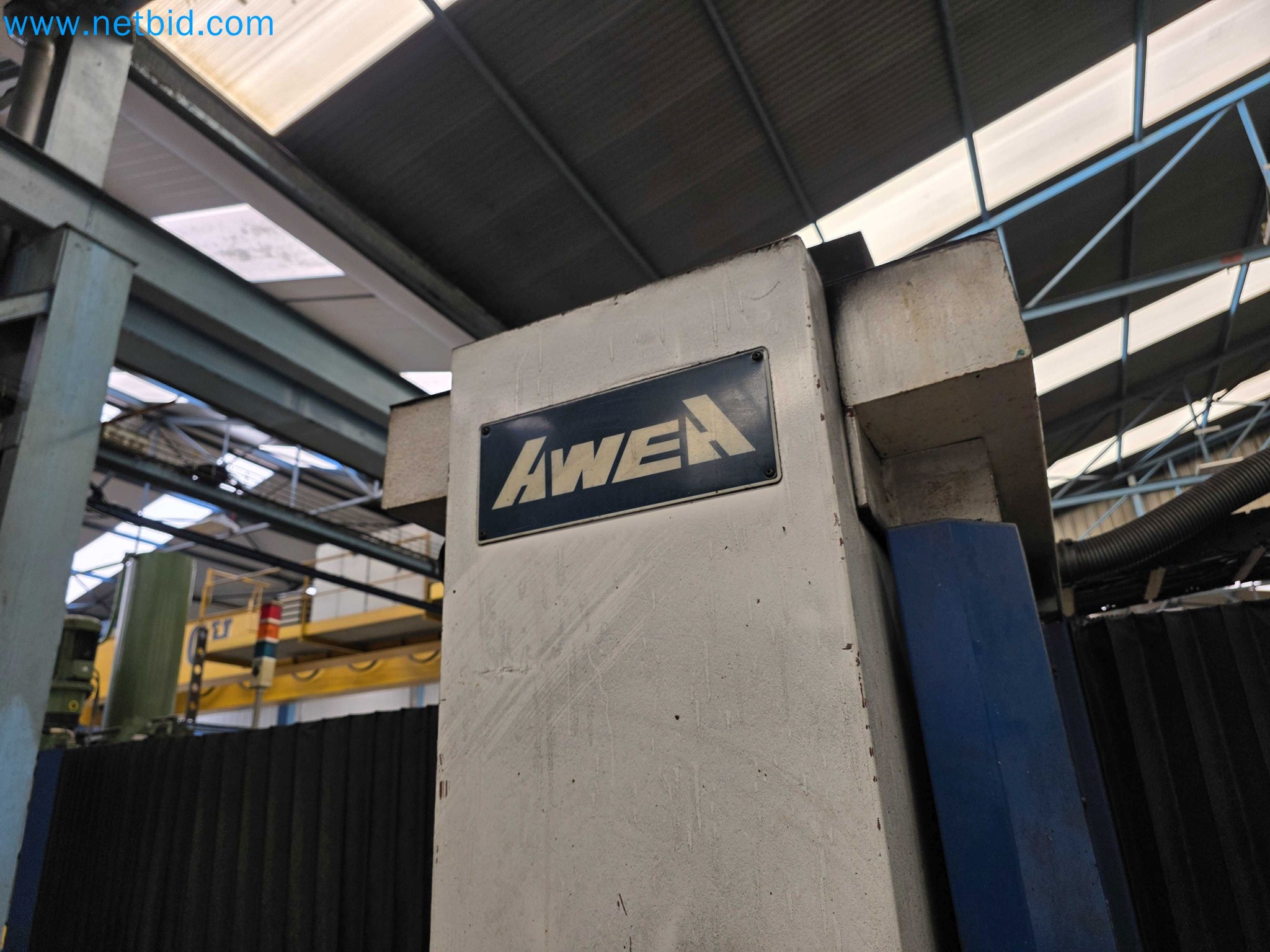

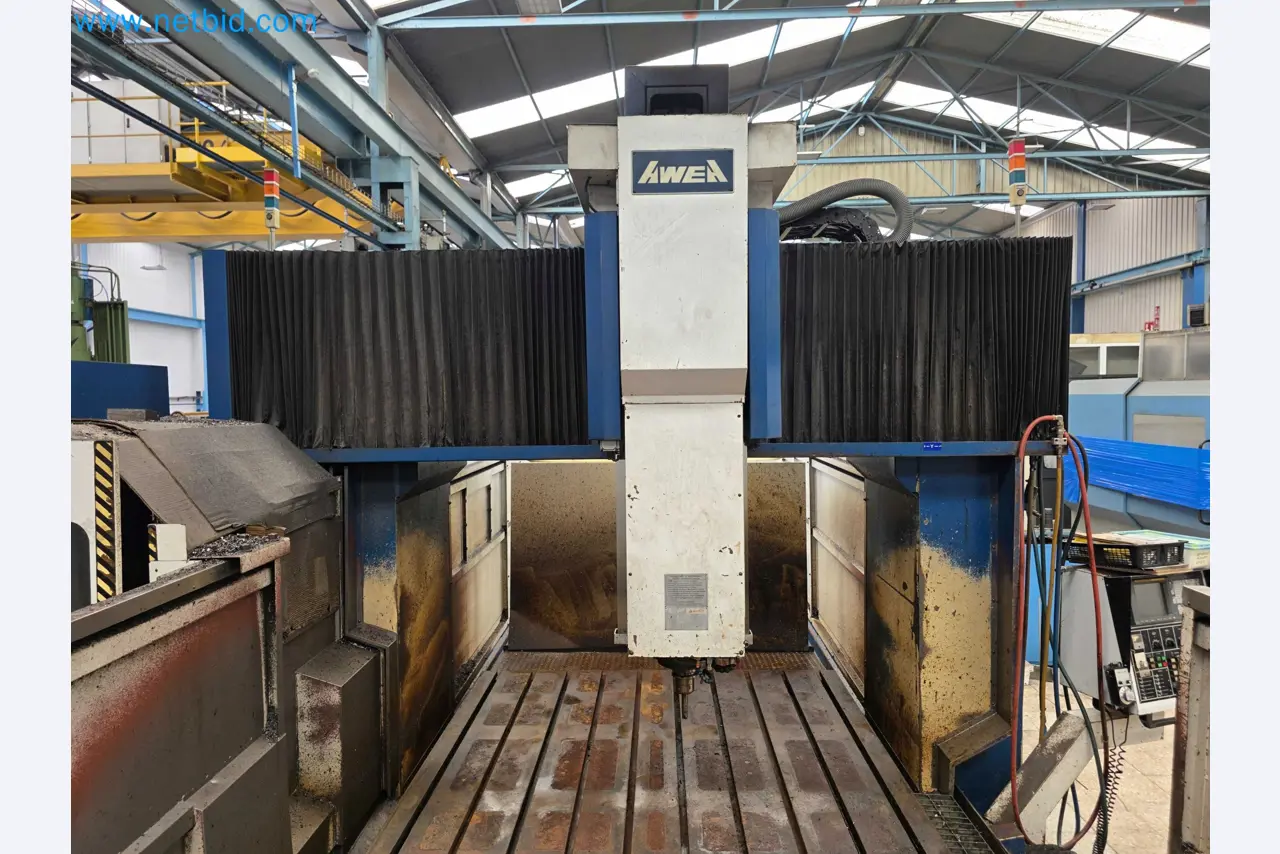

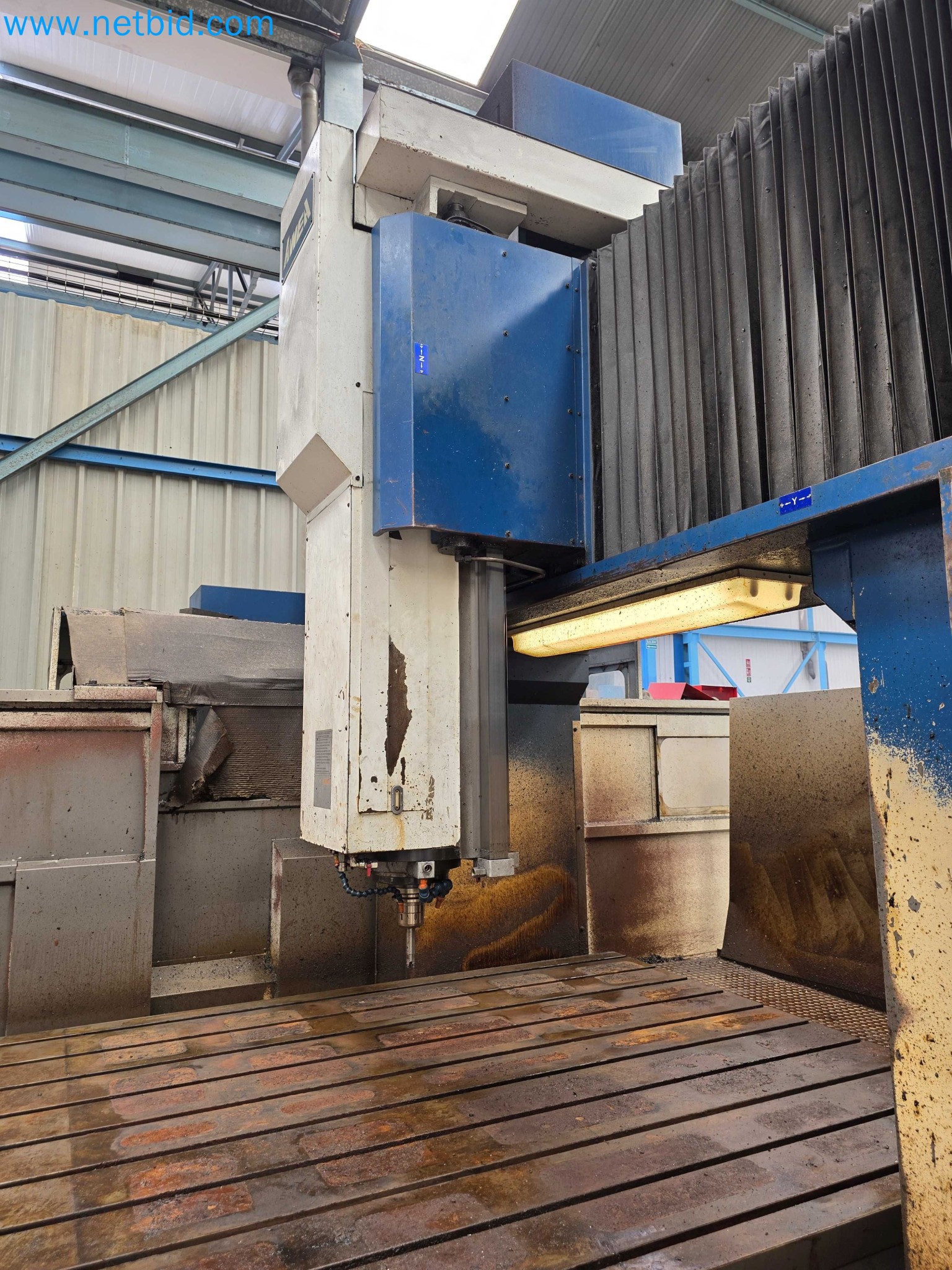

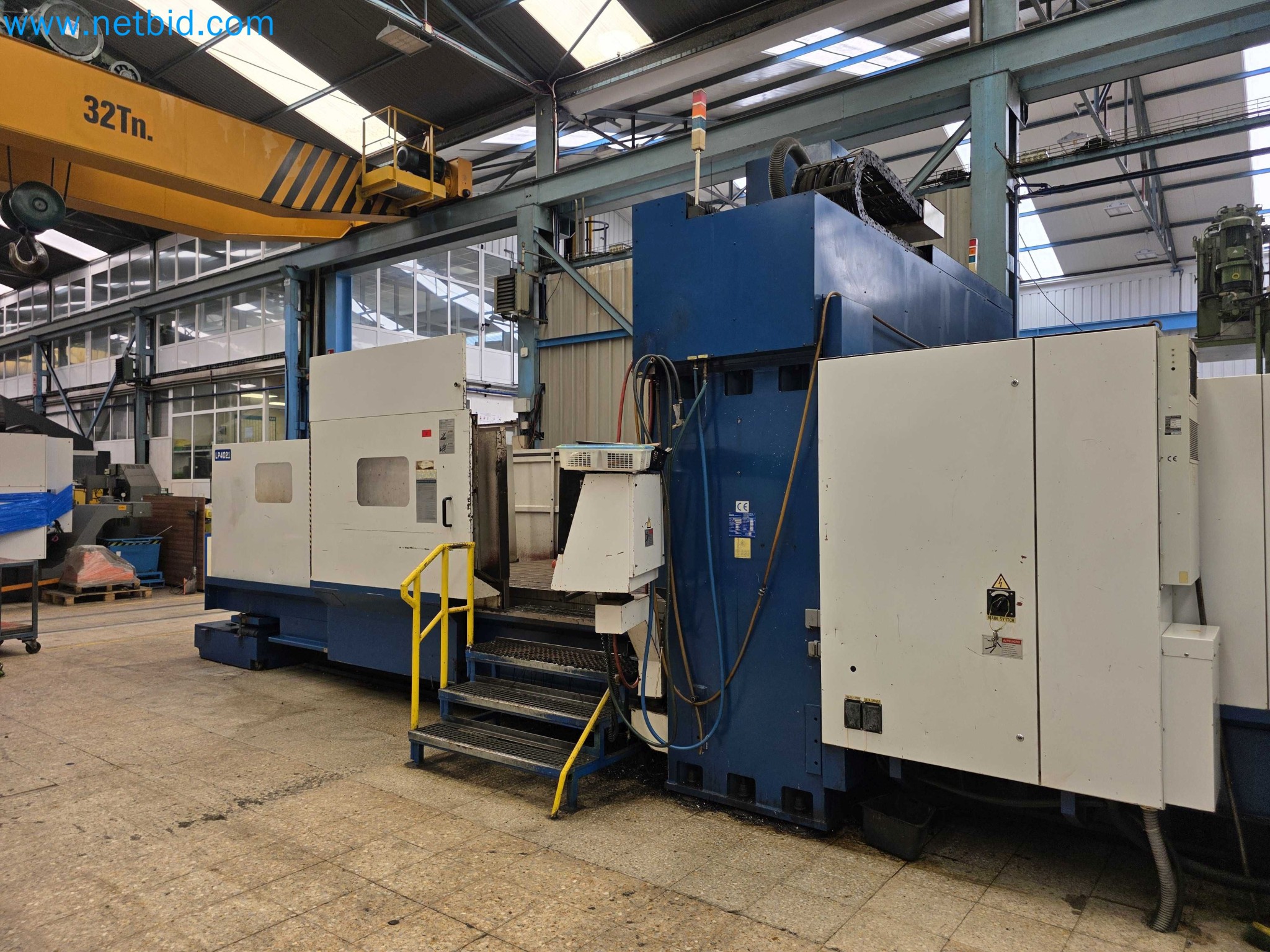

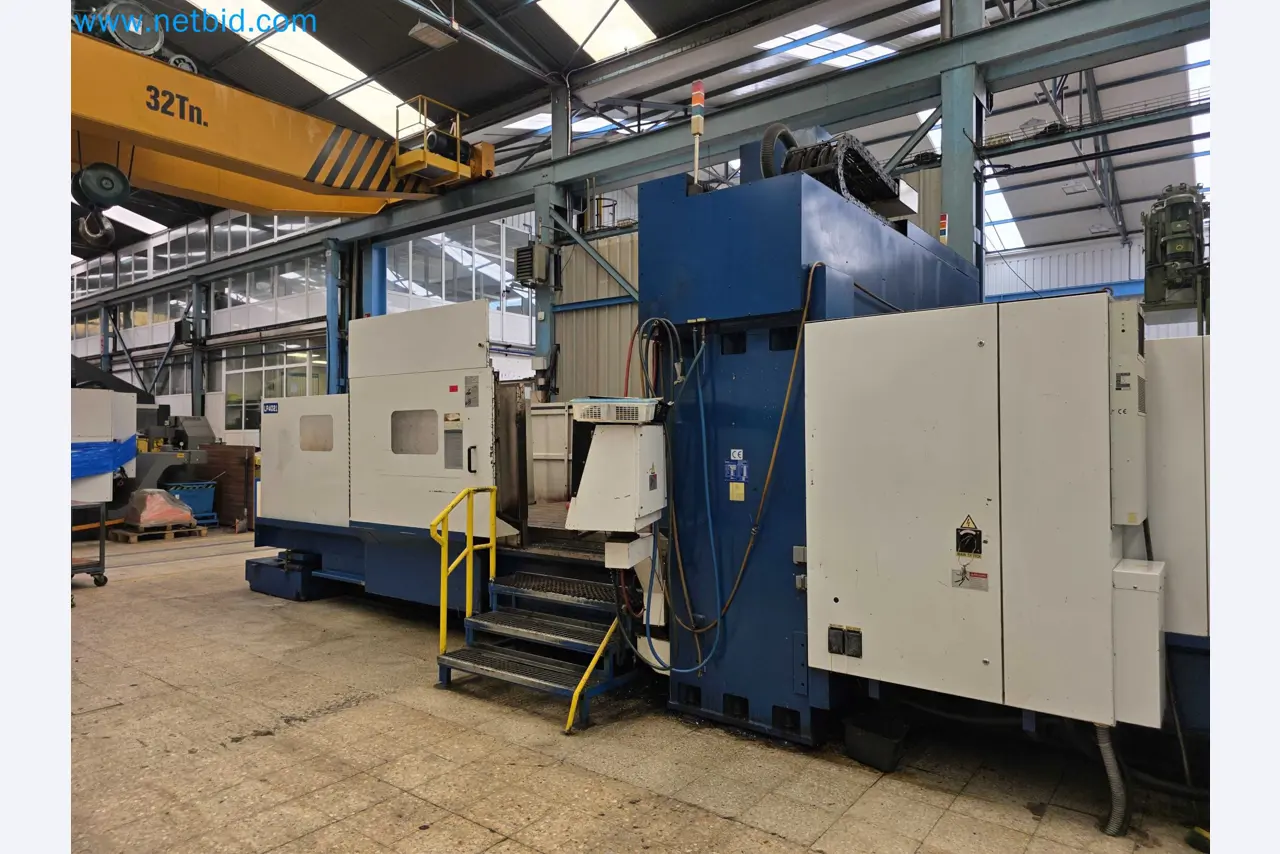

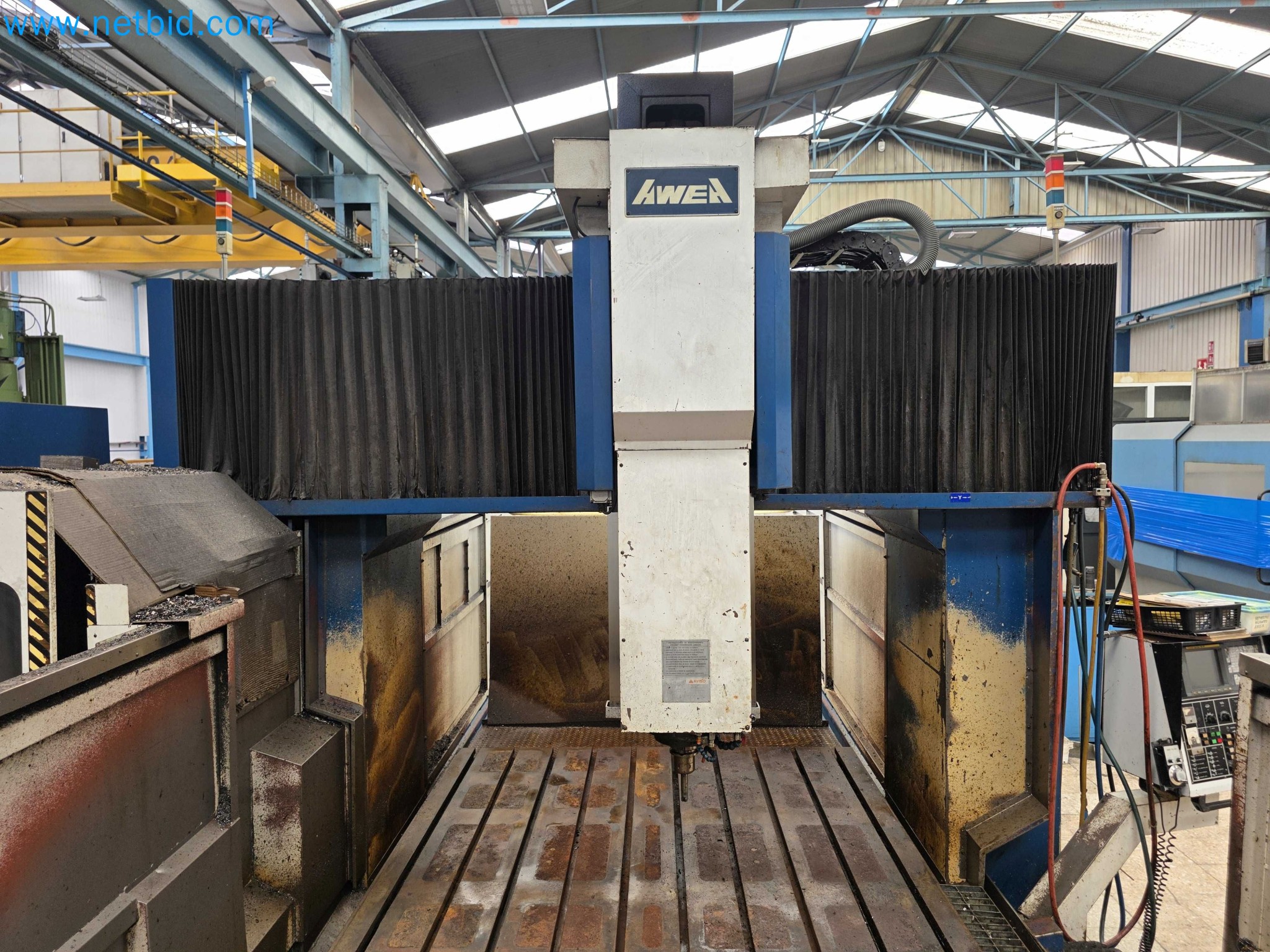

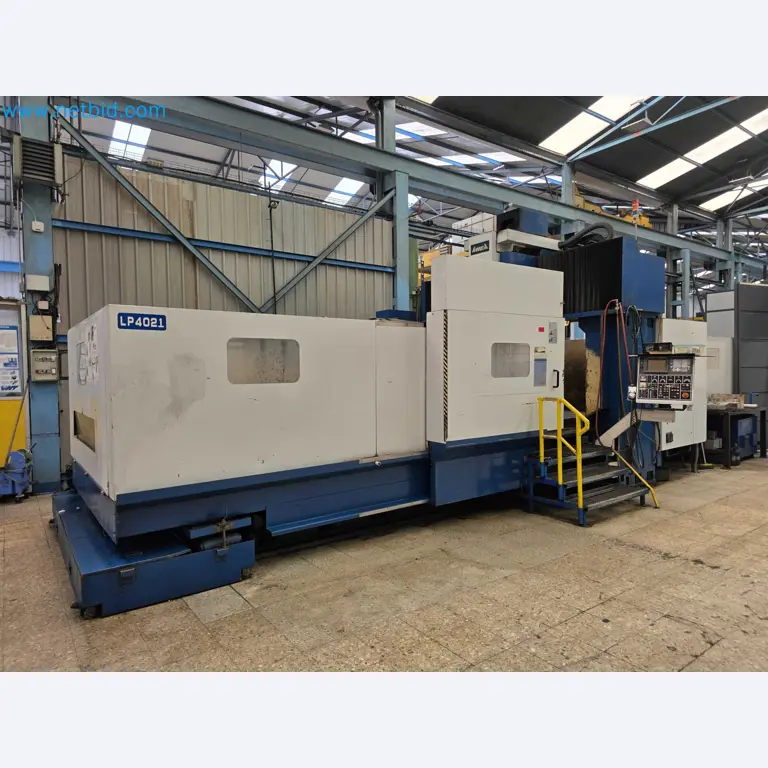

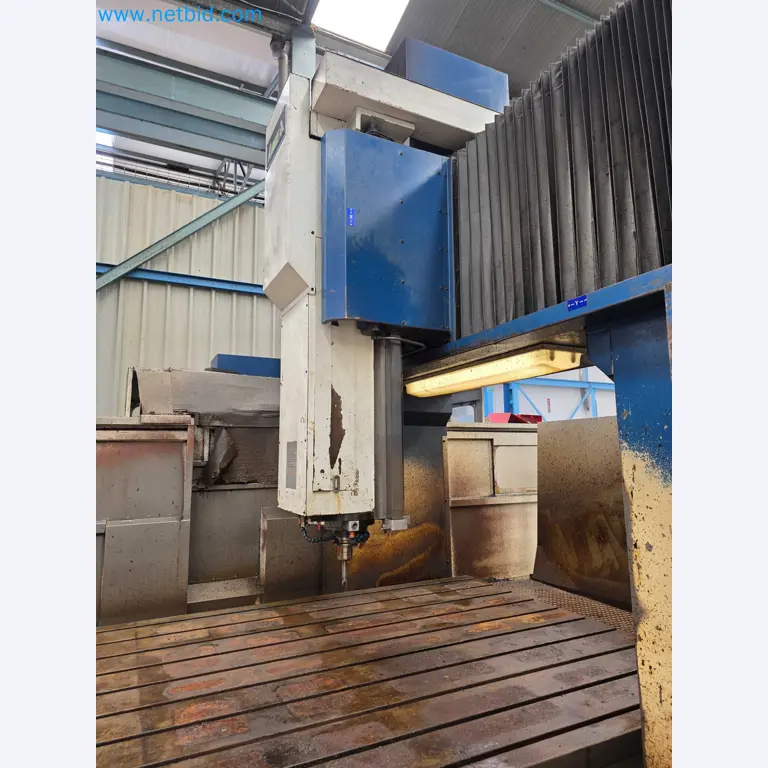

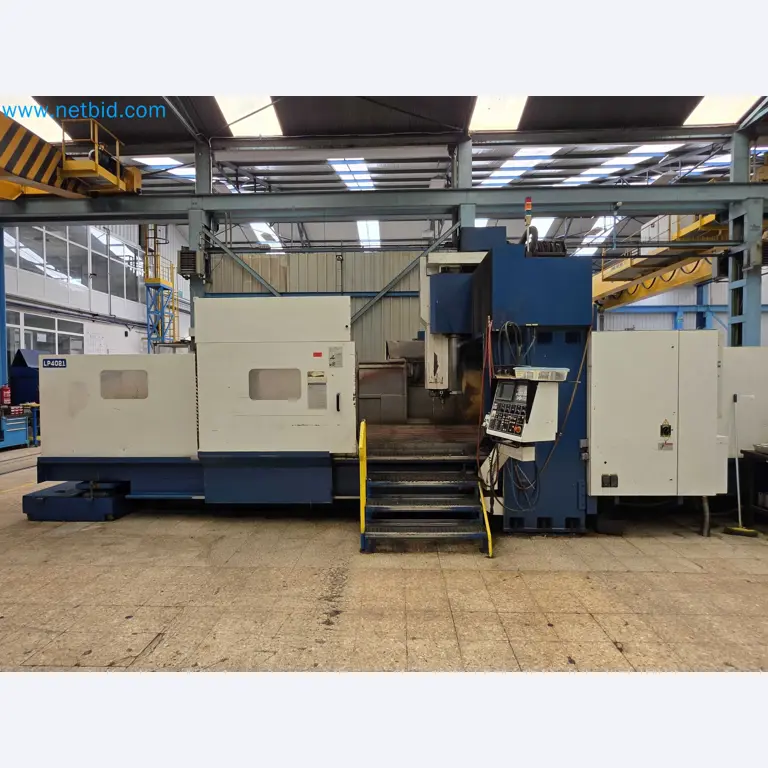

Vertical CNC Gantry Machining Center AWEA LP 4021AUCTION#A19590-35
Details
Product Type

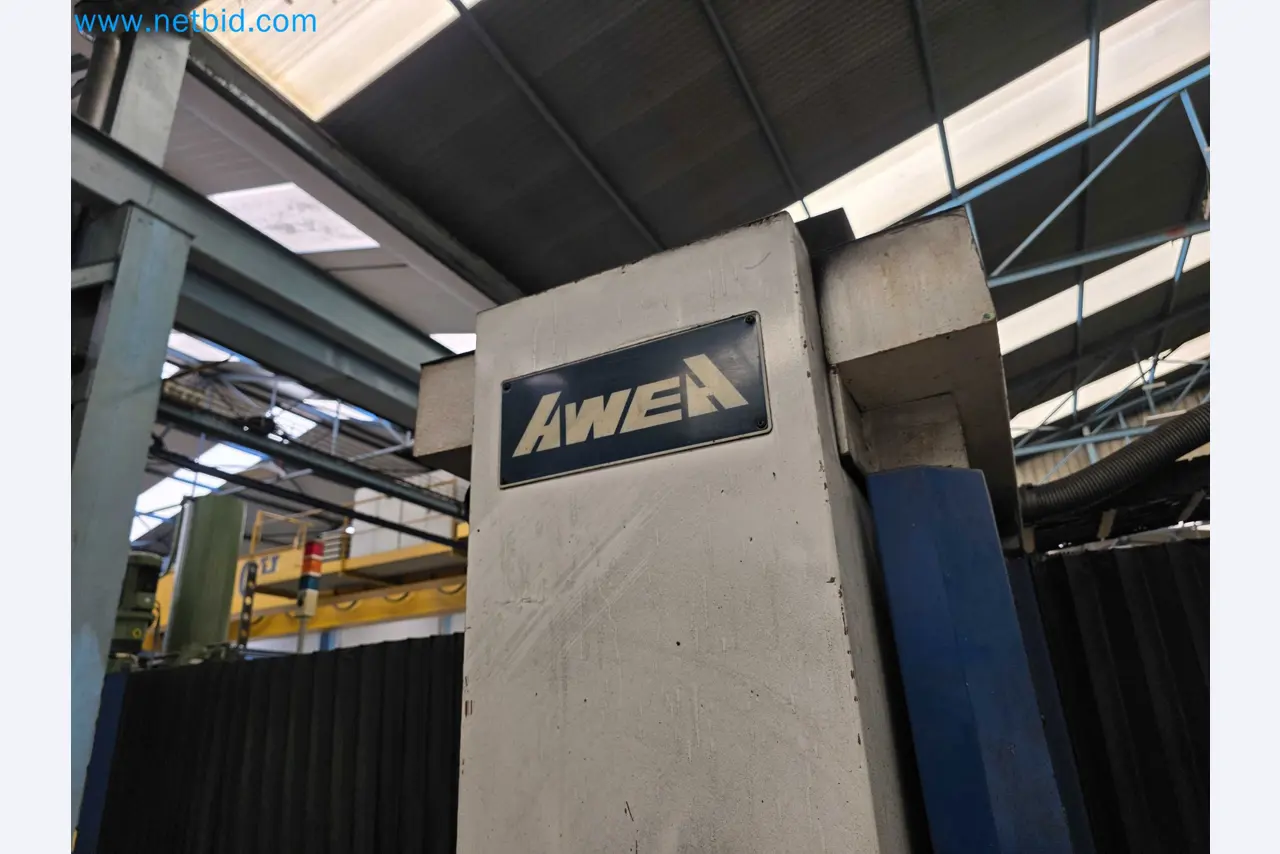

AWEA
Type

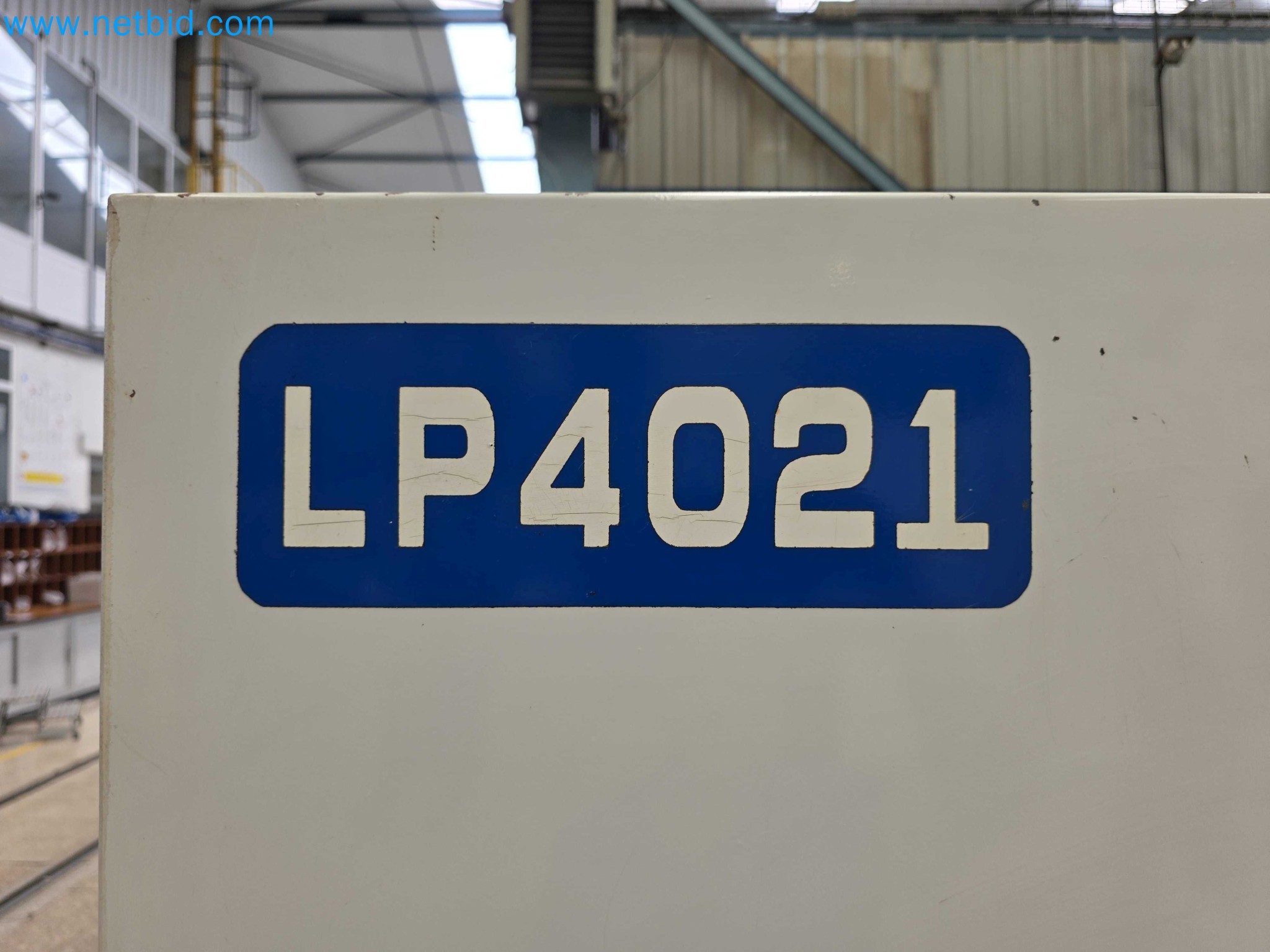

LP 4021
Construction Year
2000

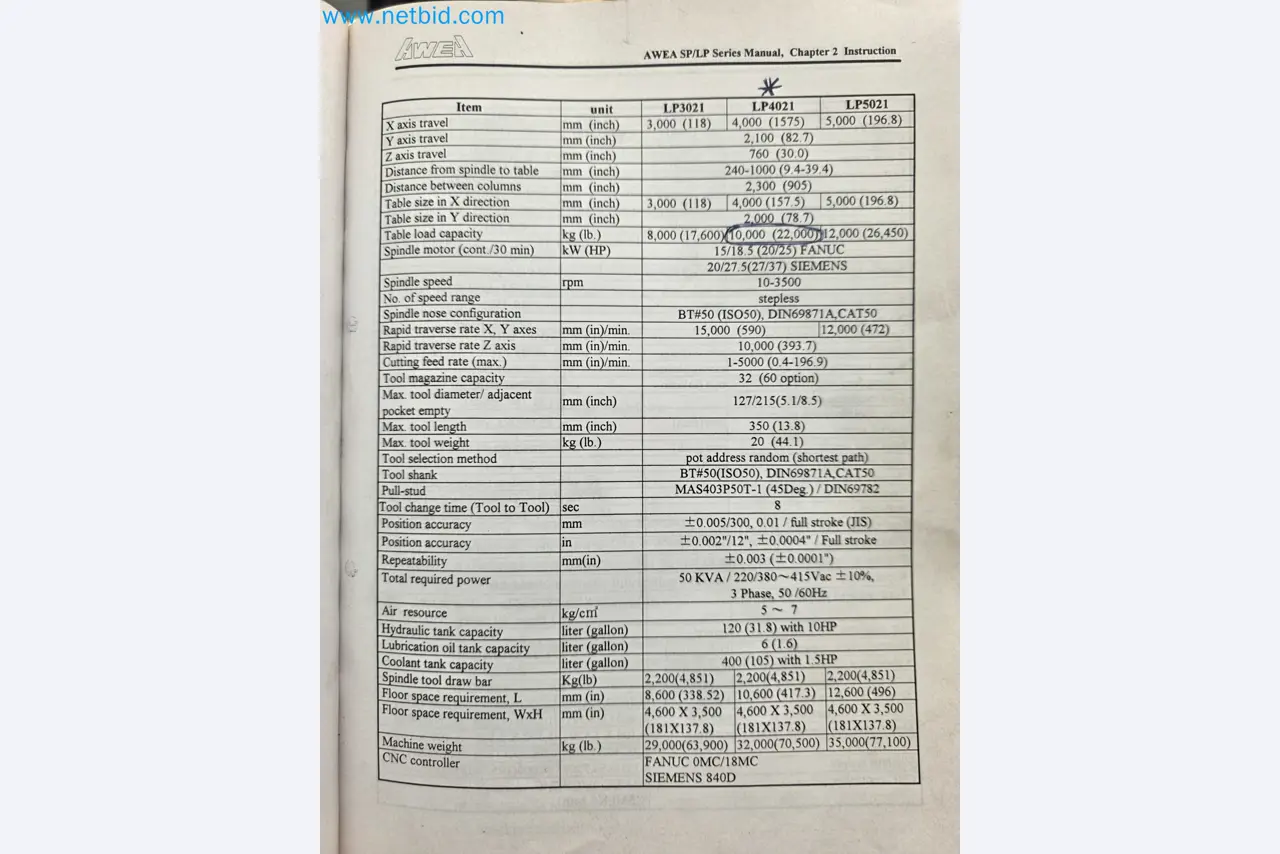

Description

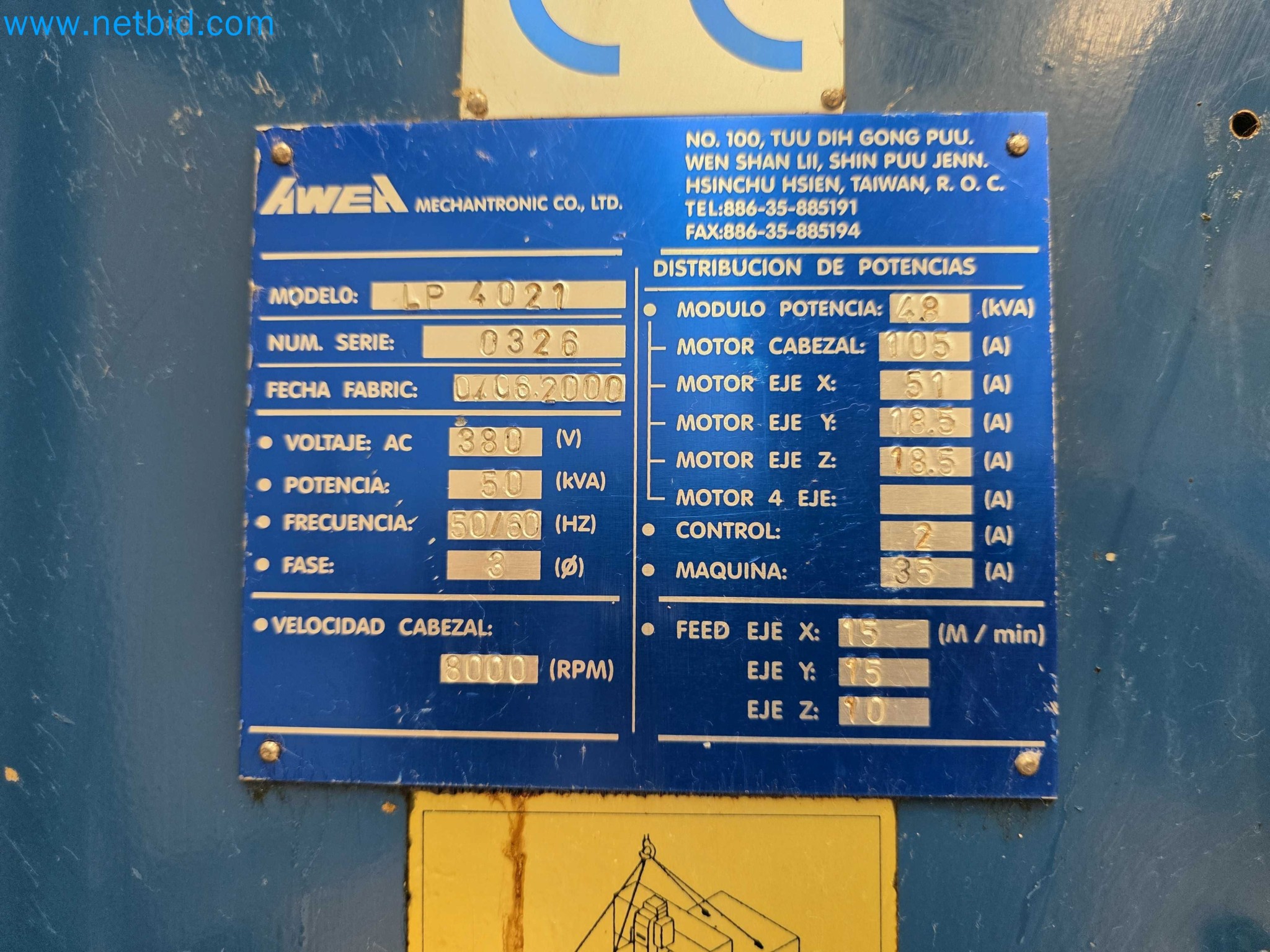

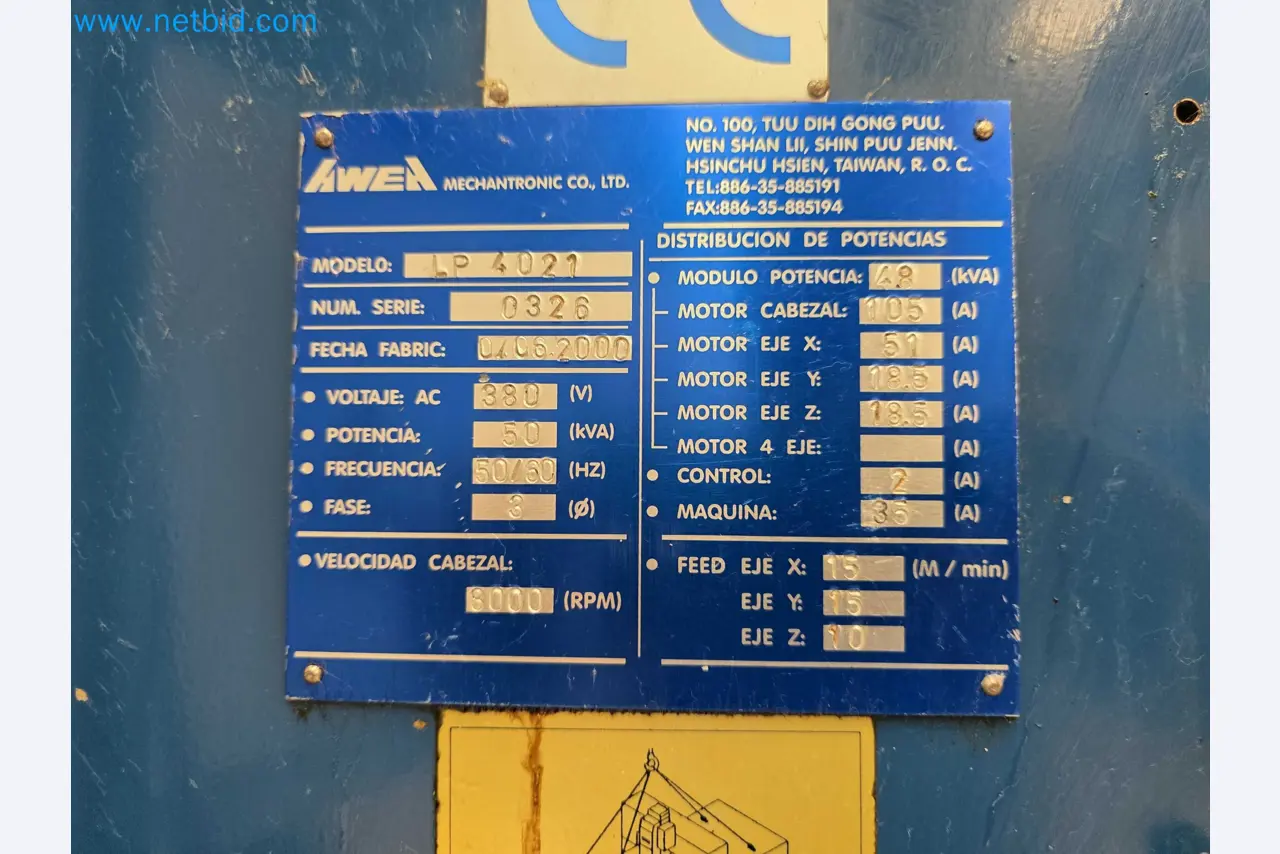

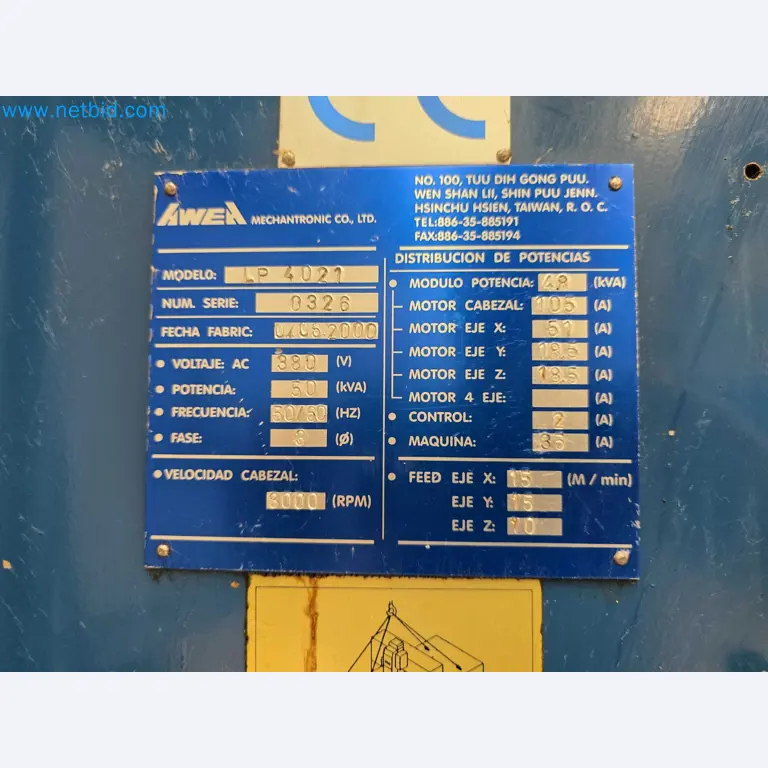

SN: 0326
3-axis

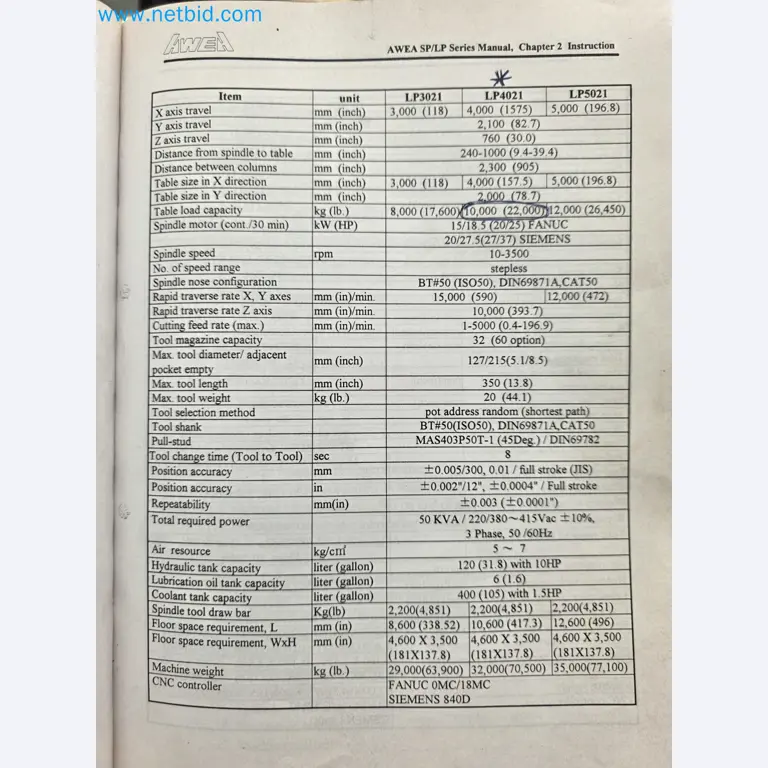

Travels:
· X-axis: 4000 mm
· Y-axis: 2100 mm
· Z-axis: 760 mm

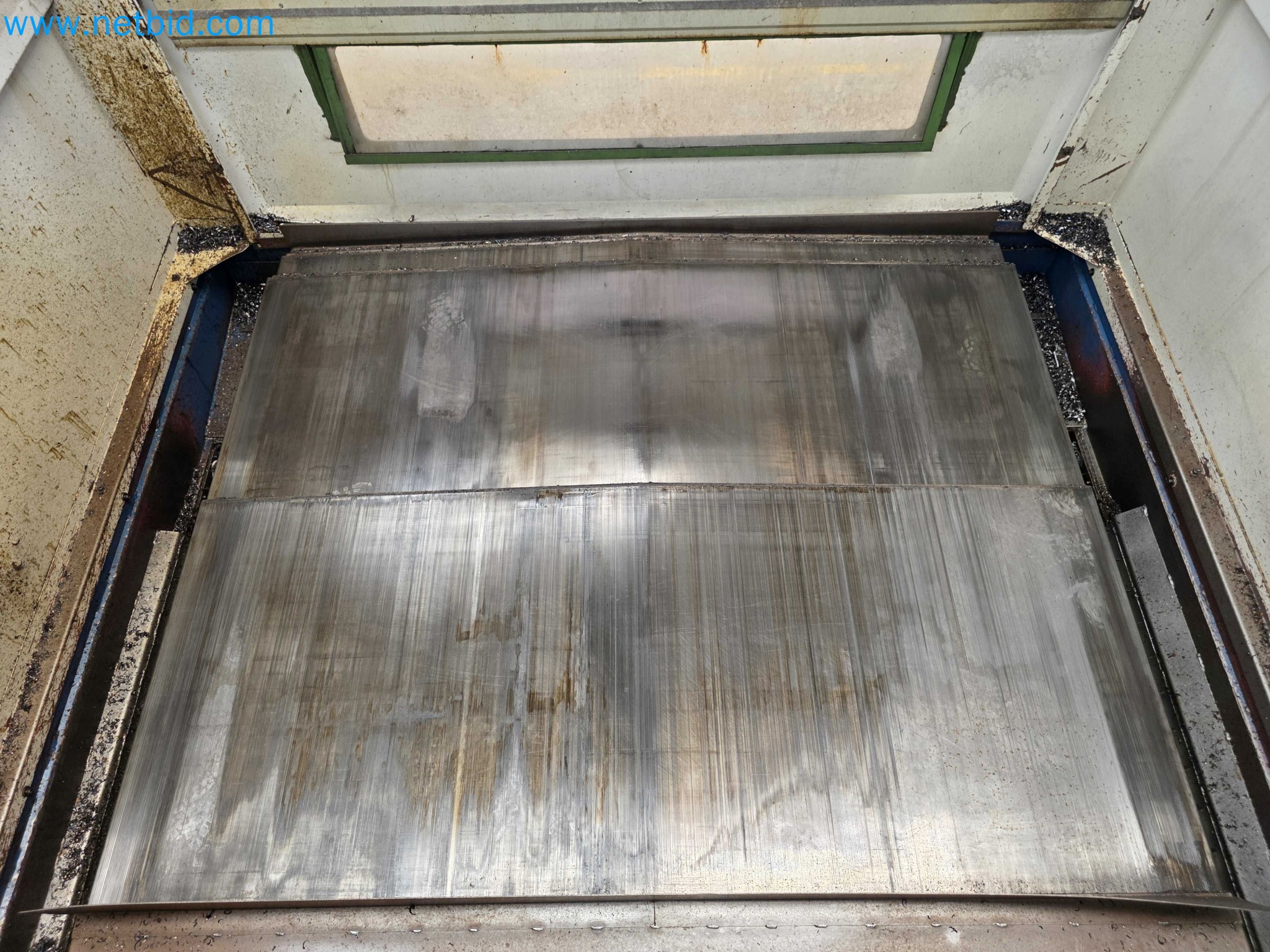

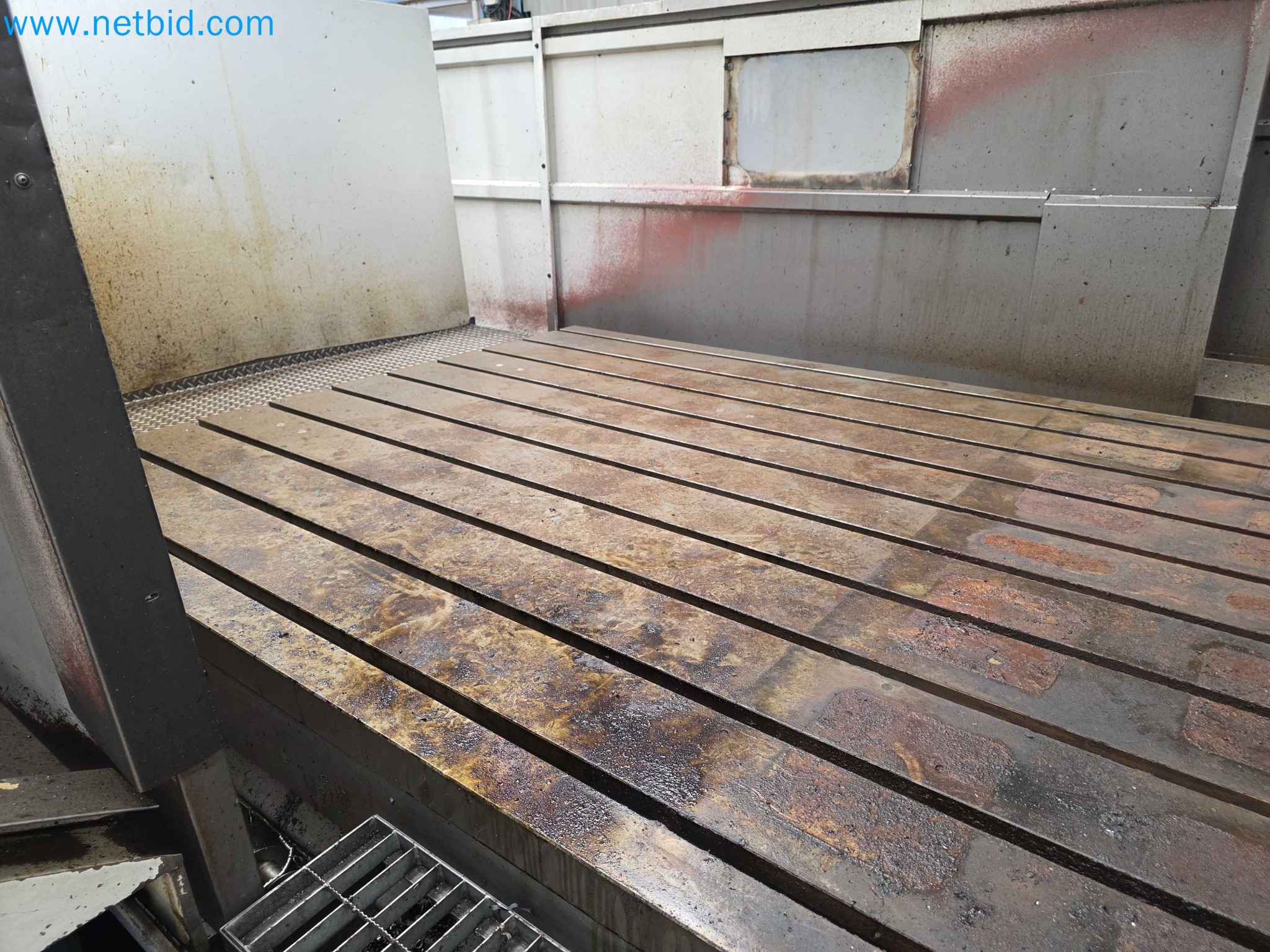

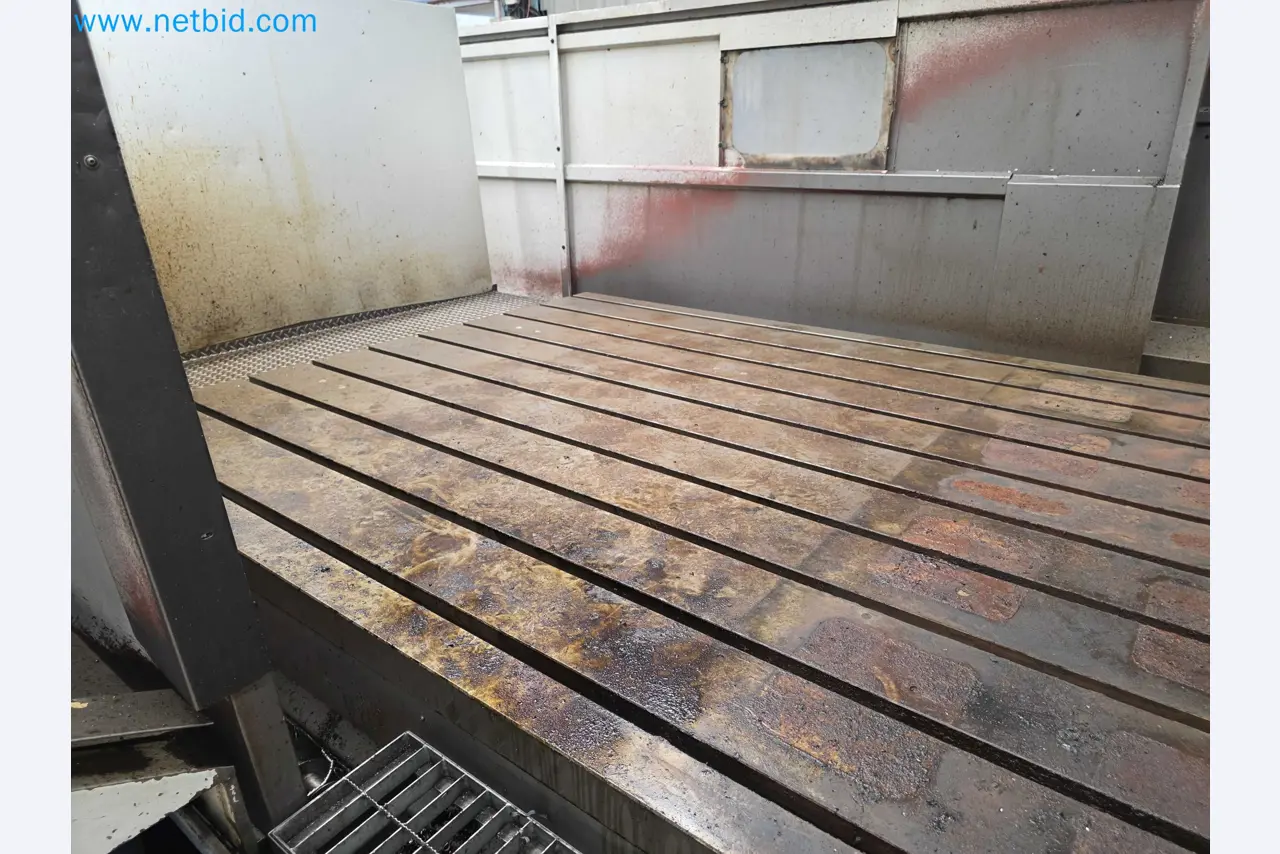

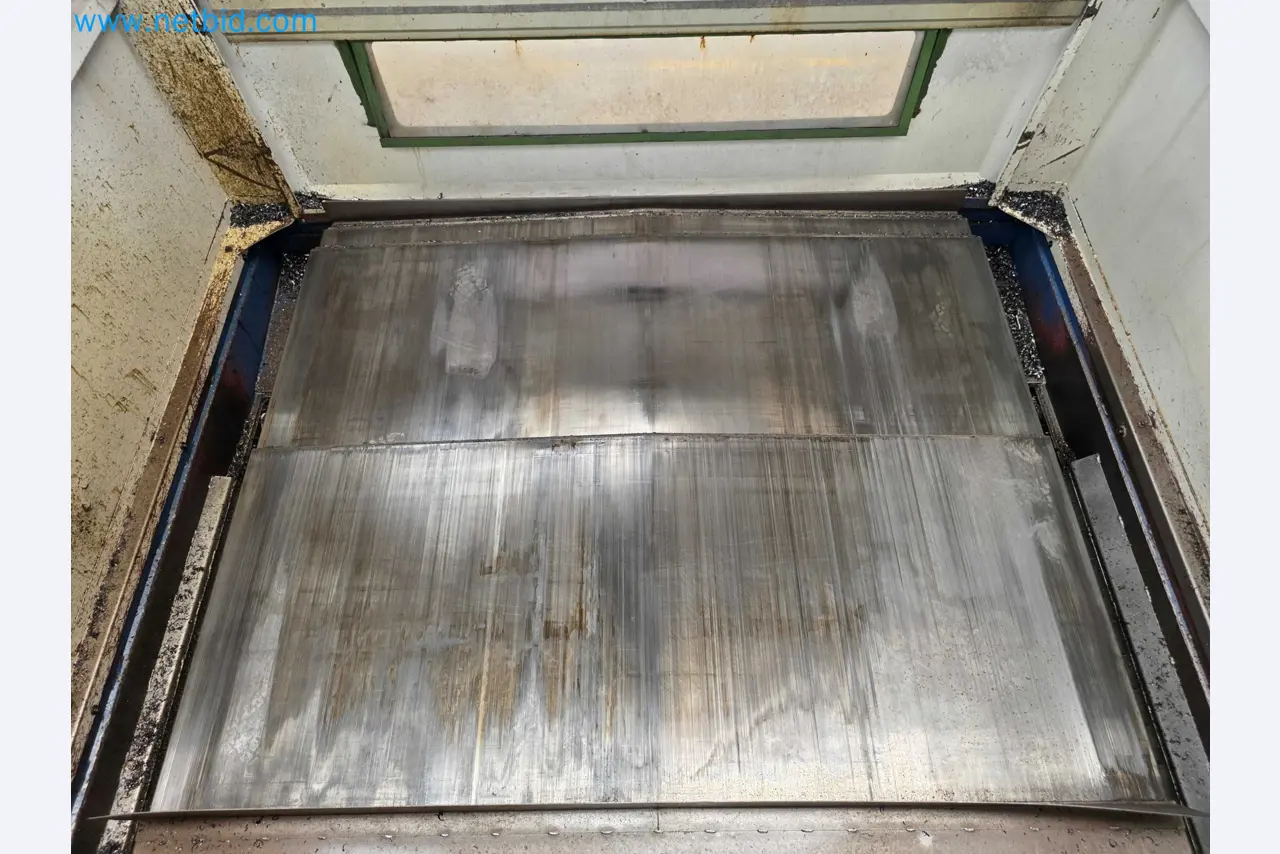

Table dimensions: 4000 x 2000 mm

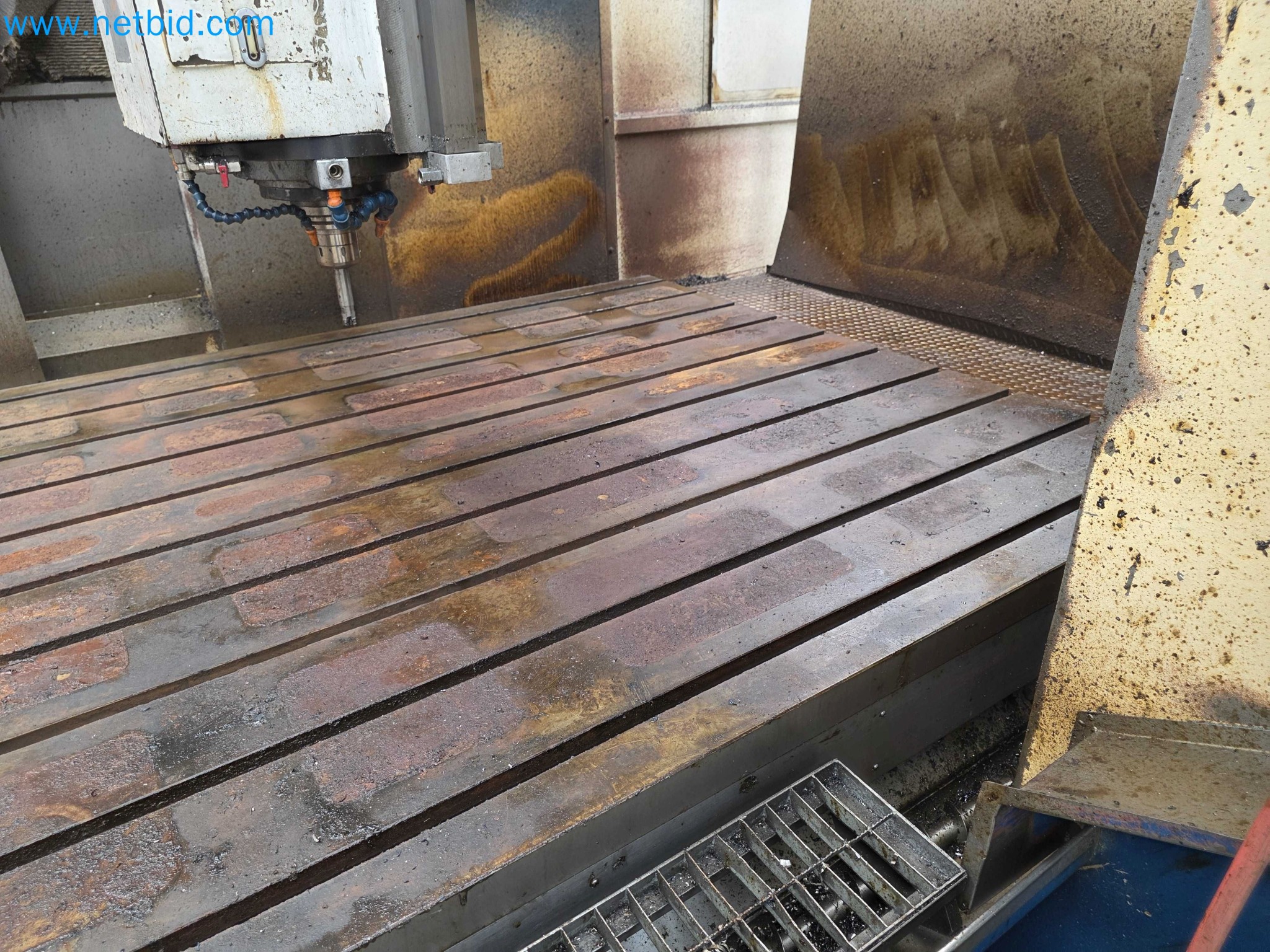

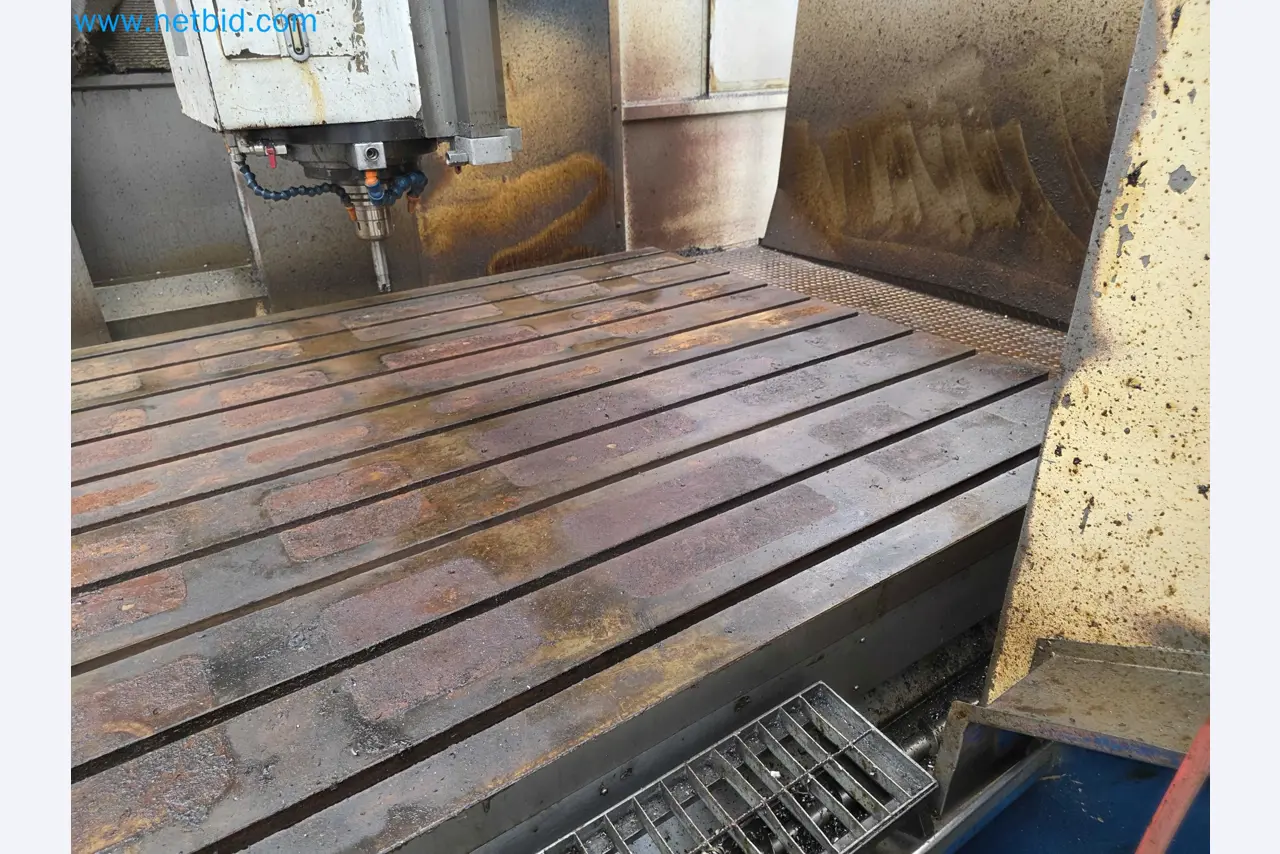

T-slot table
Distance between columns: 2300 mm
Maximum table load: 10,000 kg

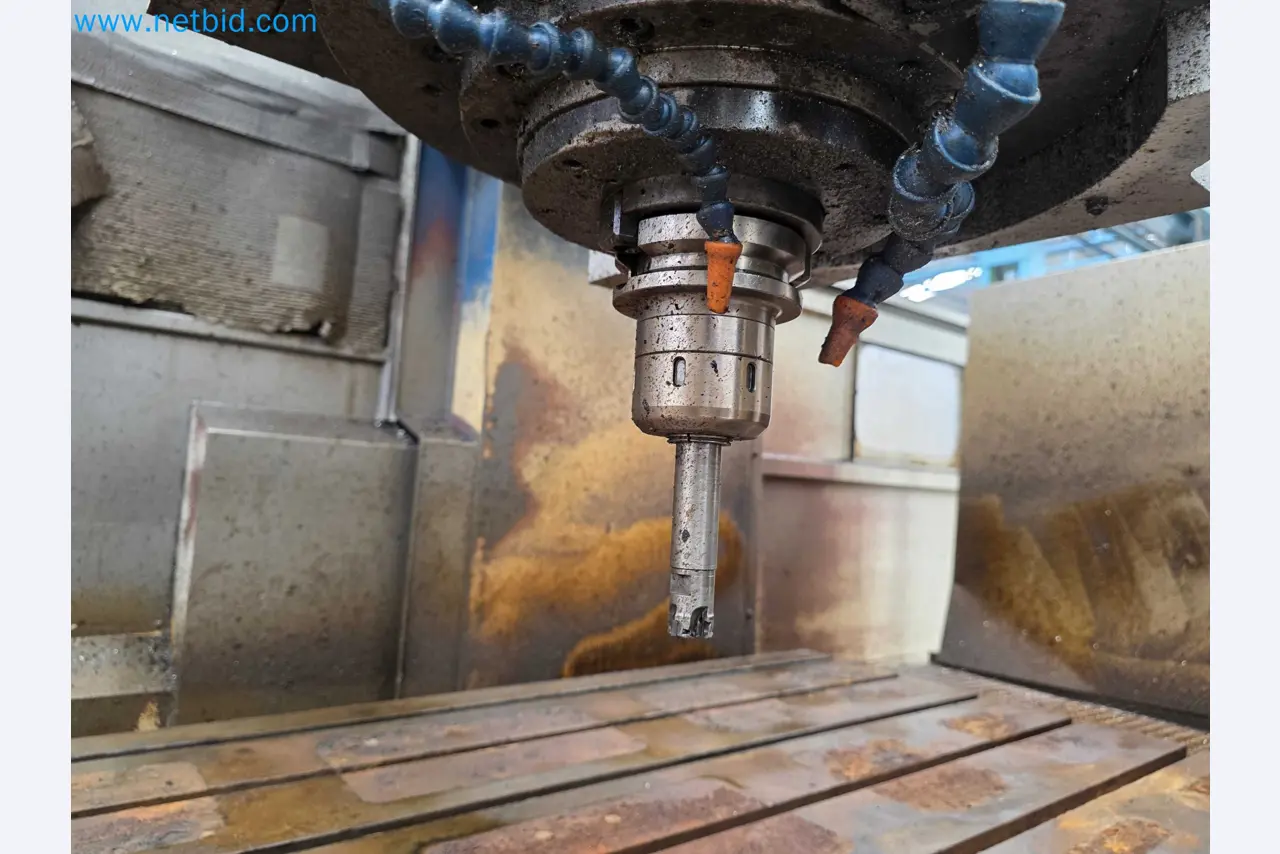

Spindle speed: 10 - 3,500 rpm
Spindle power: 18.5 kW
Feed rates:
· X/Y axes: 15 m/min
· Z-axis: 10 m/min
Cutting feed rate: 1-5000 mm/min

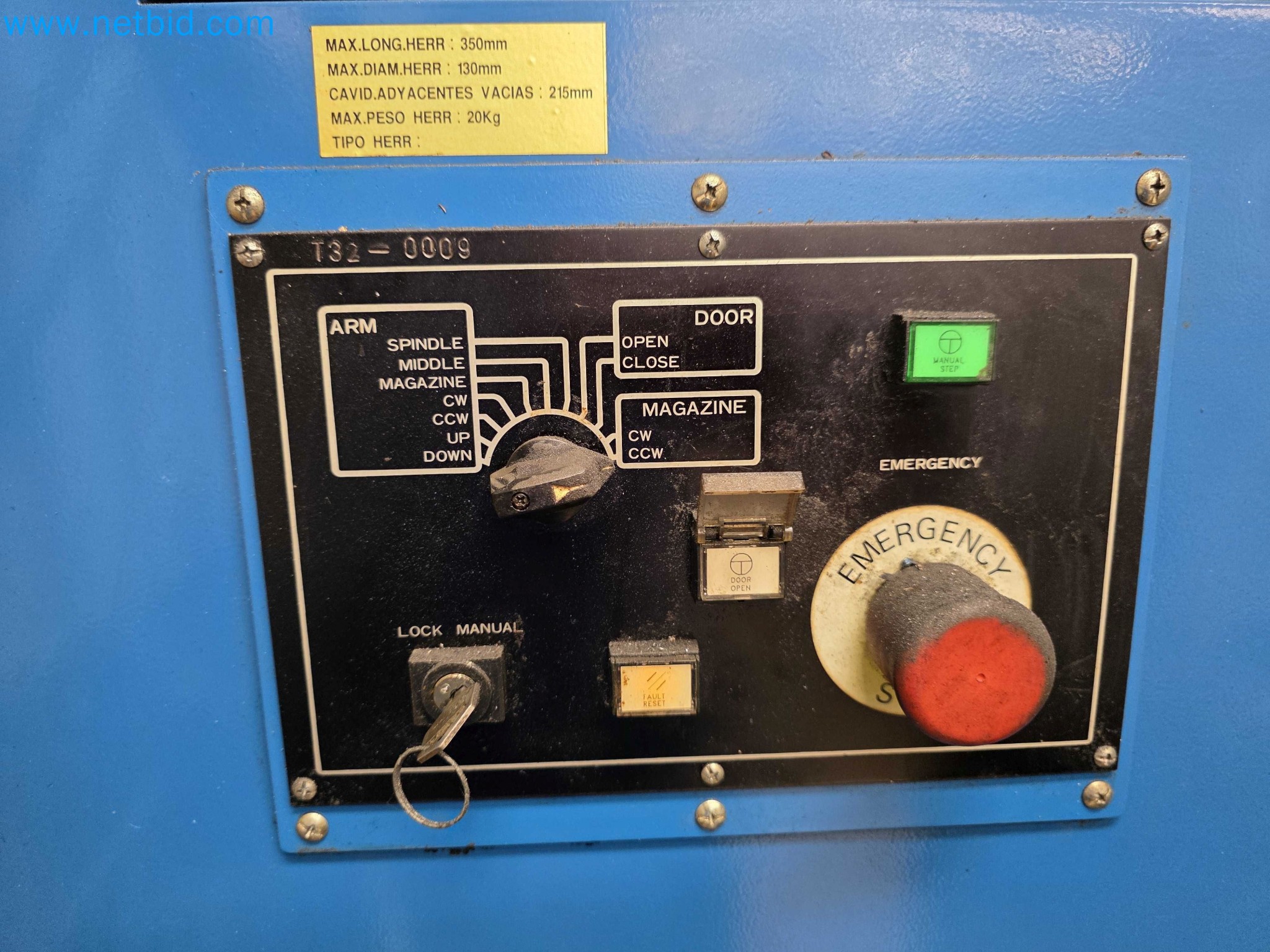

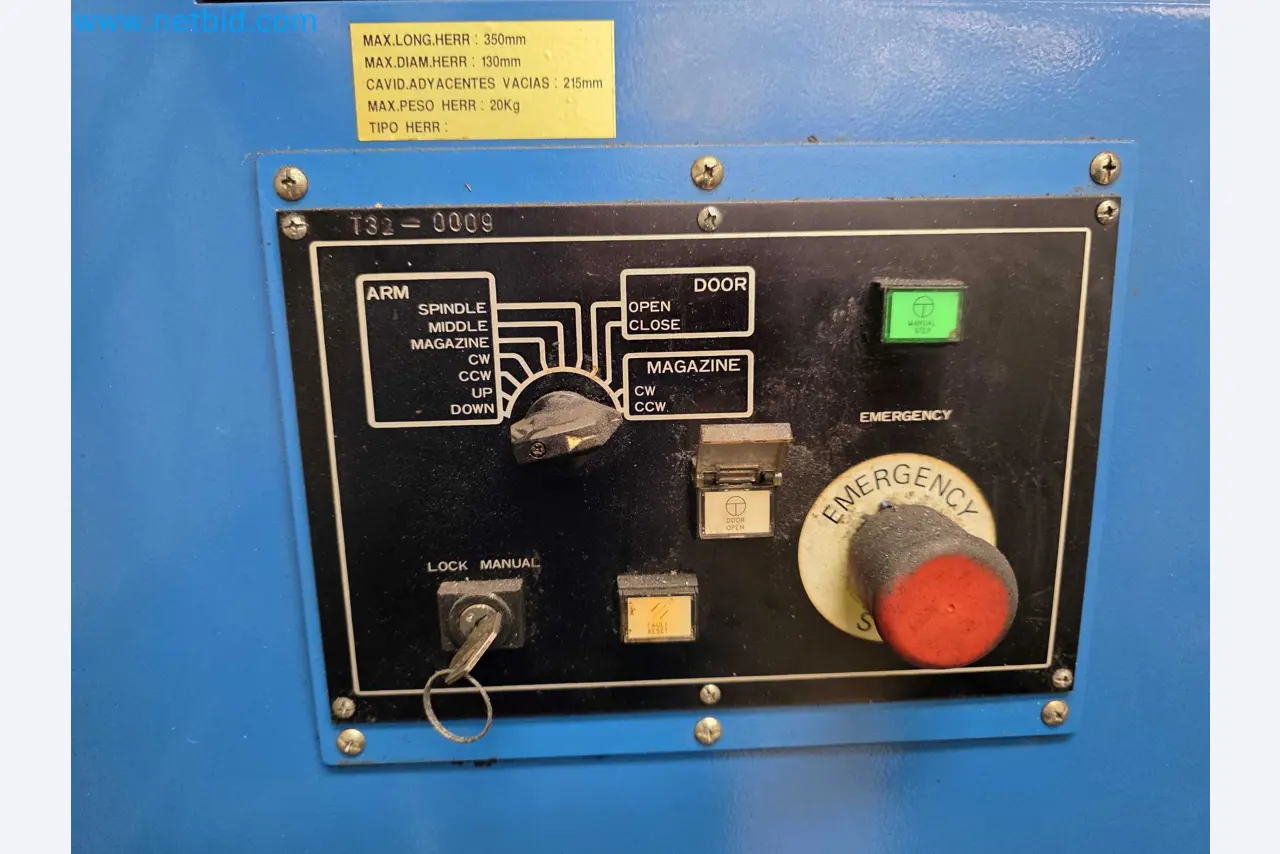

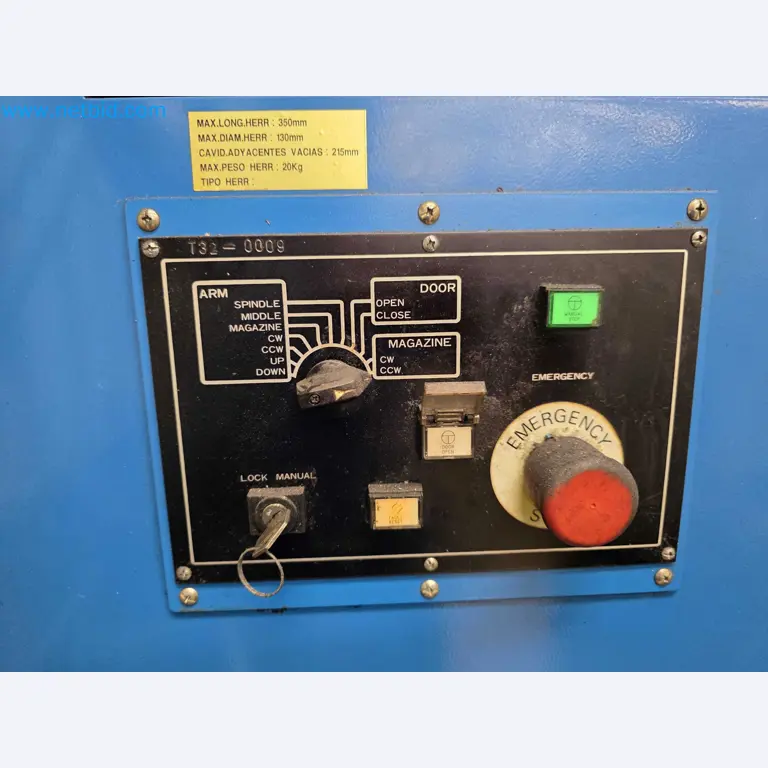

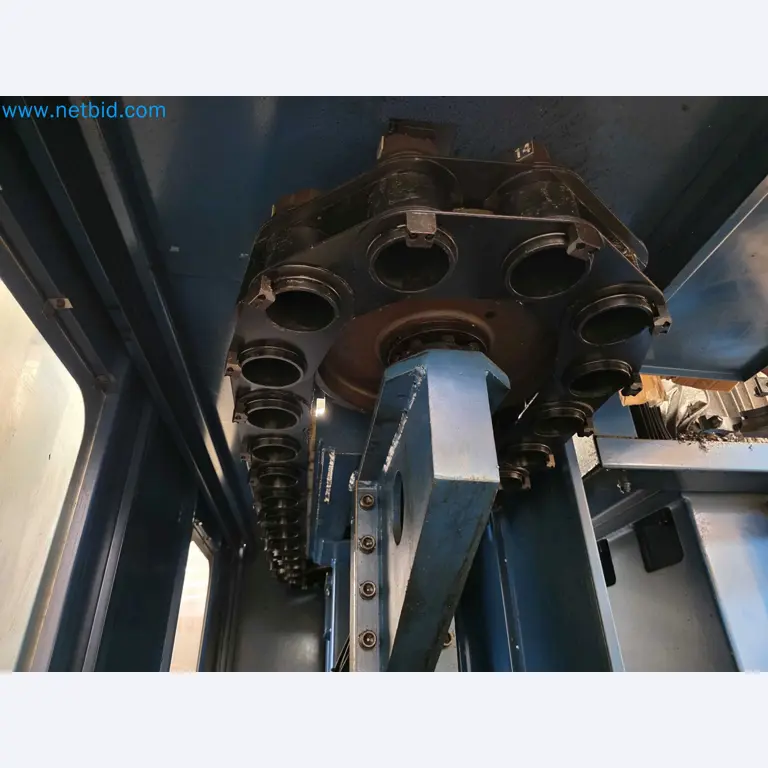

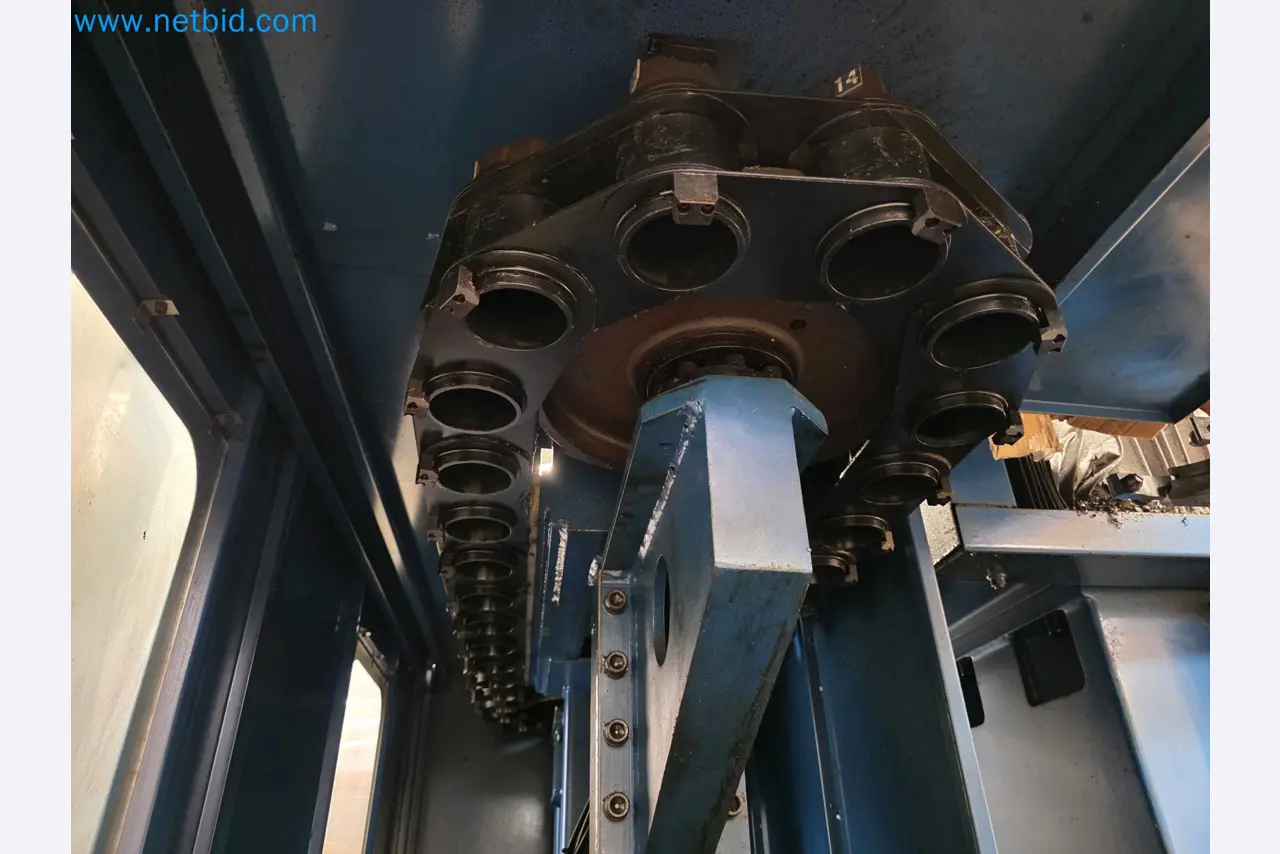

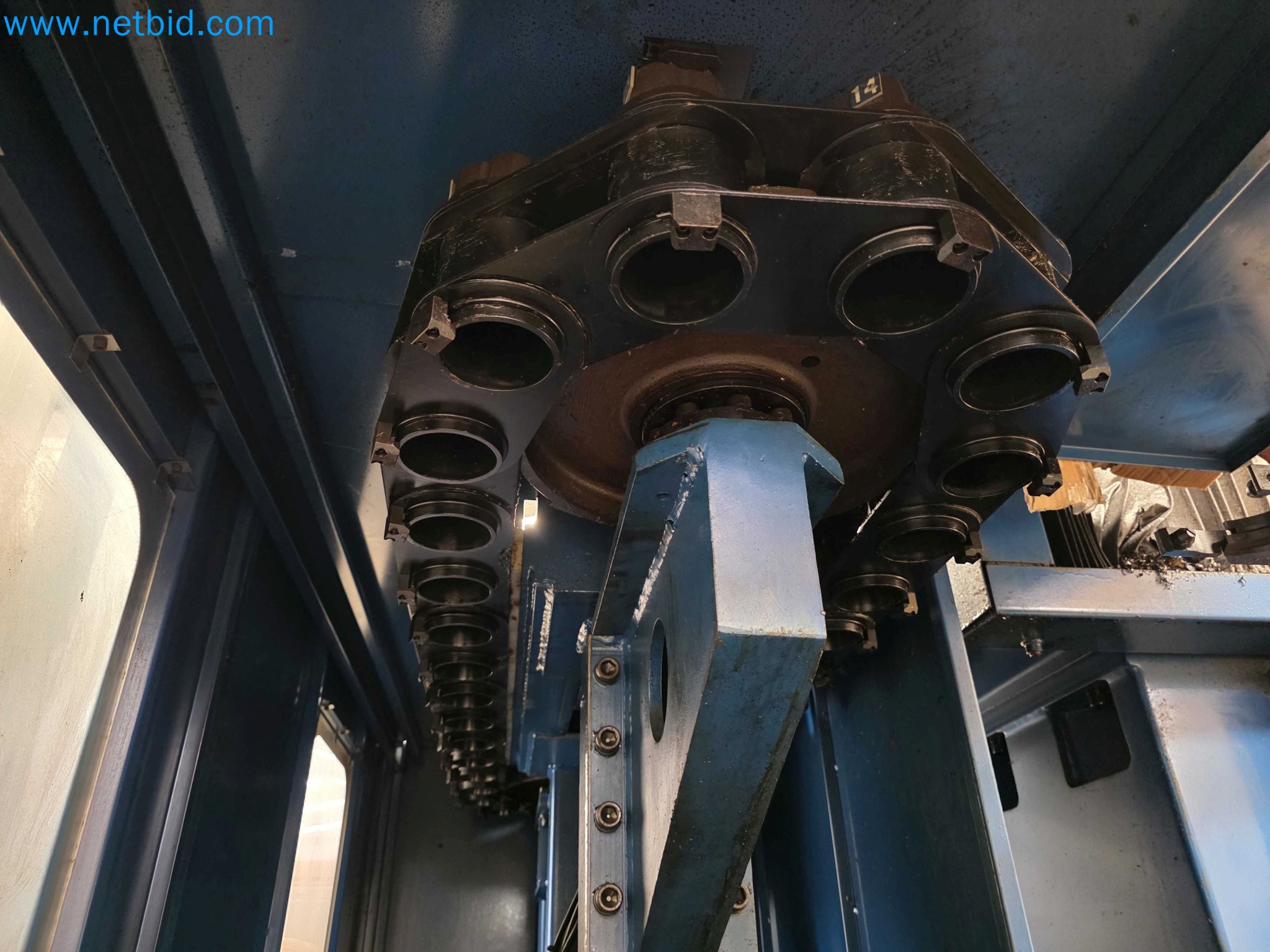

32-position tool magazine

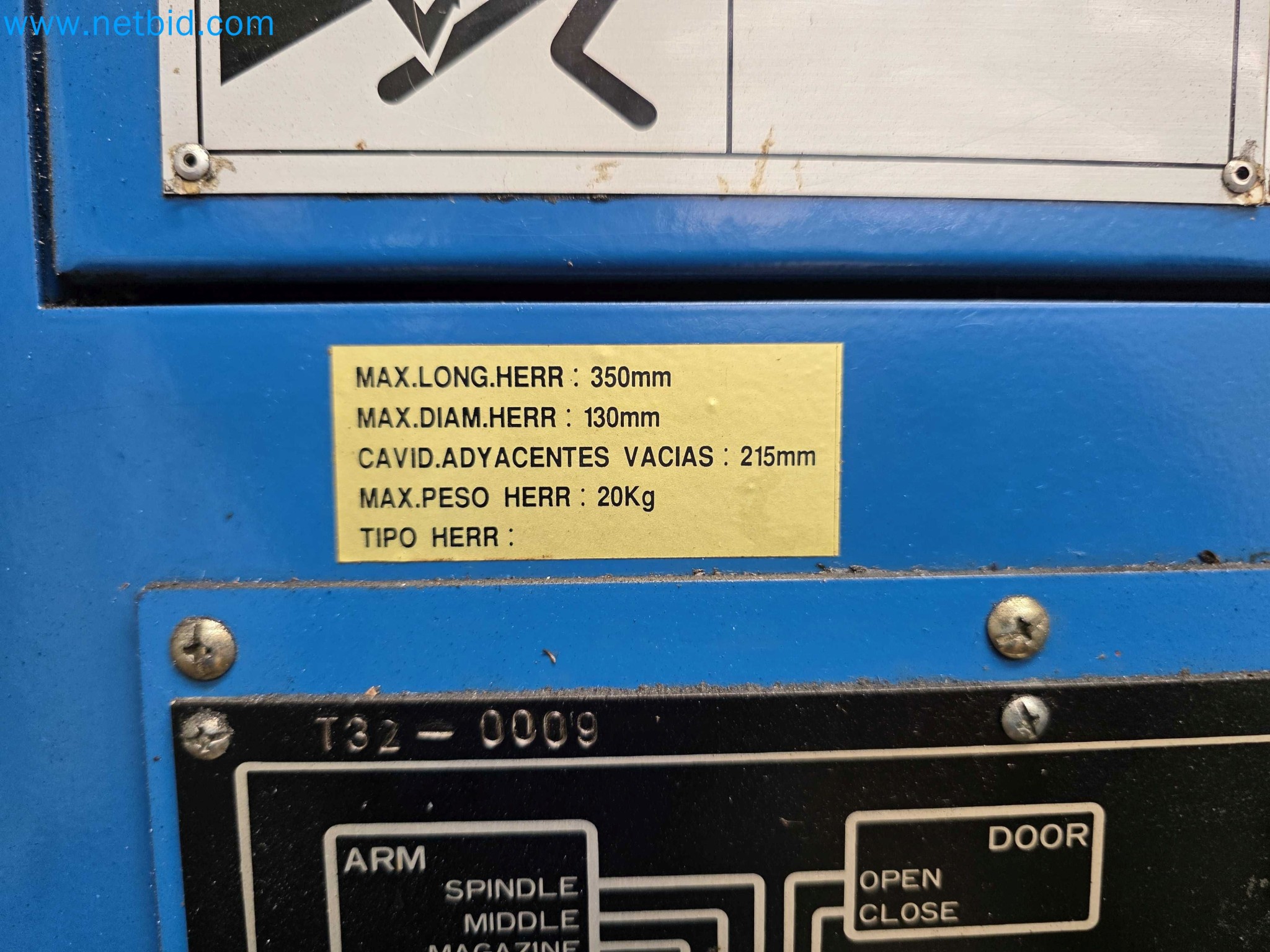

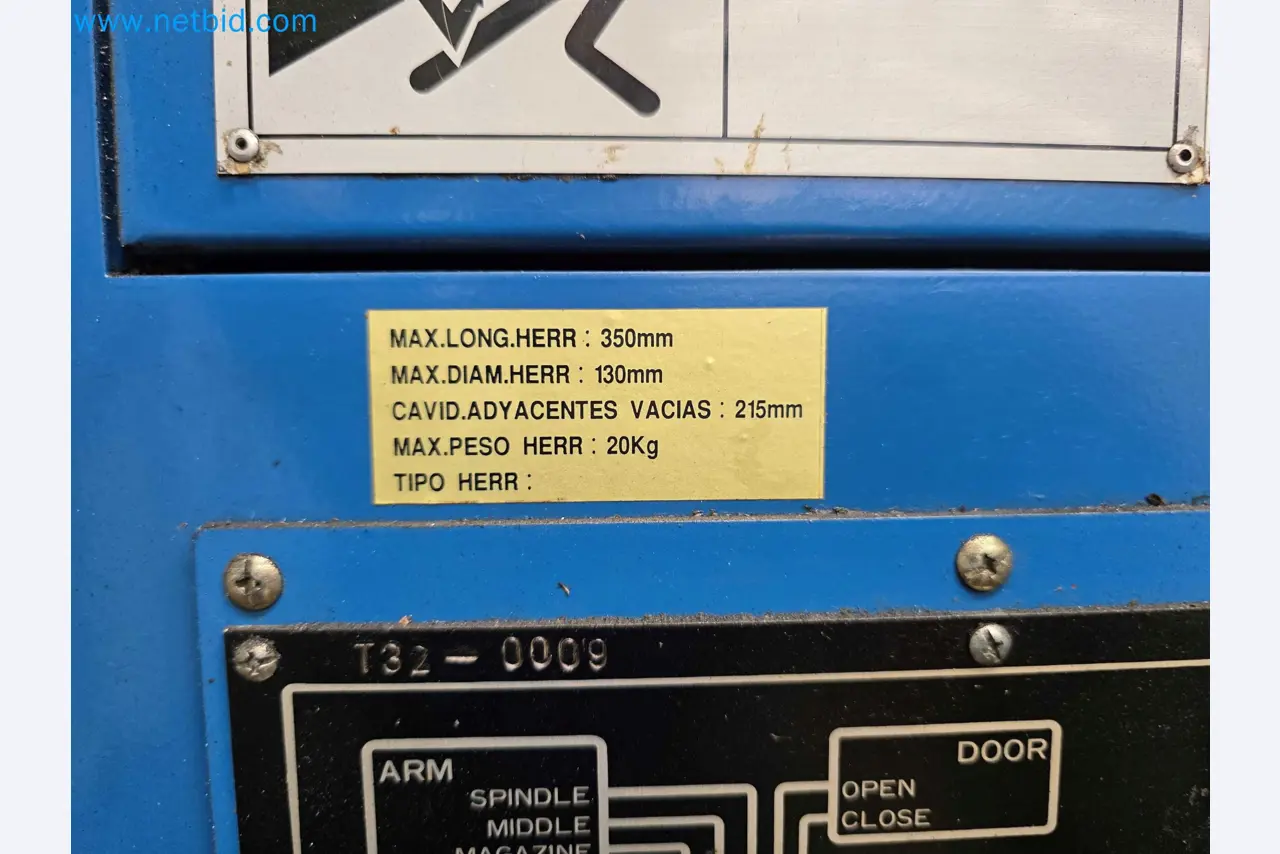

Maximum tool length: 350 mm
Maximum tool diameter: 130 mm
Maximum tool weight: 20 kg

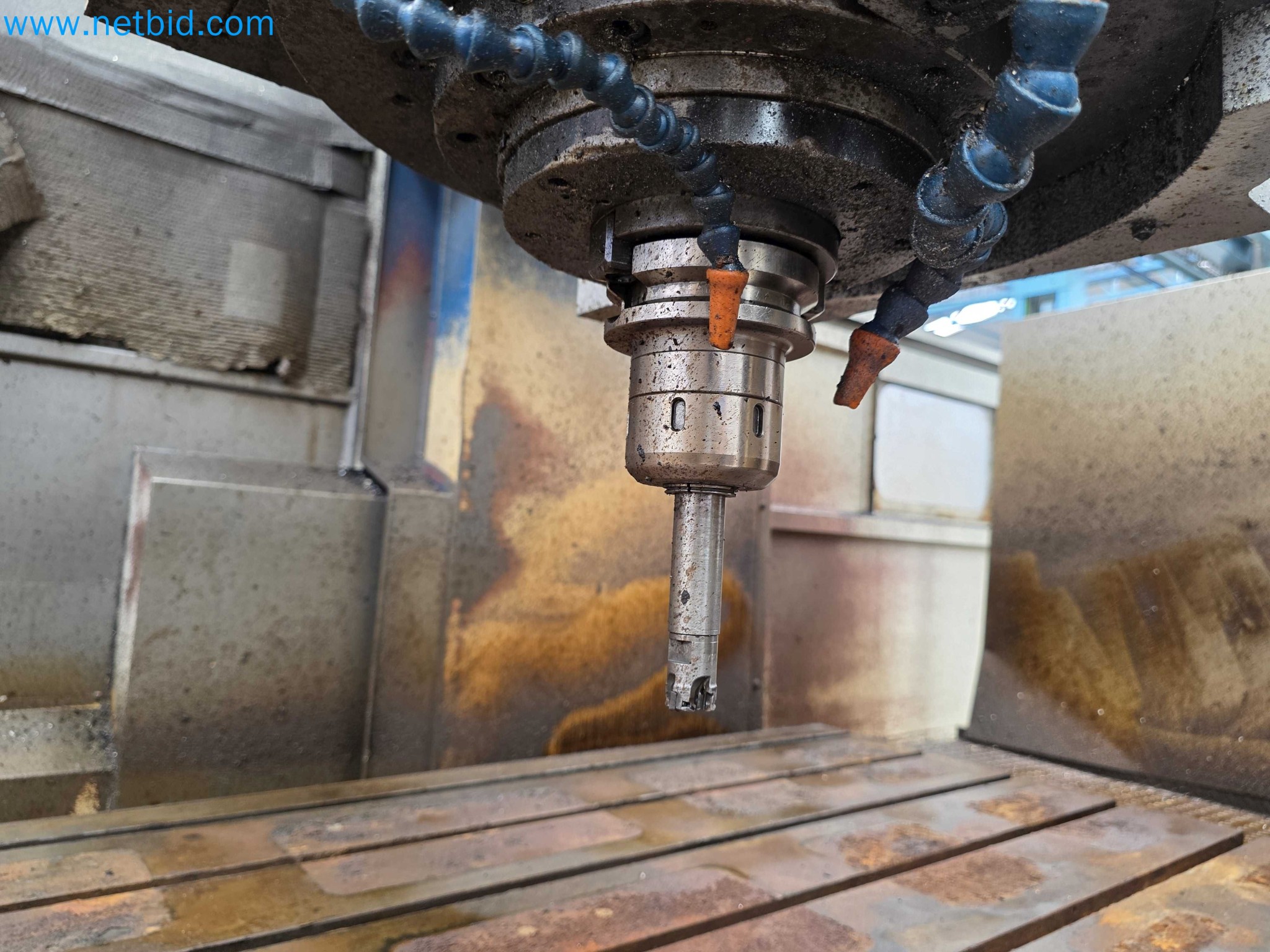

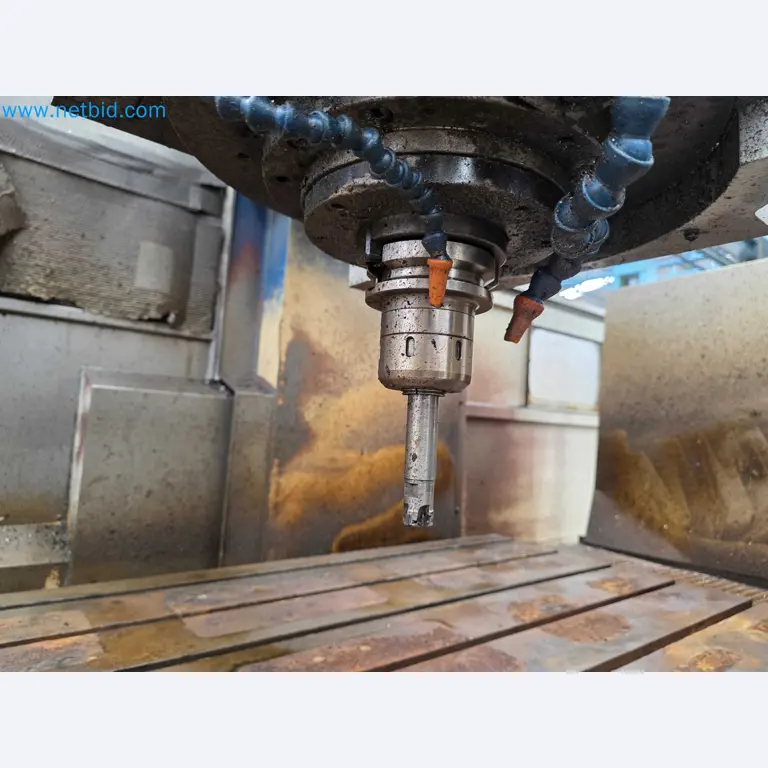

BT-50 tool holders

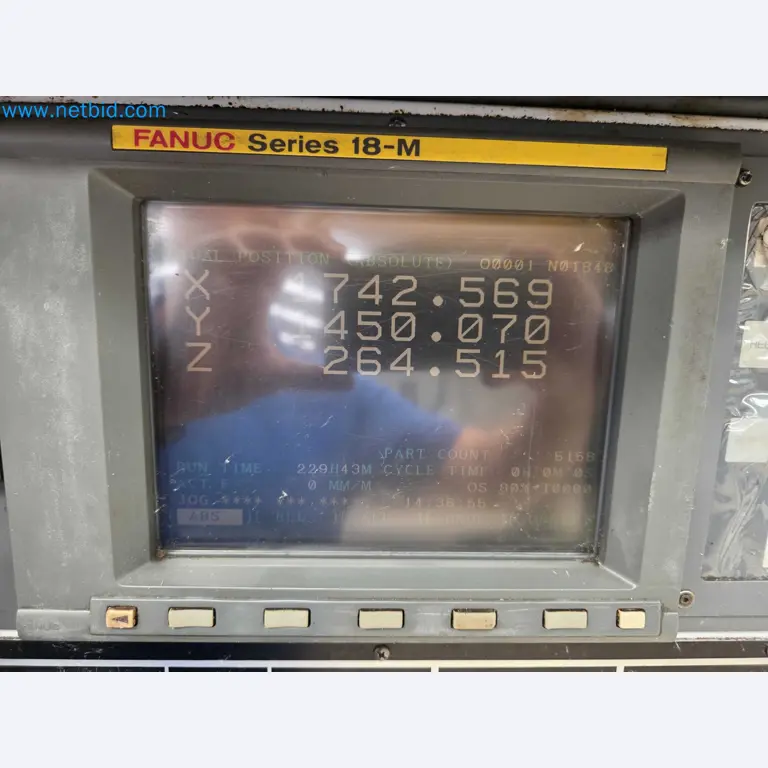

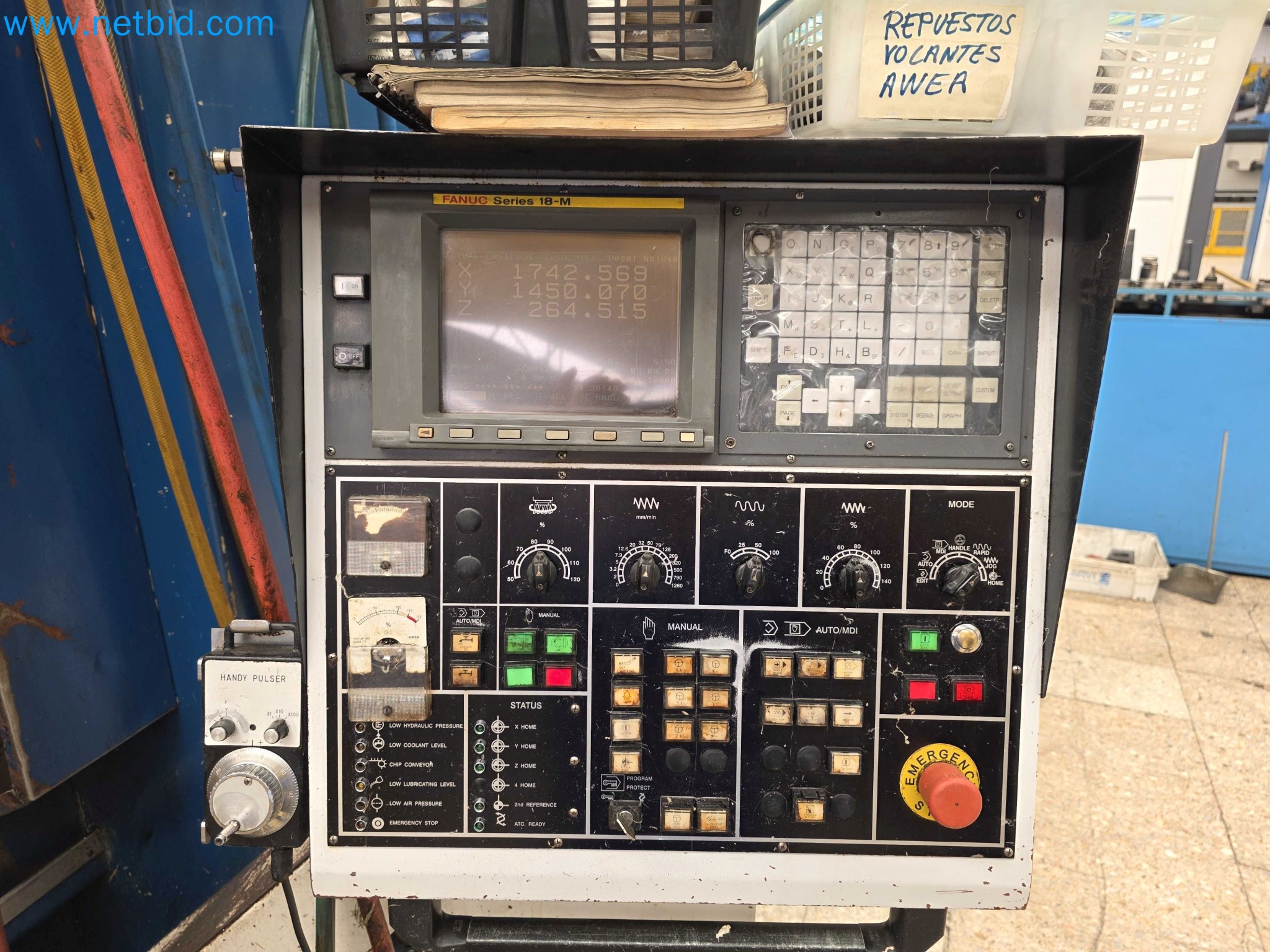

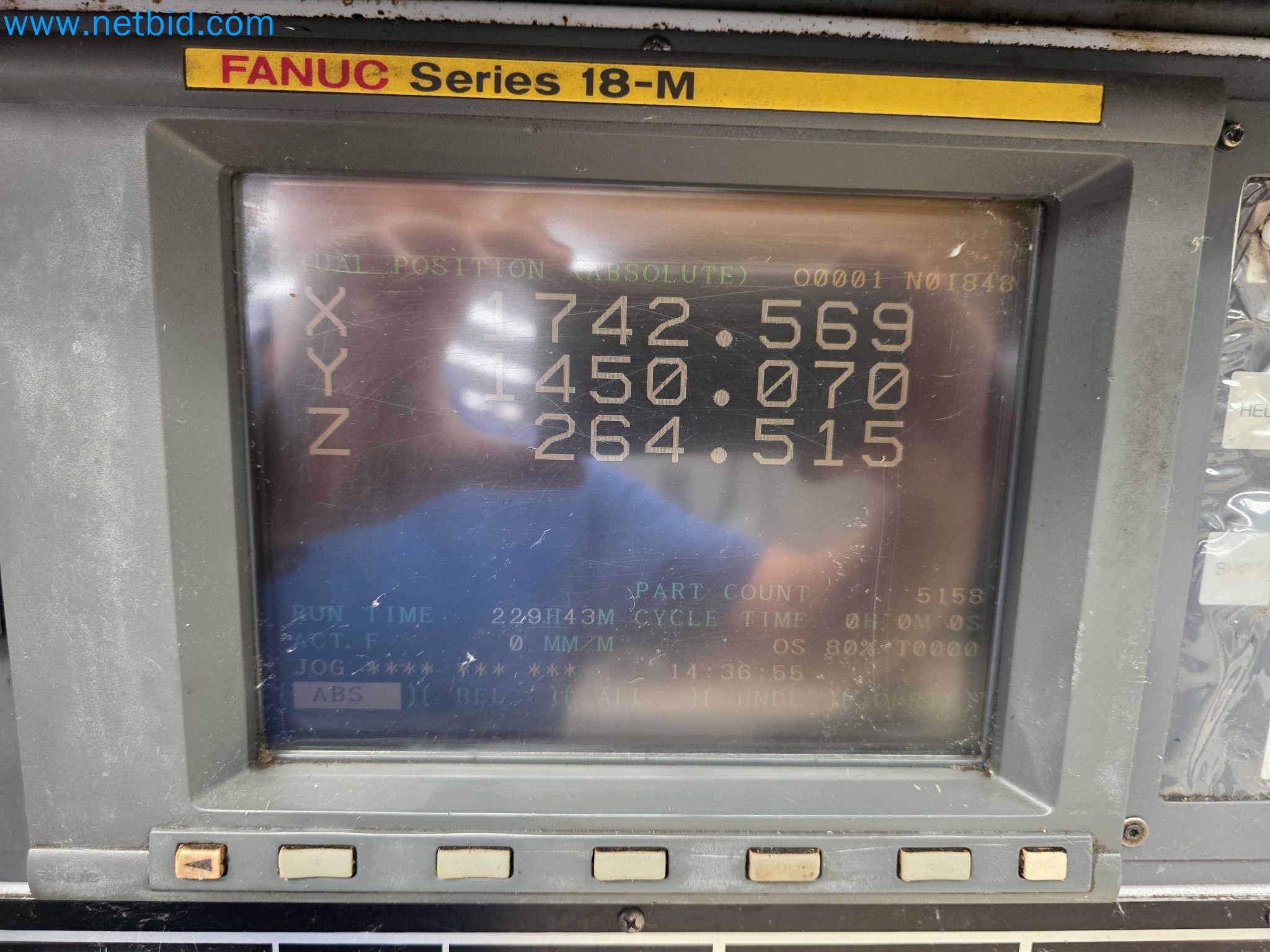

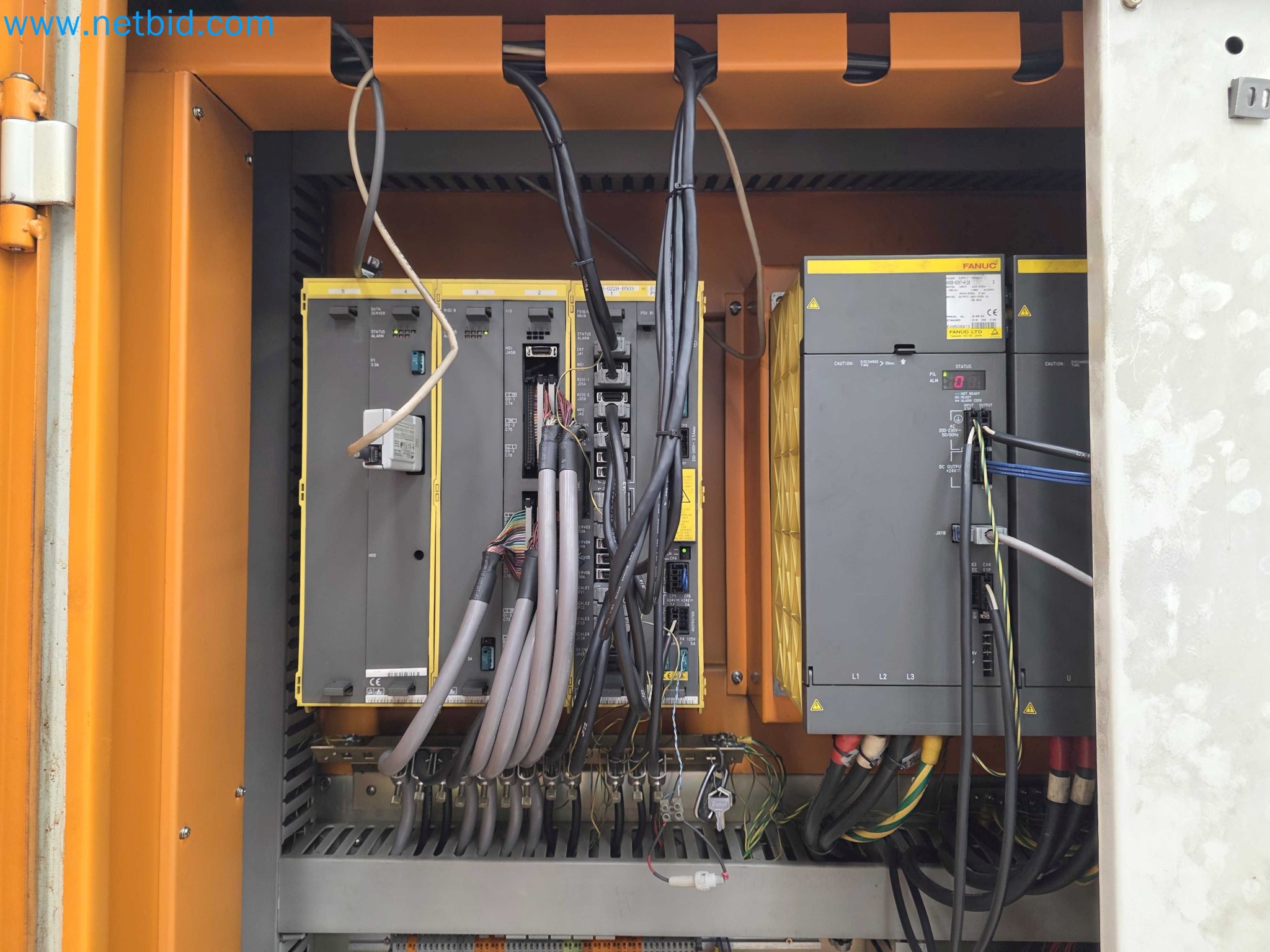

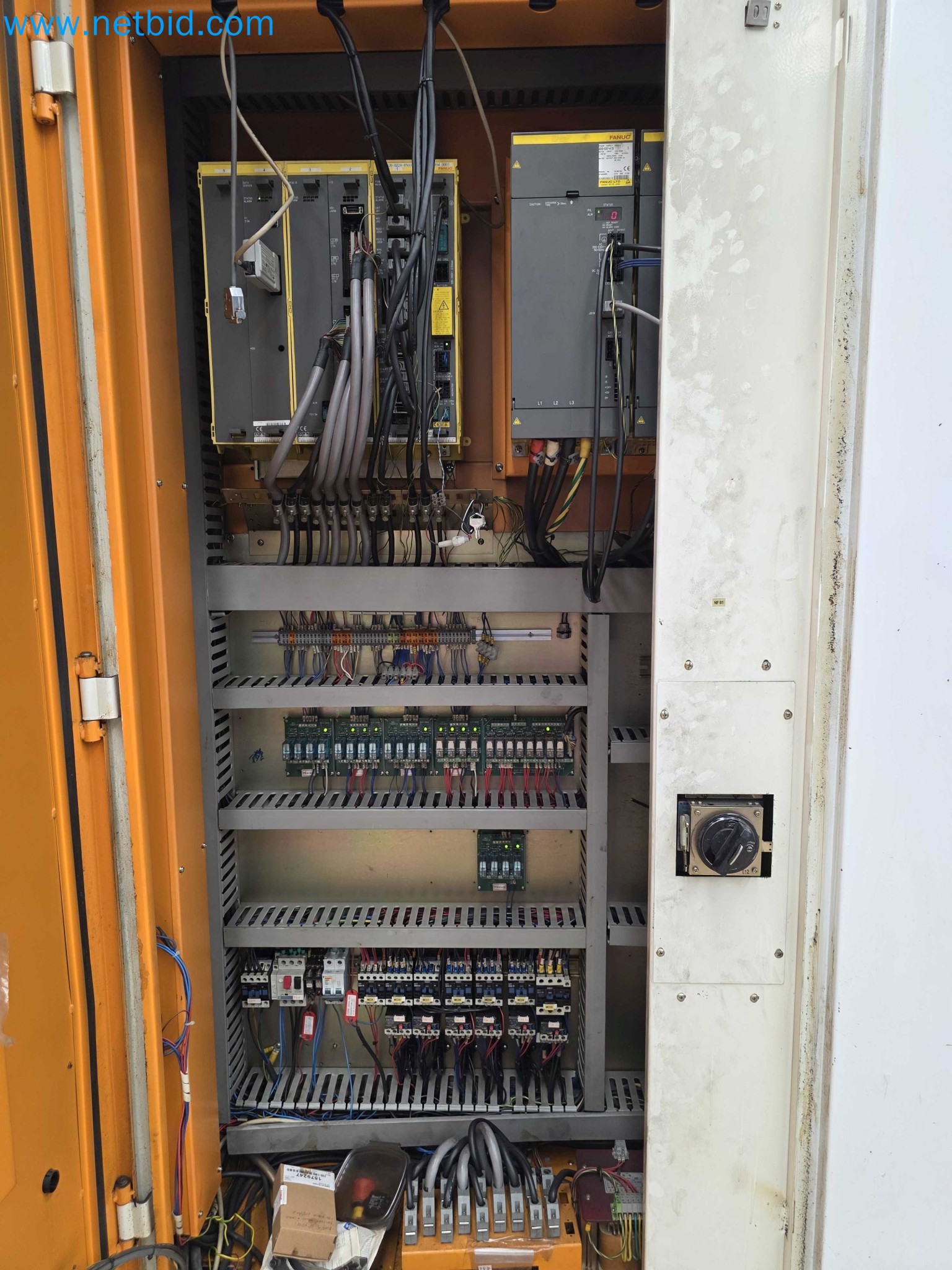

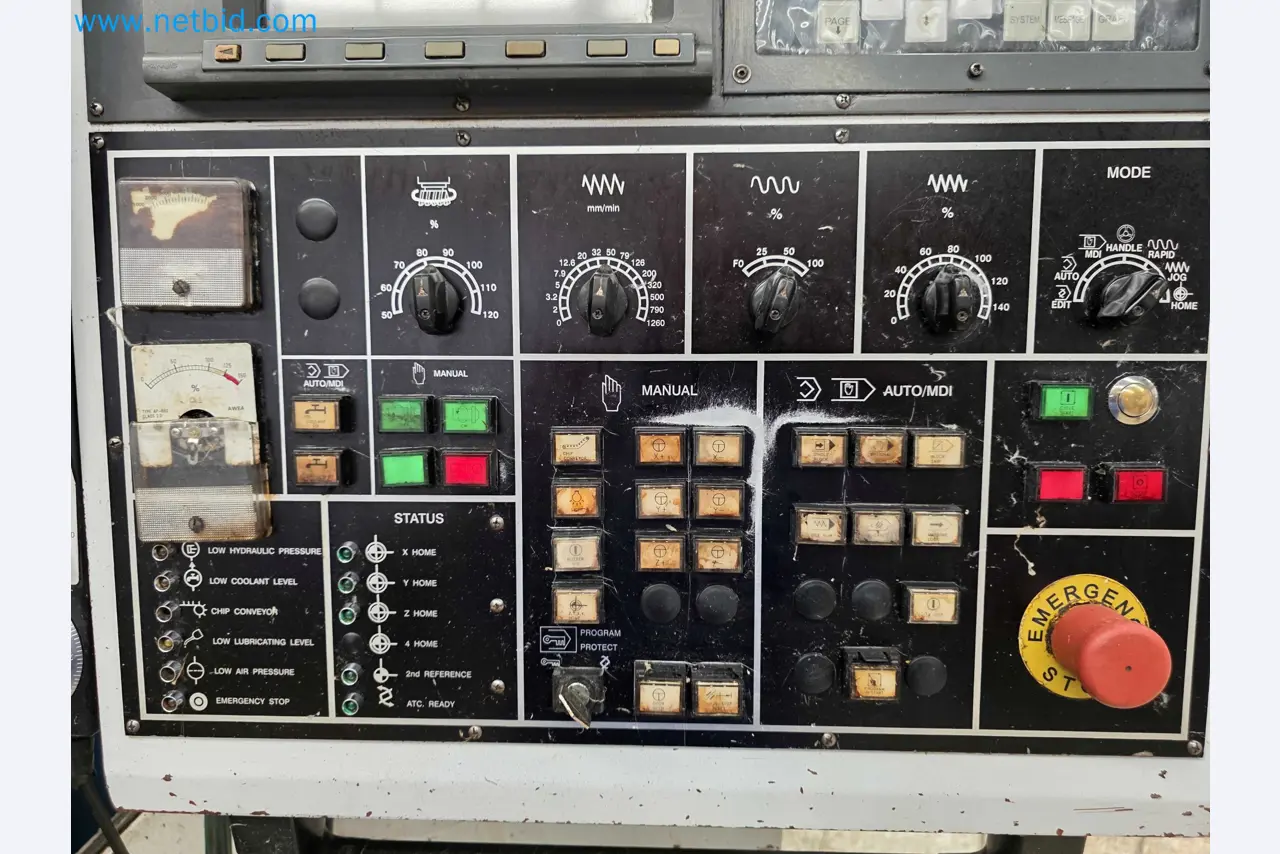

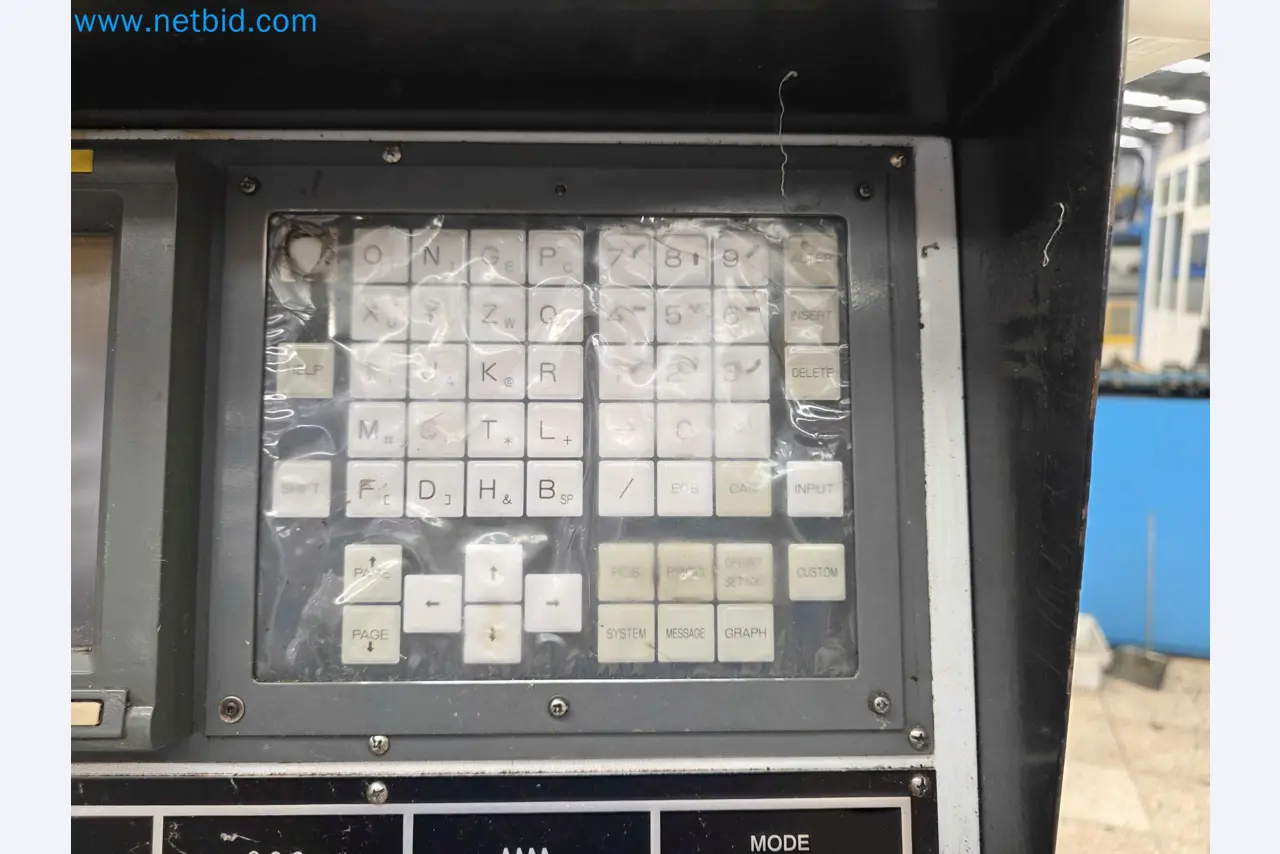

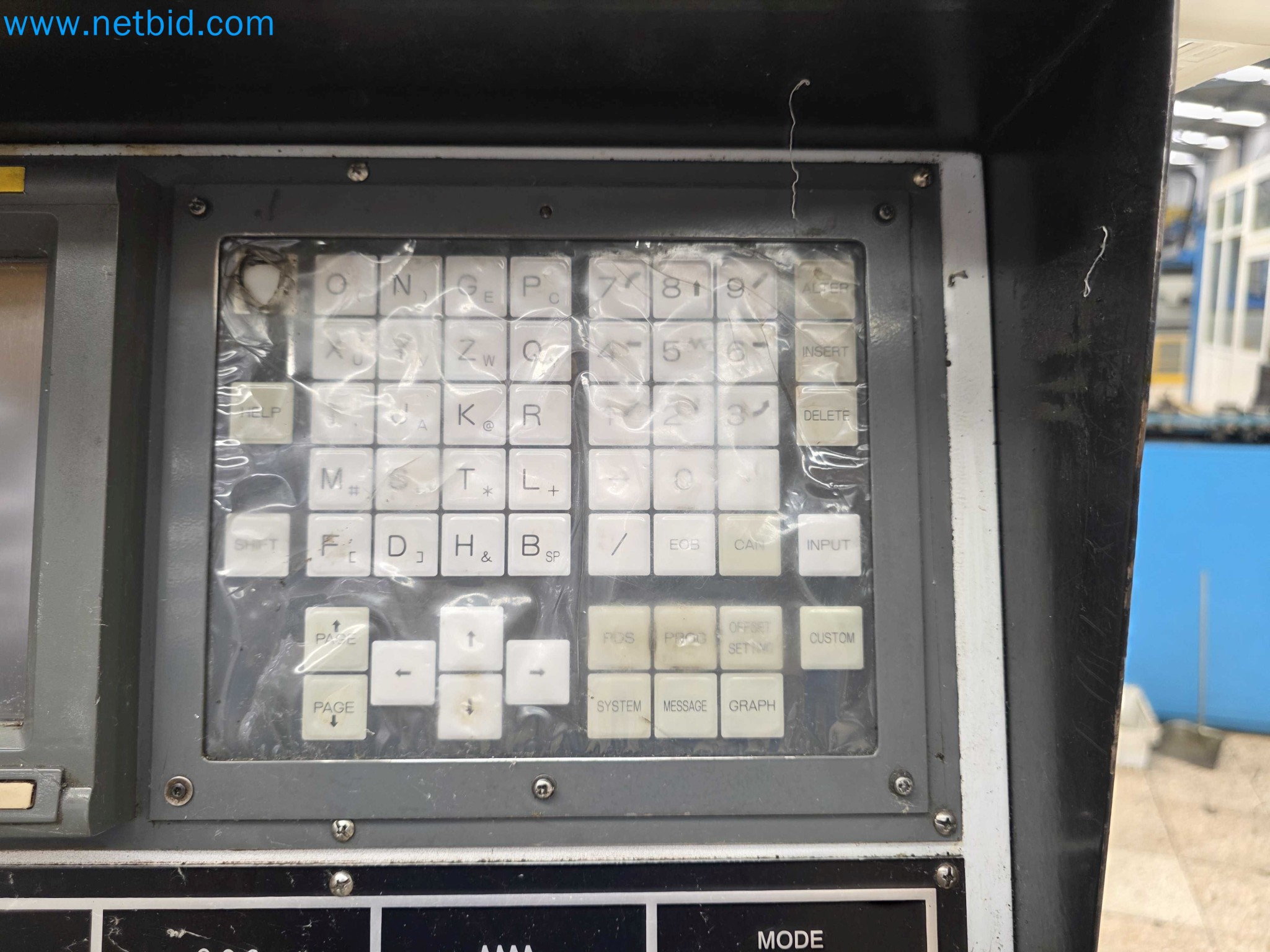

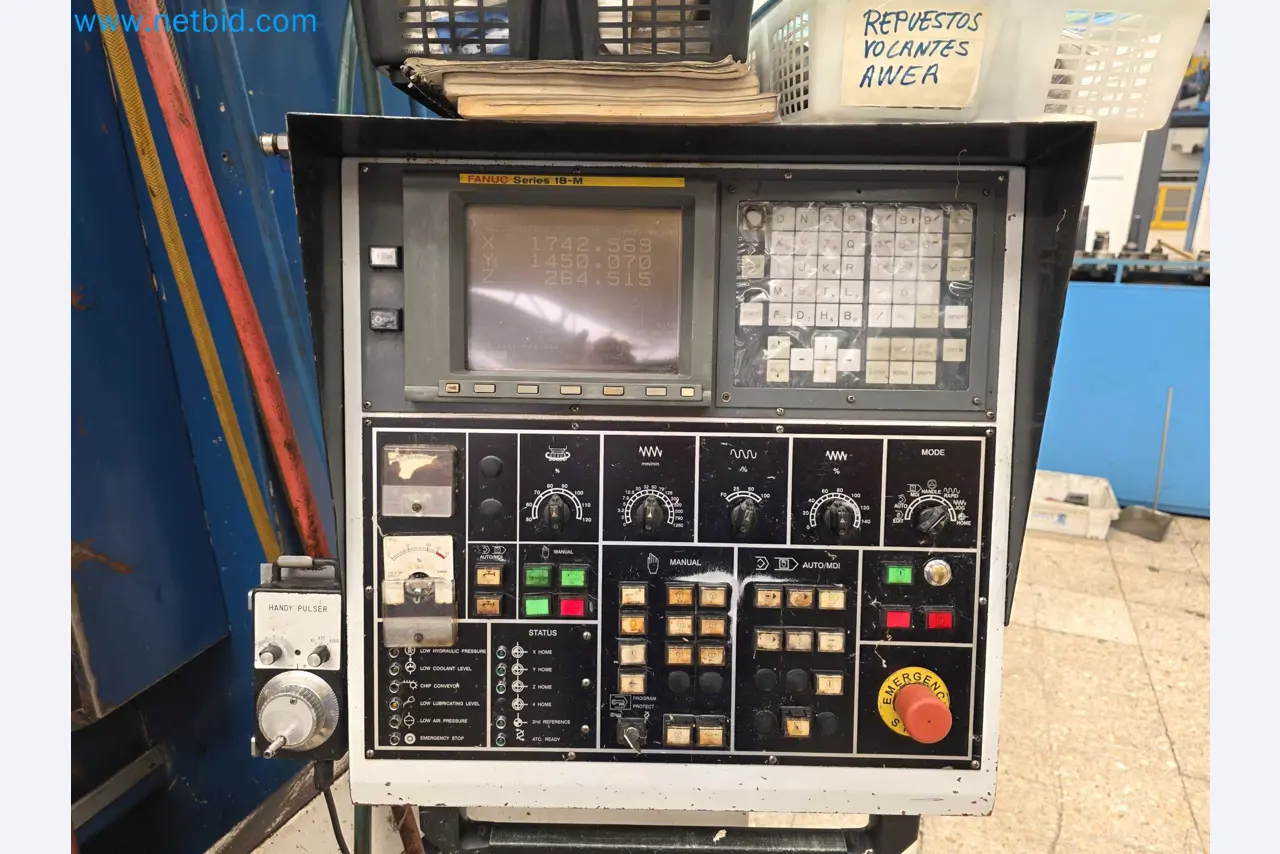

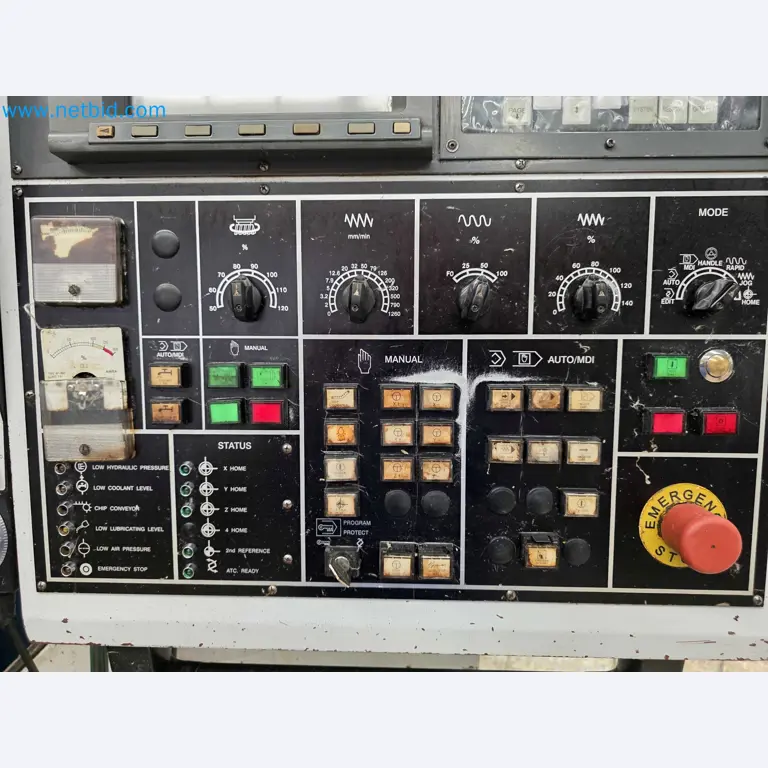

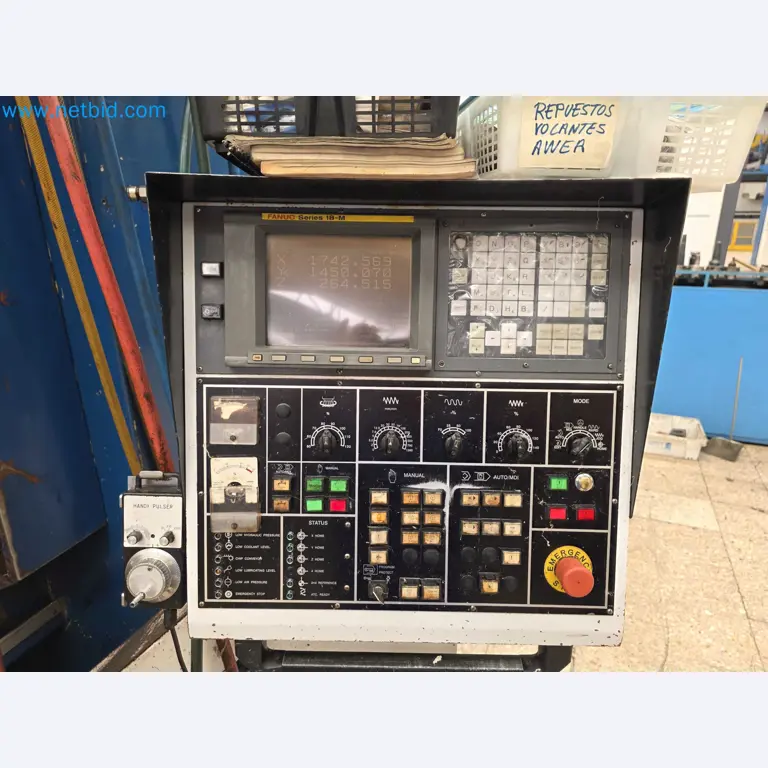

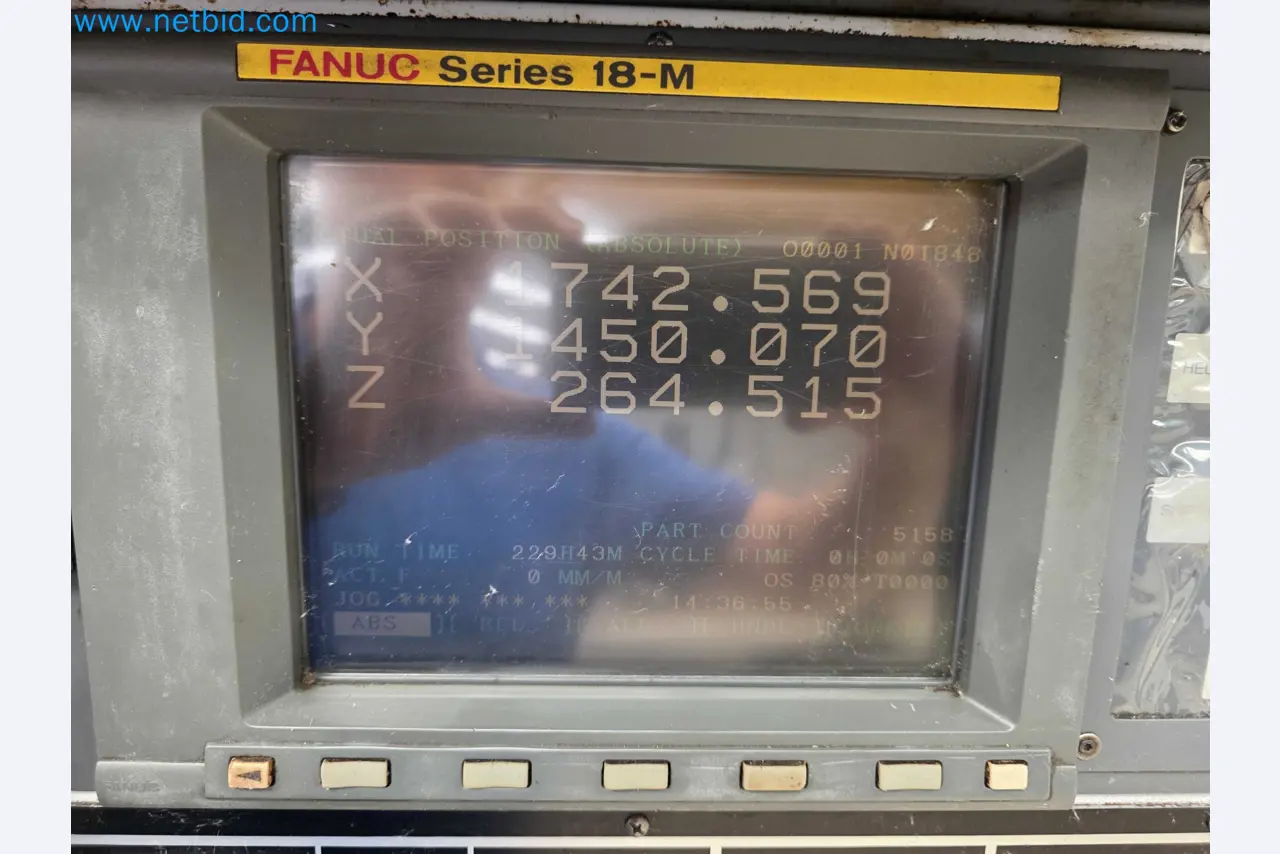

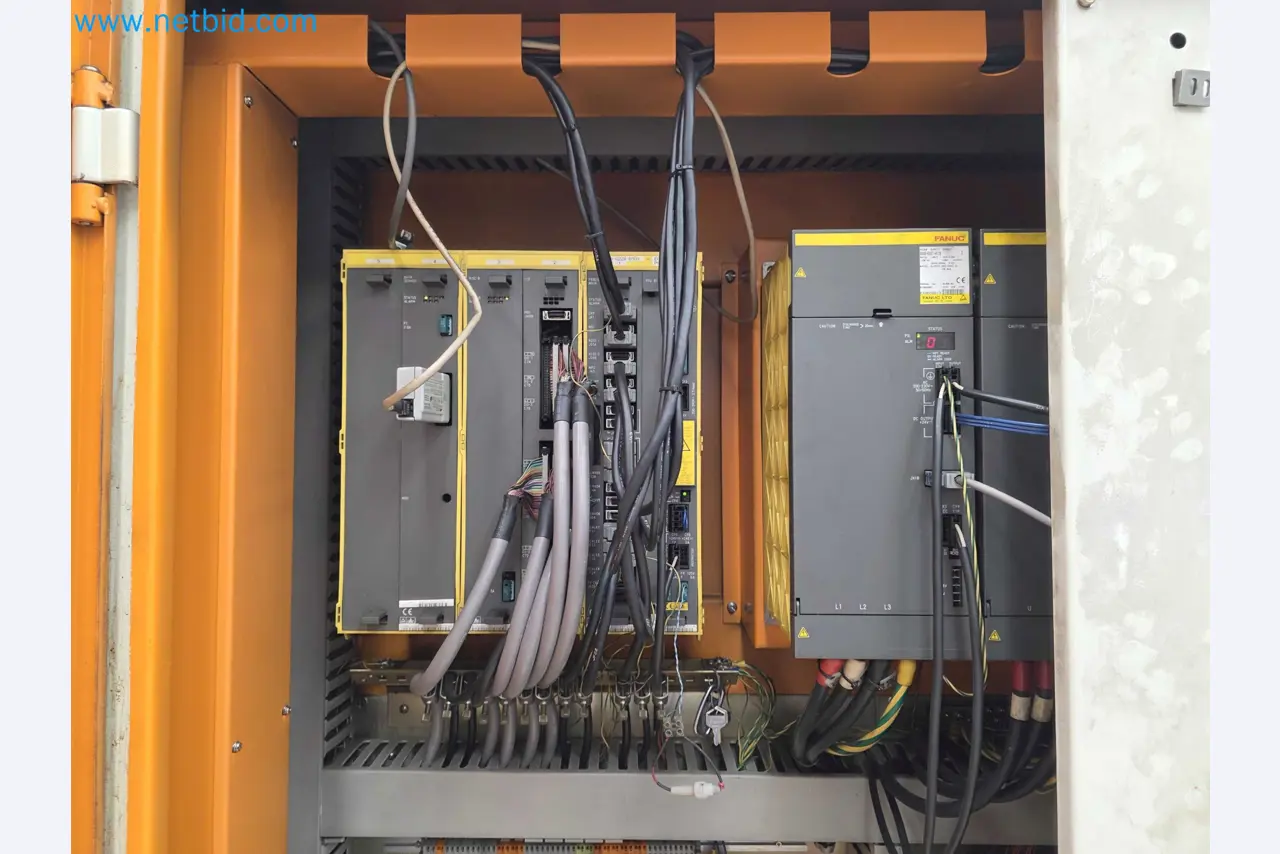

FANUC Series 18-M control

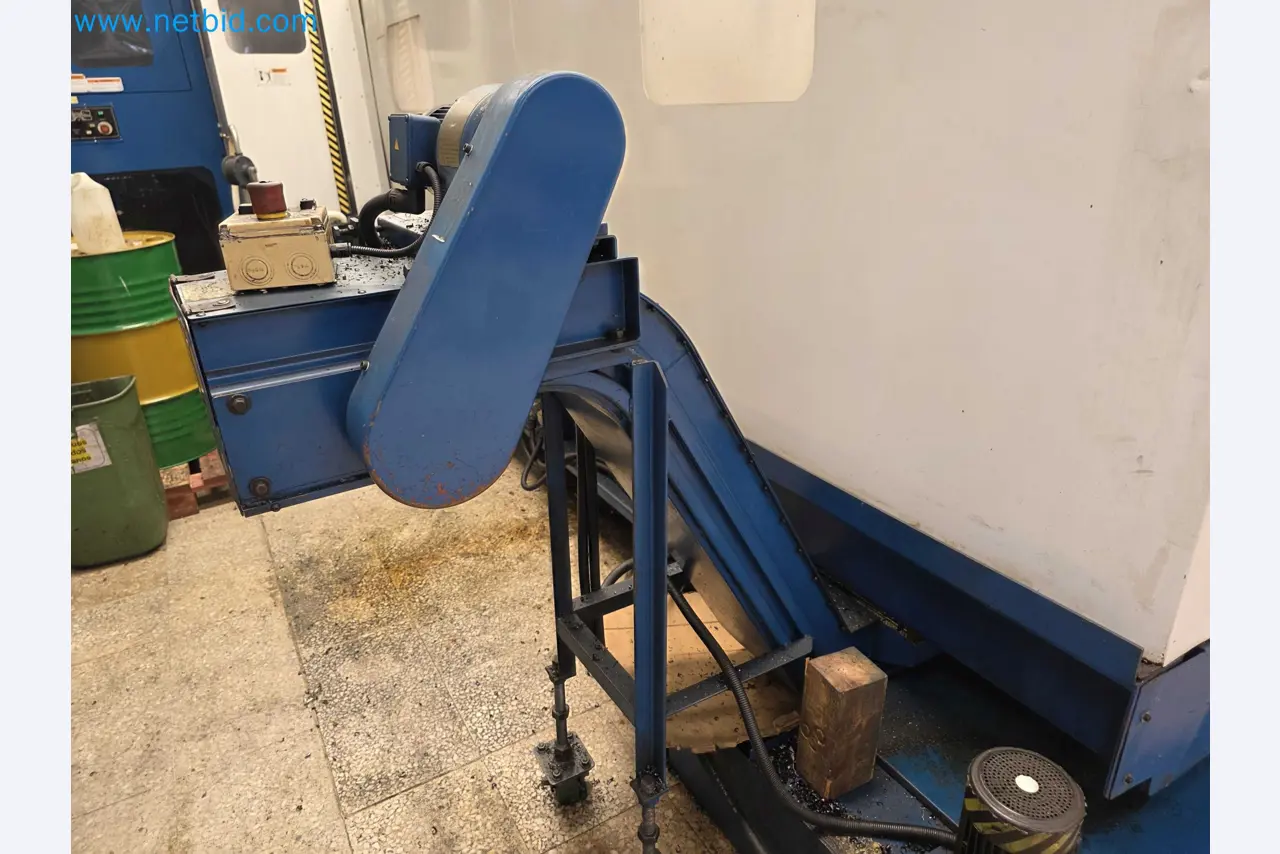

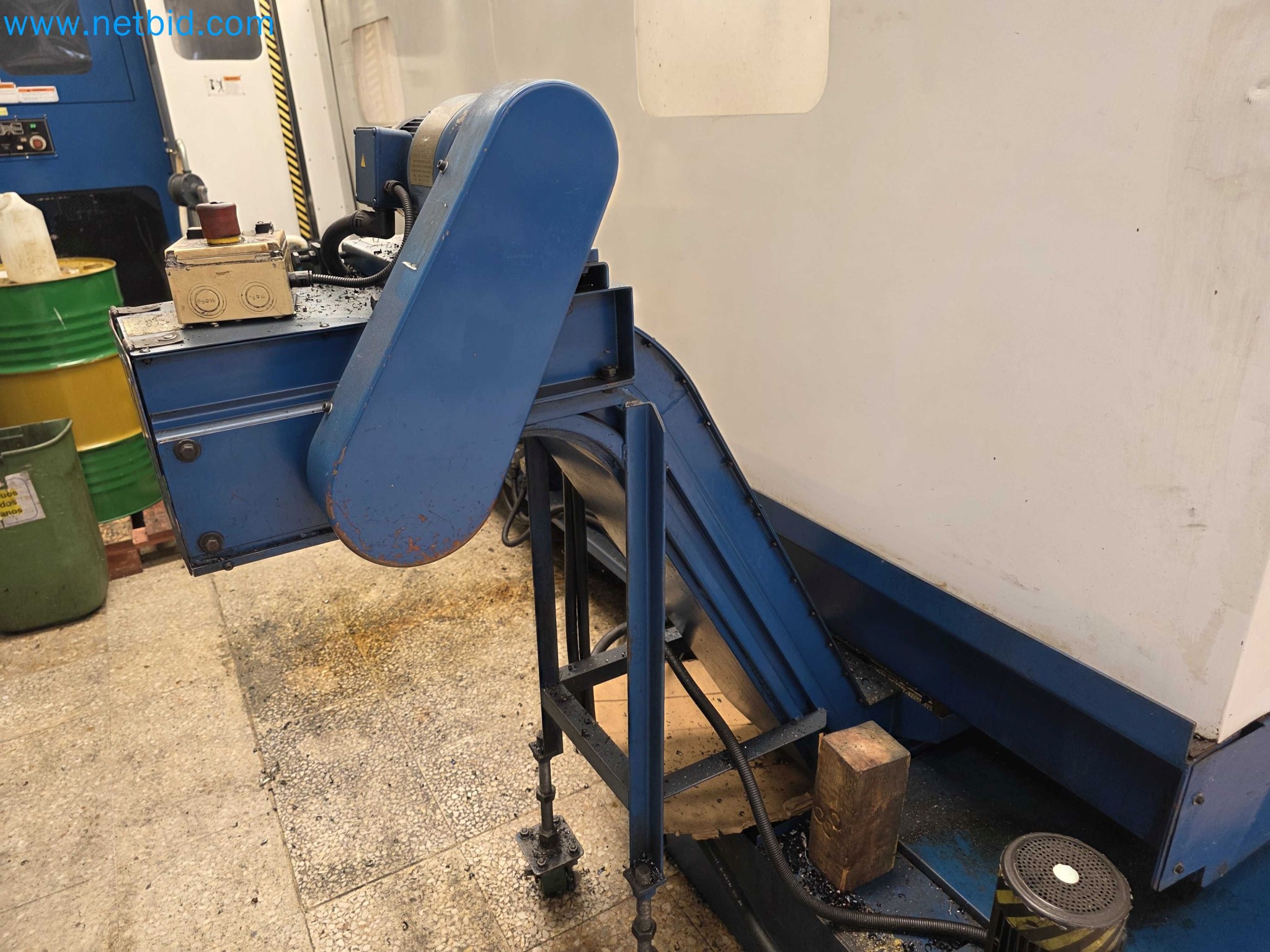

Chip conveyor included

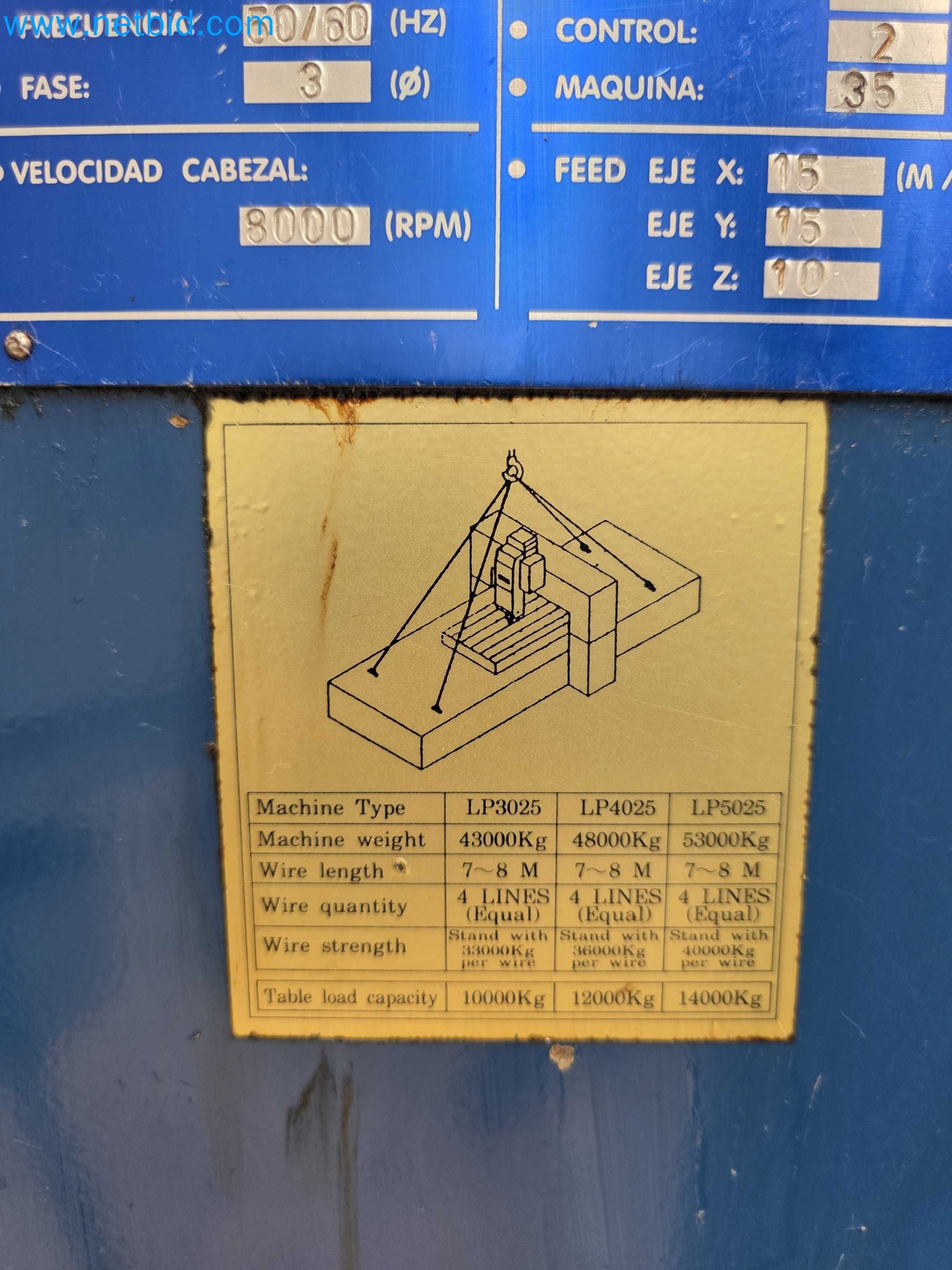

Approximate total weight: 32,000 kg
3-axis
Travels:
· X-axis: 4000 mm
· Y-axis: 2100 mm
· Z-axis: 760 mm
Table dimensions: 4000 x 2000 mm
T-slot table
Distance between columns: 2300 mm
Maximum table load: 10,000 kg
Spindle speed: 10 - 3,500 rpm
Spindle power: 18.5 kW
Feed rates:
· X/Y axes: 15 m/min
· Z-axis: 10 m/min
Cutting feed rate: 1-5000 mm/min
32-position tool magazine
Maximum tool length: 350 mm
Maximum tool diameter: 130 mm
Maximum tool weight: 20 kg
BT-50 tool holders
FANUC Series 18-M control
Chip conveyor included
Approximate total weight: 32,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
